    Mounting the circuit chassis in the case

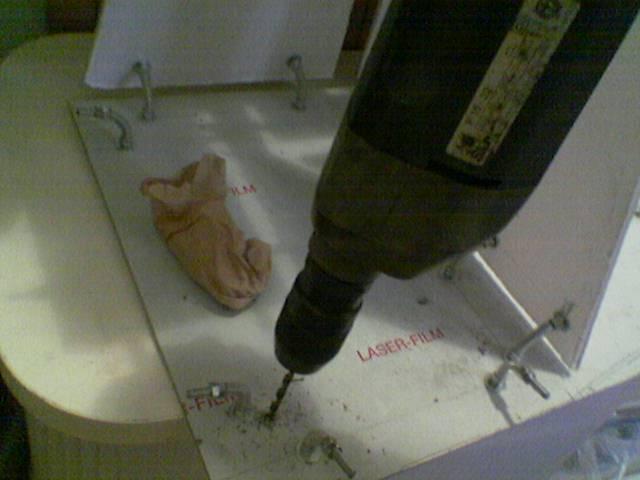

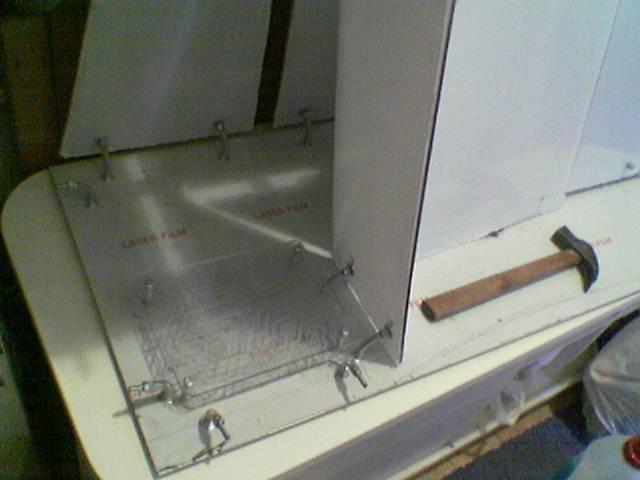

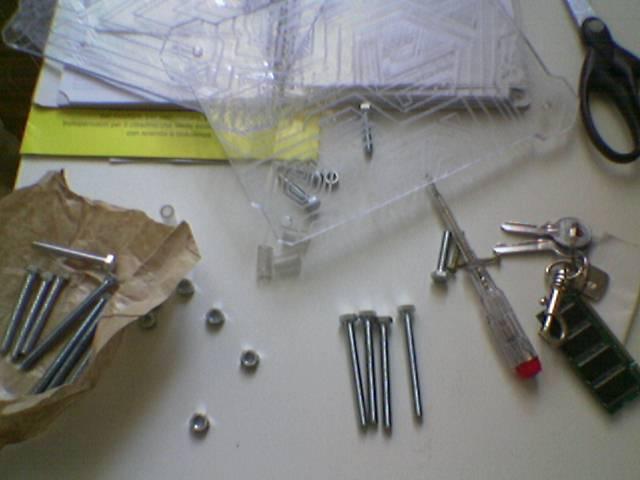

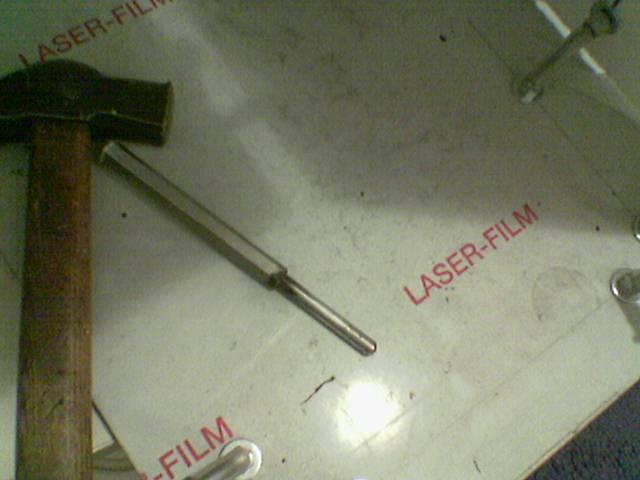

I bought another titanium drill tip after damaging my old one, then I mounted the circuit encasing in the case:

and here it is placed in its position:

    Bending the motherboard structure

and now the troubles begin… 😀

at this point I should have had to bend a side of the panel, but I couldn’t do it and I got hurt in the various attempts.

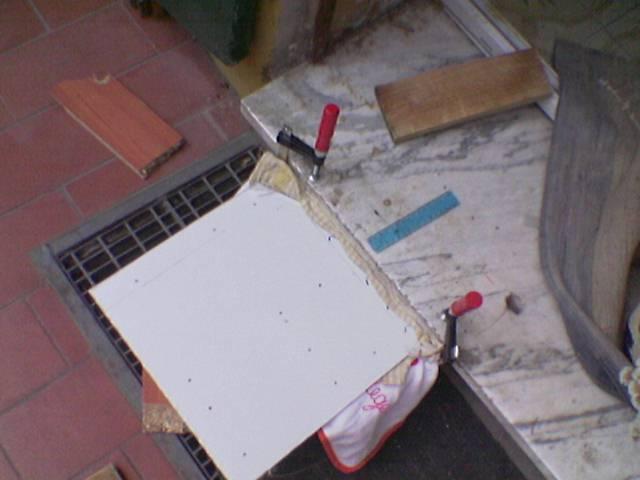

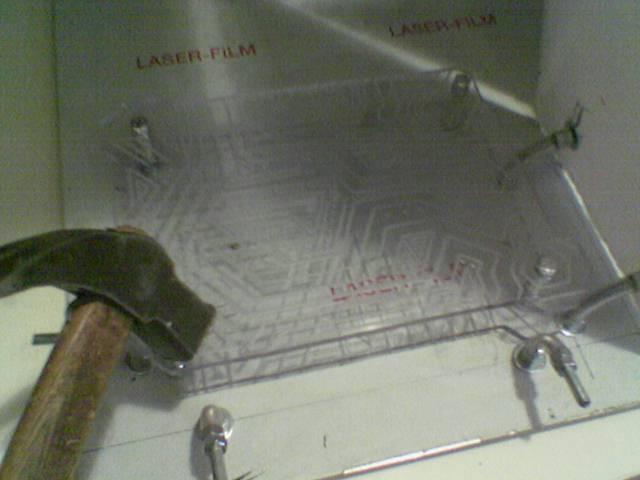

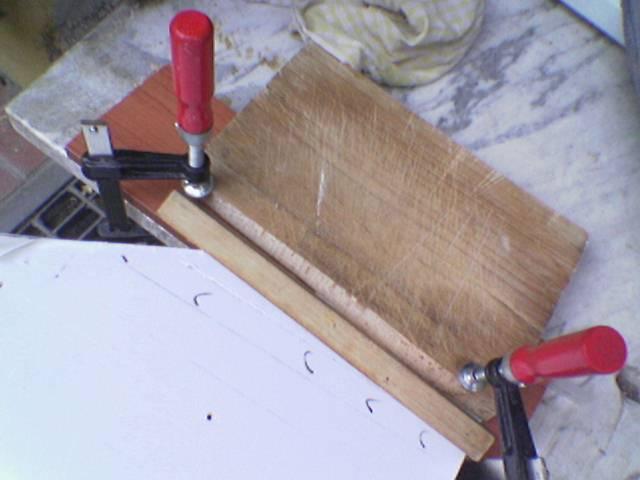

First I have done a mild attempt


then I used a little more strength…

result: failed (and a broken cutting board)

then I used more and more strong methods:


after this attempt, with a broken board and a crushed and bleeding finger, I used another bigger chopping board!

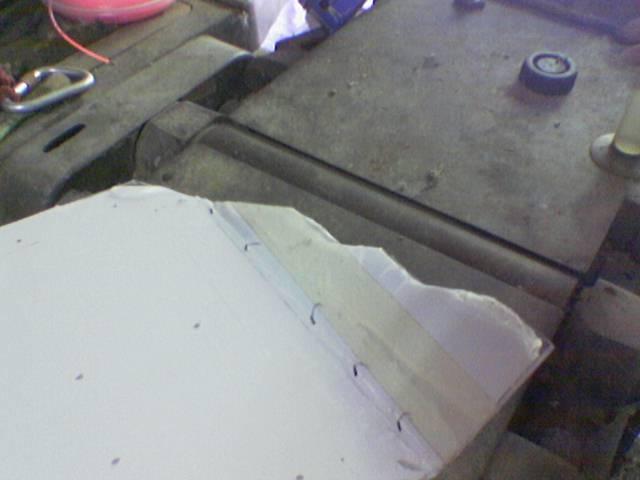

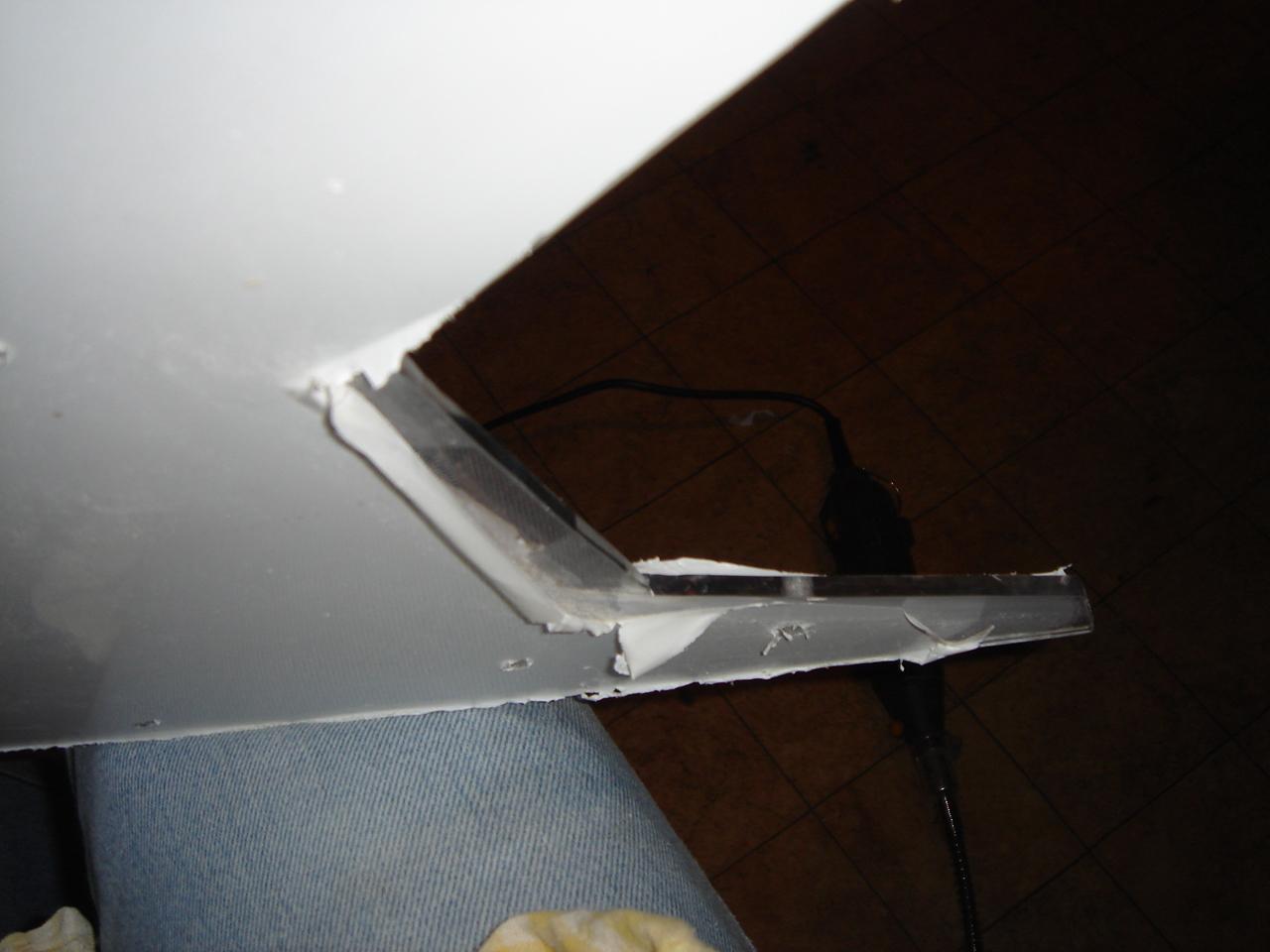

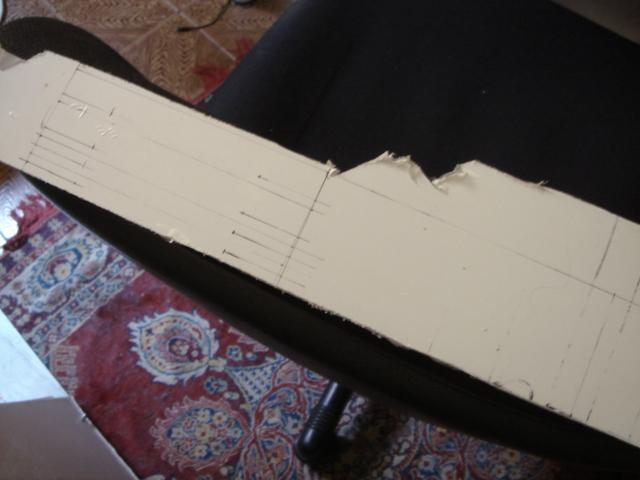

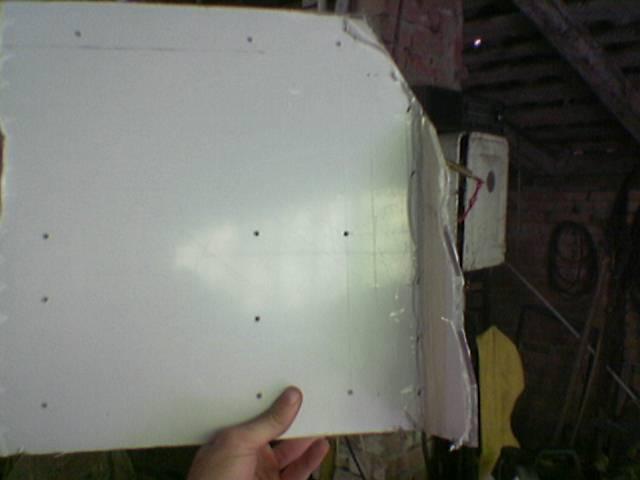

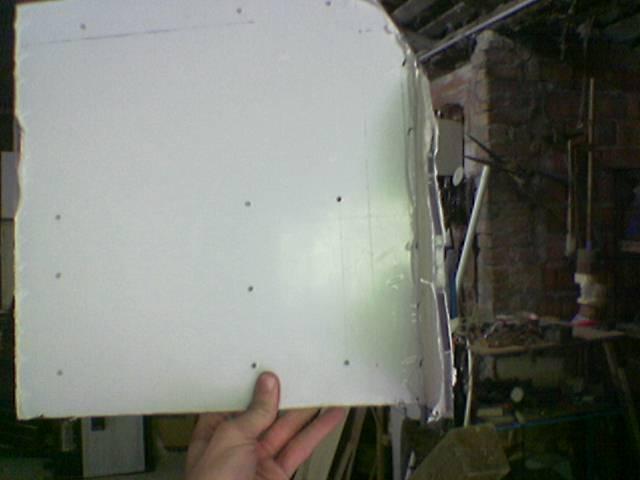

result: polycarbonate that did not bend at all, and some scratches in the bending area:

But finally I have won my battle against the polycarbonate!

How I have done:

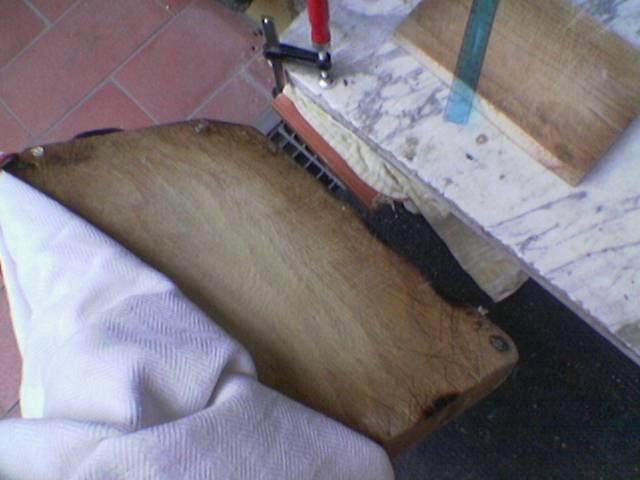

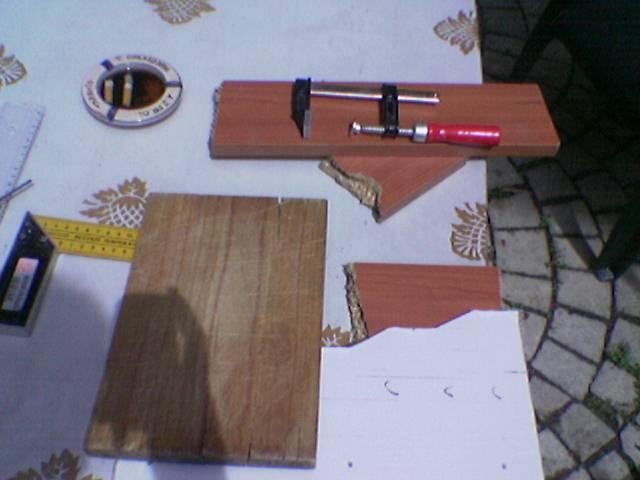

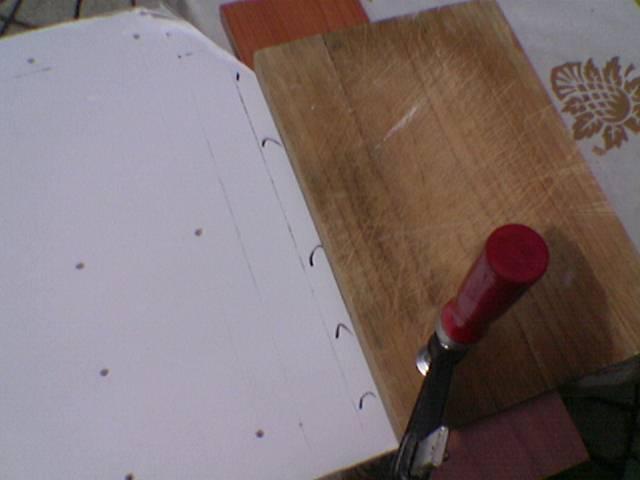

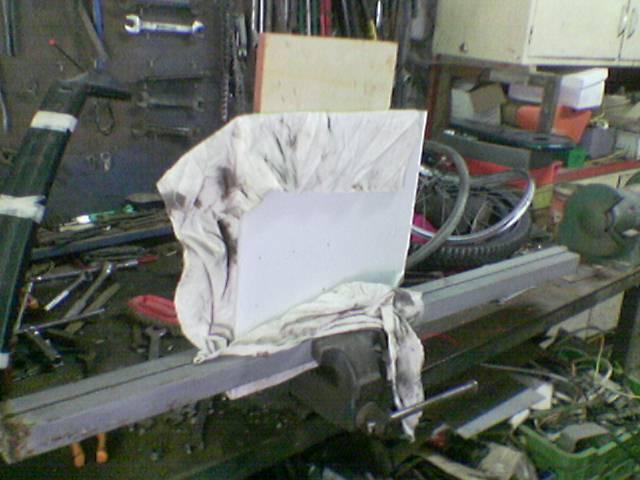

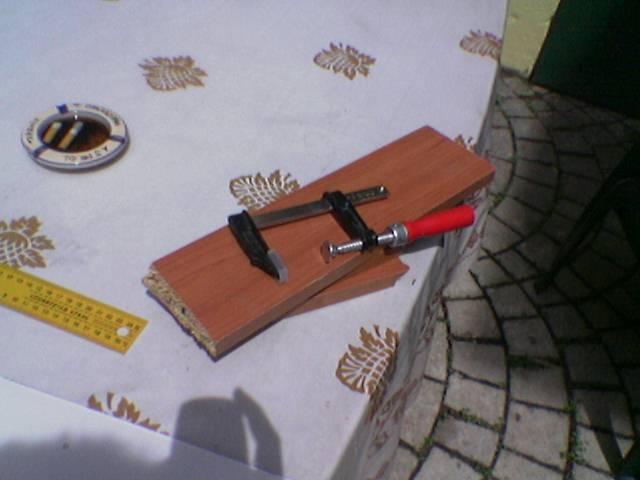

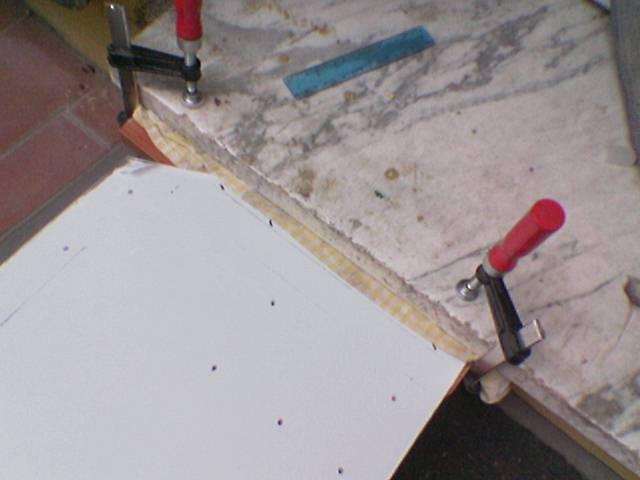

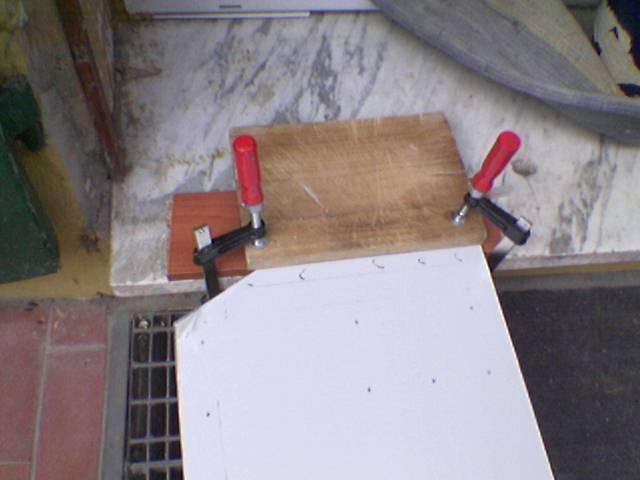

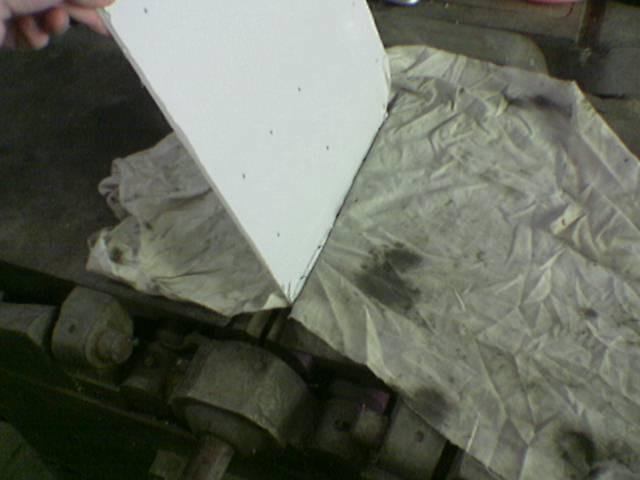

first I put it in a vice with a robust wood board, then I went on the board with my full weight, to obtain a first bending.

then, given the first bending, I placed the panel in the gap of a wood planer (about 1 ton of weight), which has been stronger than the chopping board! 😀

the wood planer:

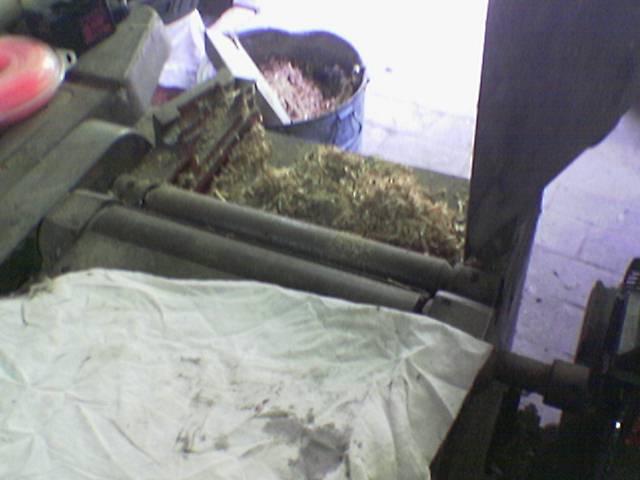

I fit the panel in the wood planer:

the locked panel:

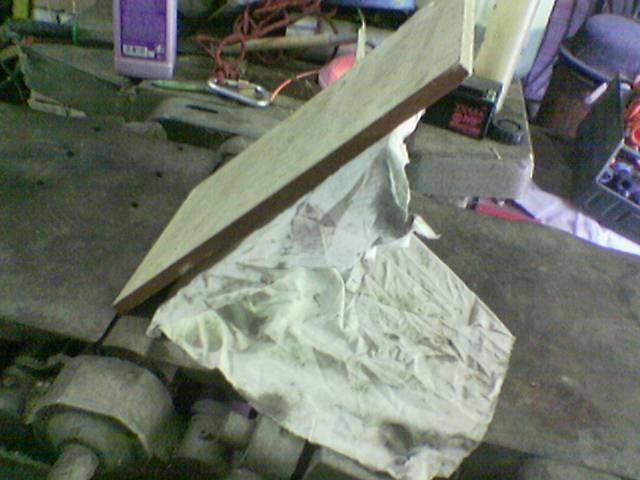

the wood board on the panel:

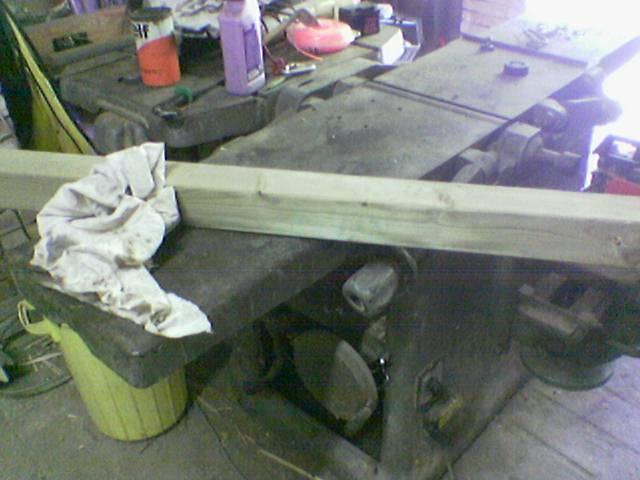

Then I and my father went both on a wood beam placed on the panel, and our weight combined has done the magic!

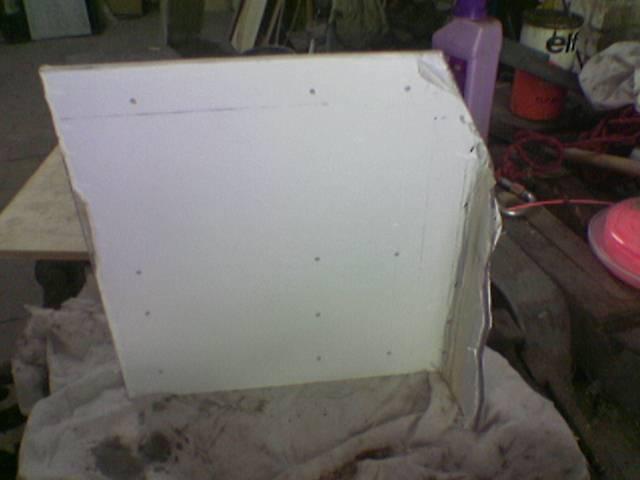

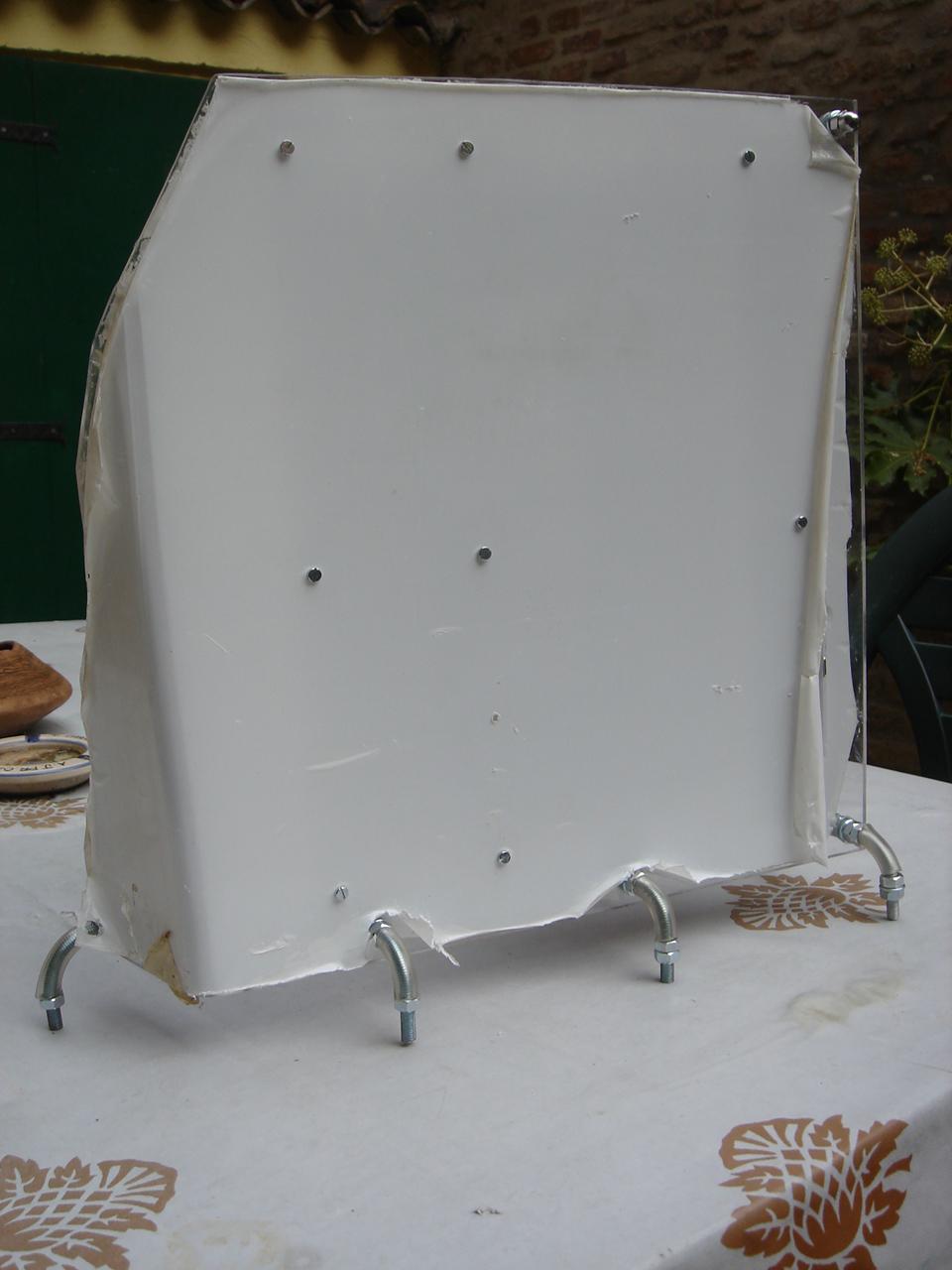

and finally the bended panel! 😀

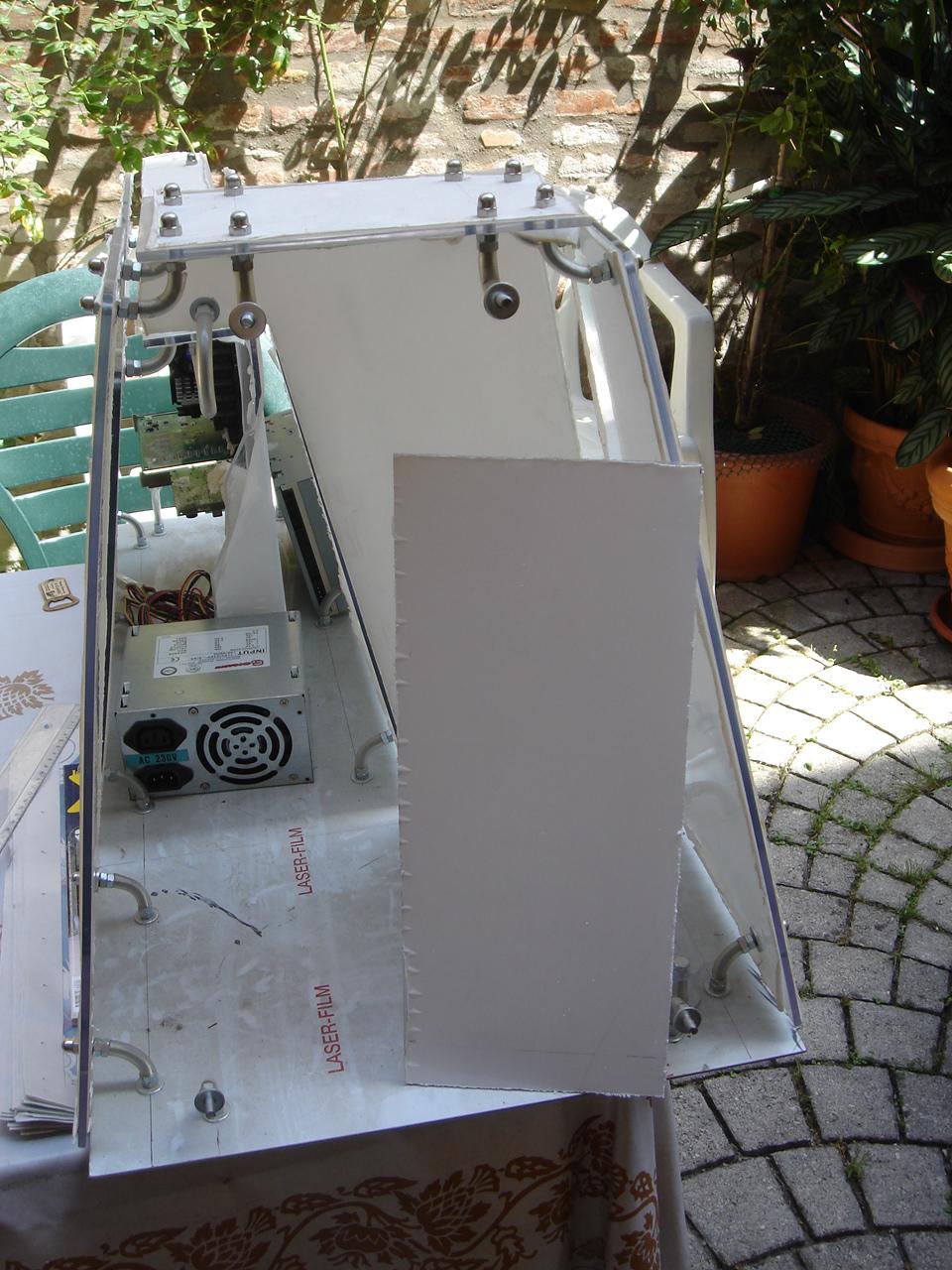

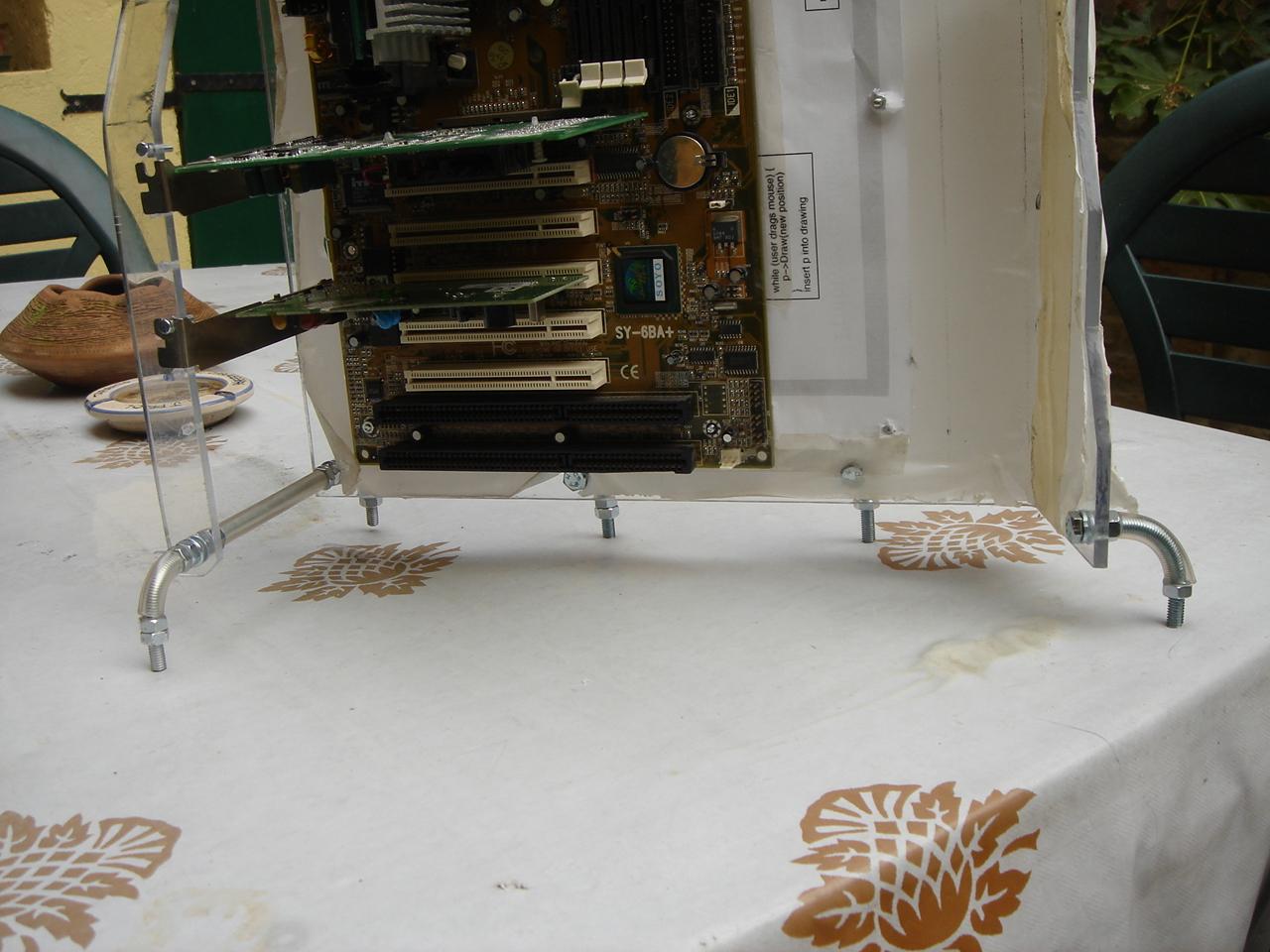

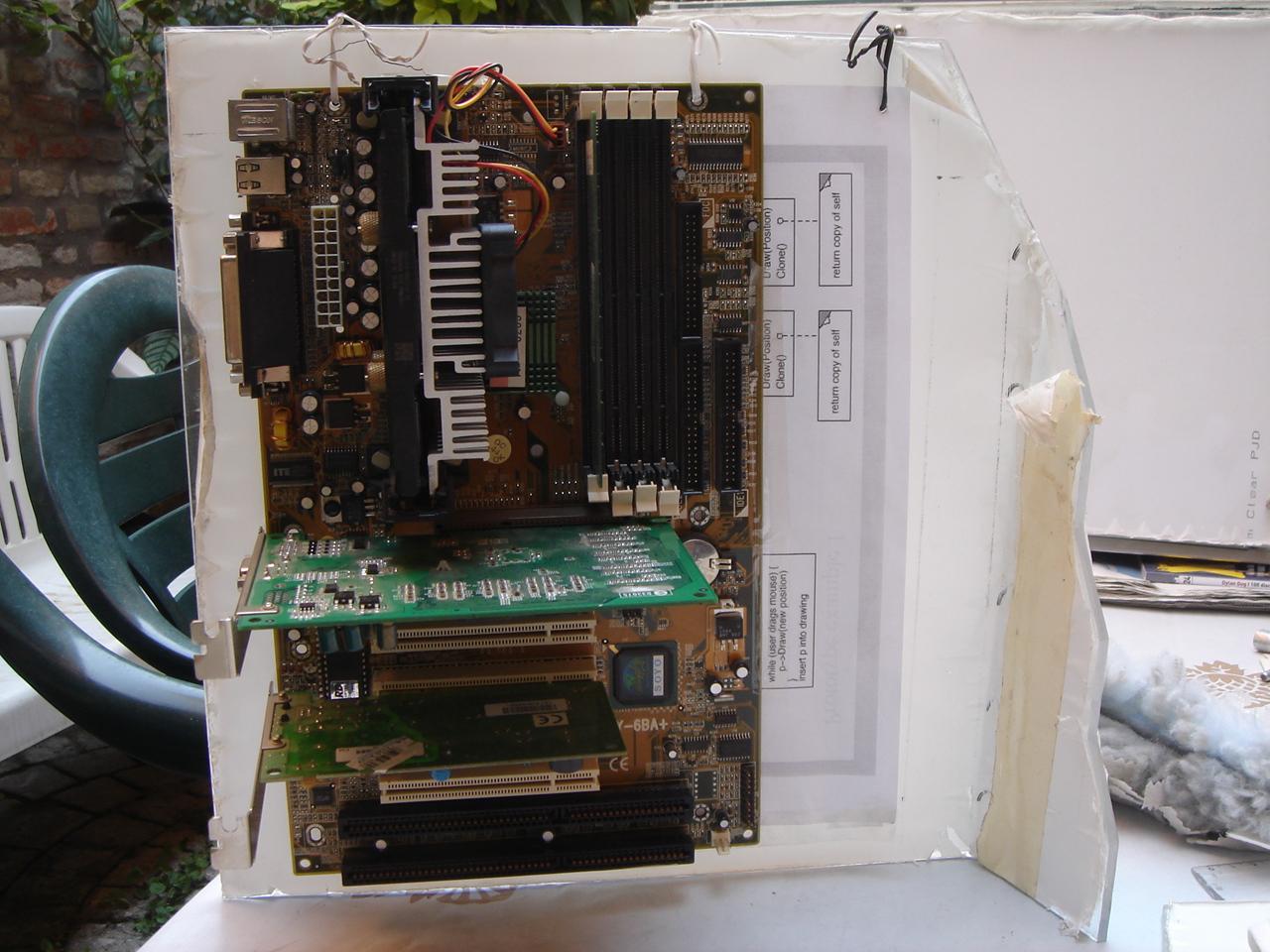

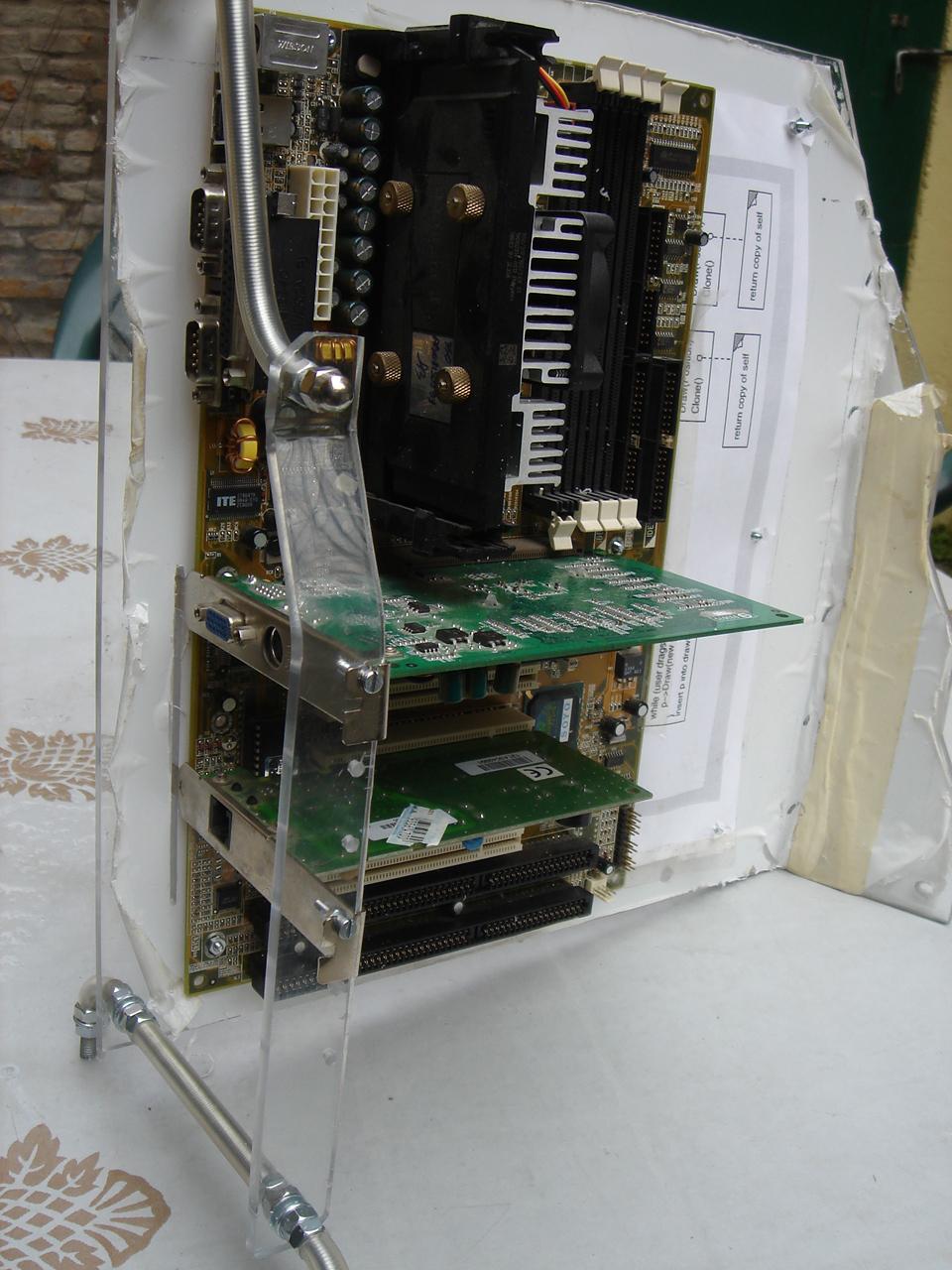

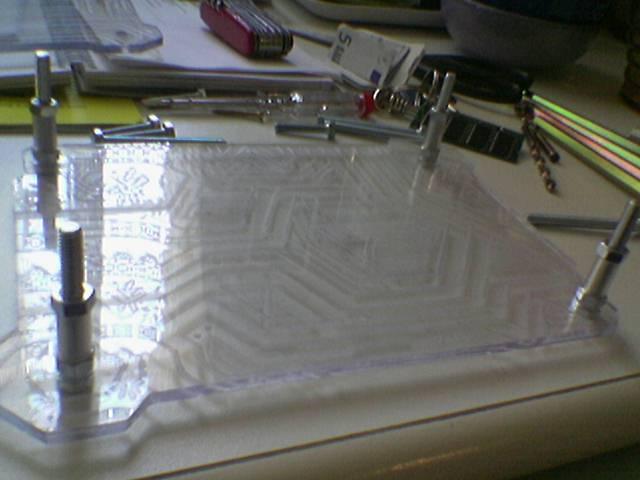

Then I mounted a dummy motherboard on the structure (the paper sheet simulates the 24.4cm width of a full-atx motherboard):

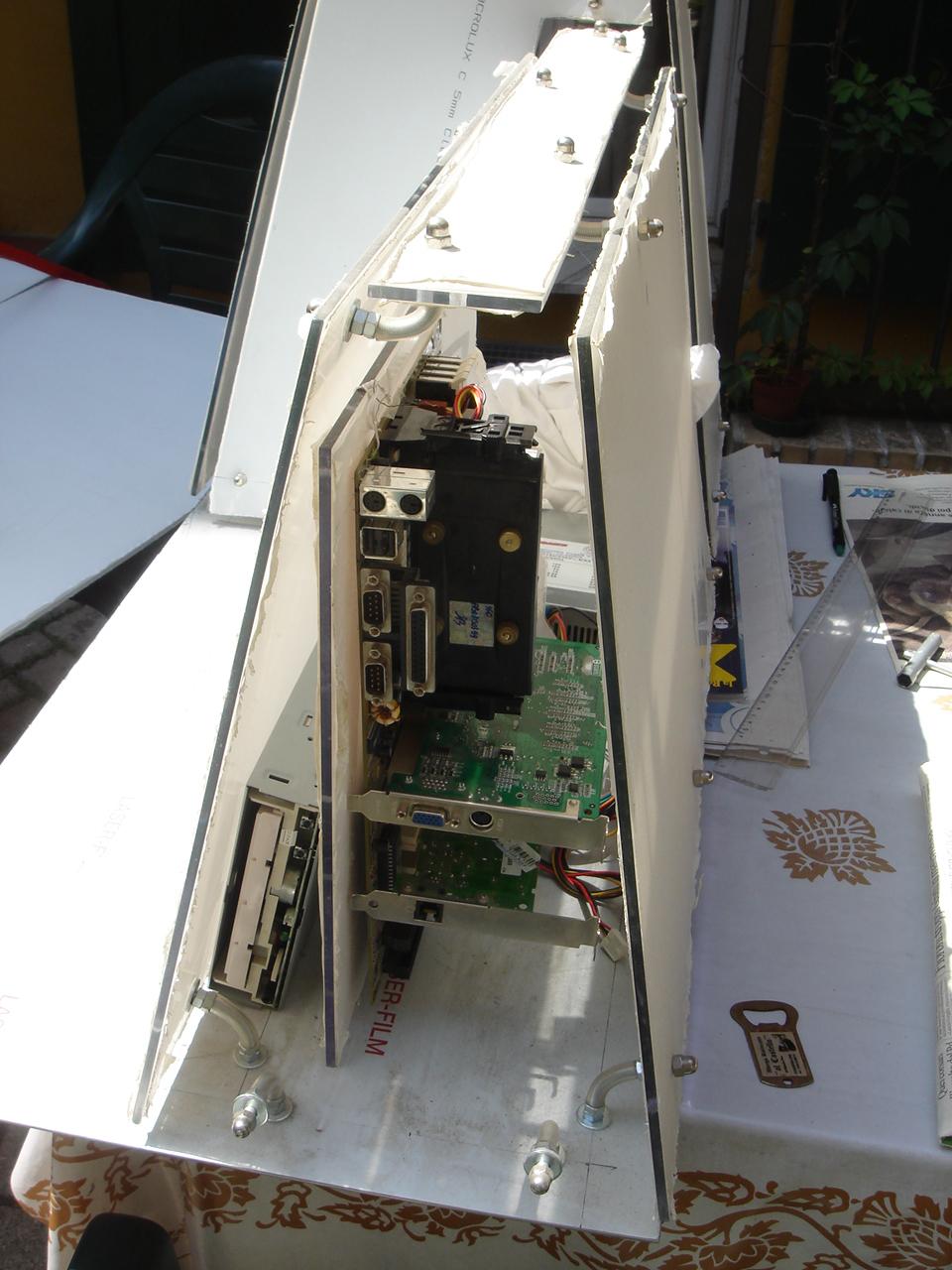

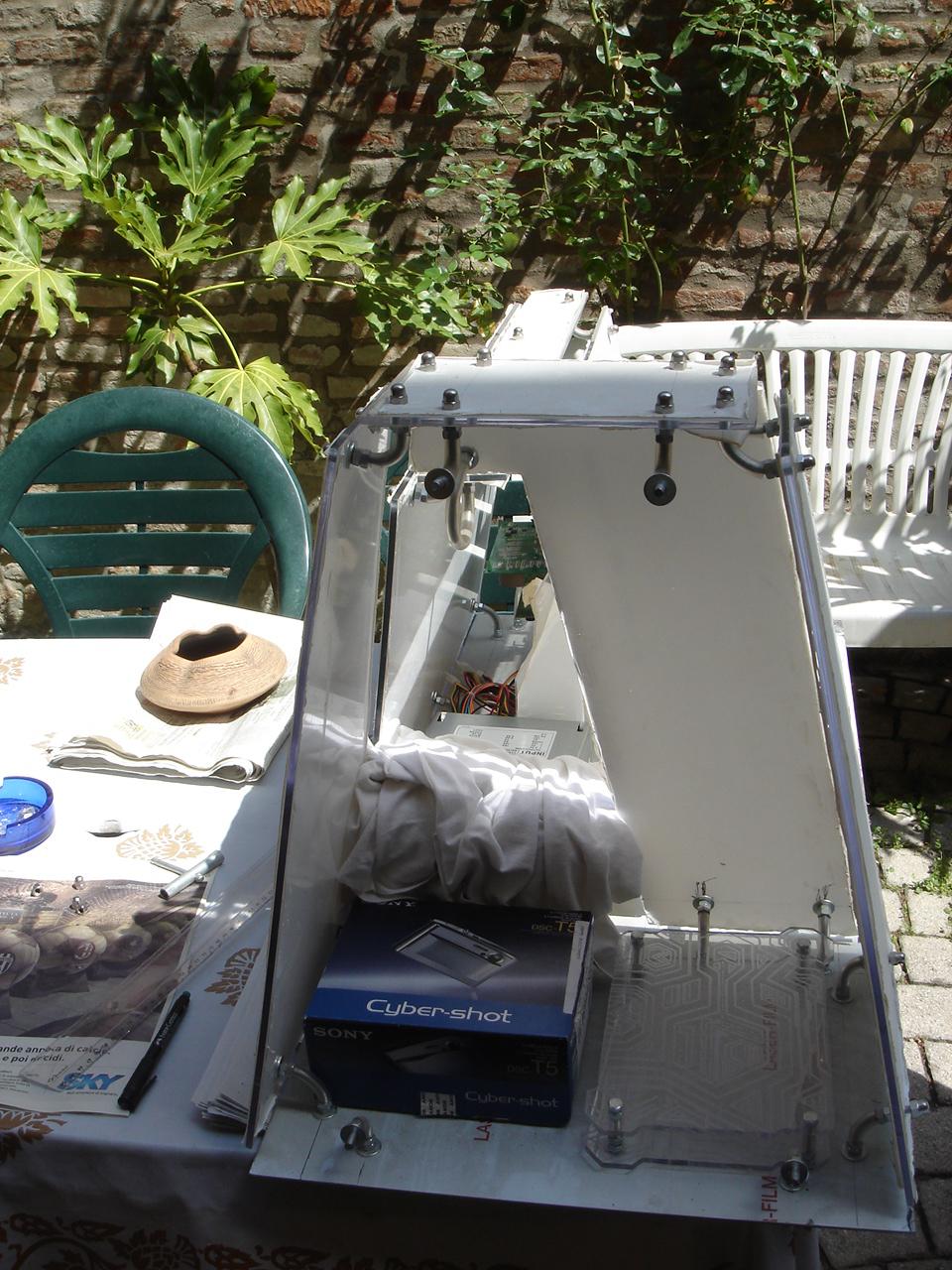

…and I placed the dummy components in the case (the box of the camera should be a dummy 2 hdd structure, and the mysterious component under the shirt is… the mysterious component 😀 )

    Hard disk structure

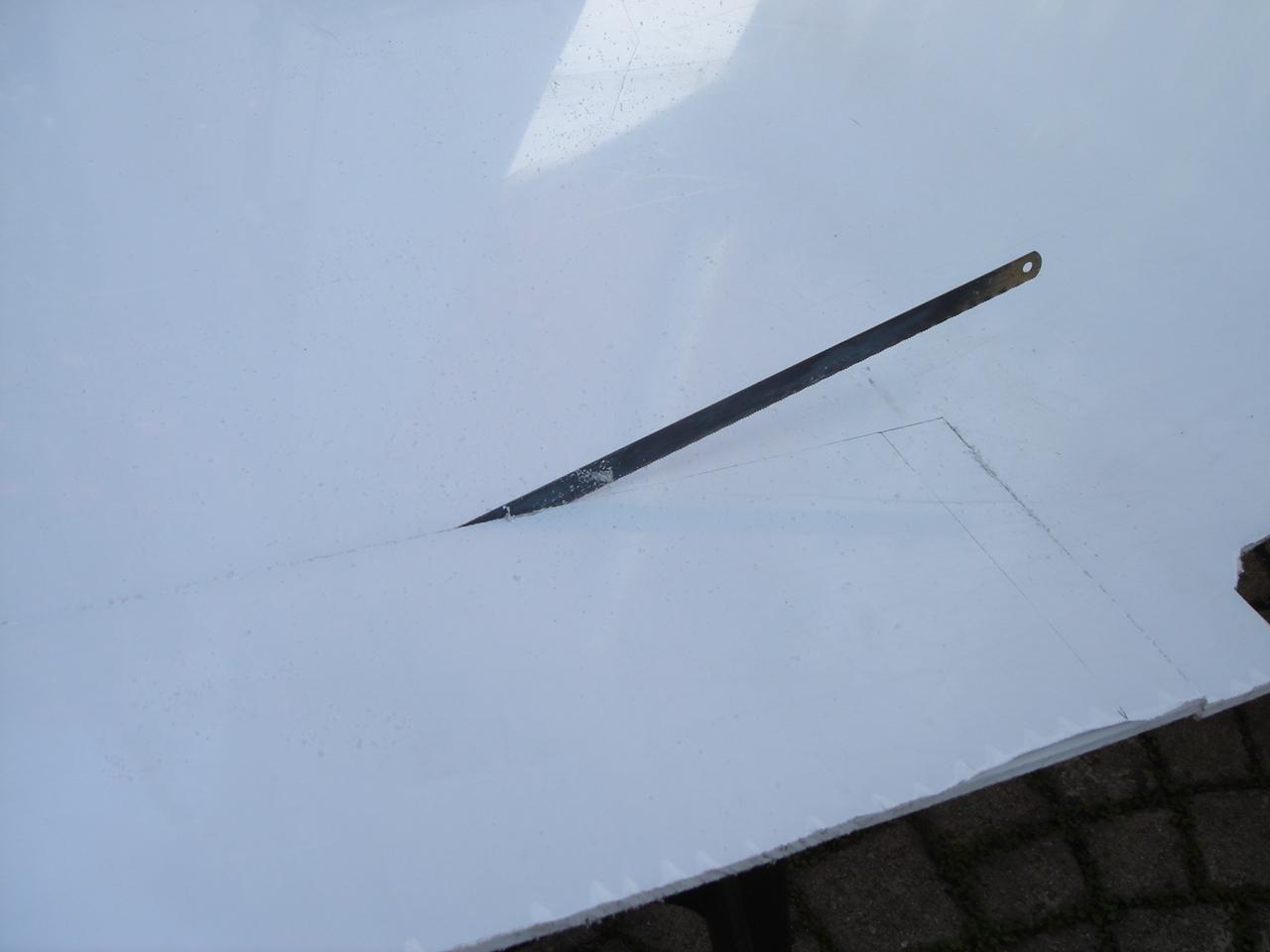

At this point I start to build the last of the components of the basic structure: the hard disk structure:

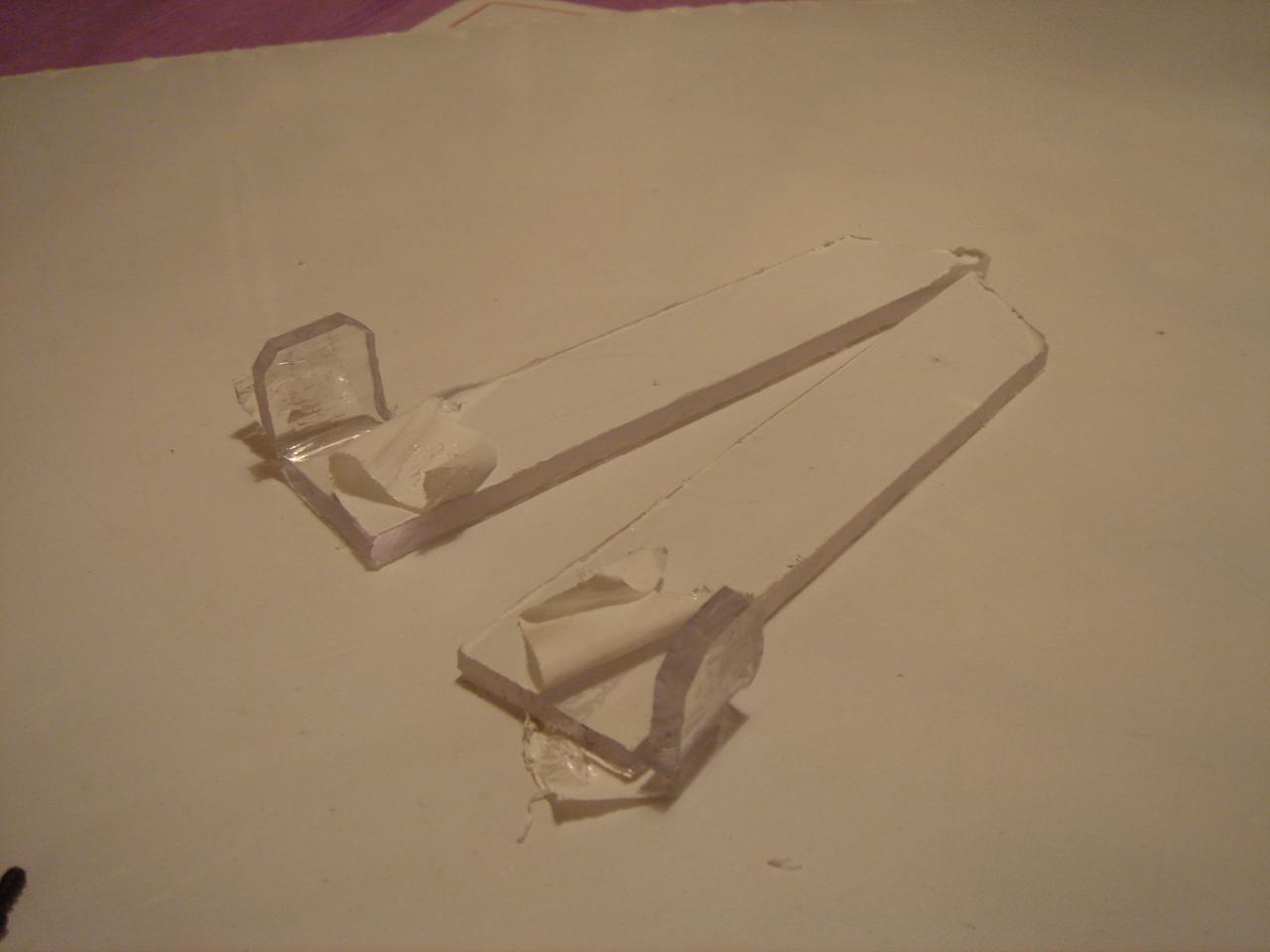

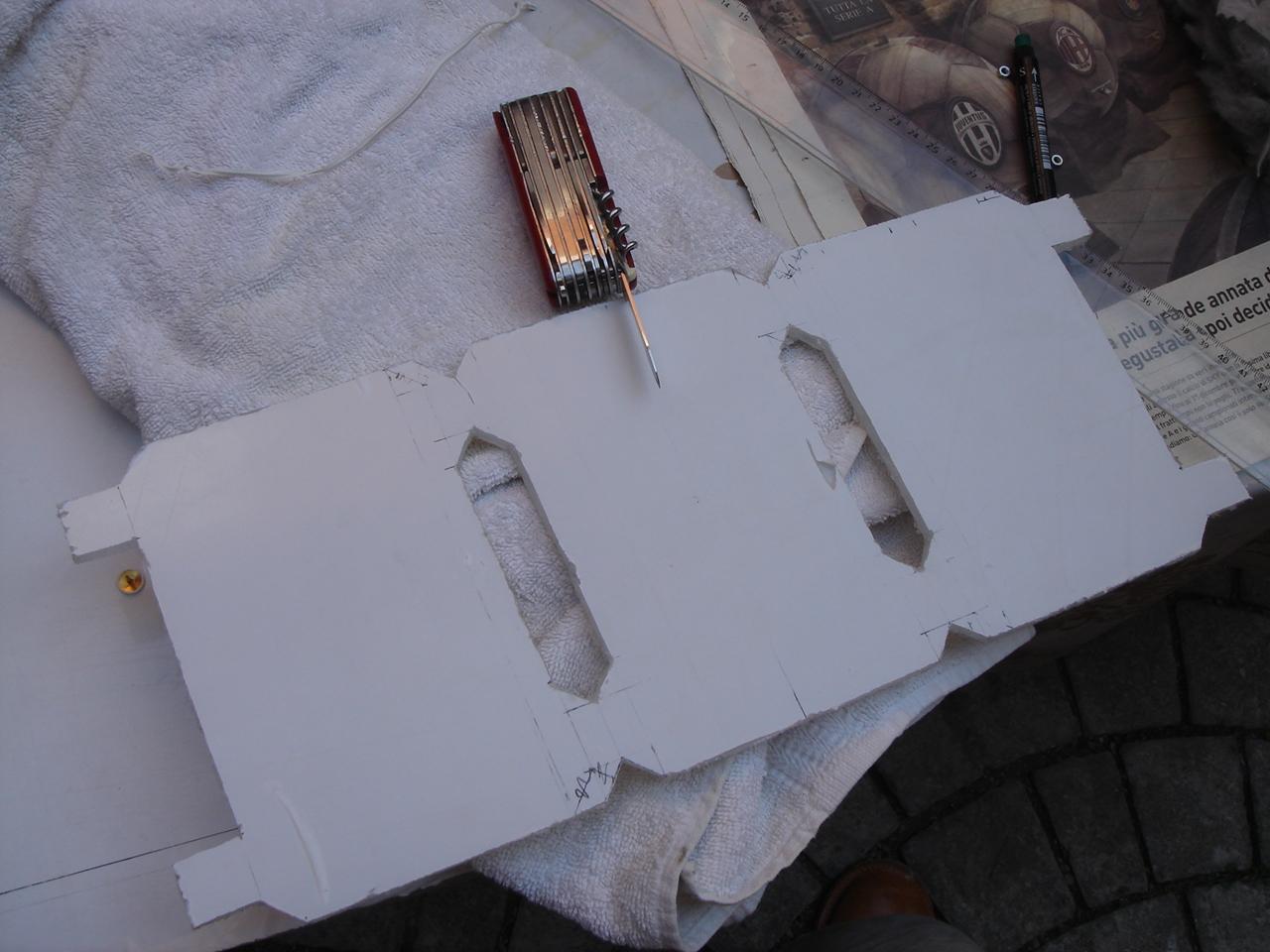

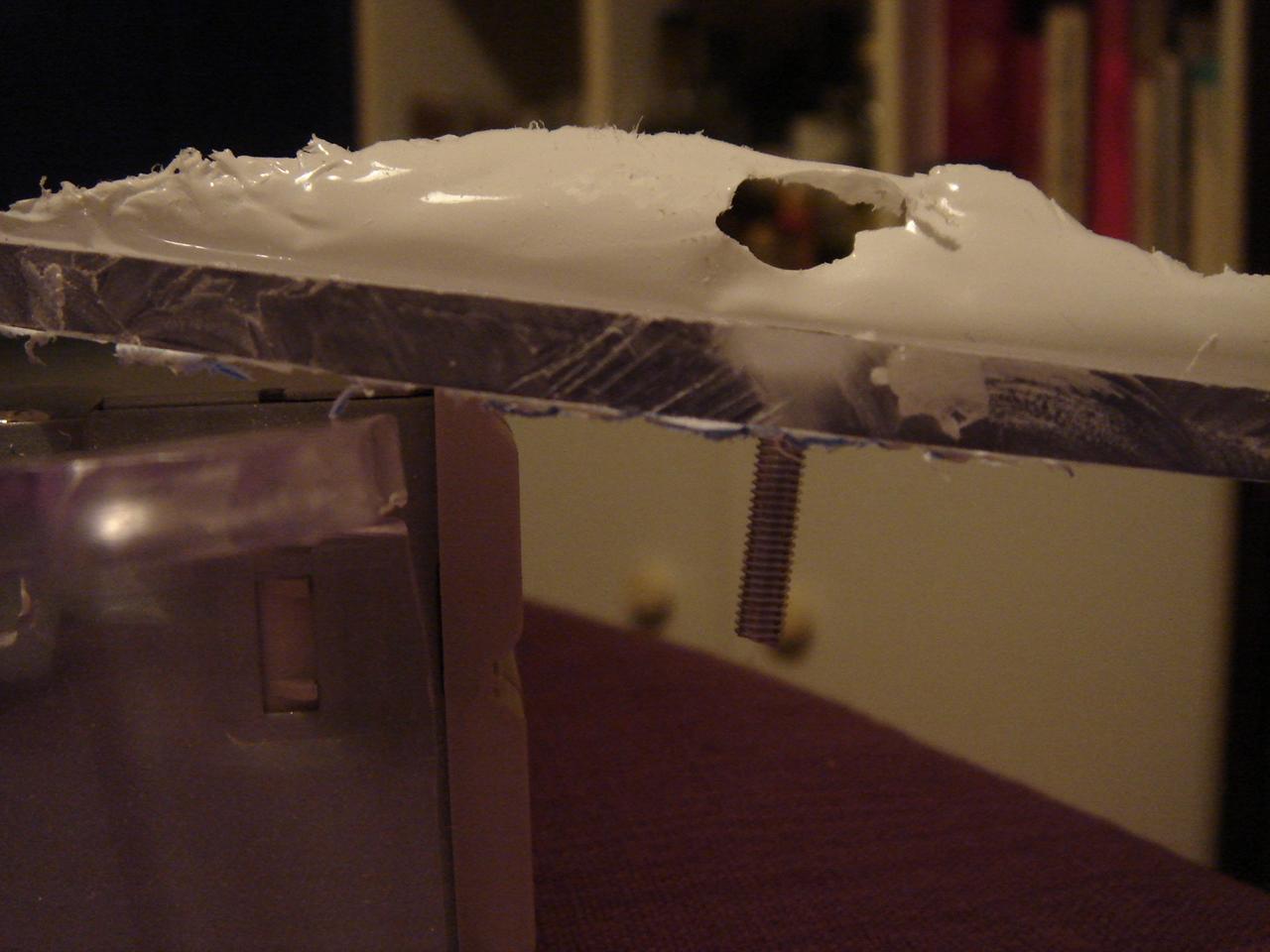

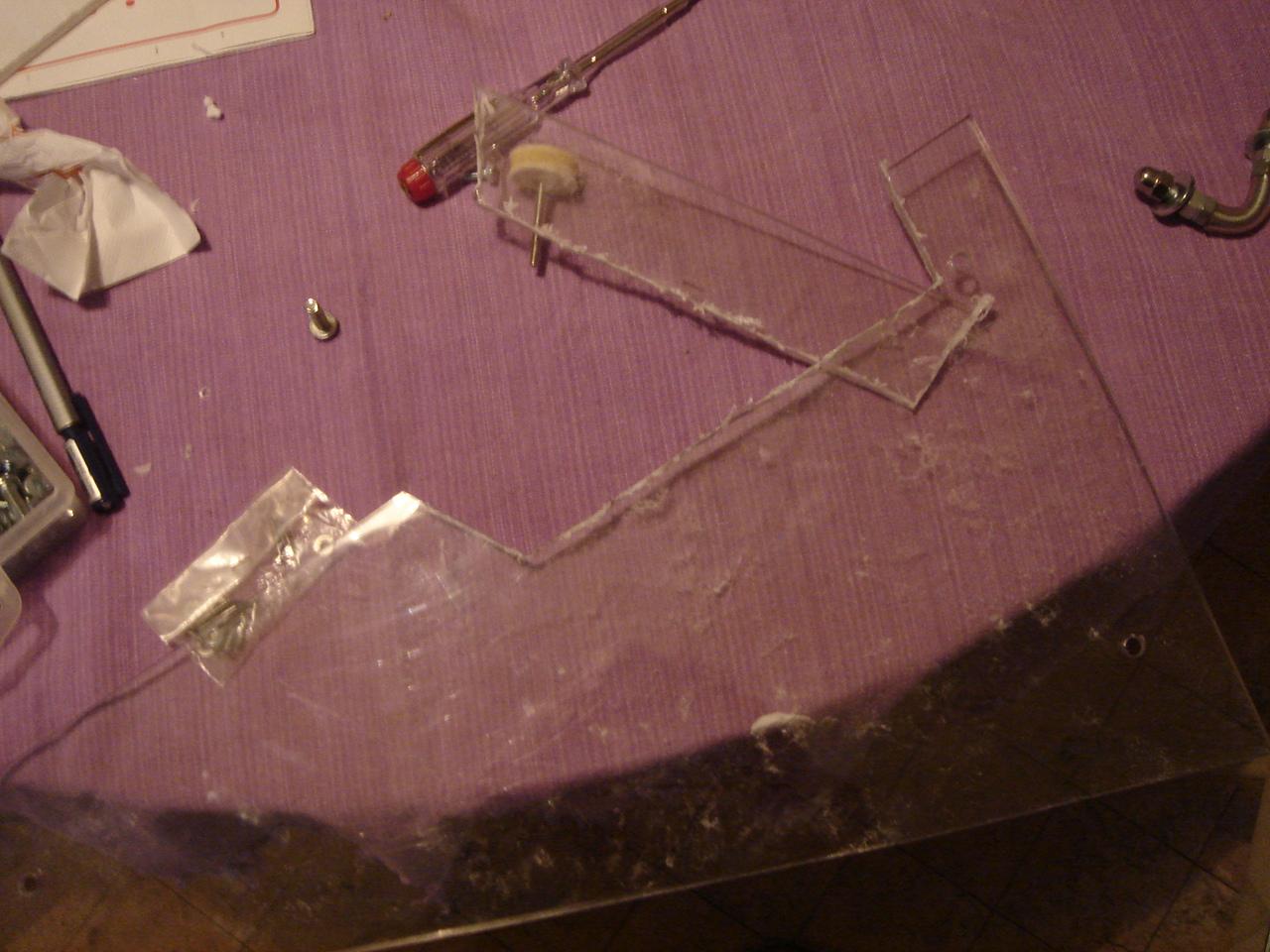

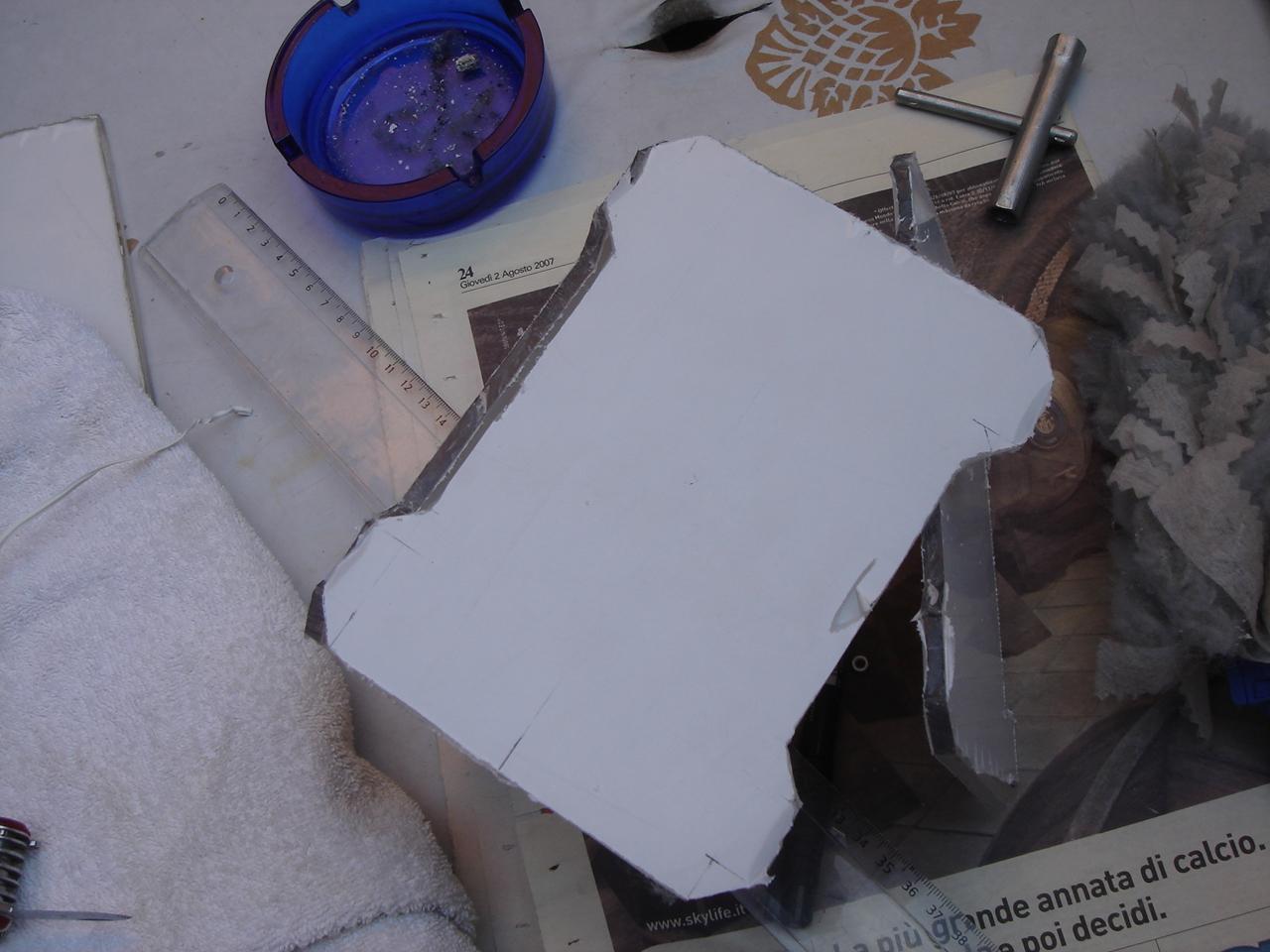

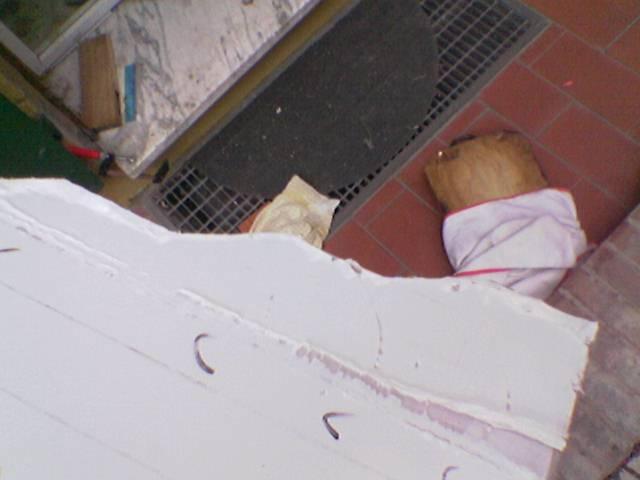

When i bent the shaped panel I broke it! 🙁

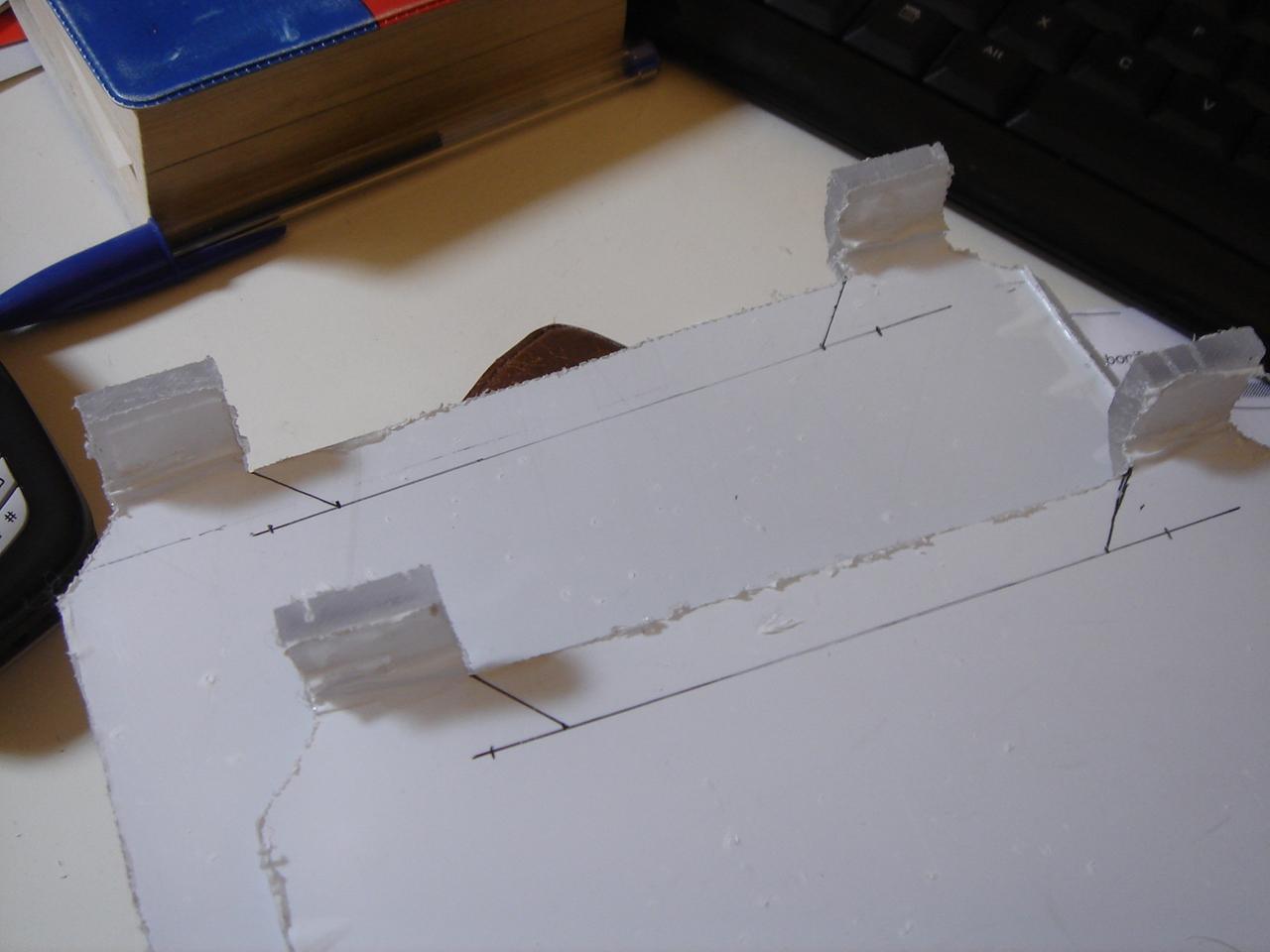

At this point, I must find another way to keep the 3 pieces together 🙁

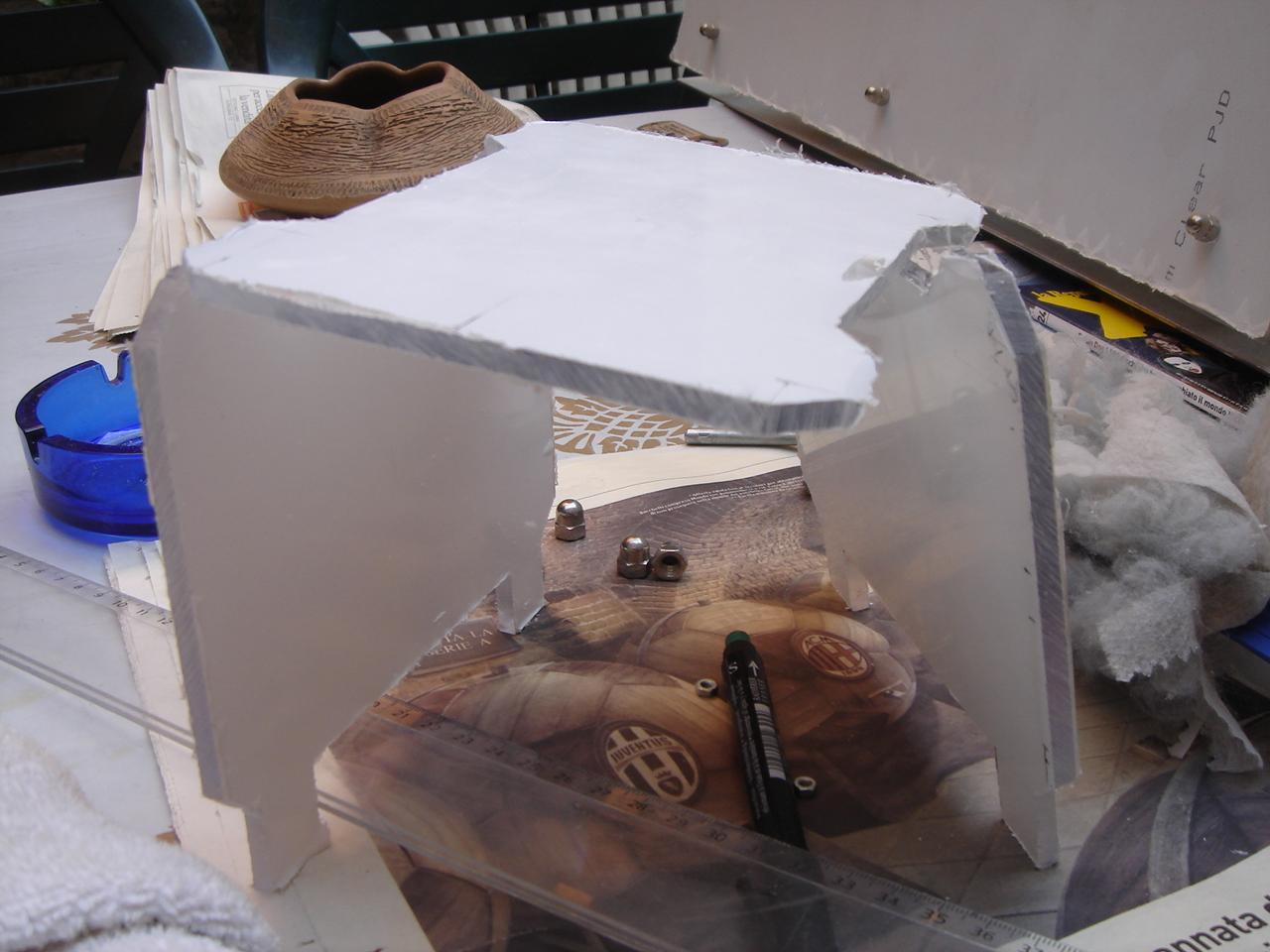

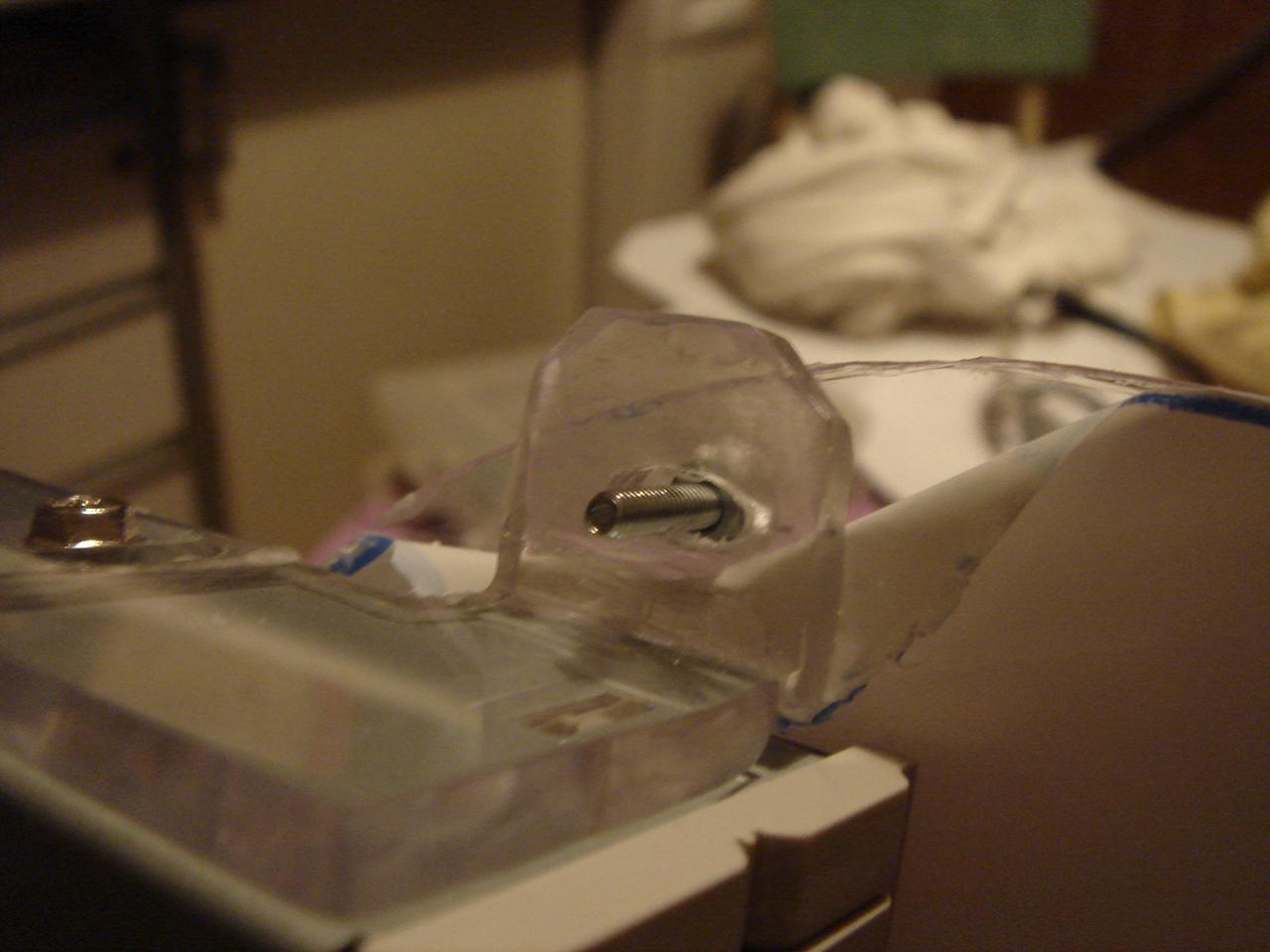

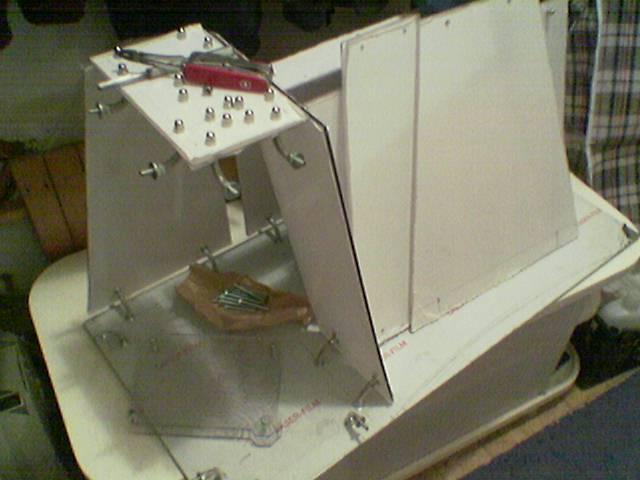

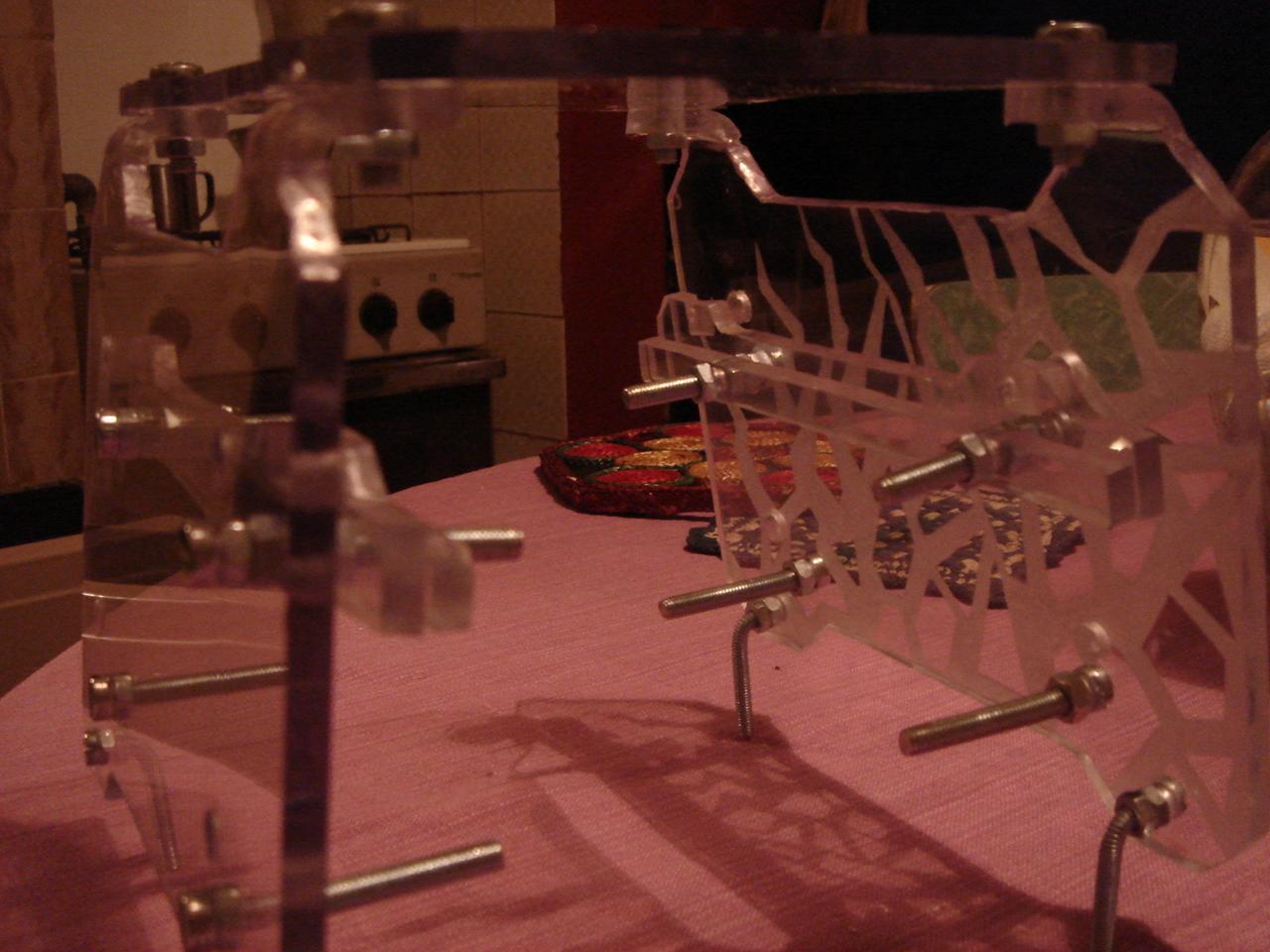

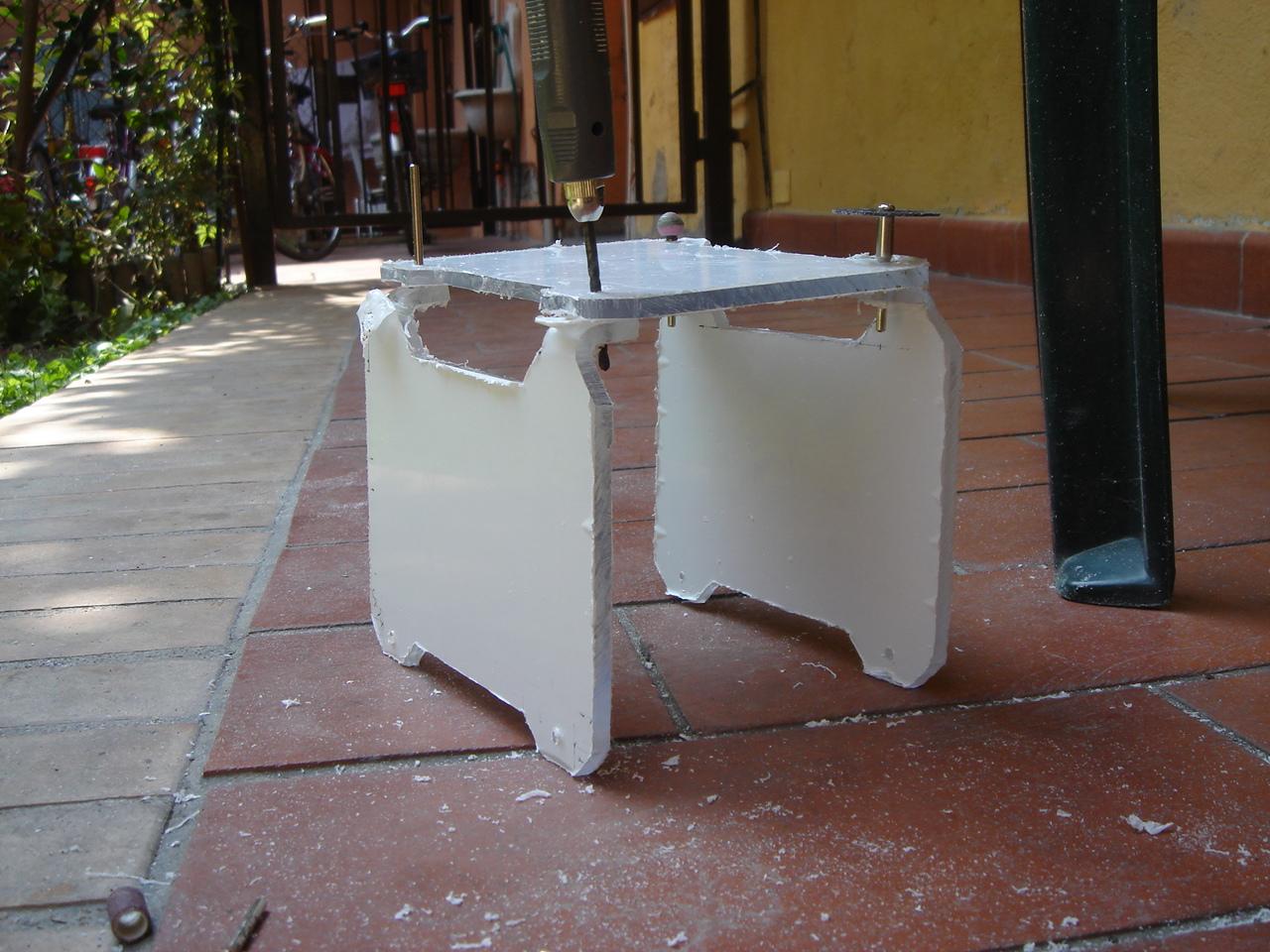

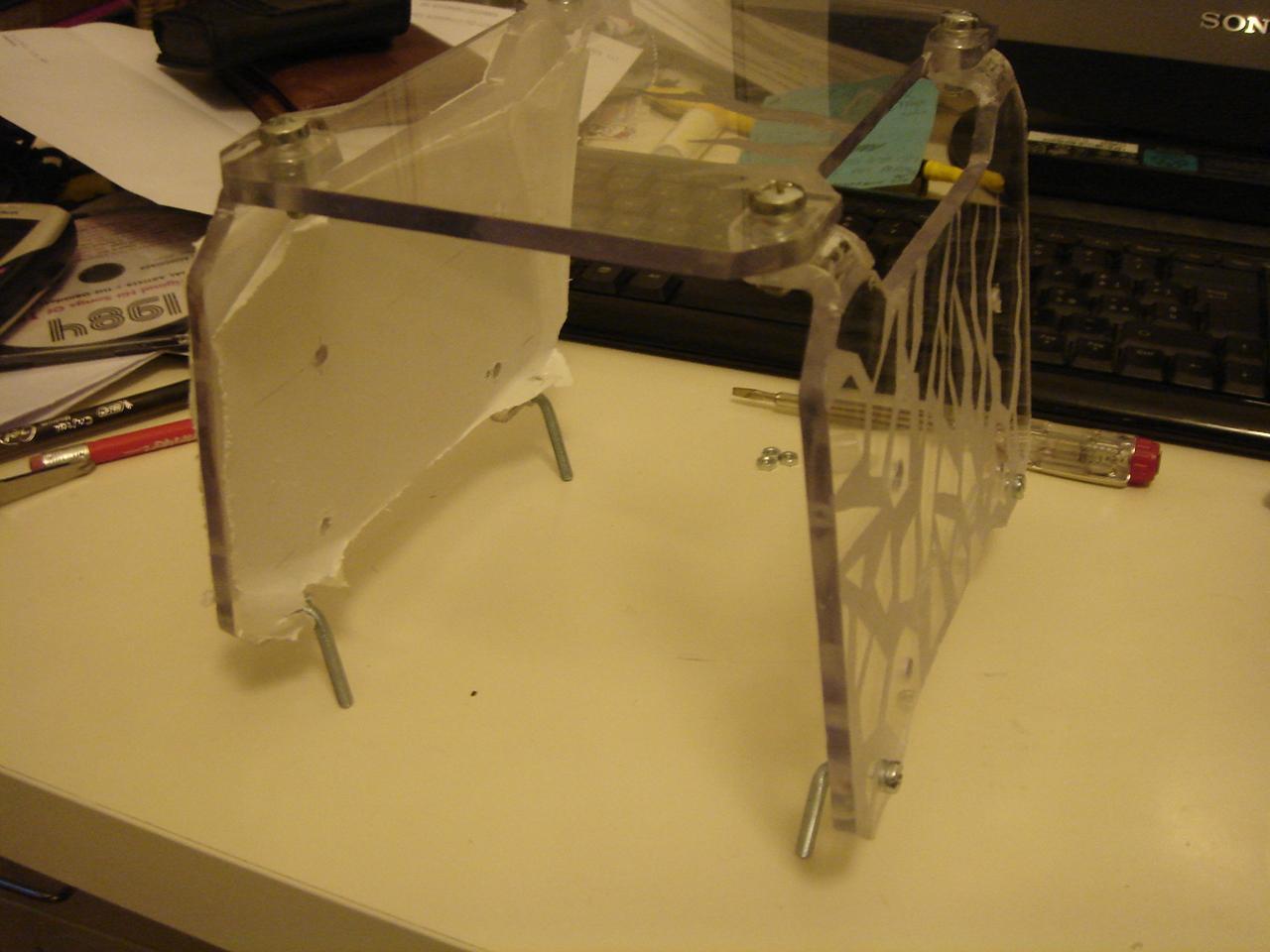

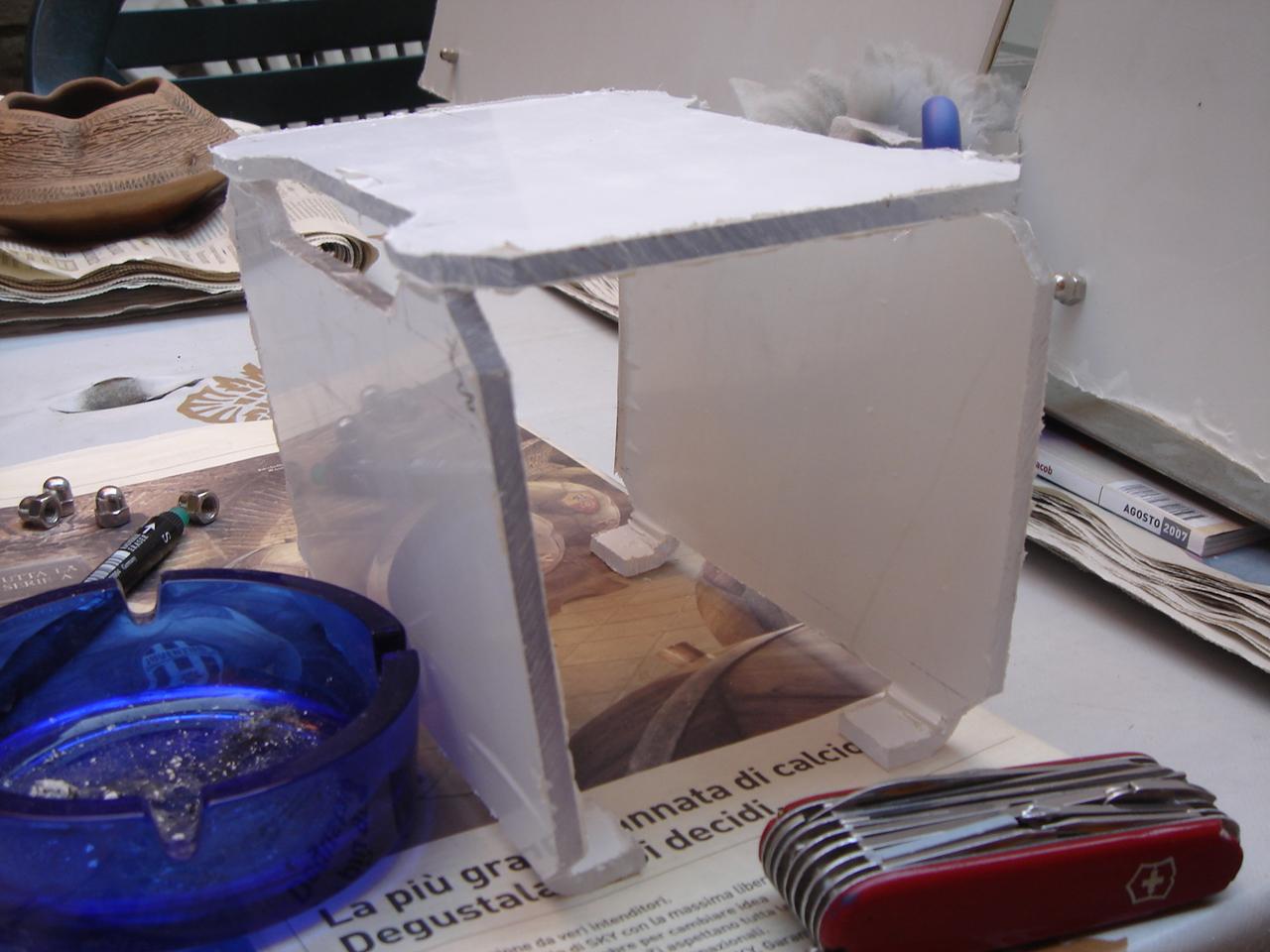

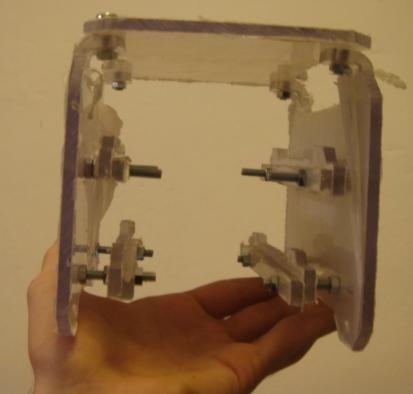

And this is the other way: I have flipped upside down the lateral panels, and I have fixed them to te top panel with some bolts

And now, the slides for the hard disks.

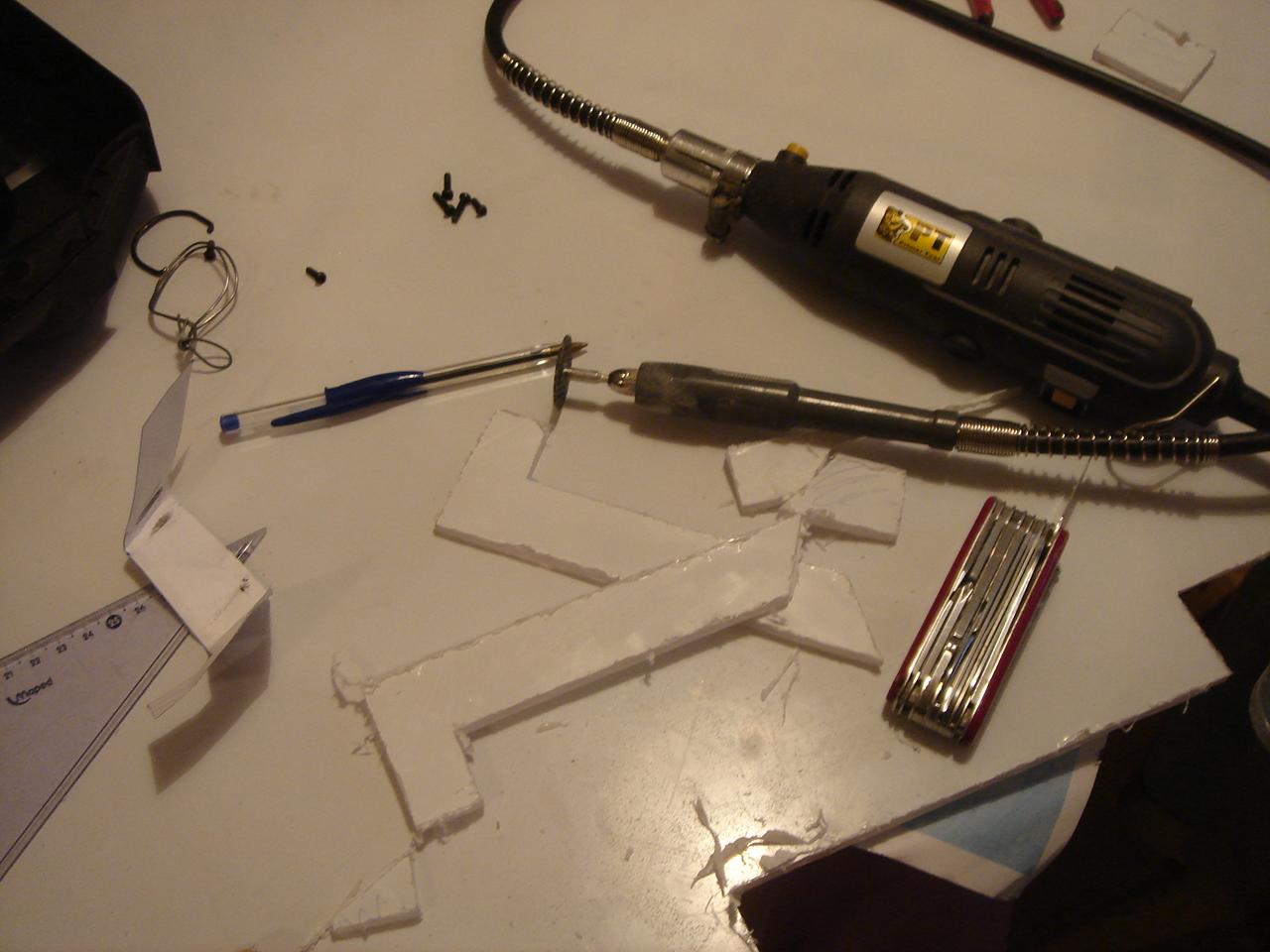

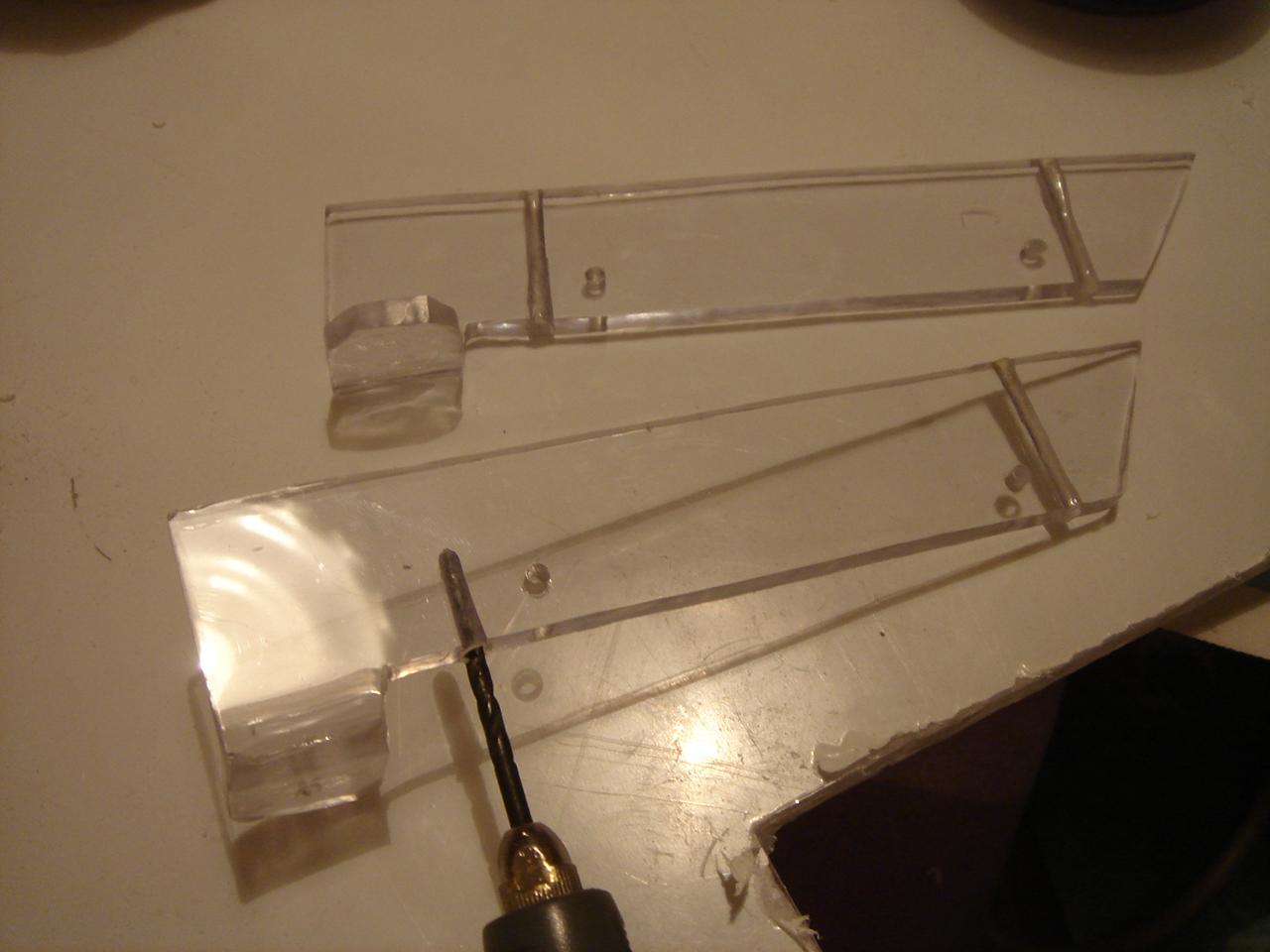

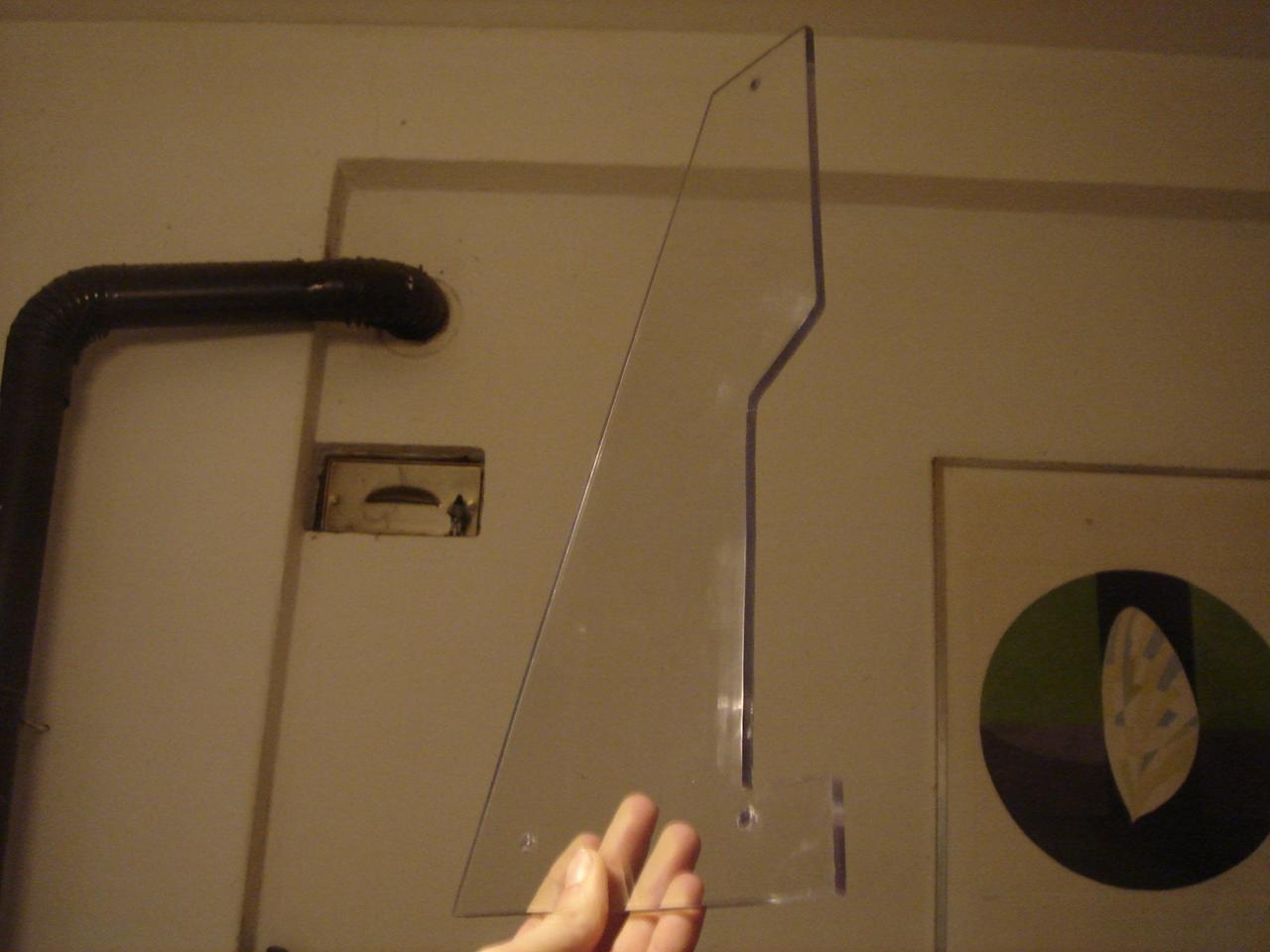

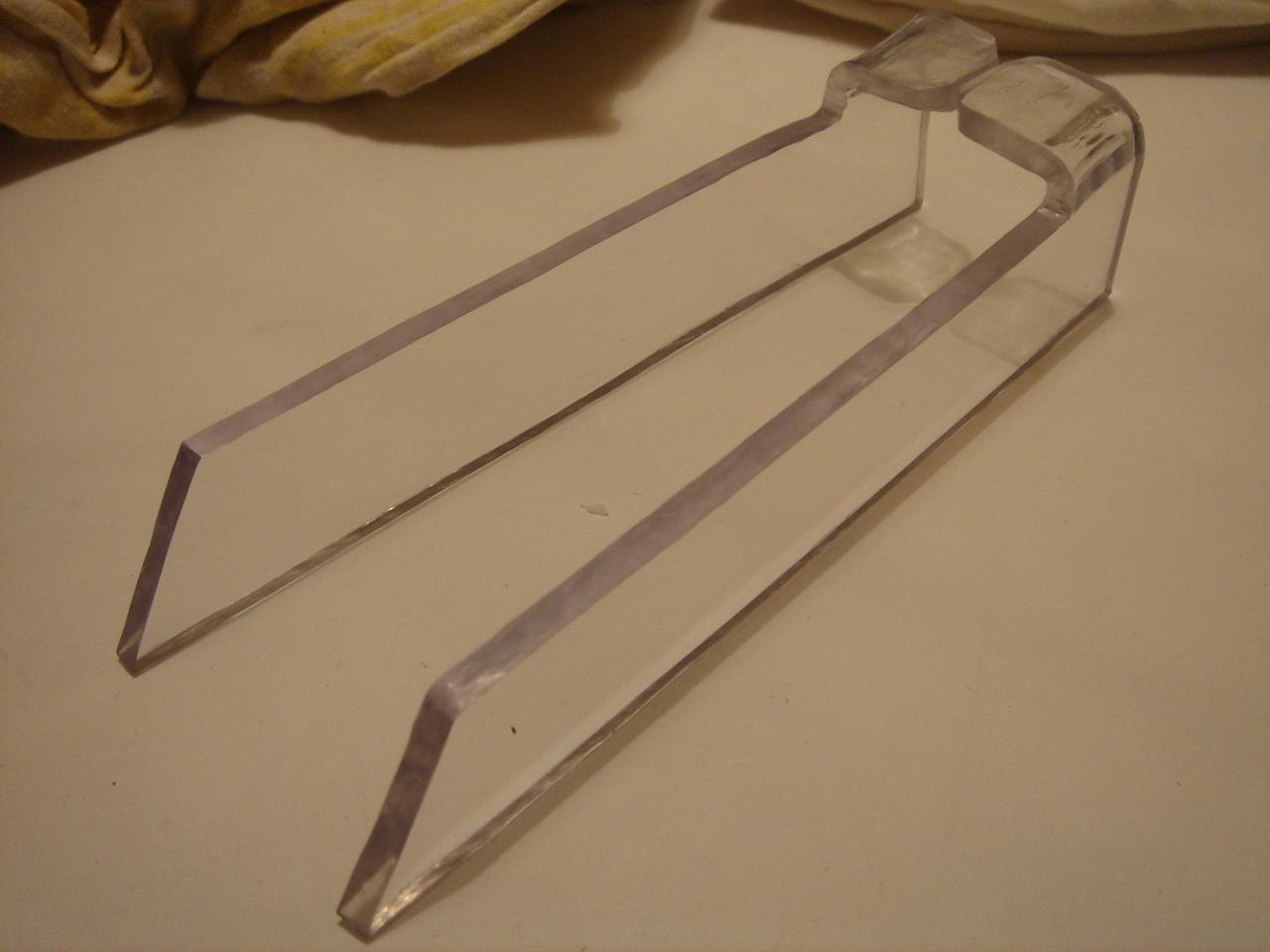

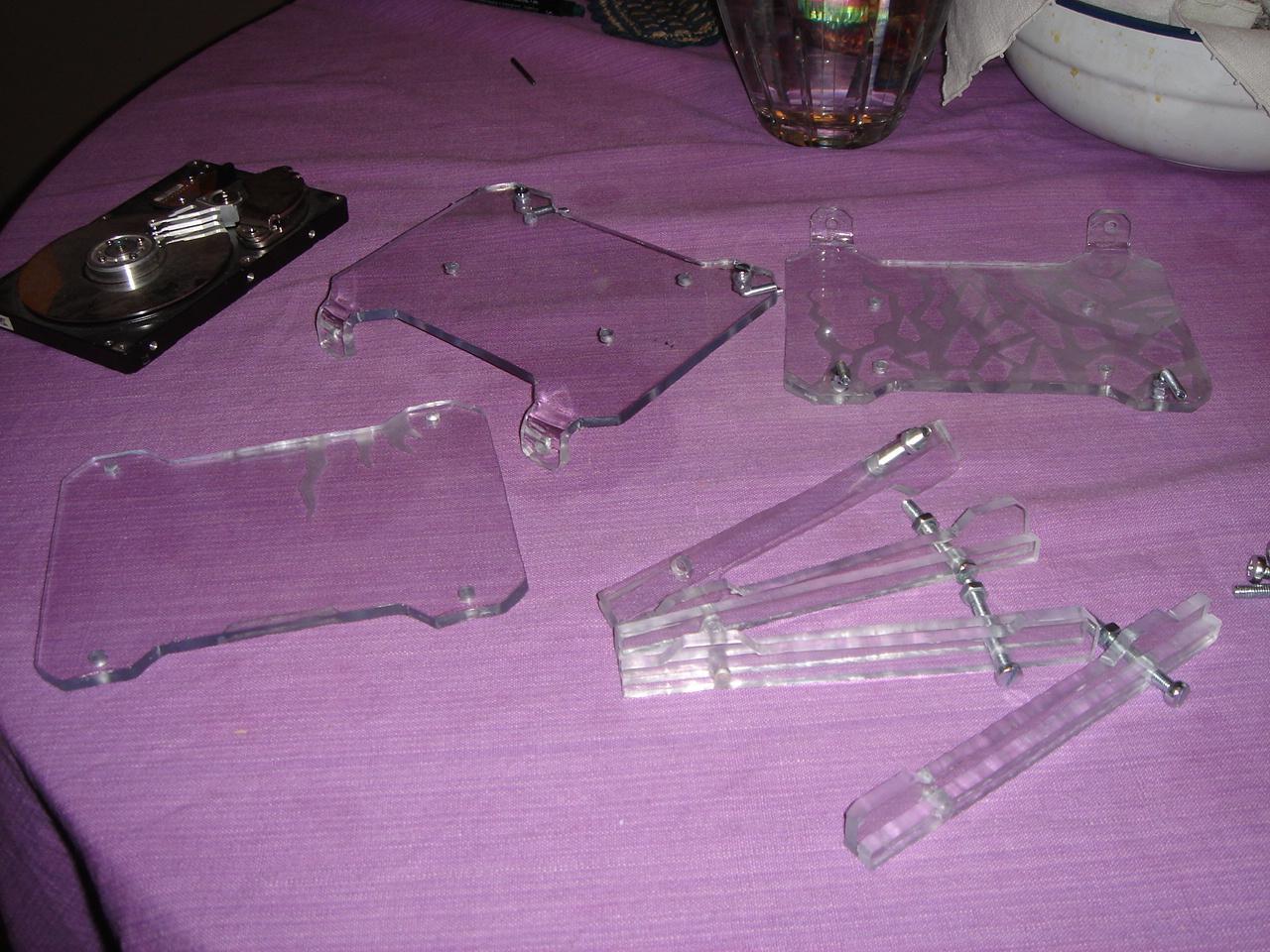

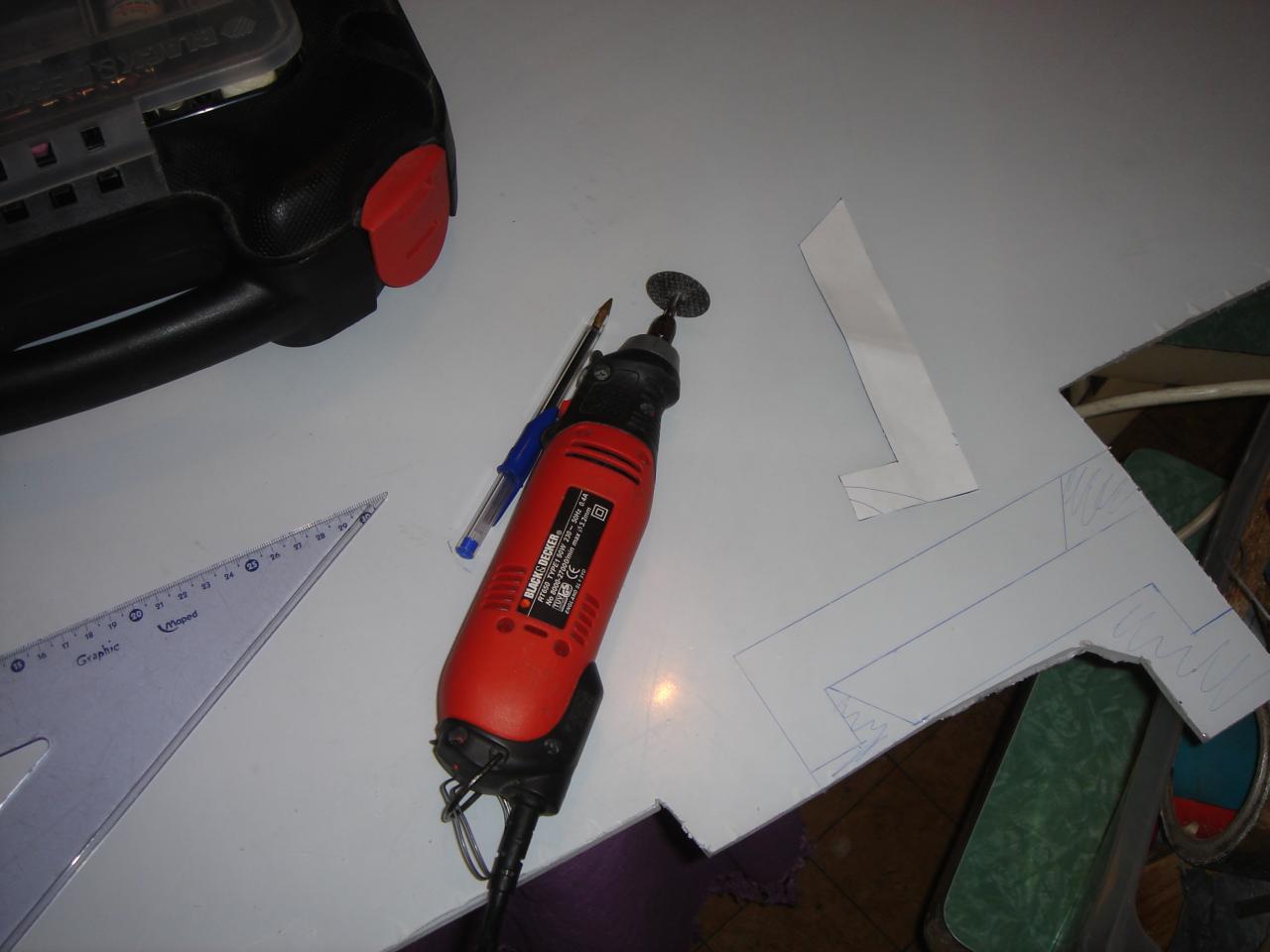

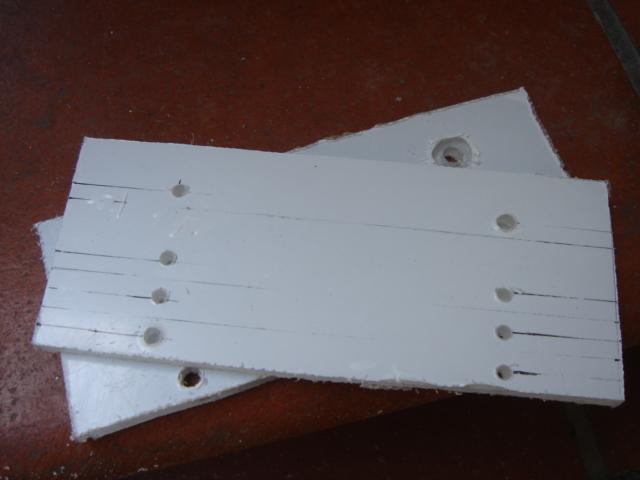

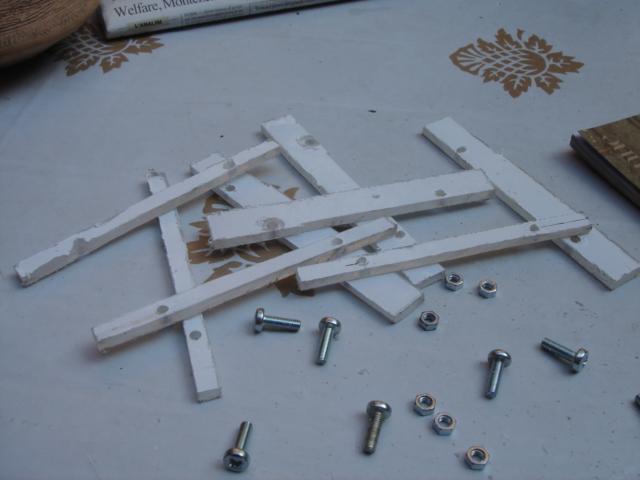

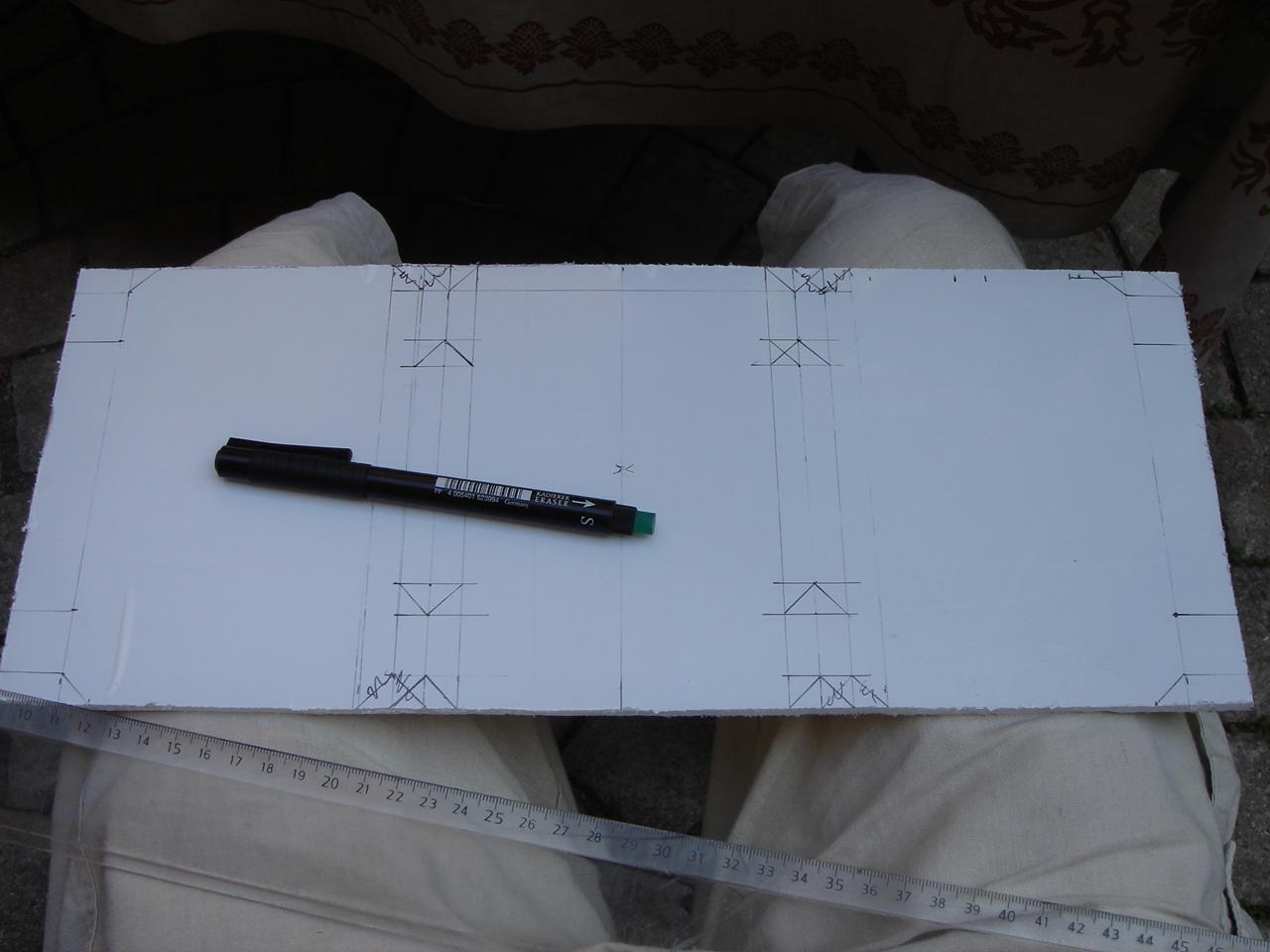

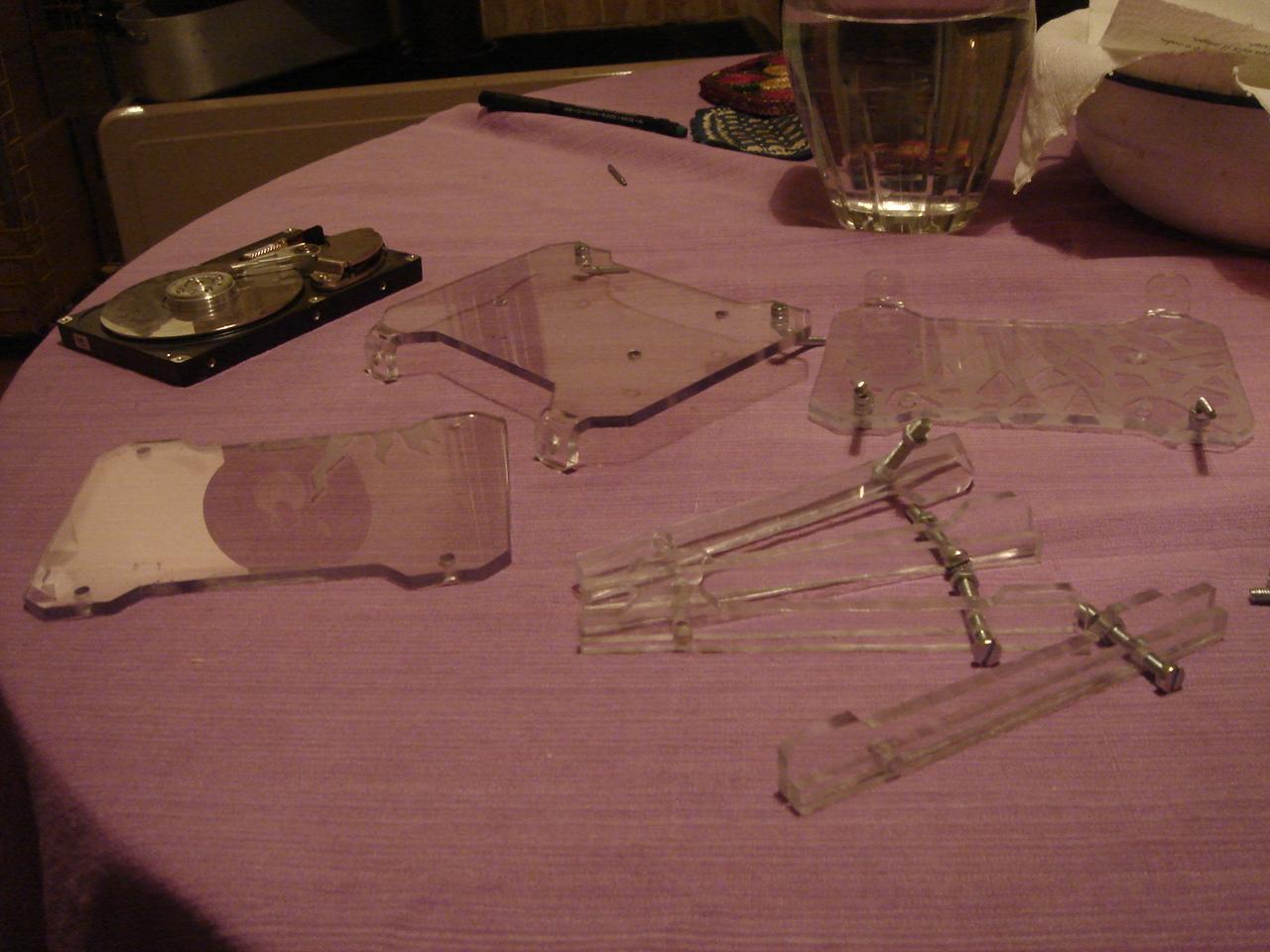

I cut the pieces:

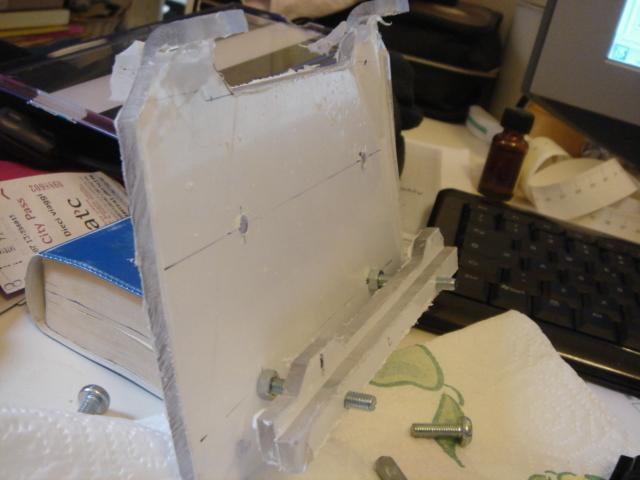

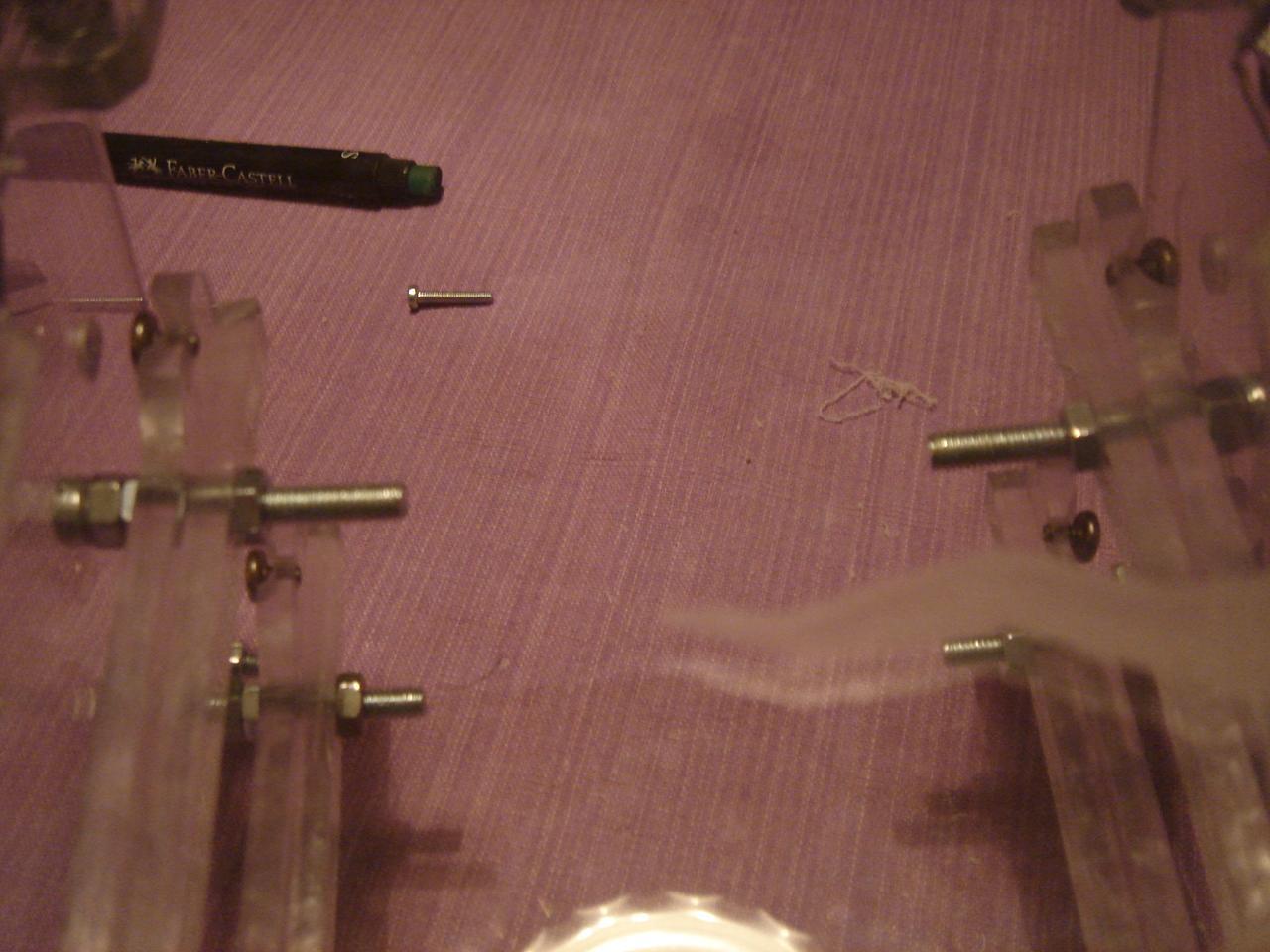

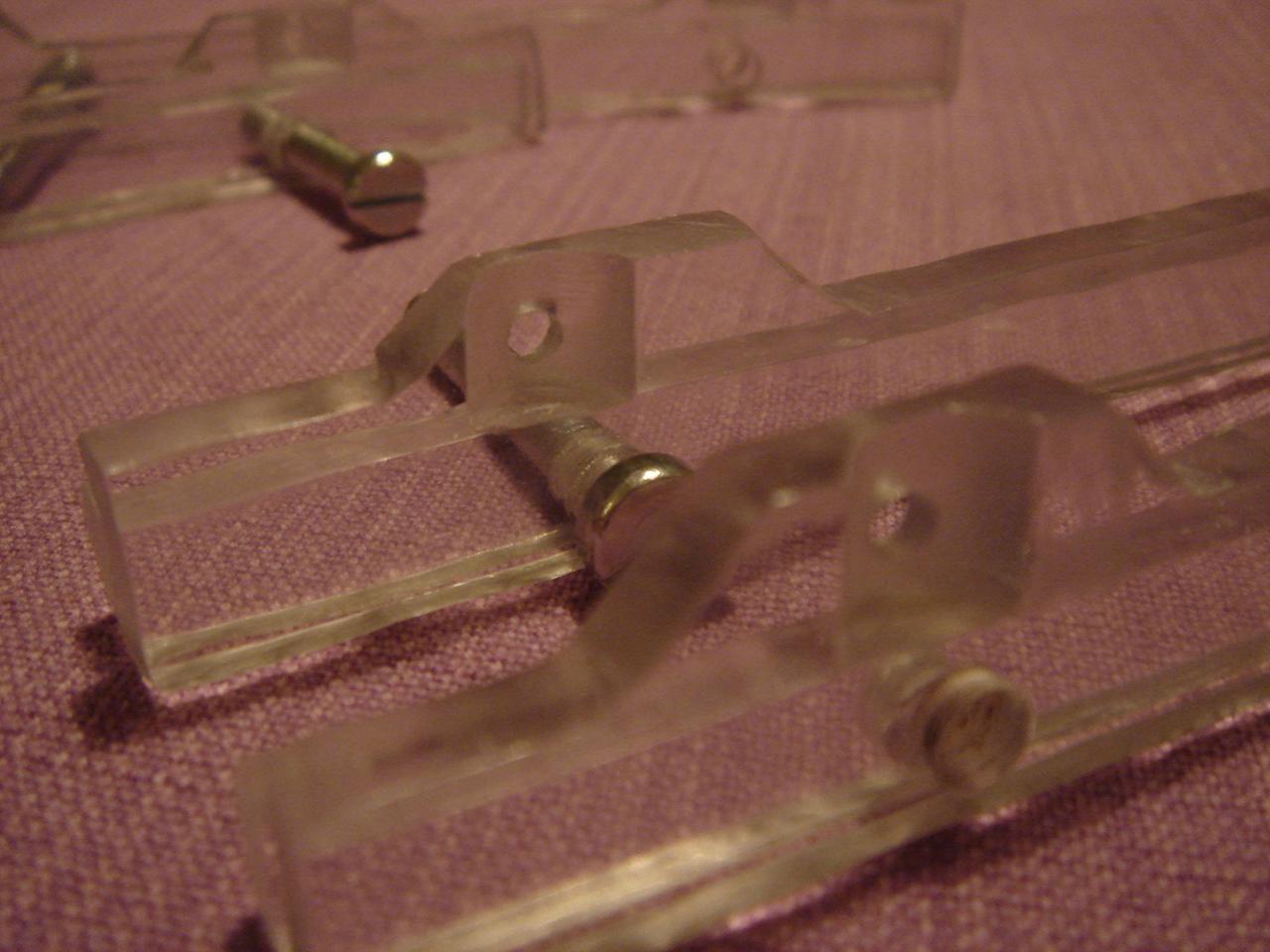

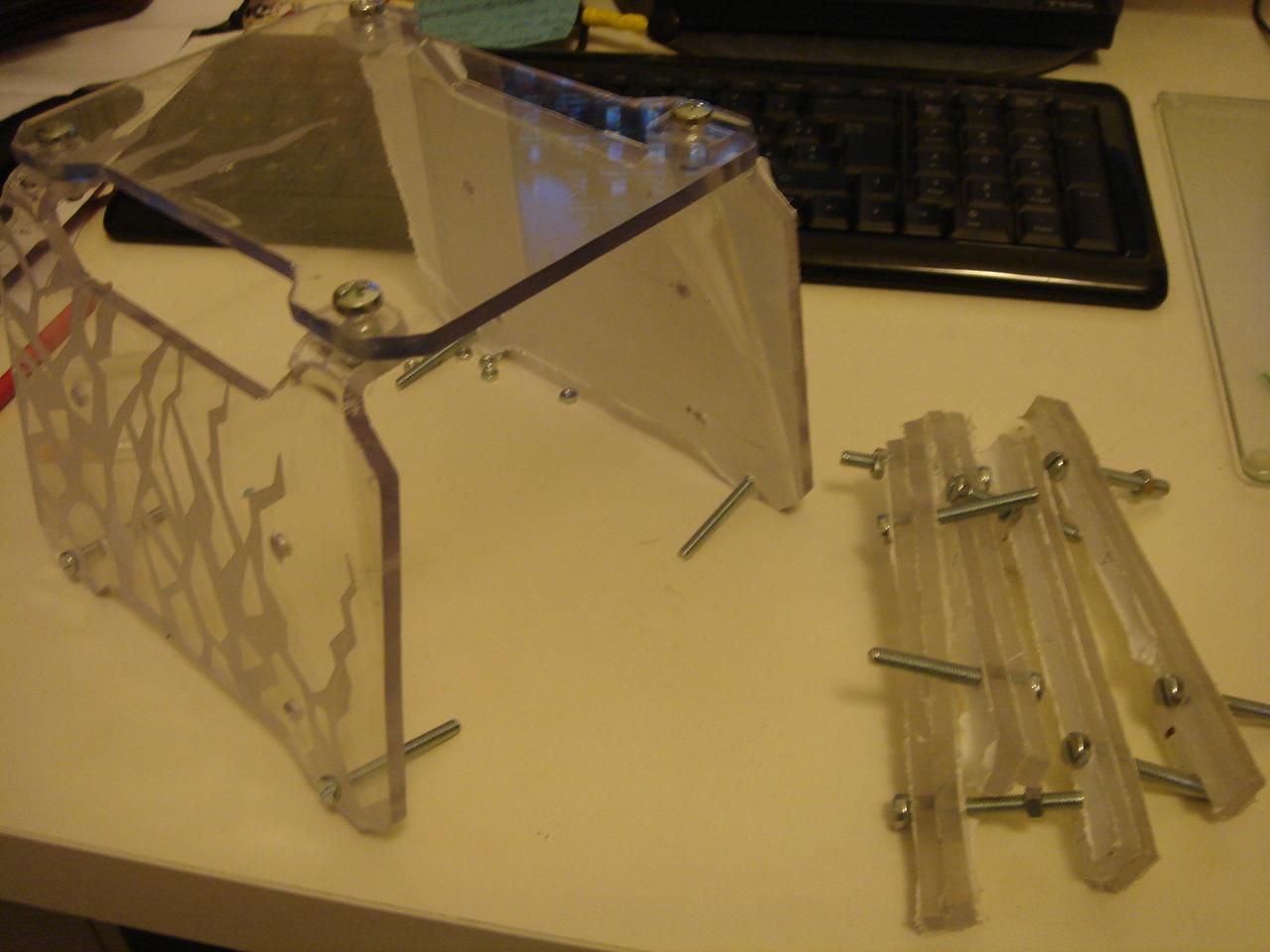

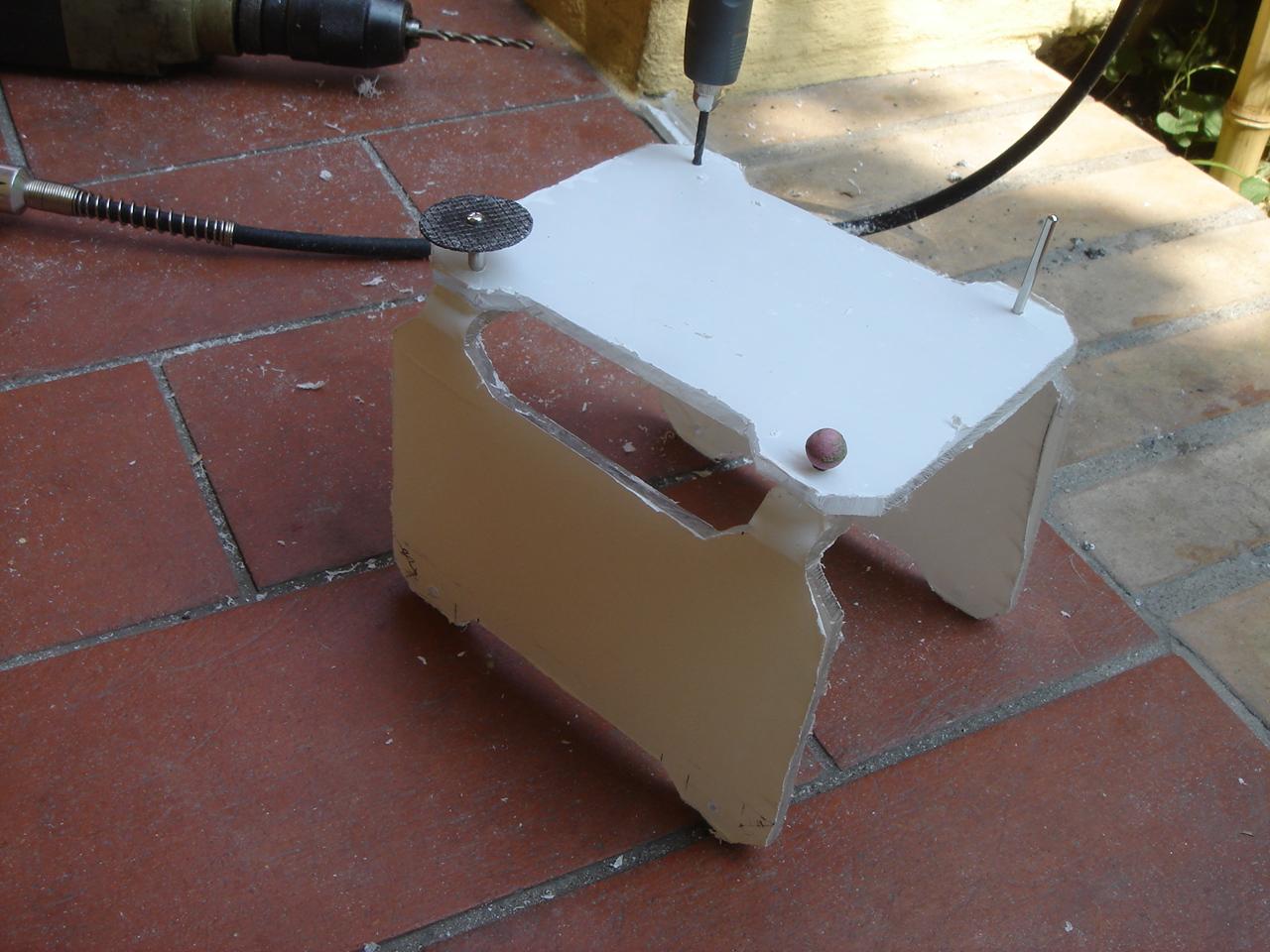

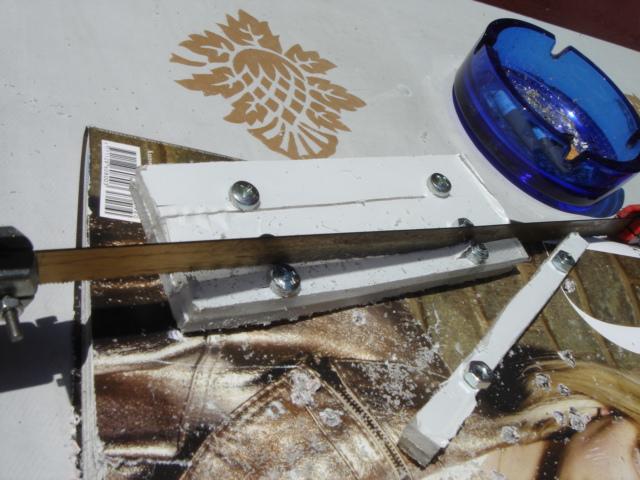

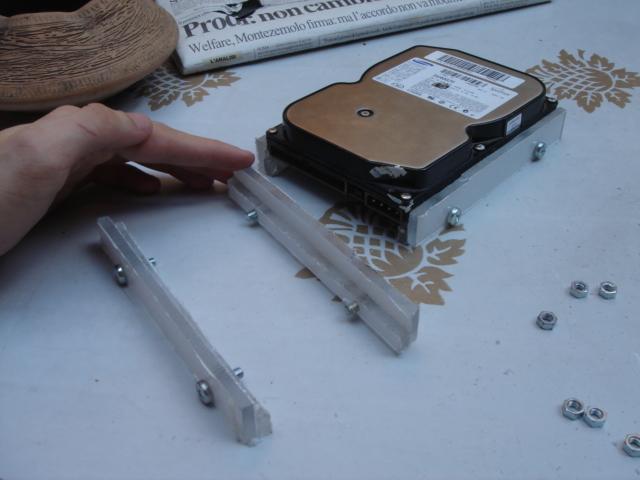

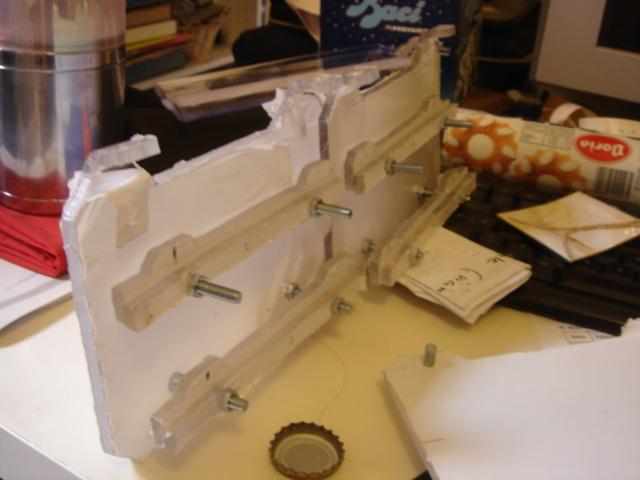

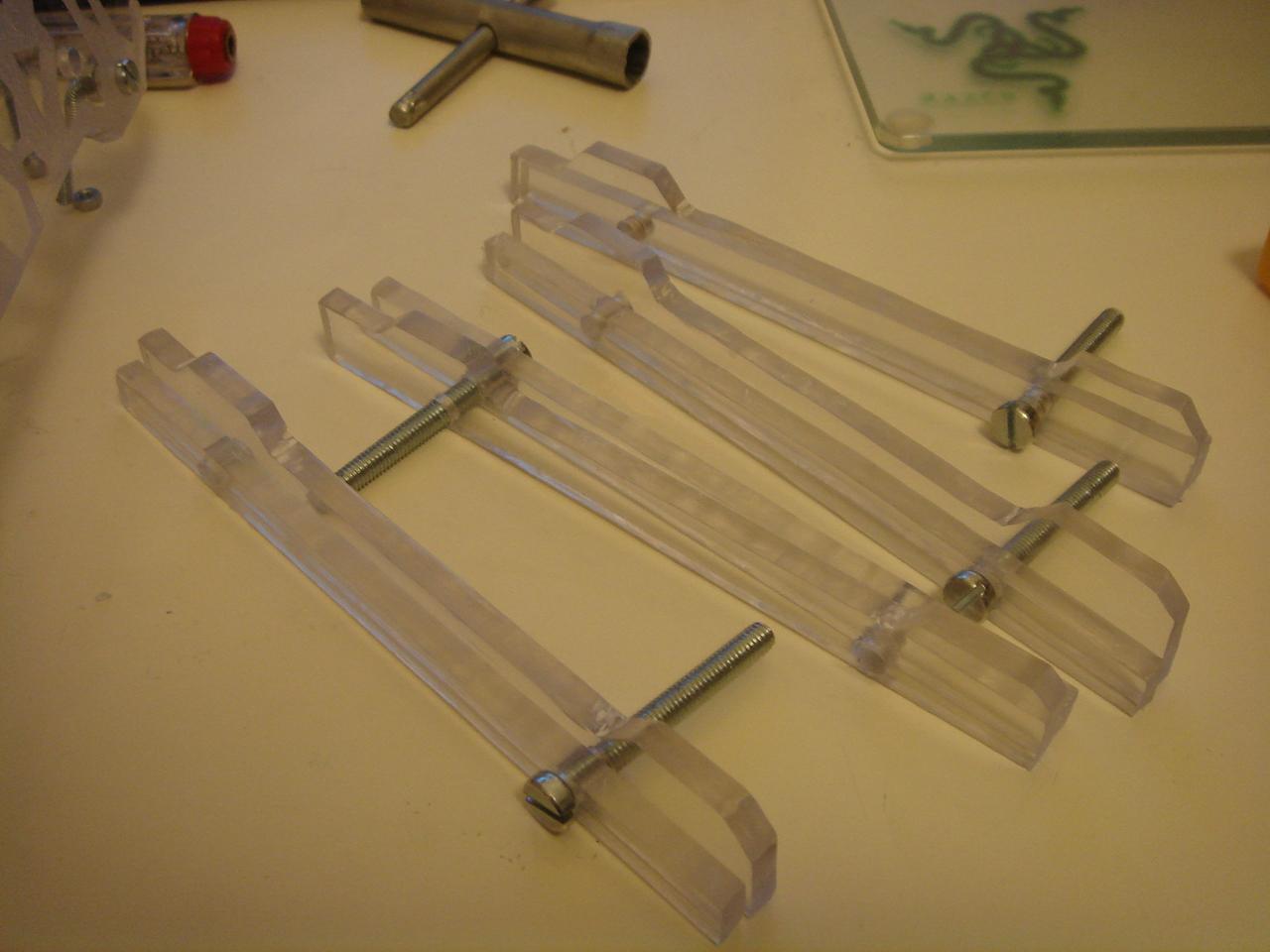

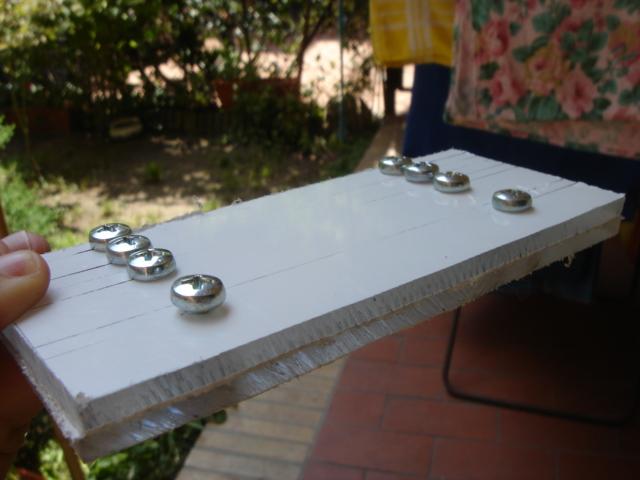

I assemble the pieces together:

In the last image you can see that the slides below are closer to each other than the ones above.
This is because the hdd structure must be trapezoidal like the rest of the case!

The slides are as long as the hdd, so you can insert and extract it like a drawer:

    Engraving the hard disk structure

The theme for the hdd structure is… obviously the Infected Sector from Tron 2.0 😀 , so the engraving must be a set of green luminous cracks.

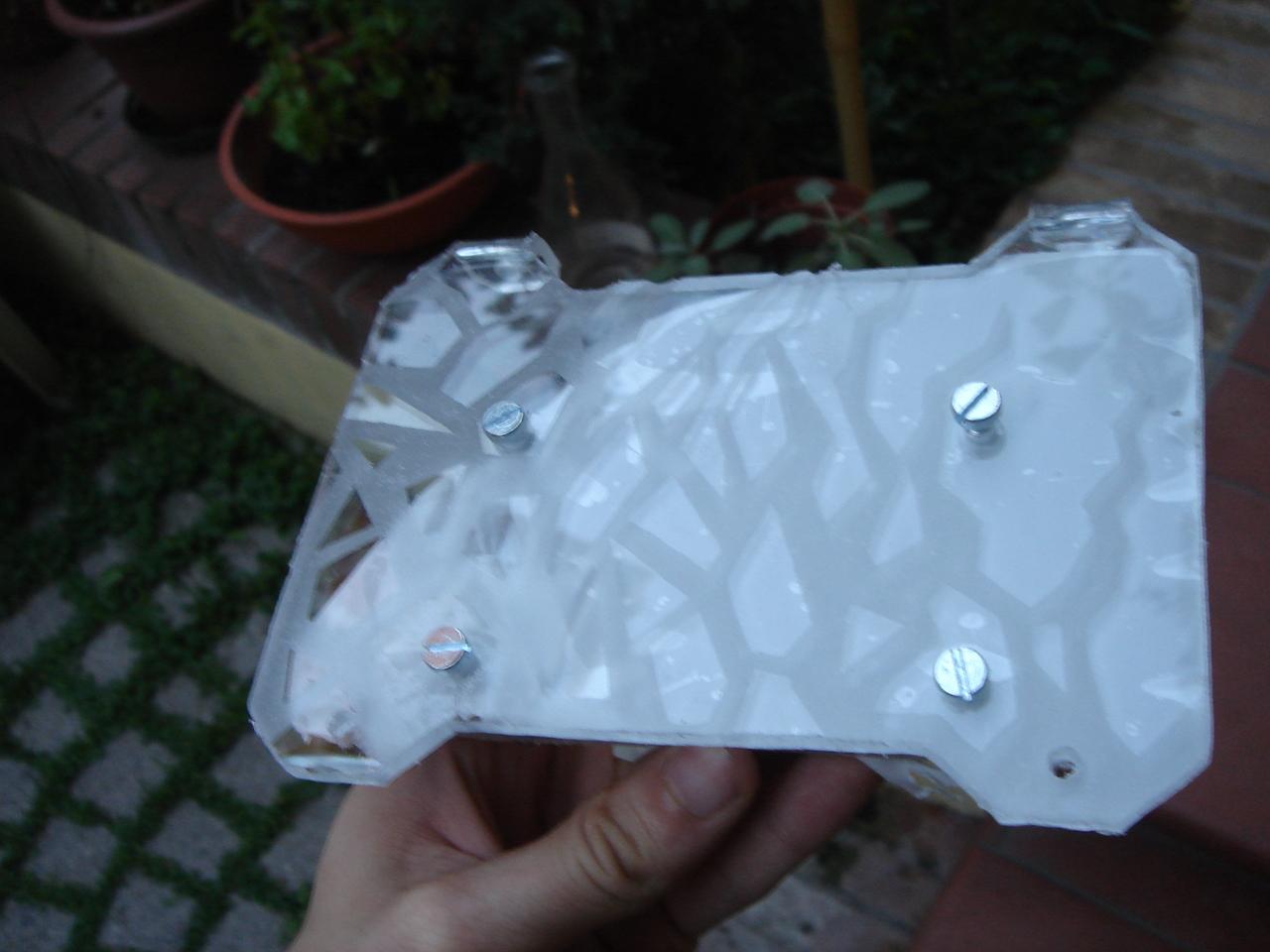

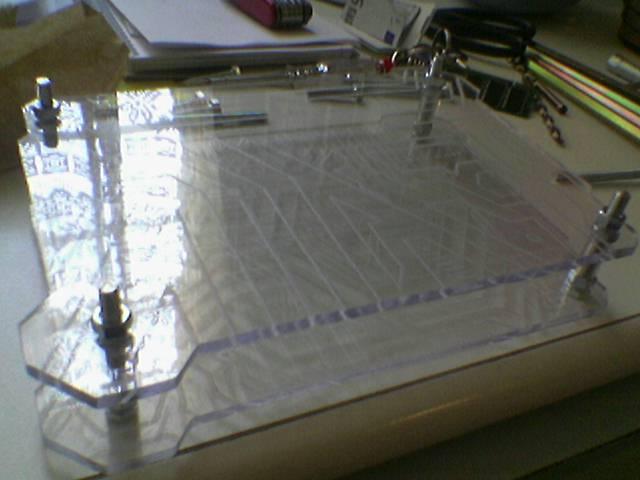

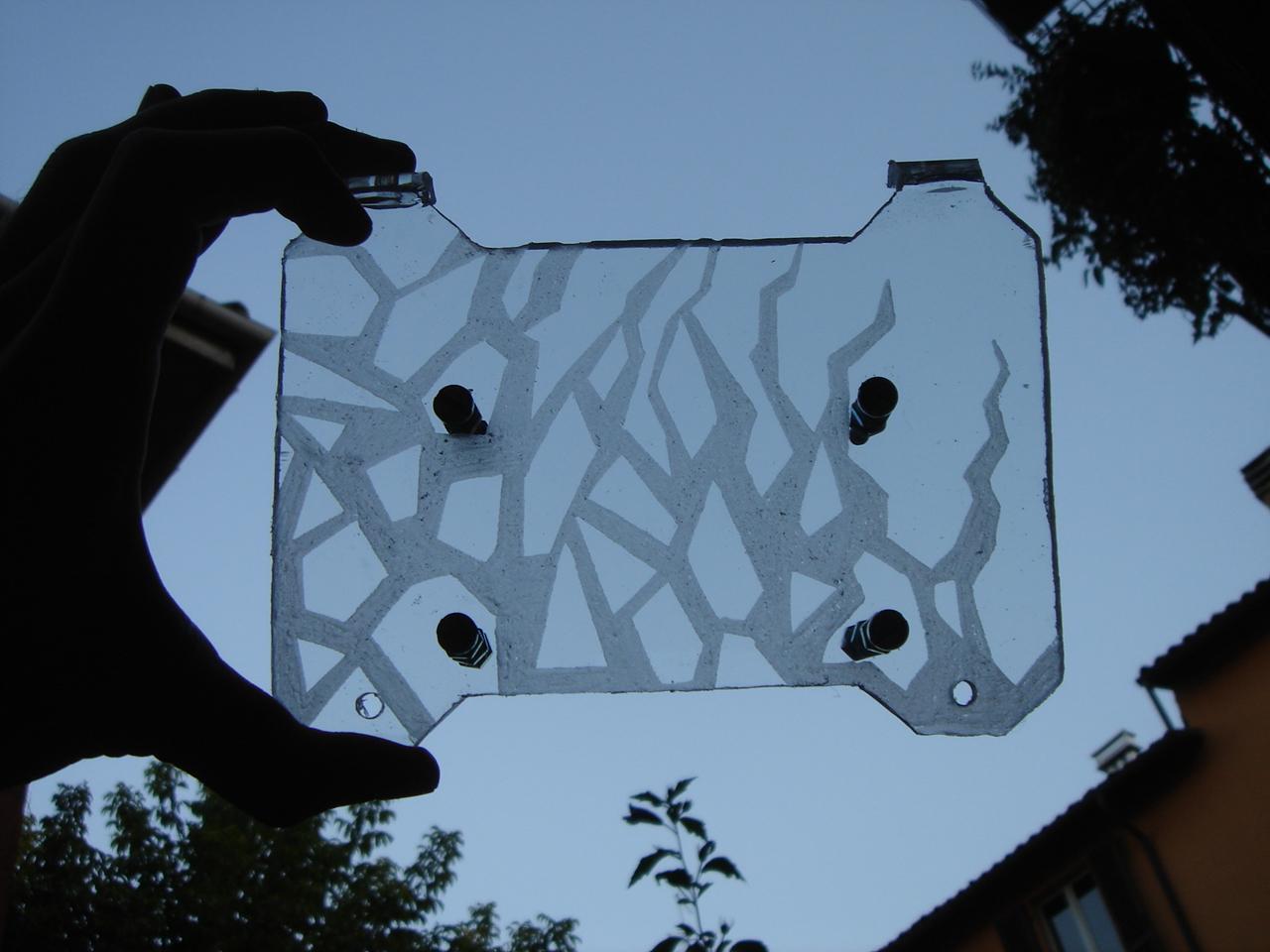

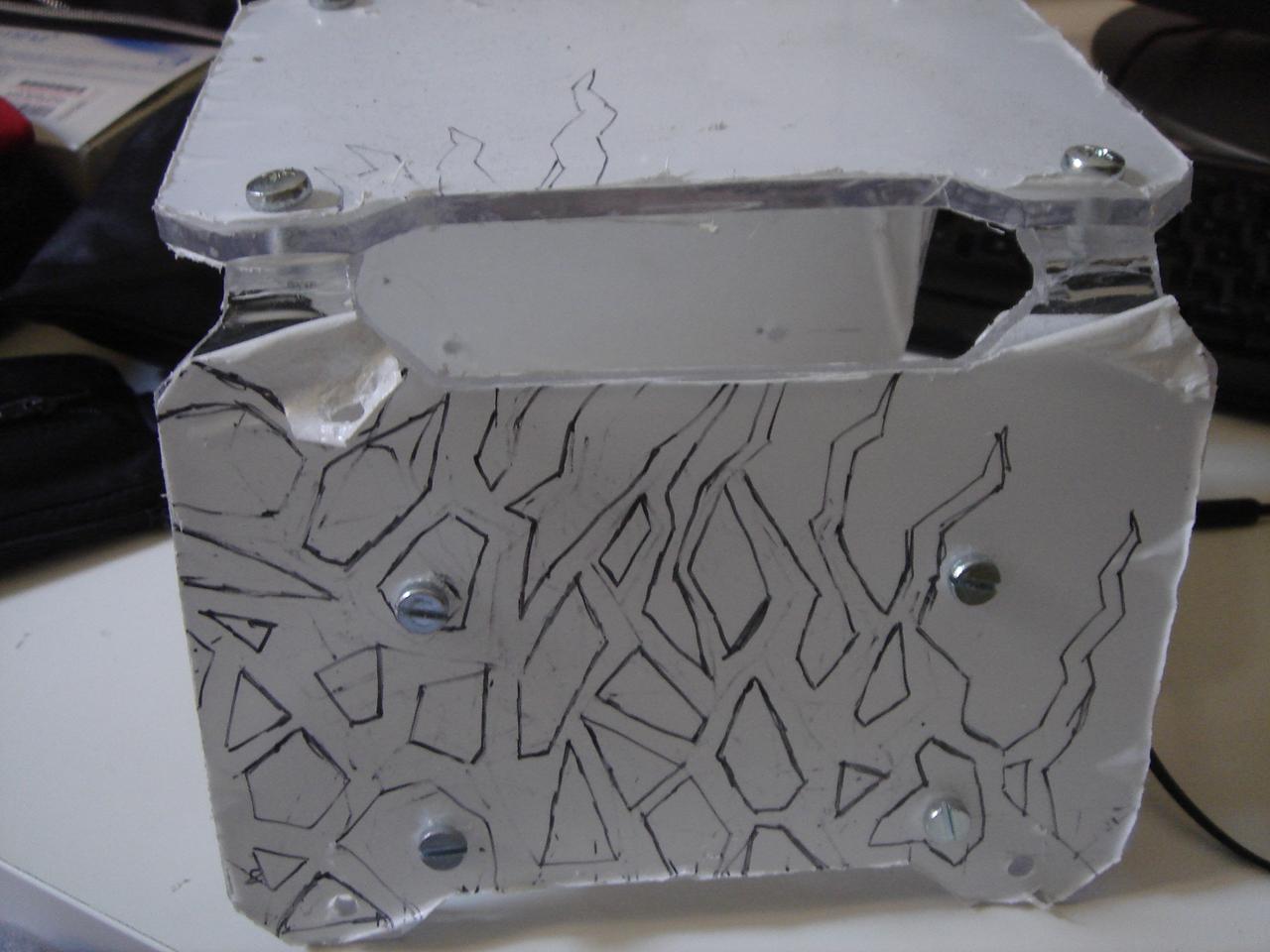

After redrawing a lot of times the cracks, I drew some that I liked, so I engraved them:

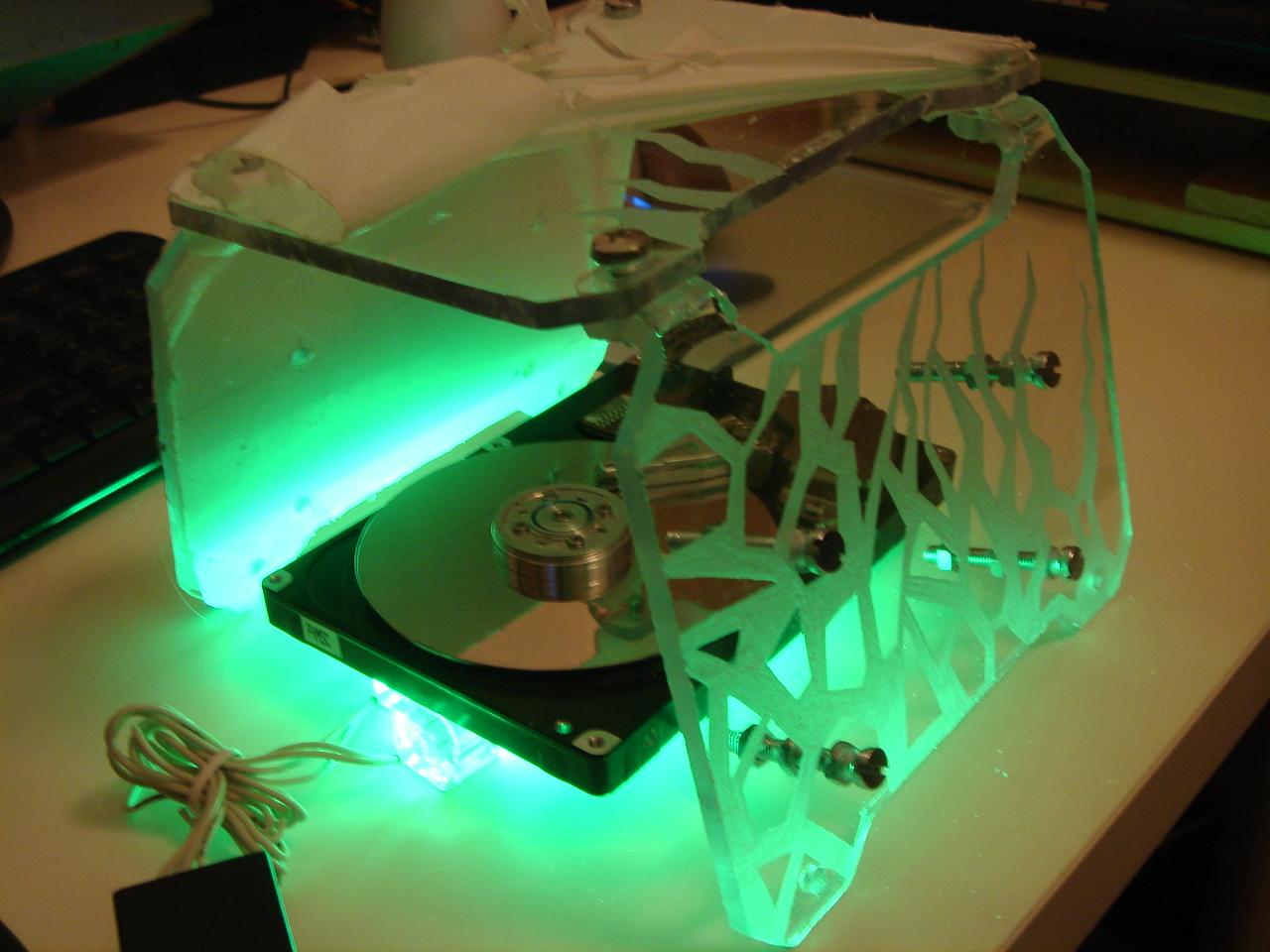

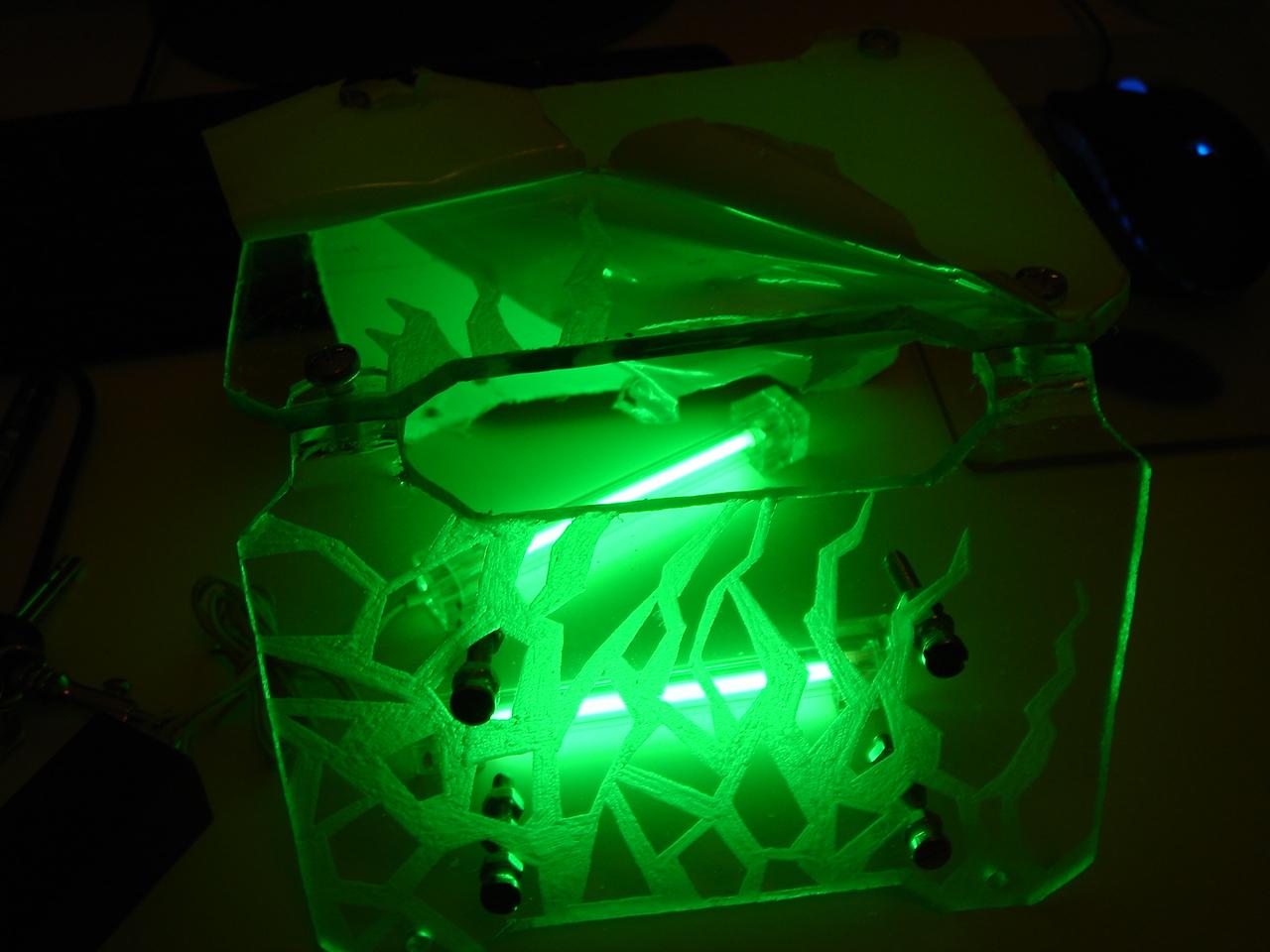

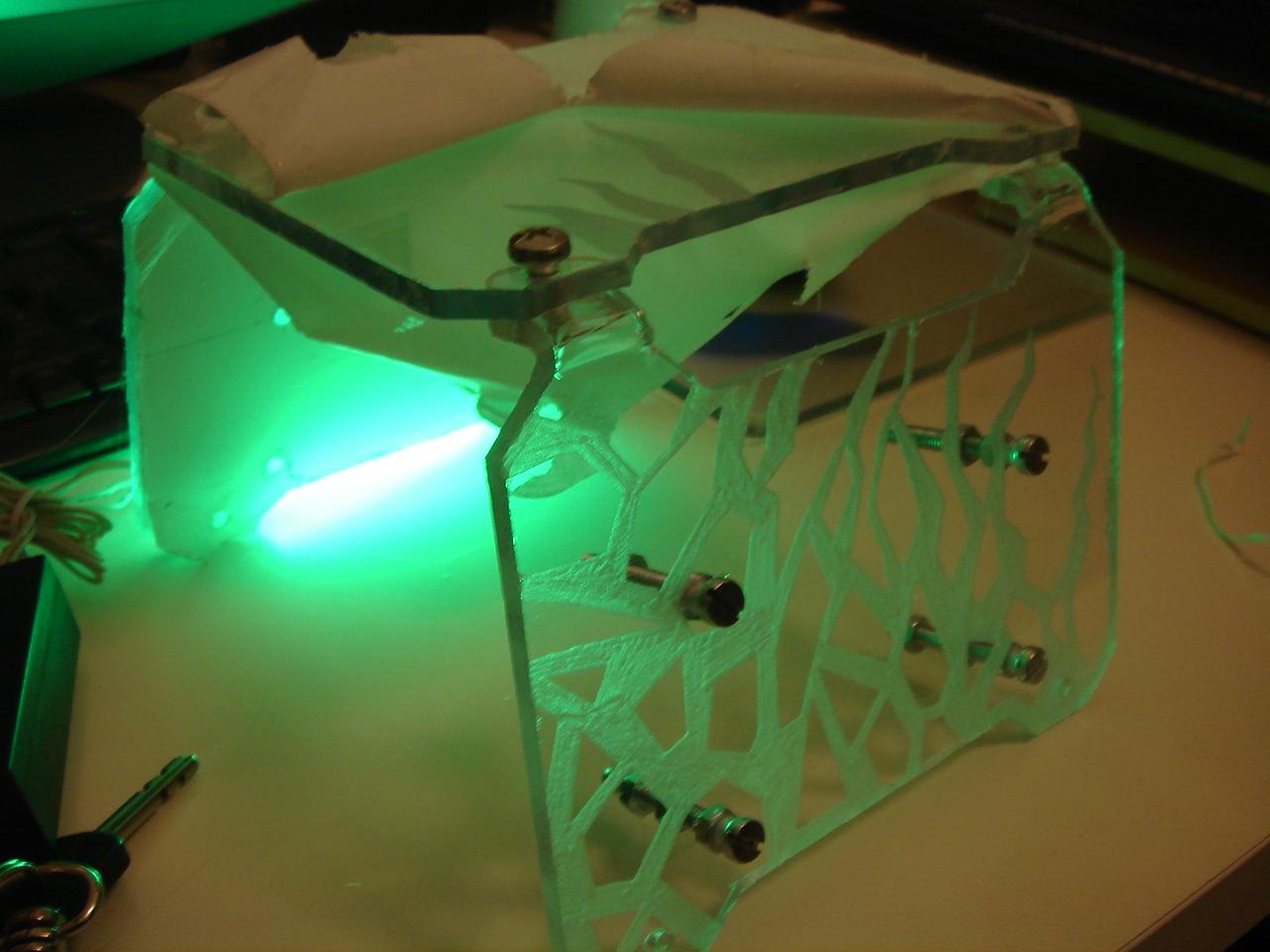

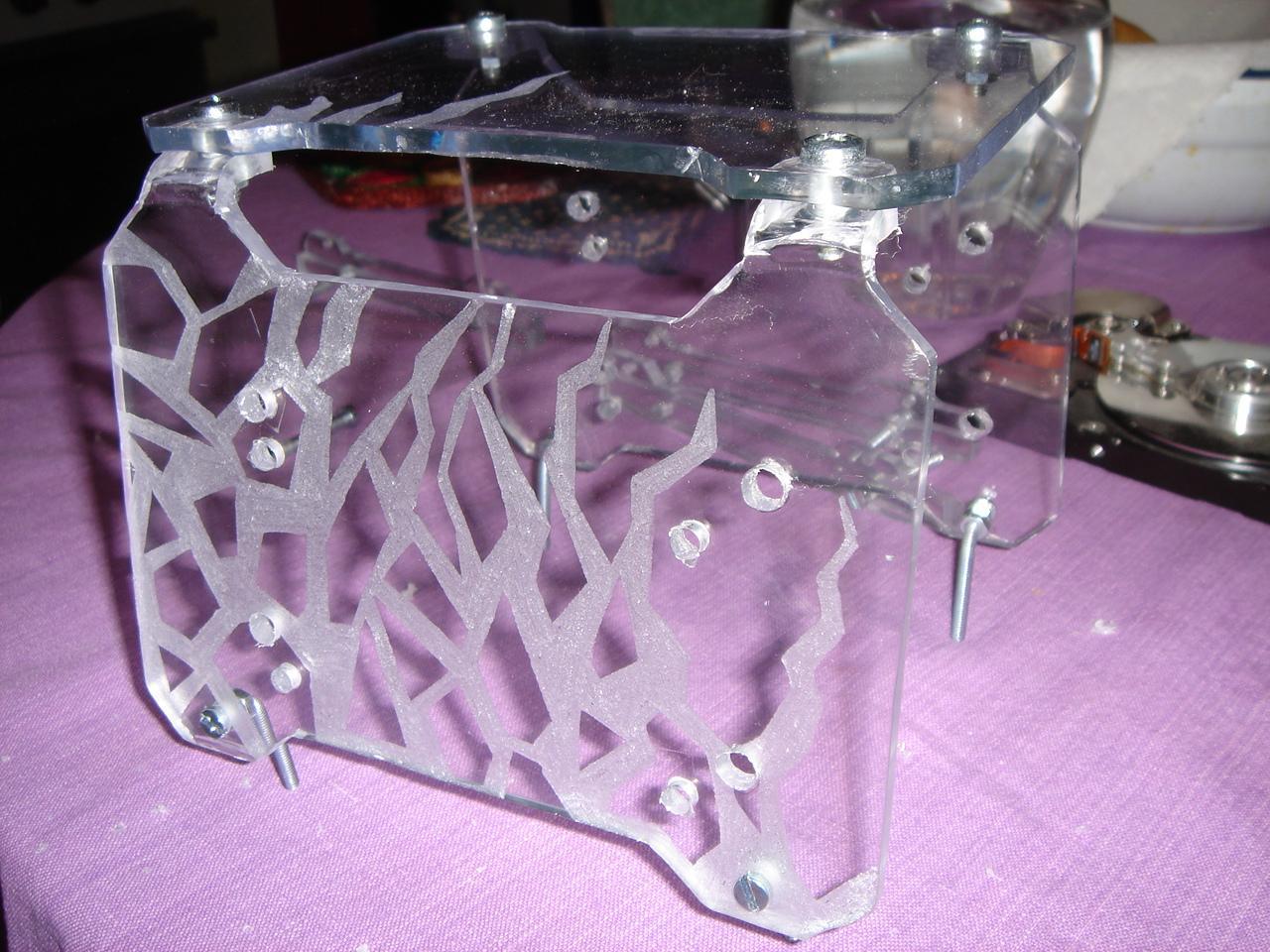

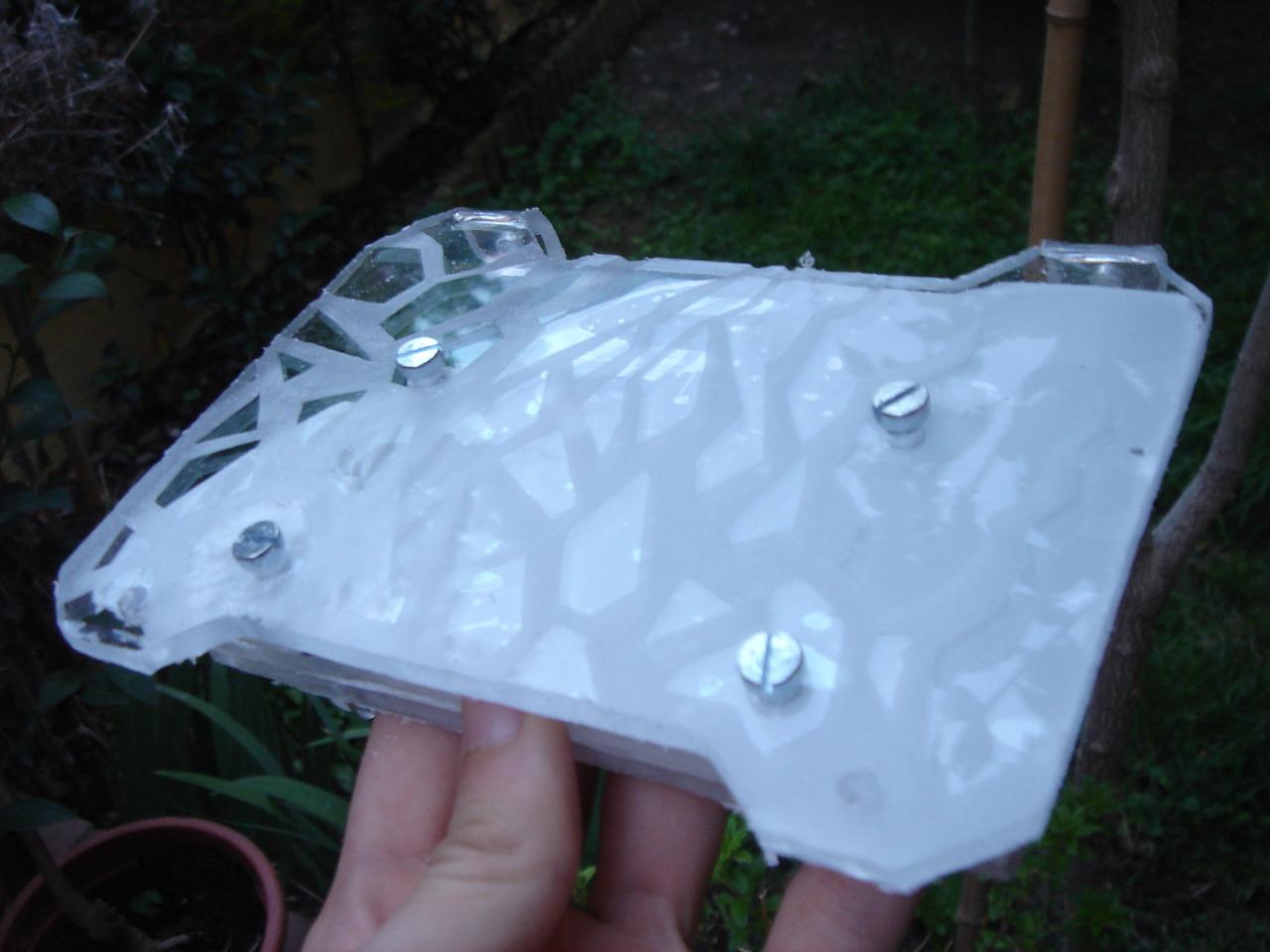

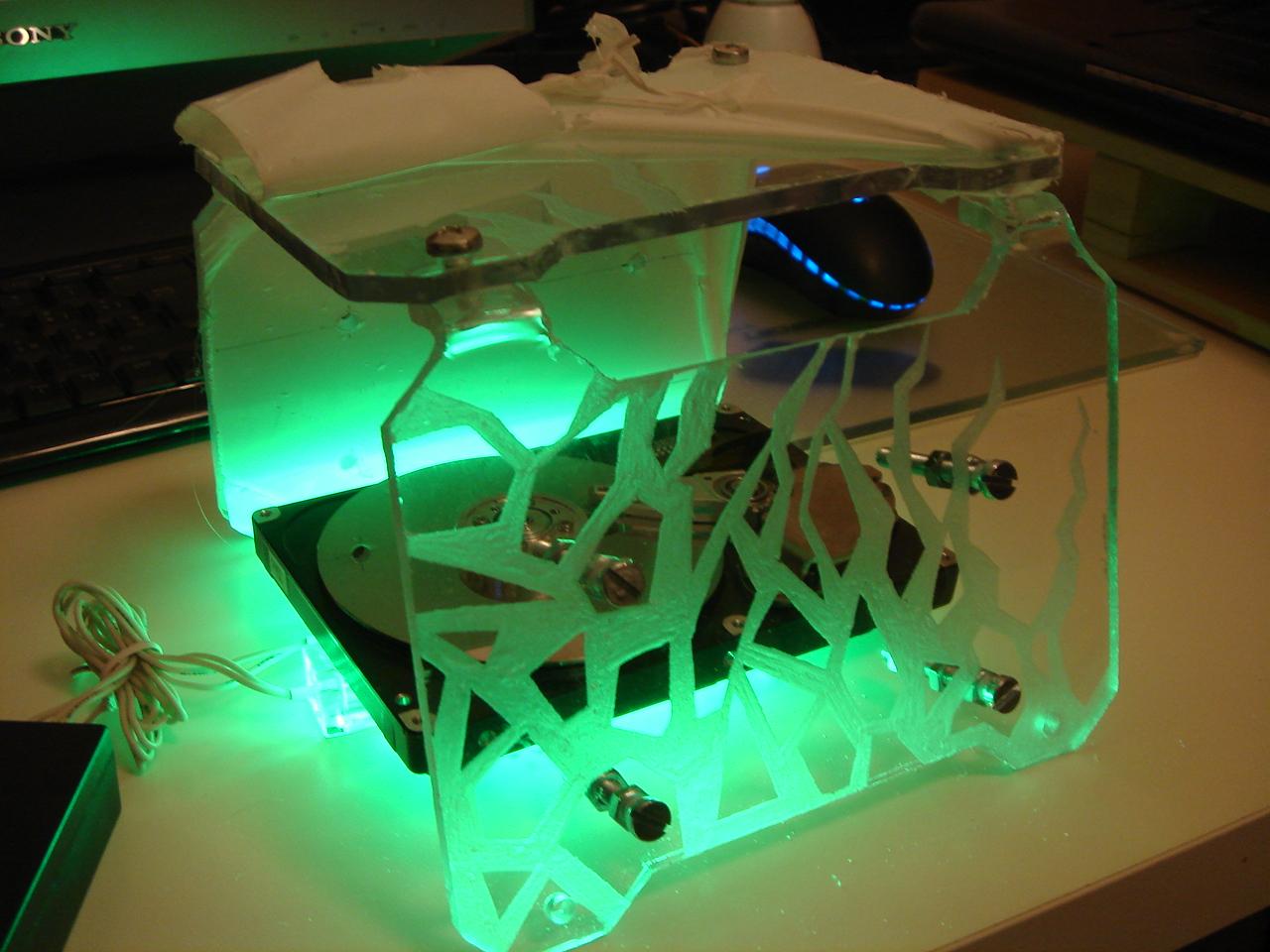

then I tried the effect of the green luminous cracks:

    Self-supporting structure of the motherboard

I have completed the structure of the support of the mobo, except for the engravings.

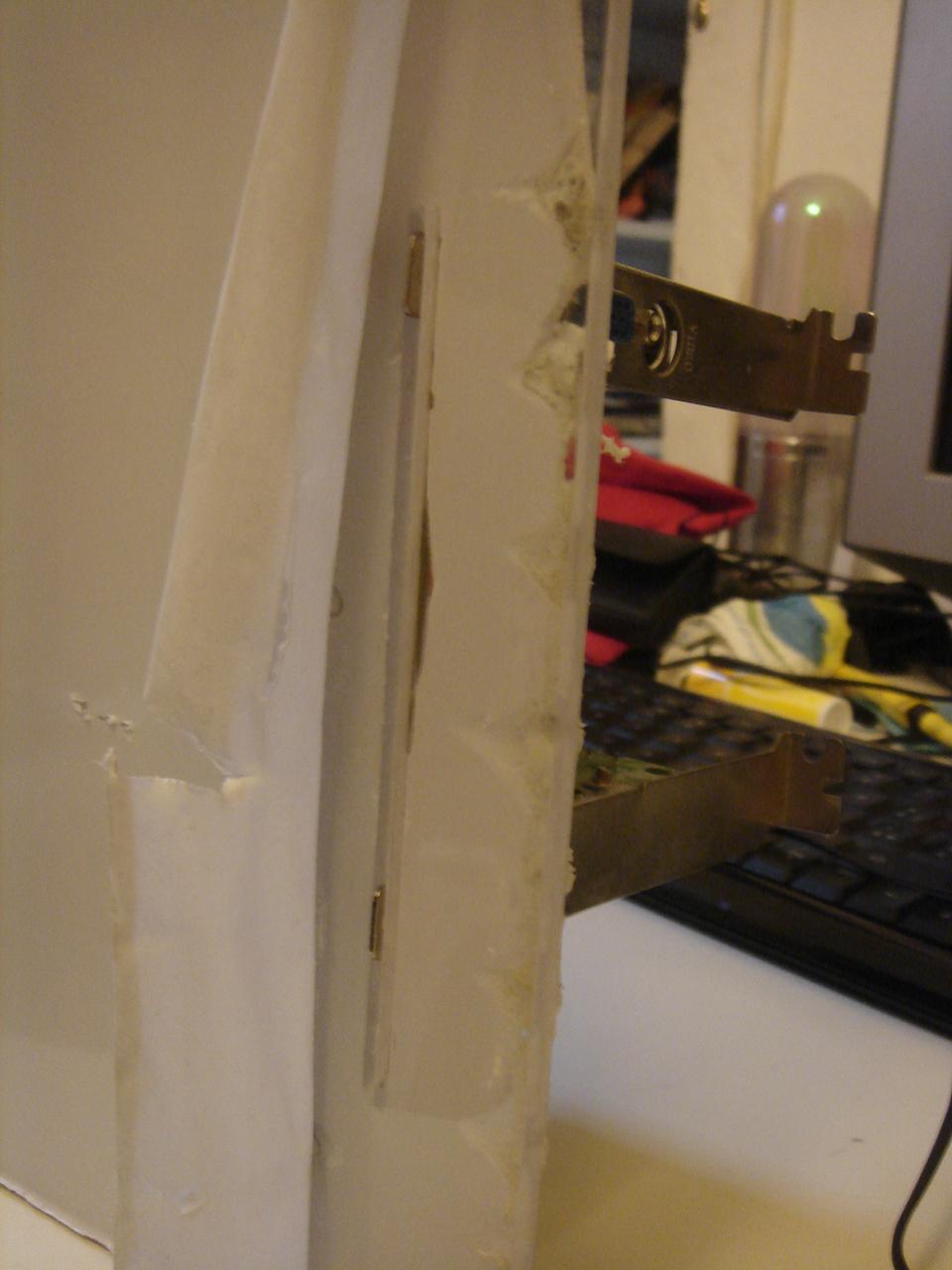

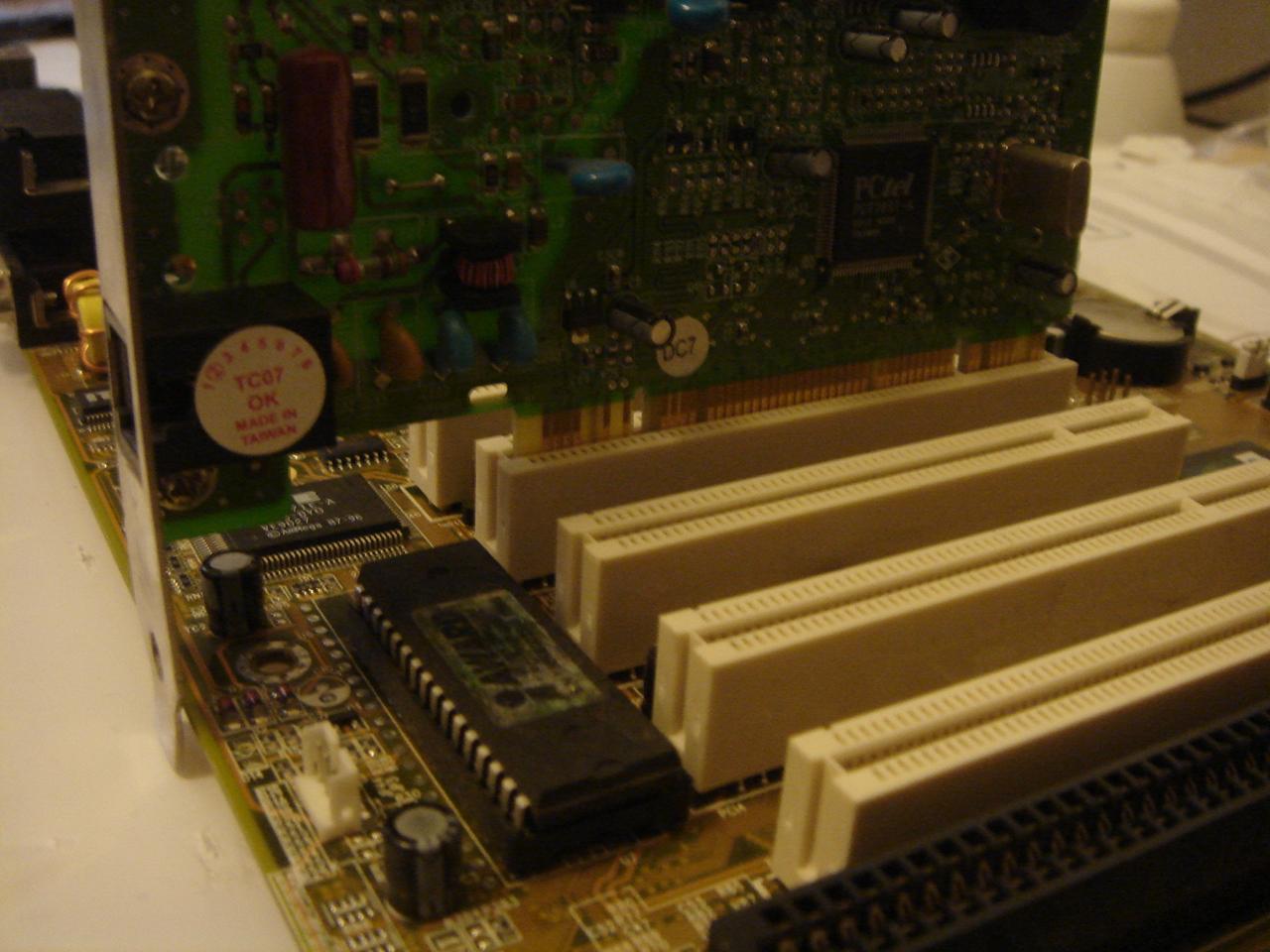

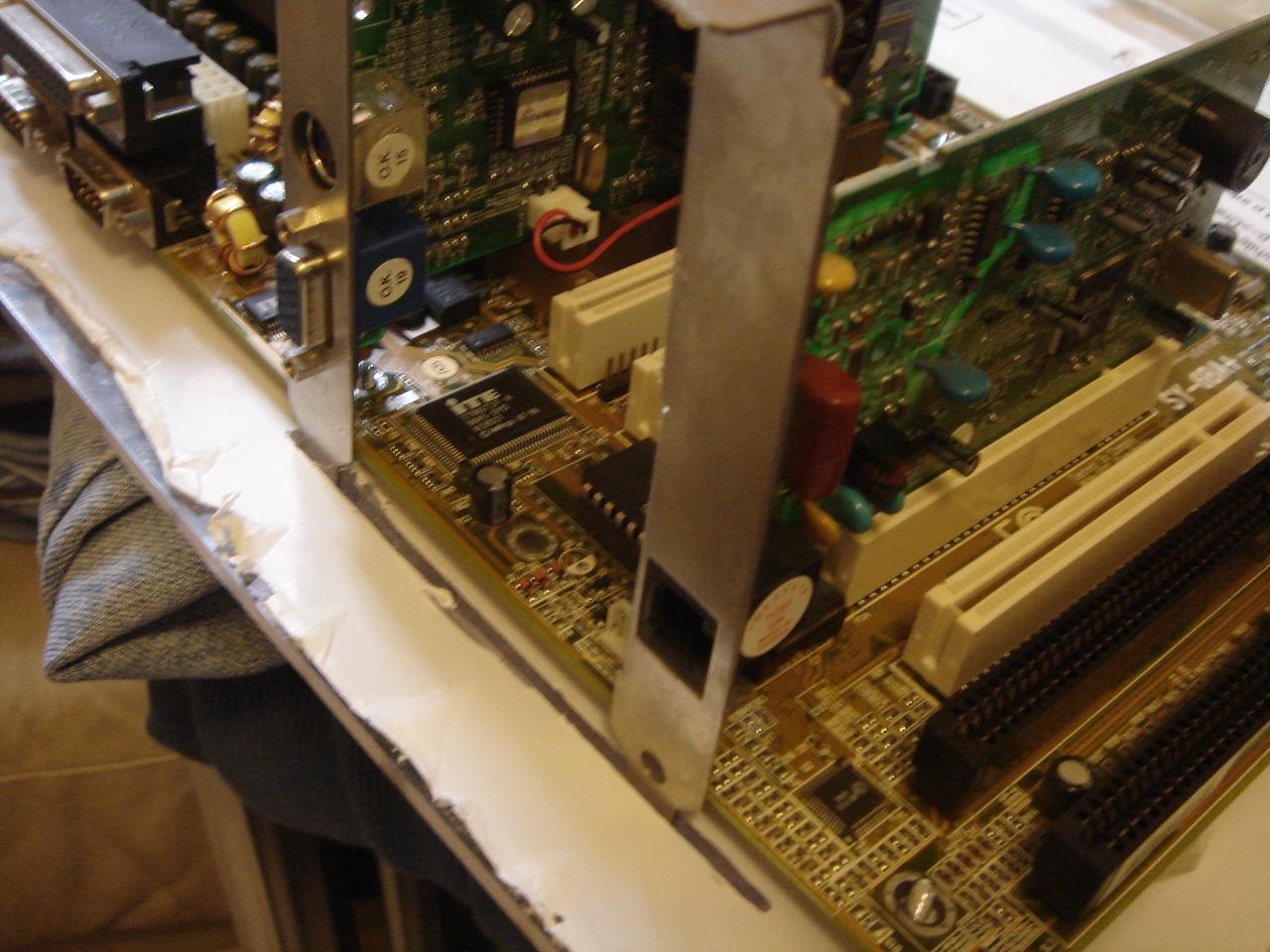

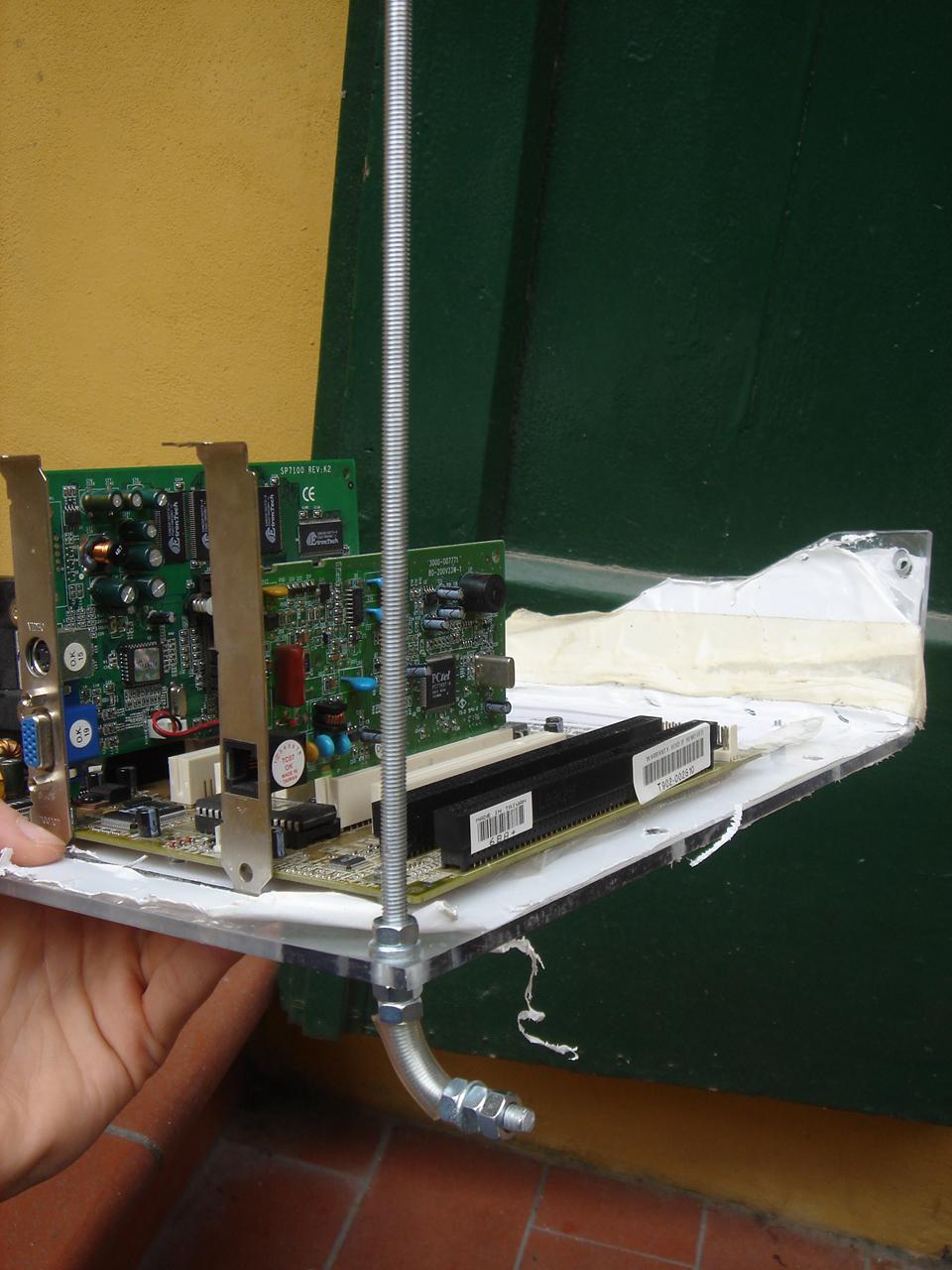

First I had to make a slot in the panel, to put the metal tab of the expansion cards mounted on the motherboard:

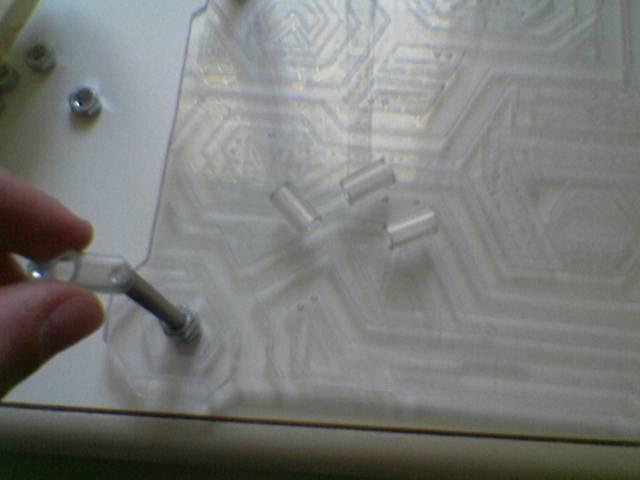

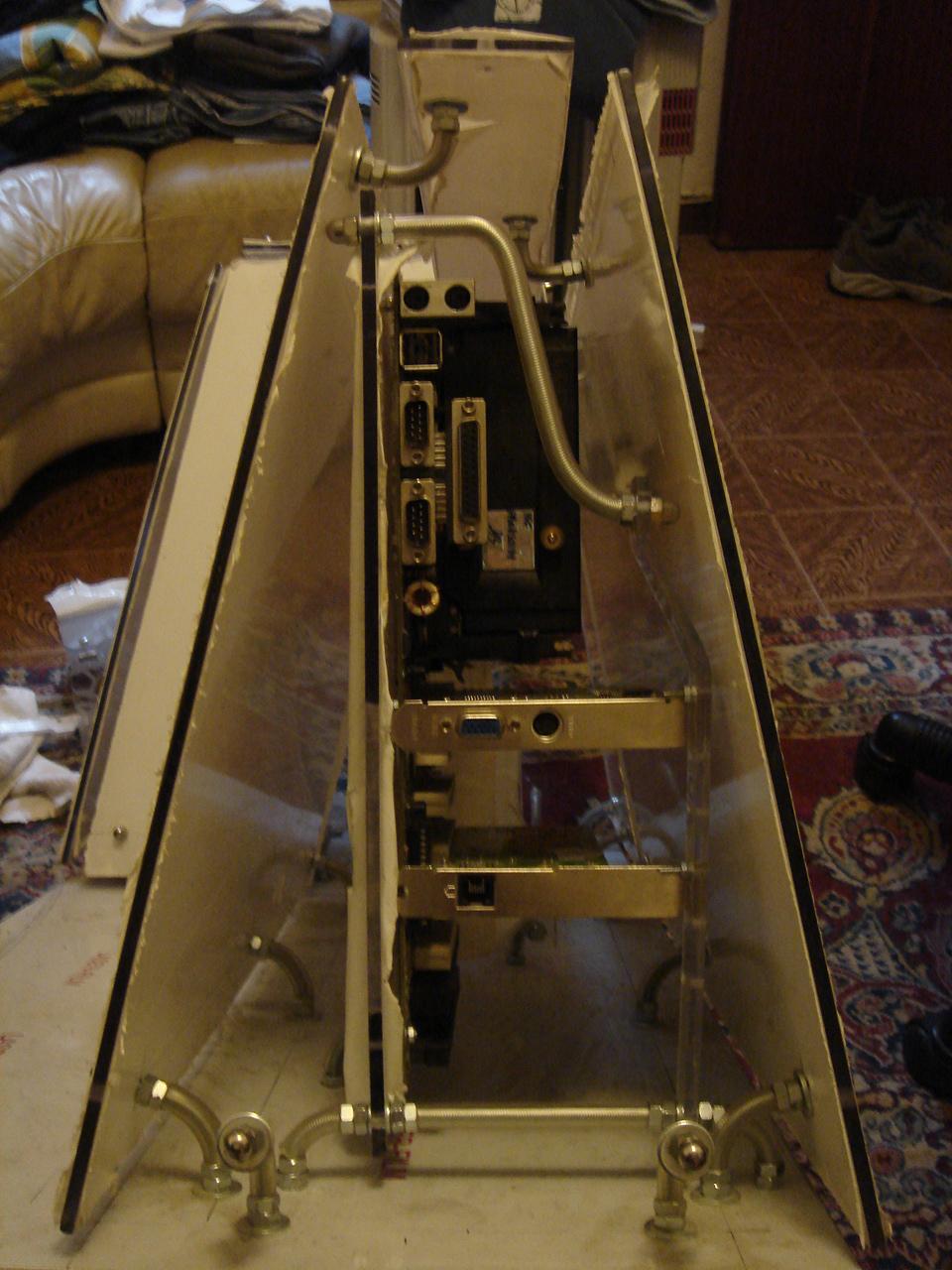

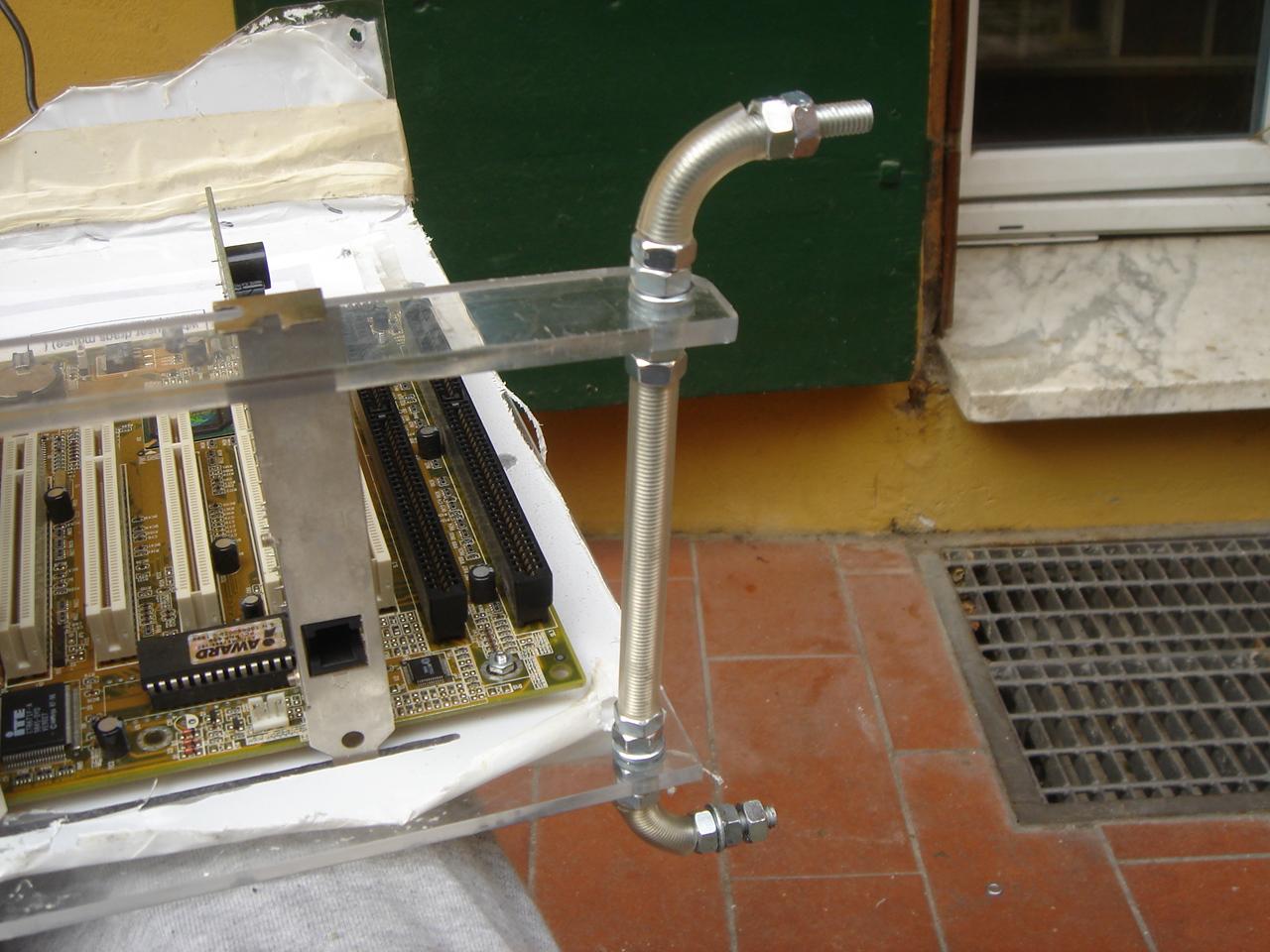

Then I added the support on which are screwed the expansion cards, and the joints to mount the structure on the base:

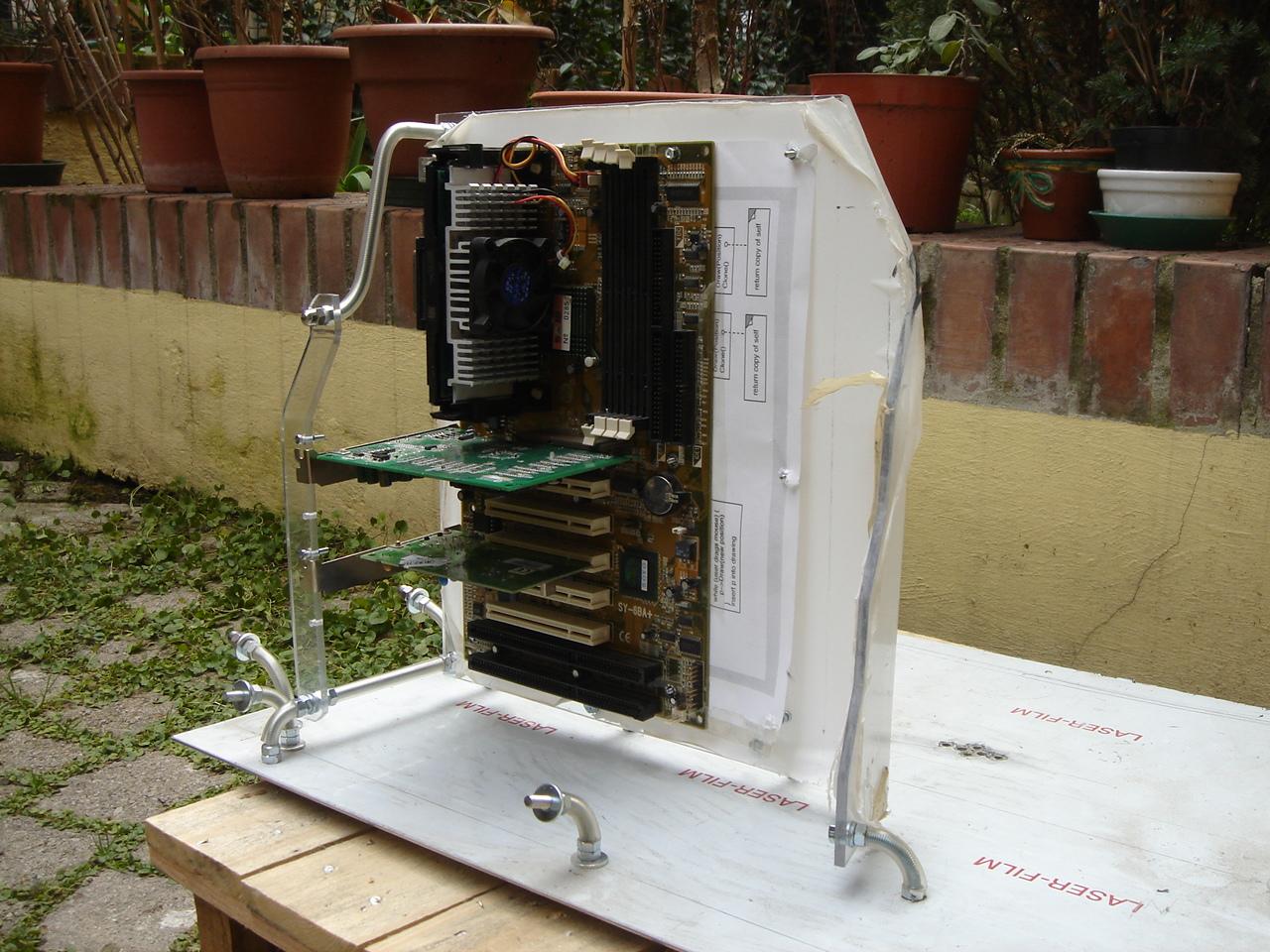

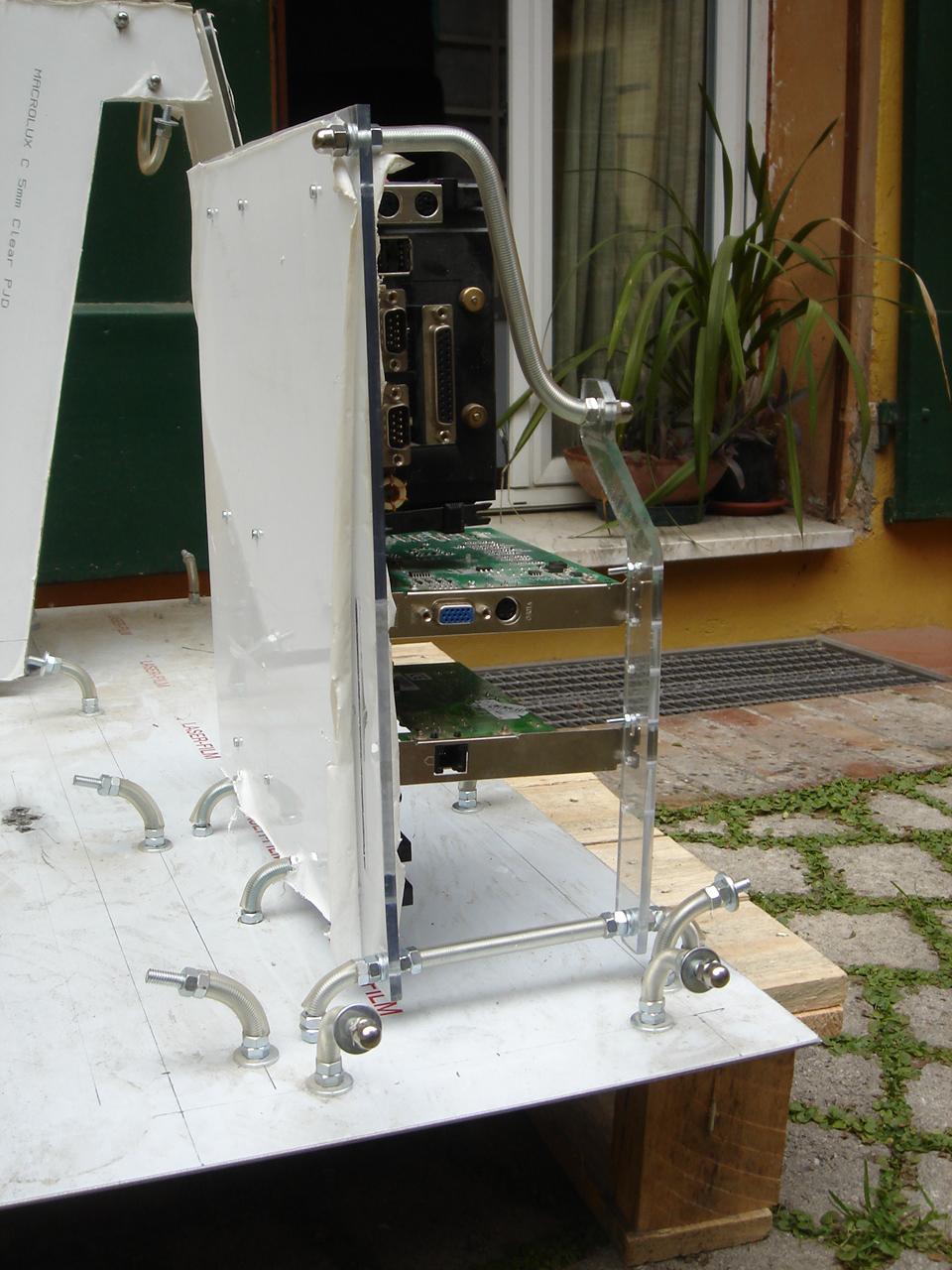

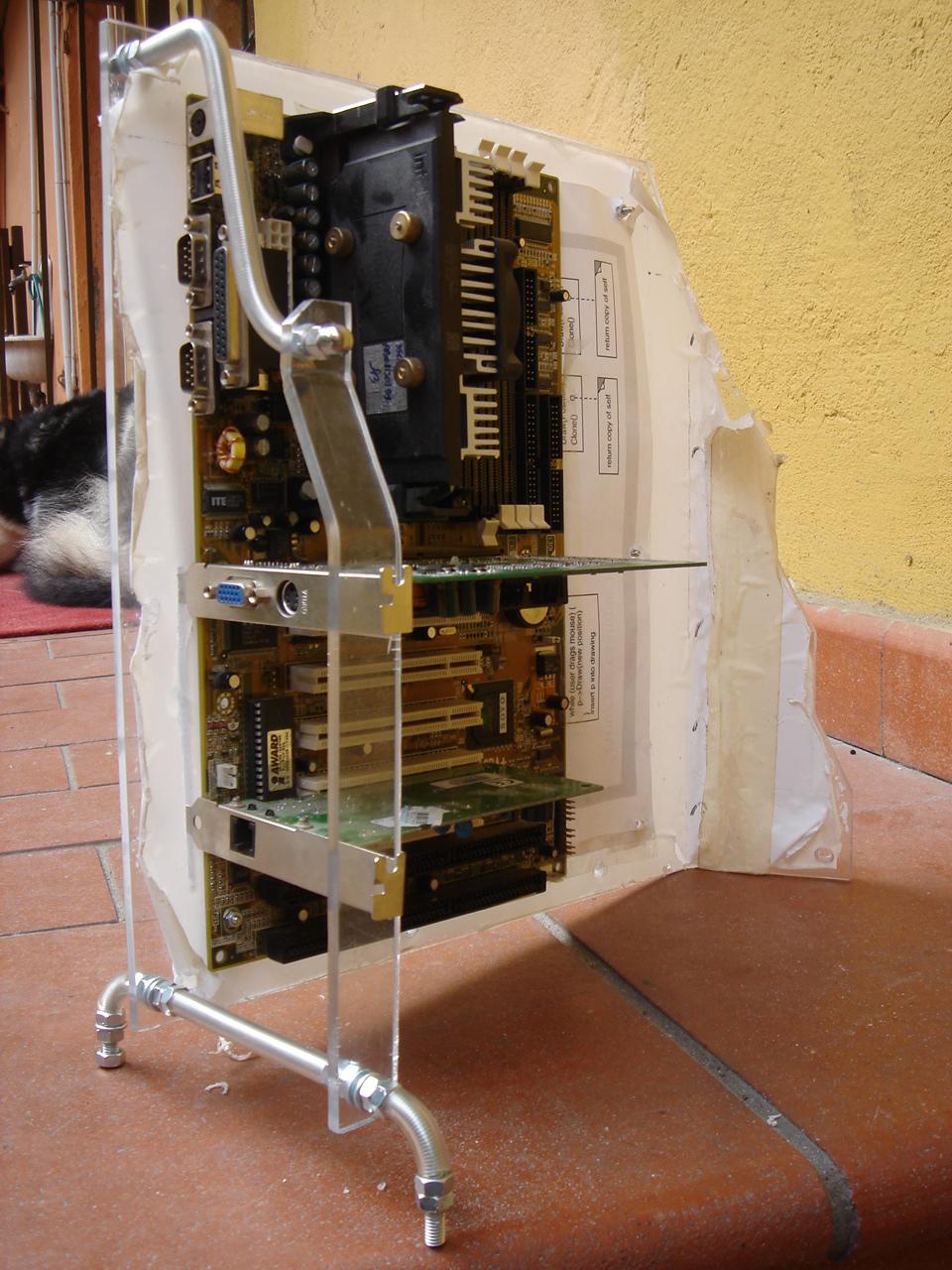

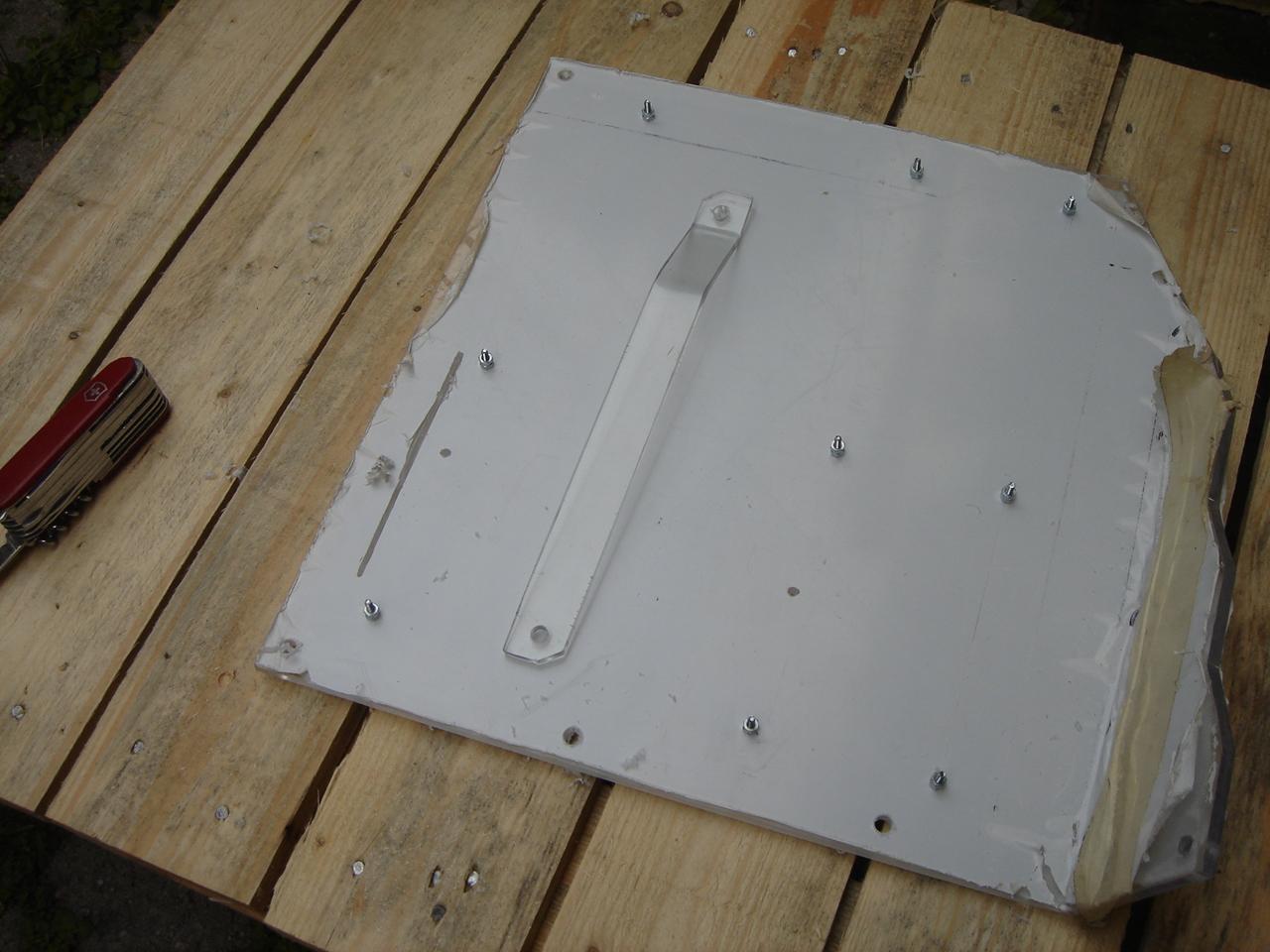

Finally I drill the holes on the base, and I mounted the structure:

    Finishing the hard disk structure

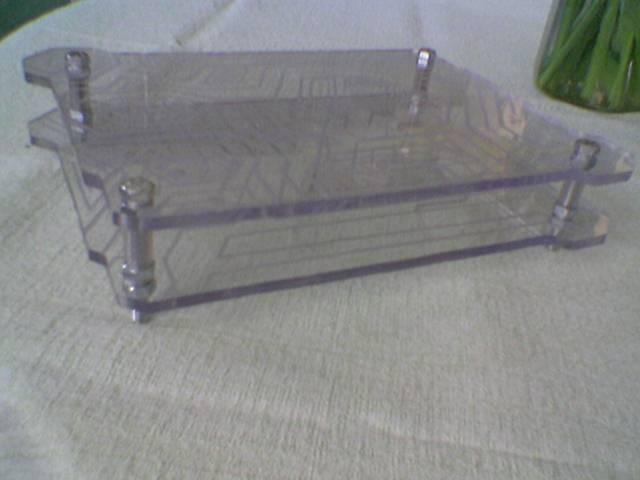

I finished the hard disk structure:

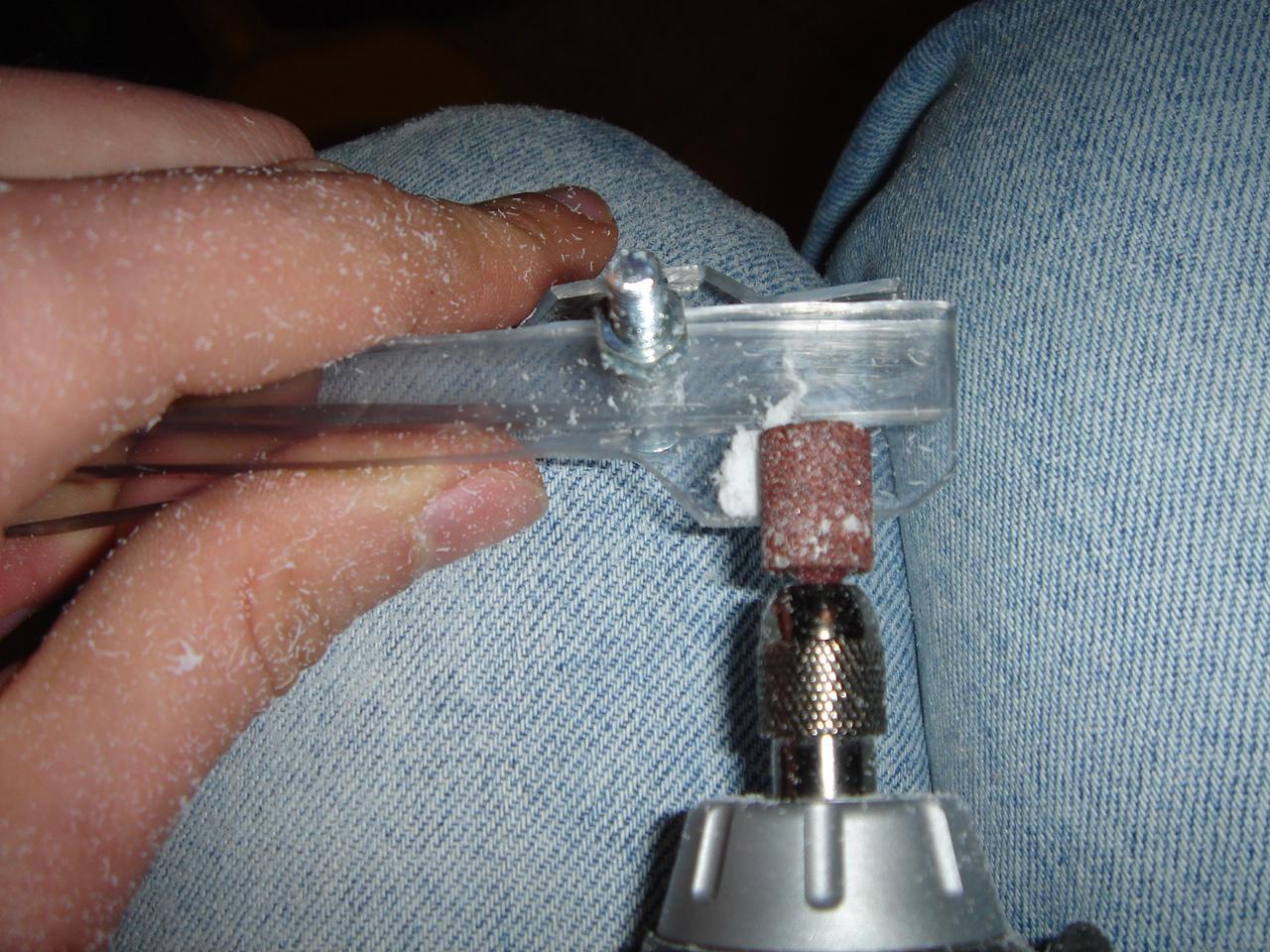

I started polishing the edges of the “slides” and the structure:

then, I began to assemble the structure:

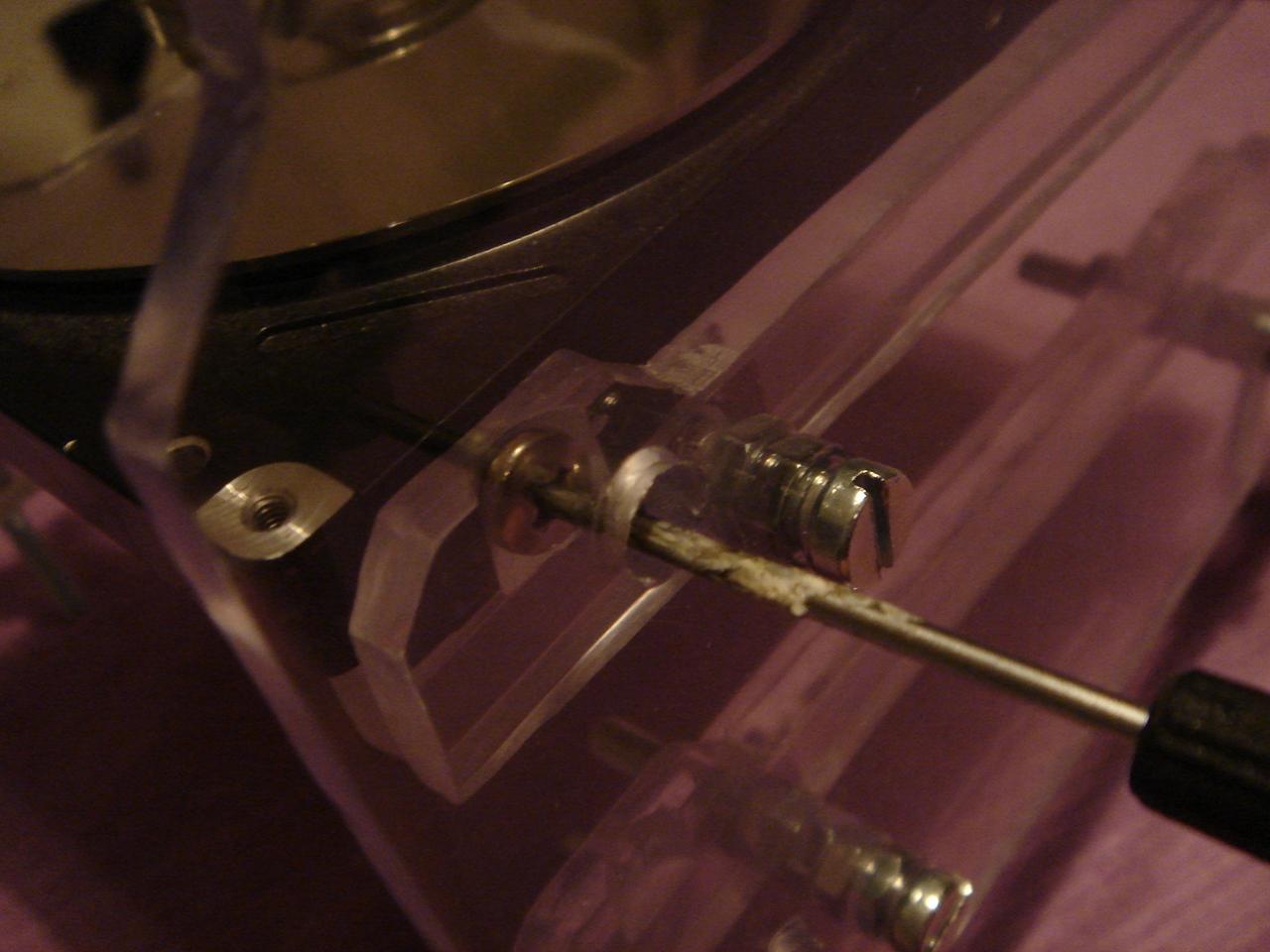

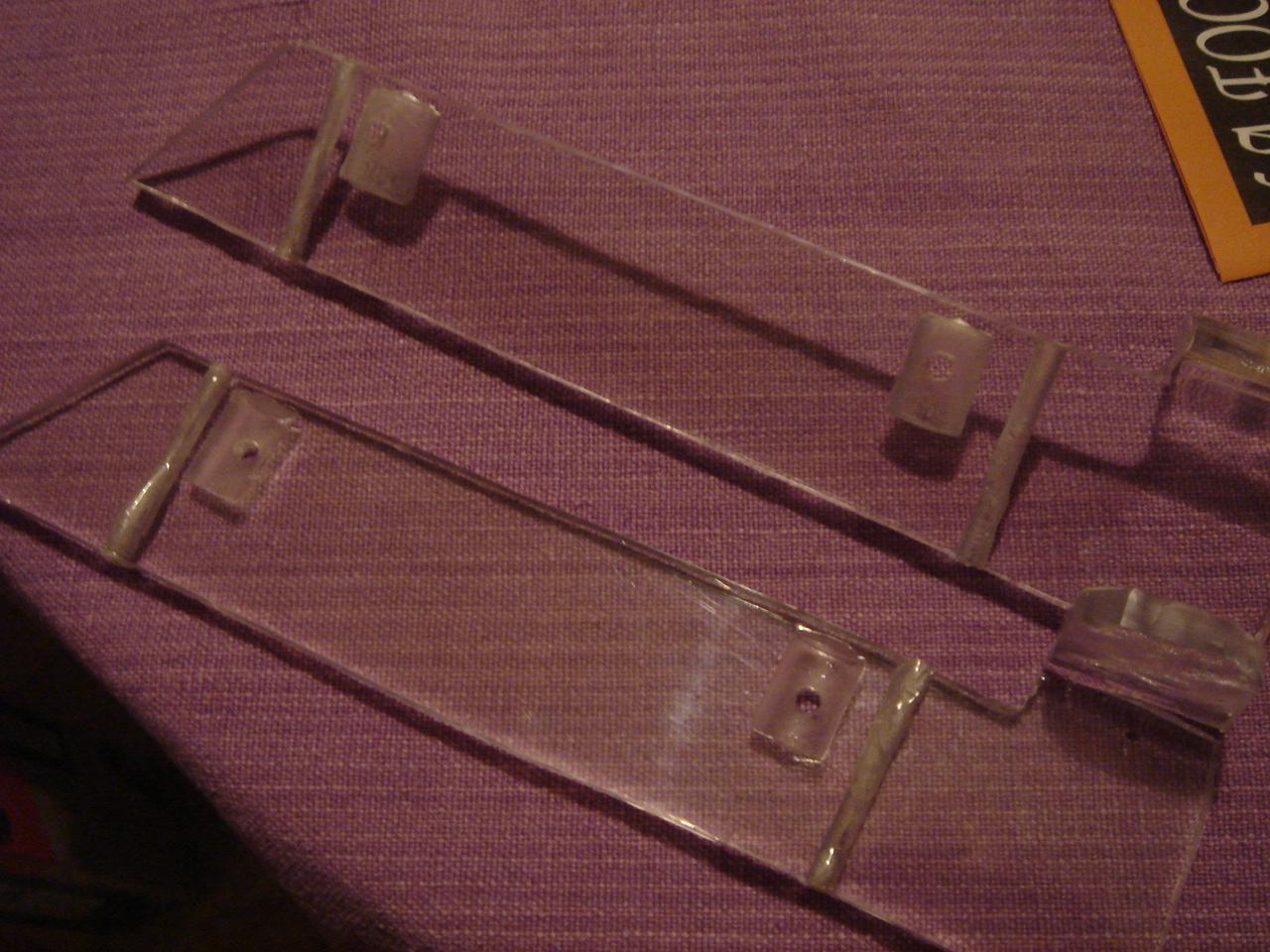

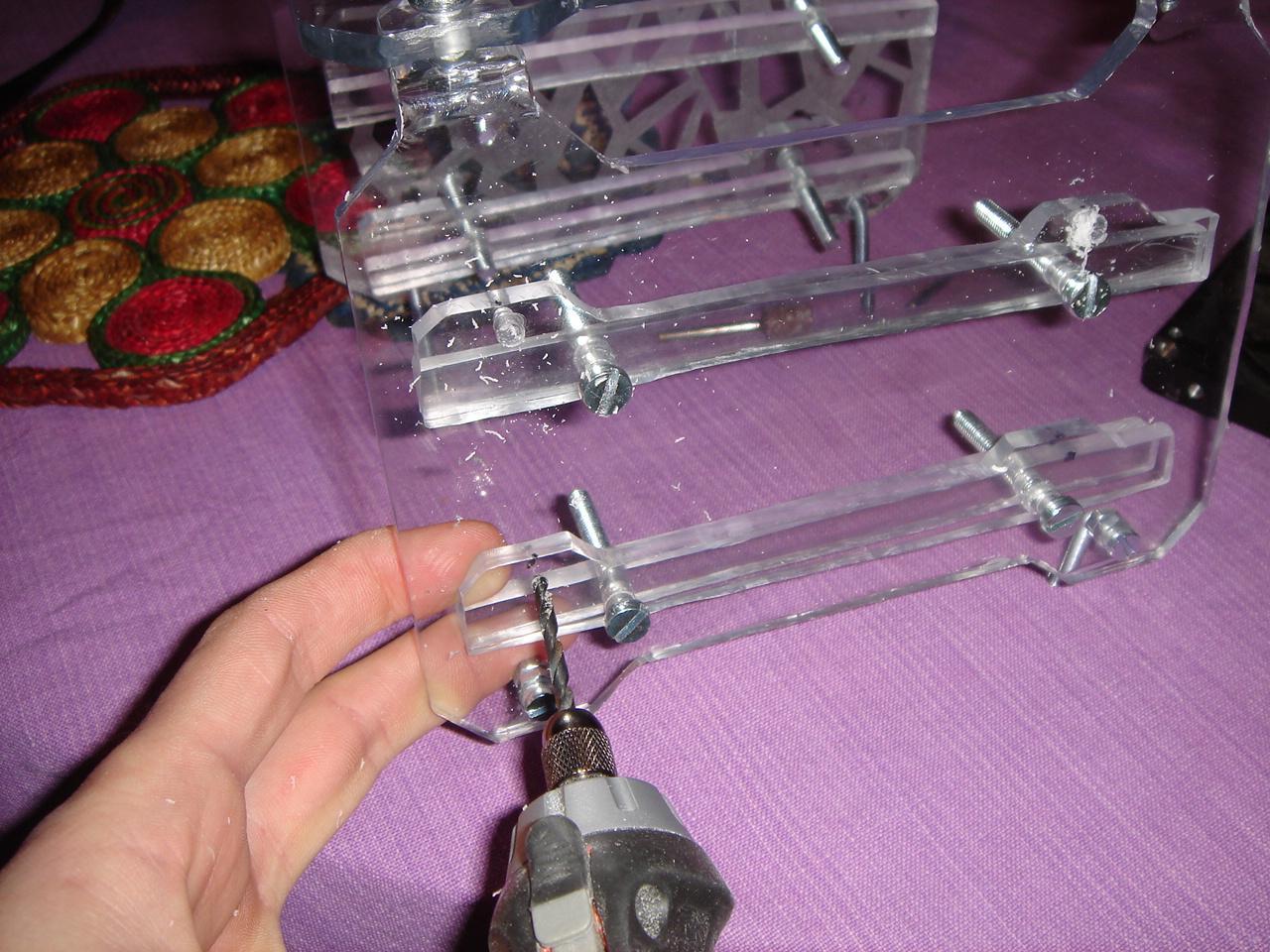

and I made this holes, to insert the screwdriver when I mount the hard drives:

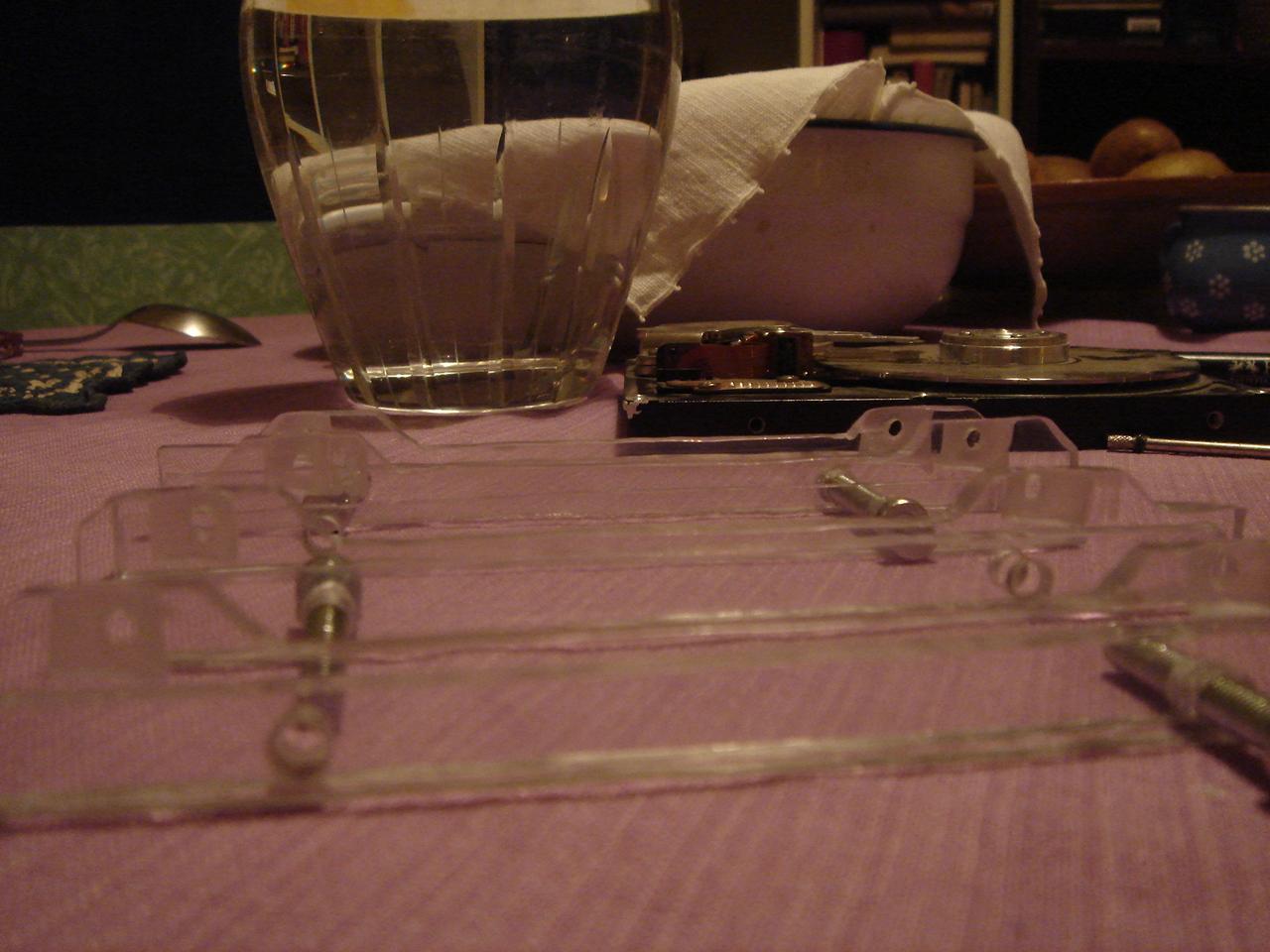

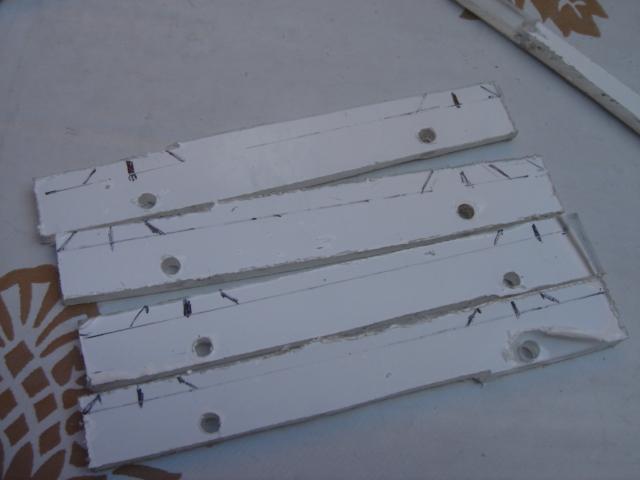

I reduced the thickness of the slides, to mount easier the hard drives:

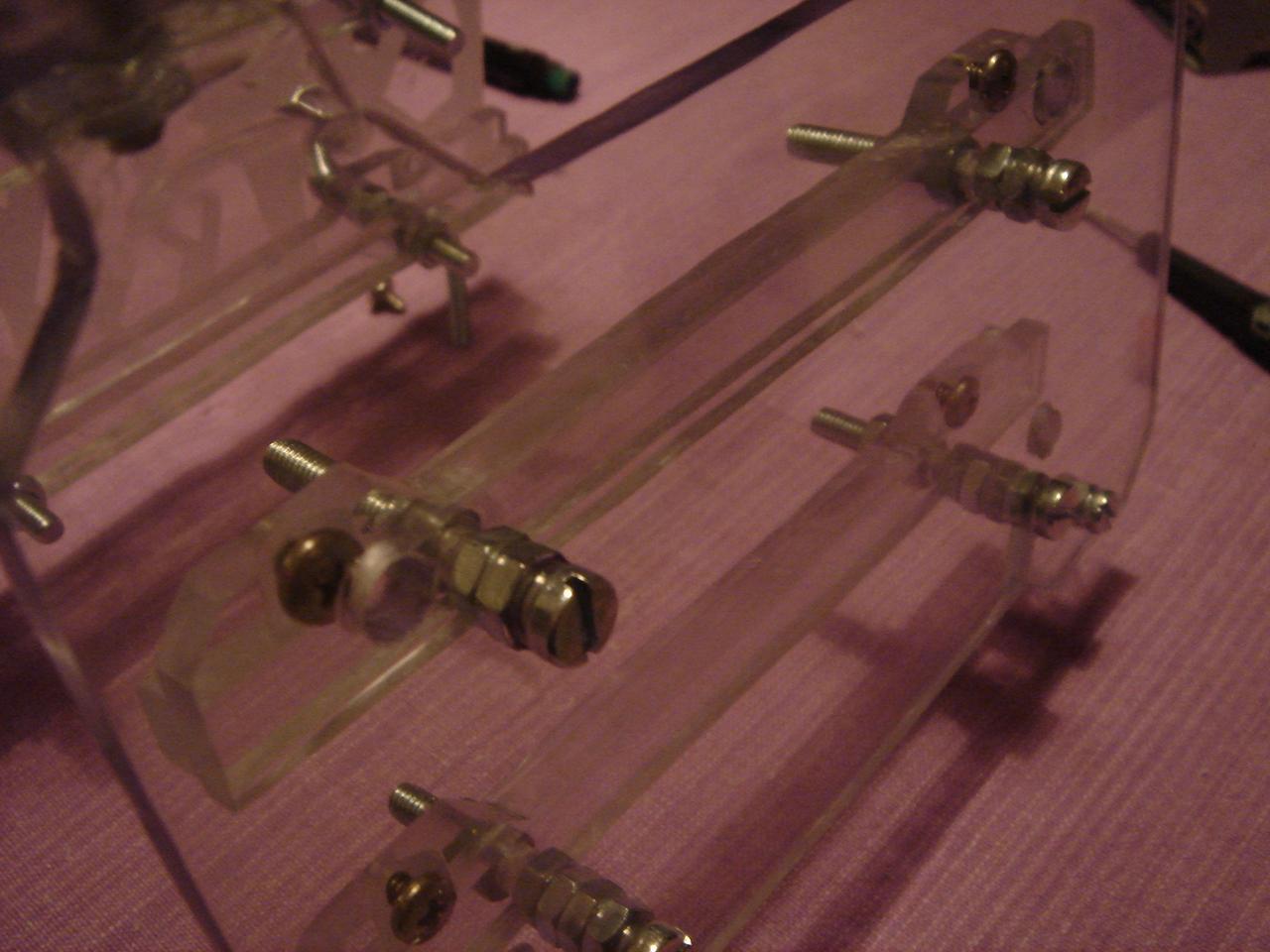

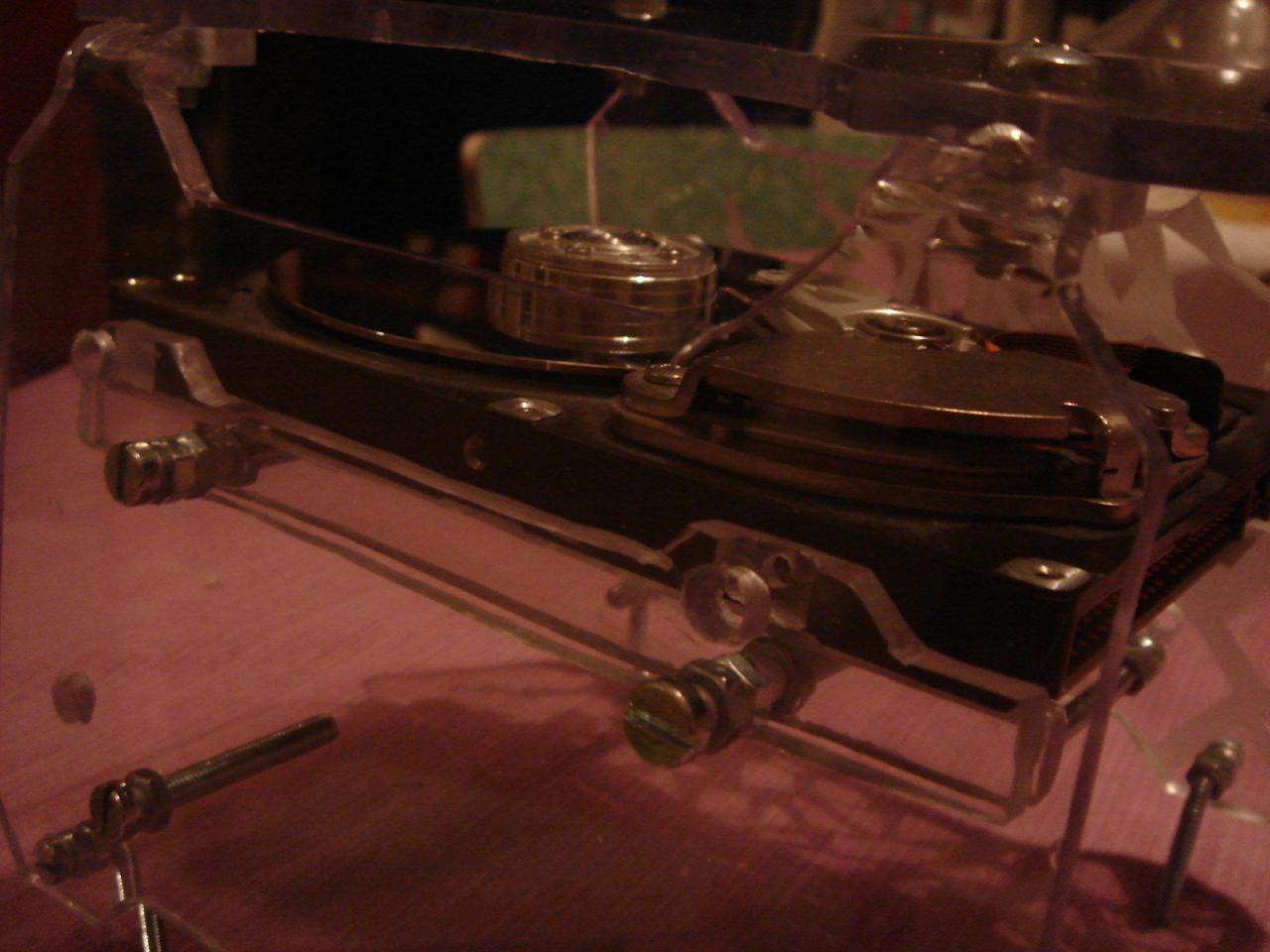

then I mounted the finished slides on the structure:

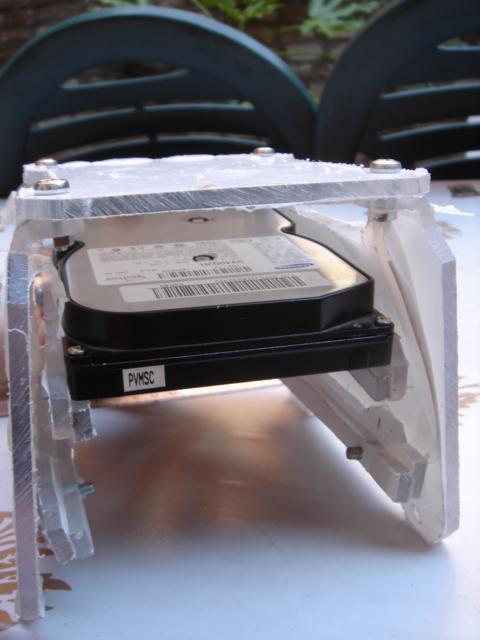

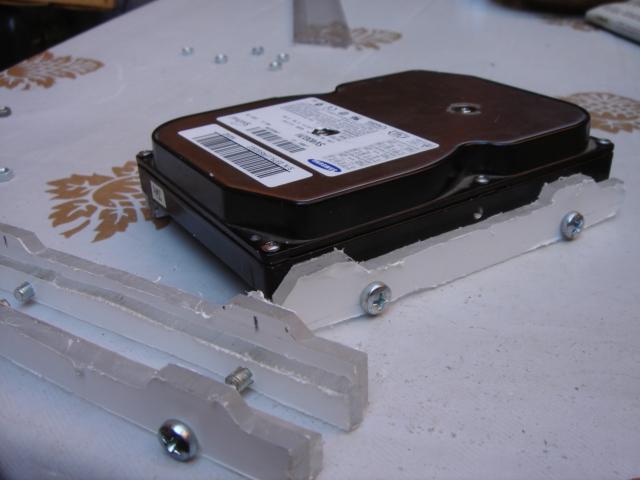

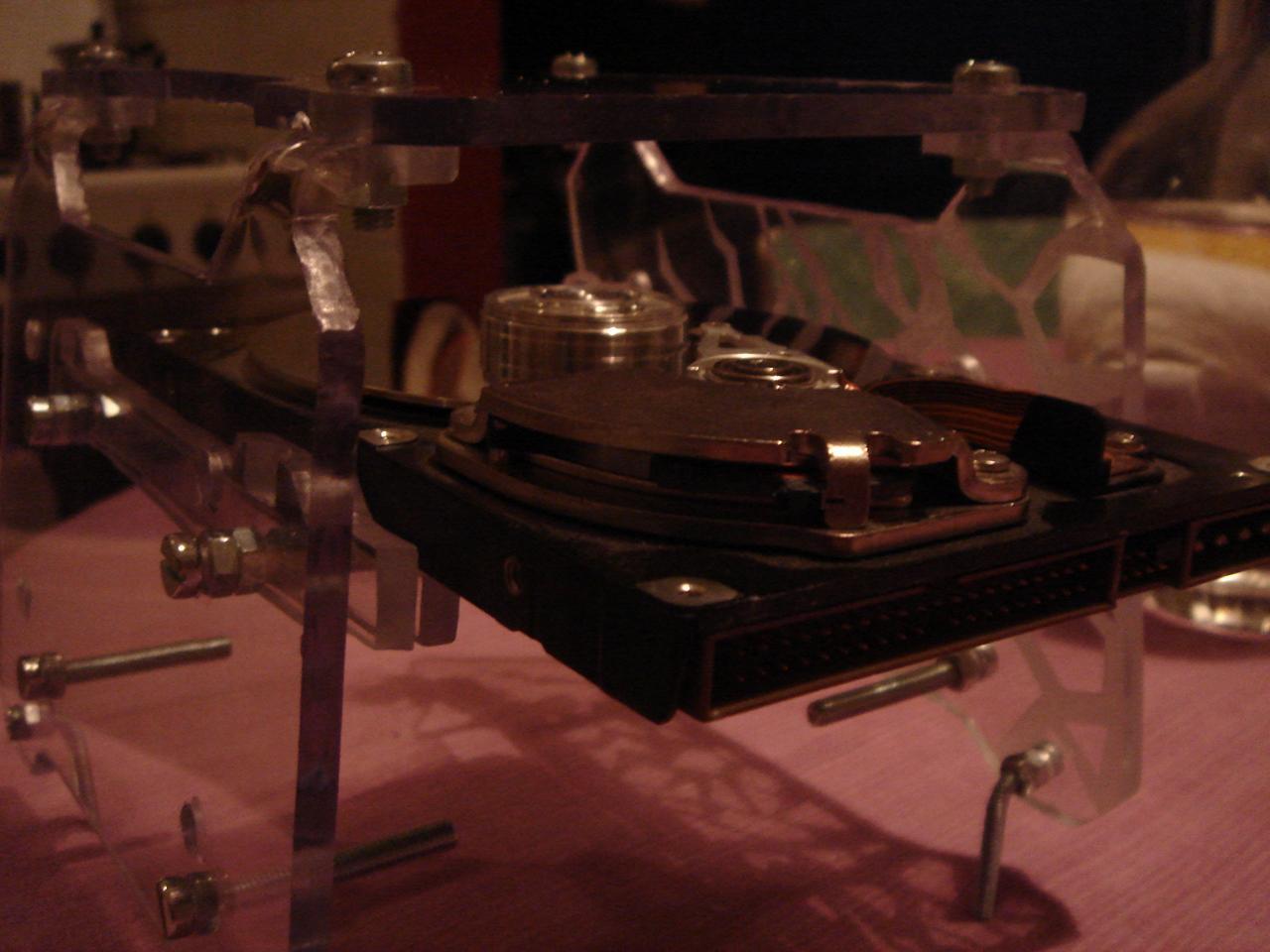

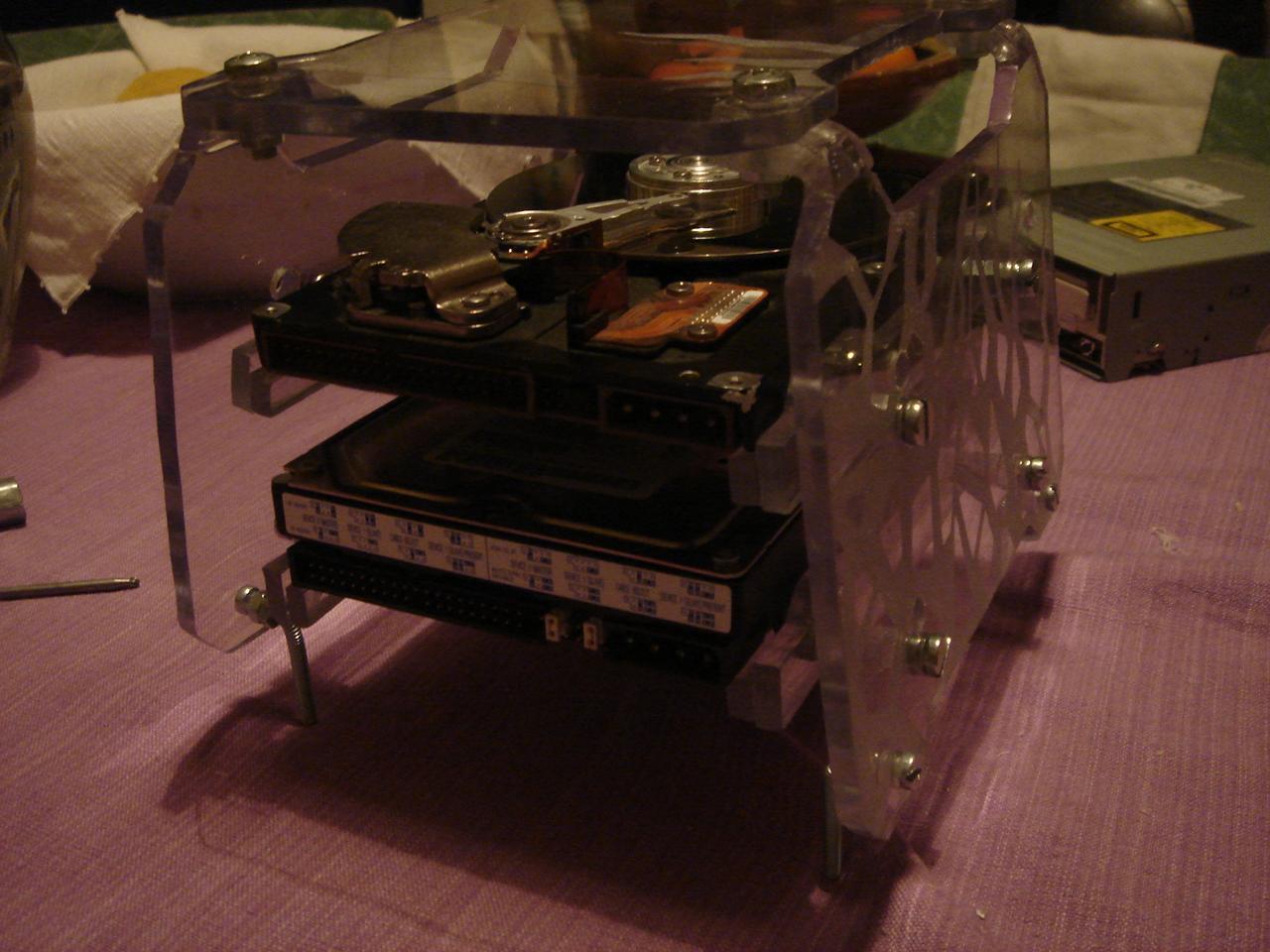

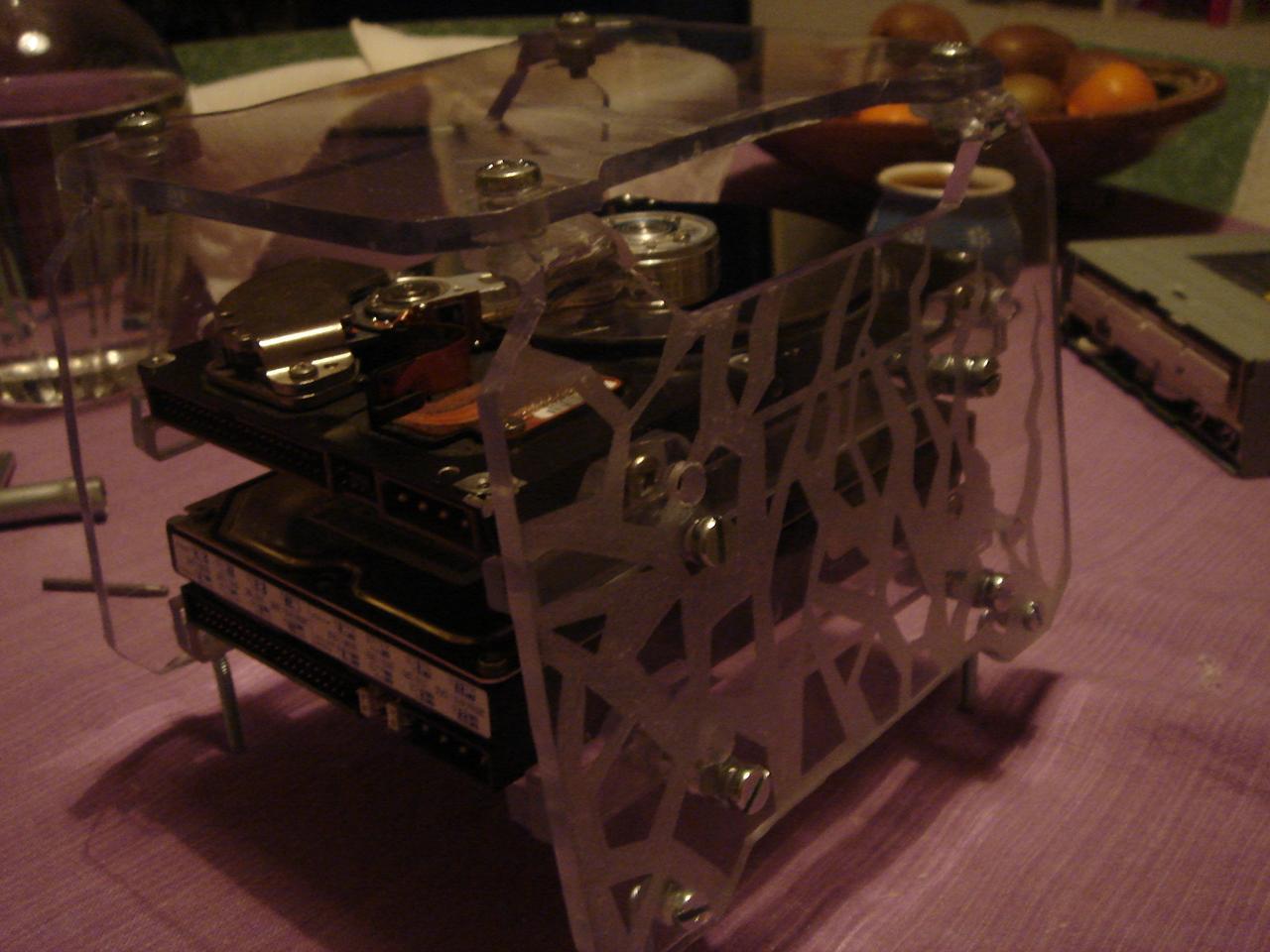

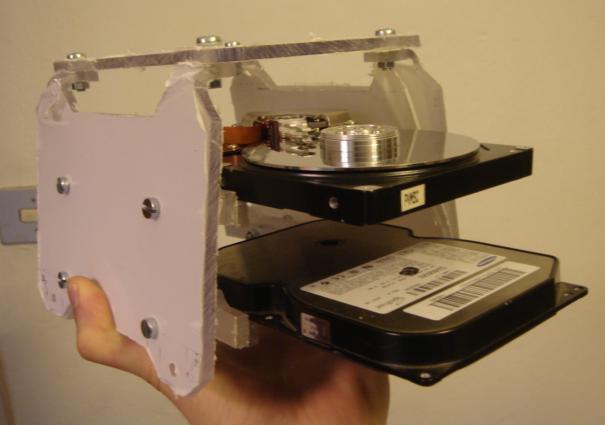

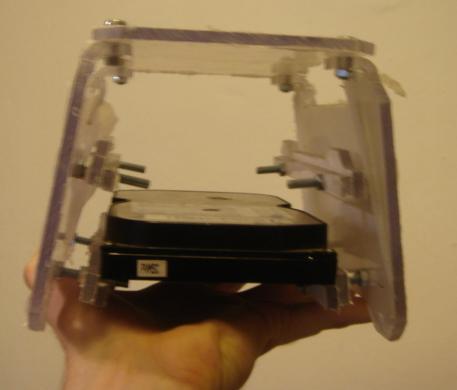

I mounted the hard drives:

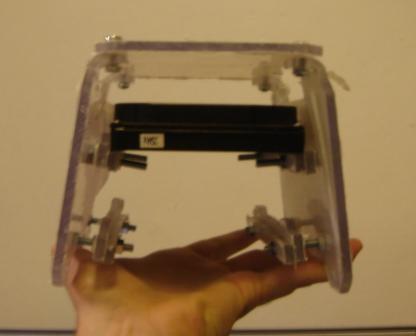

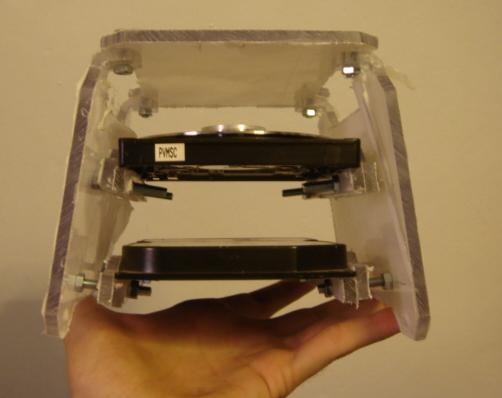

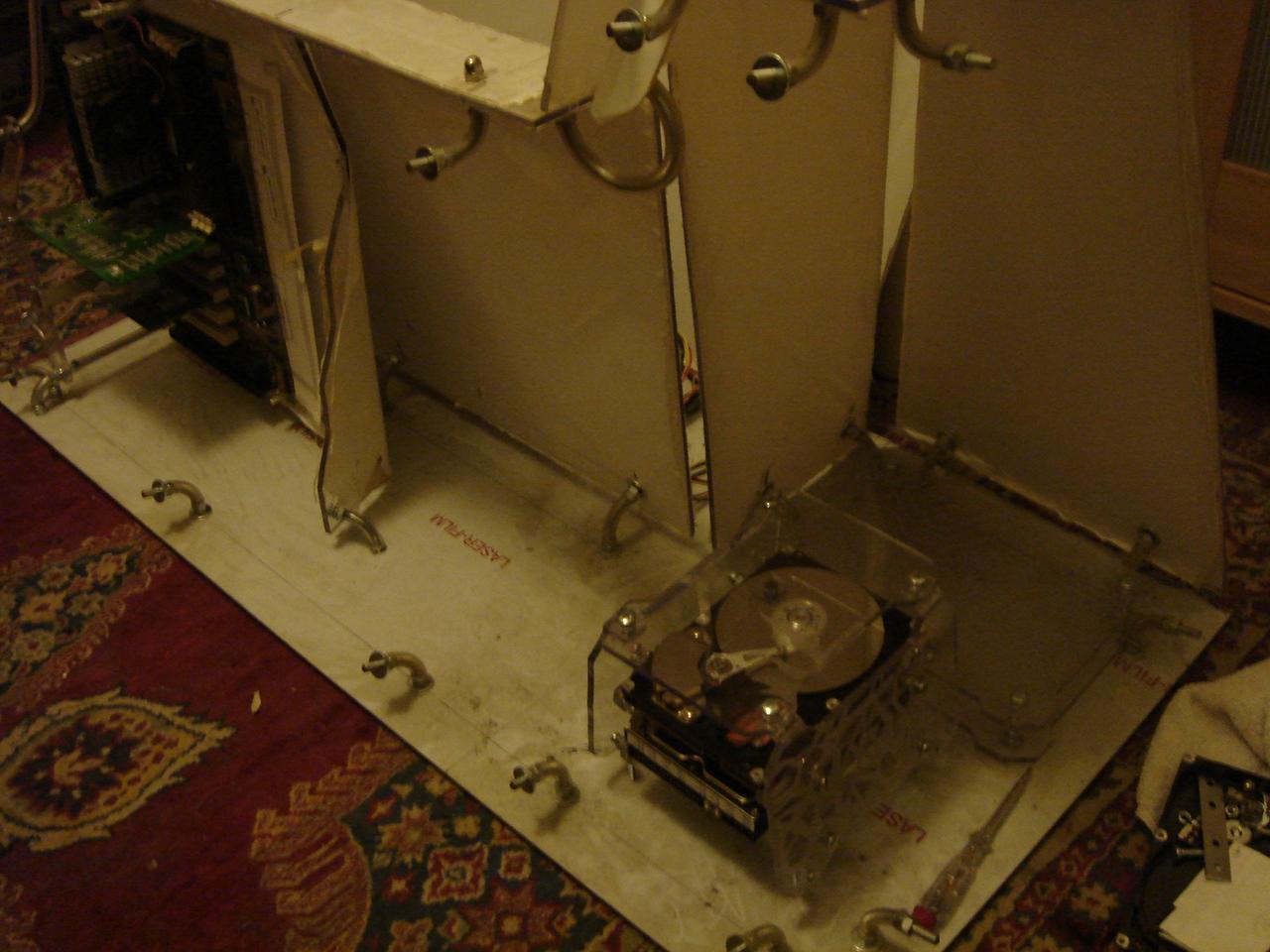

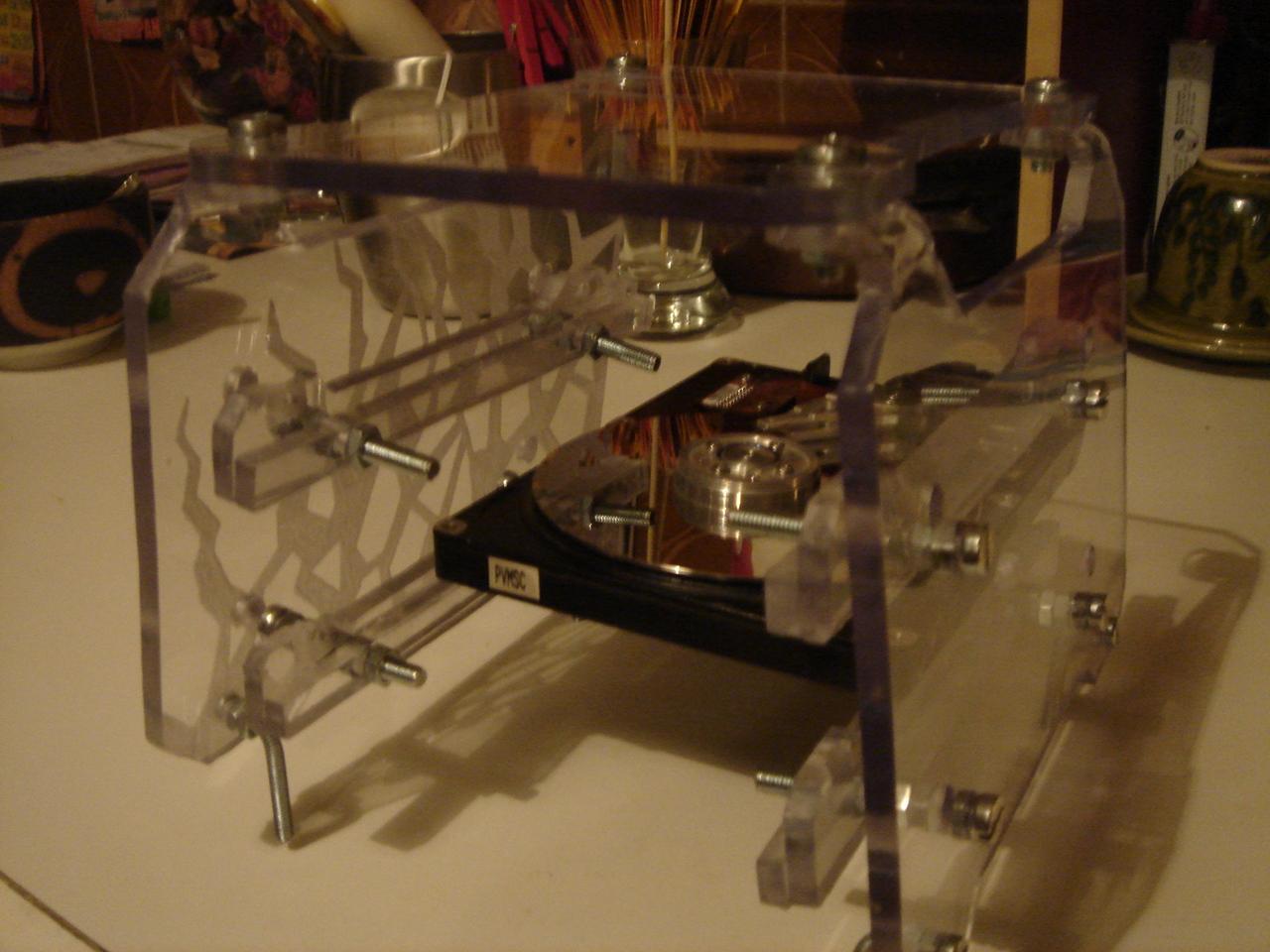

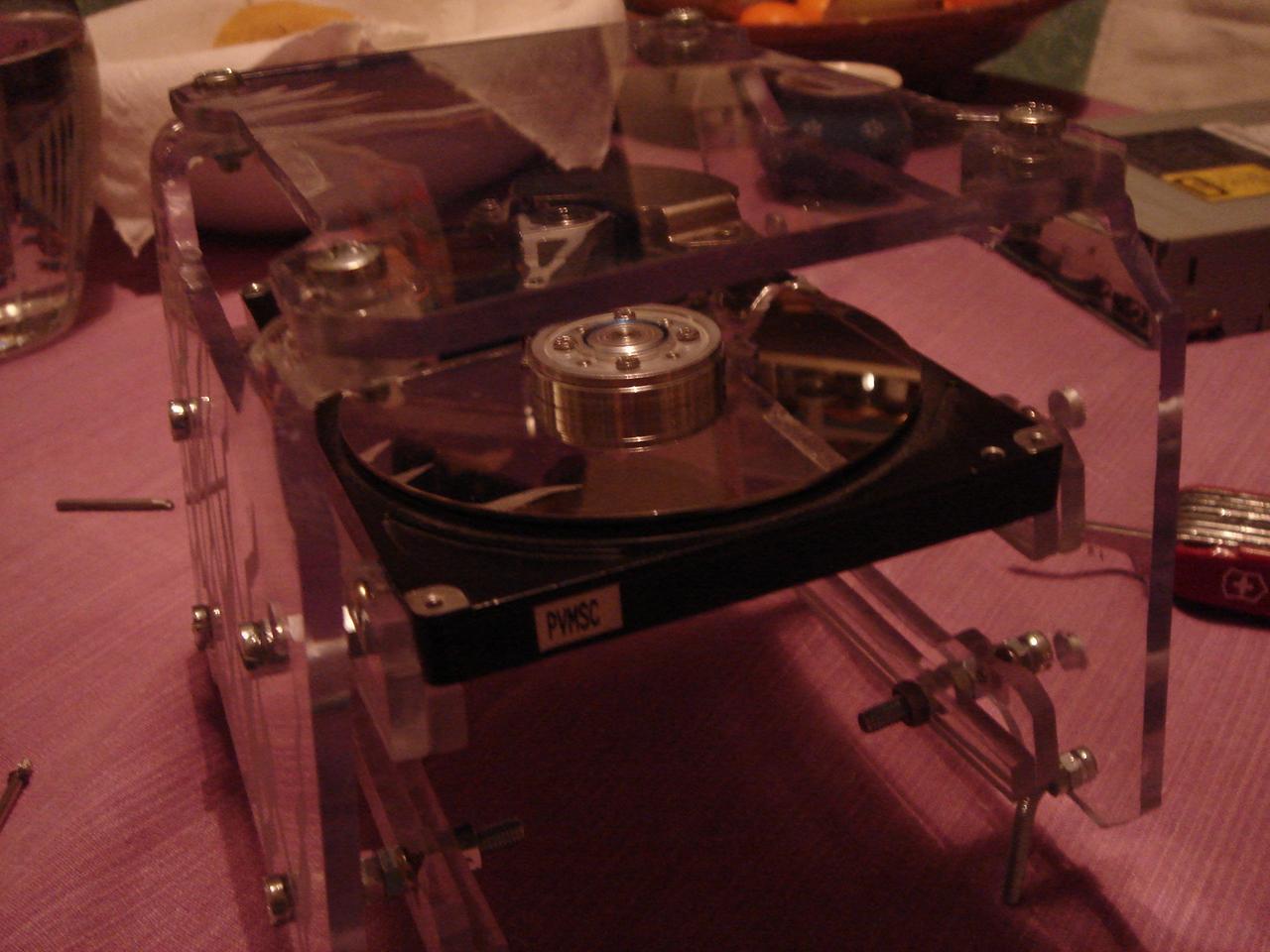

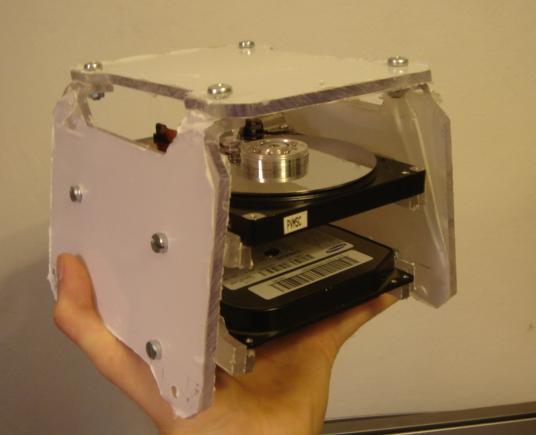

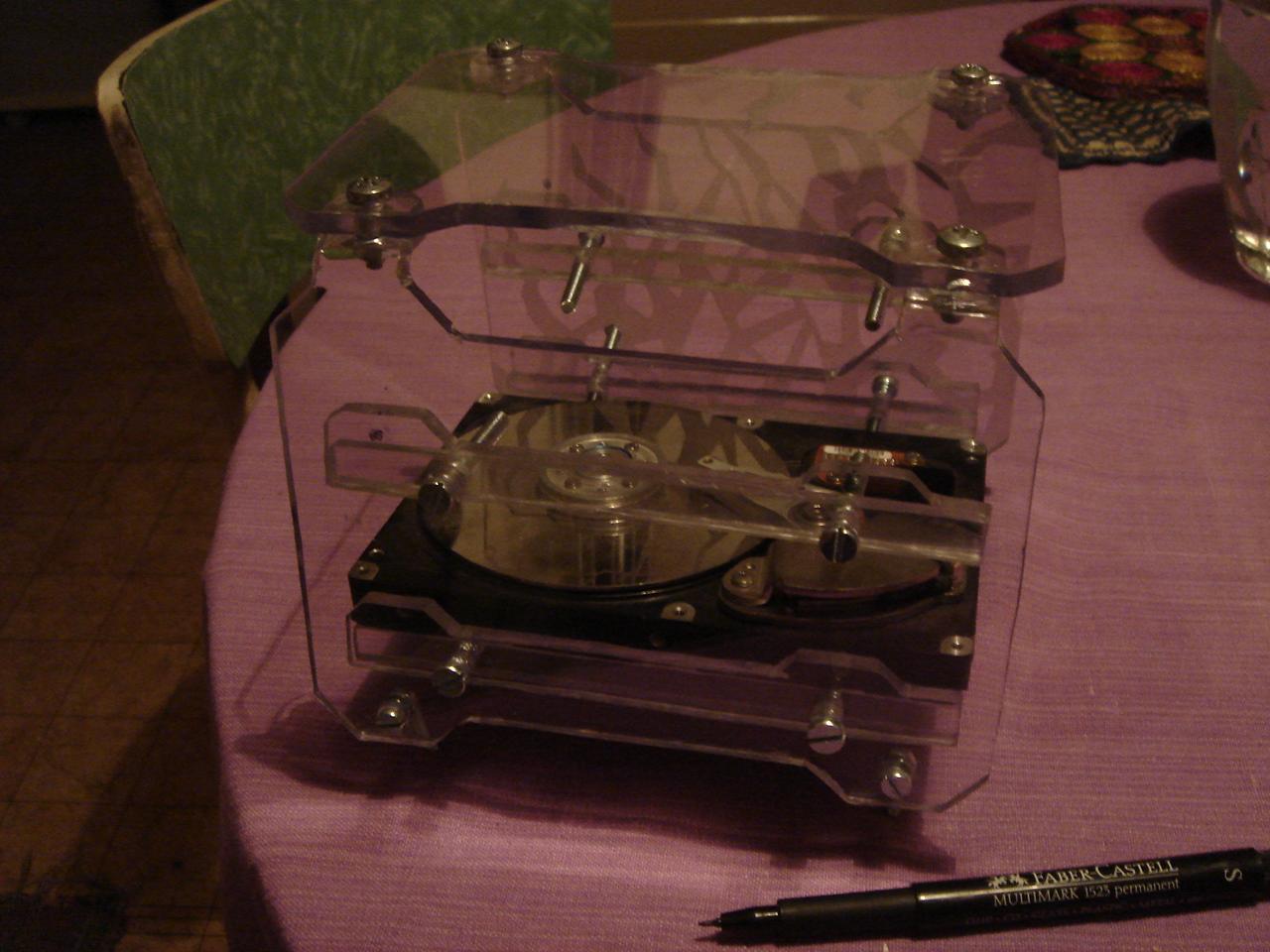

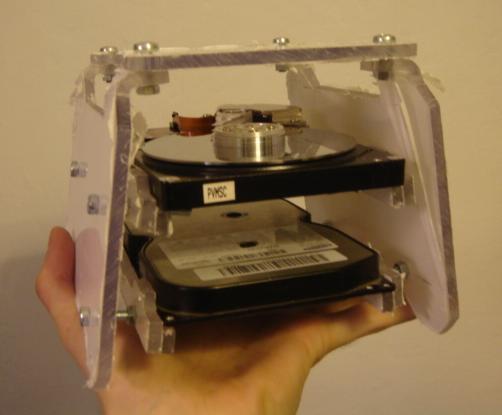

and the structure completed with two dummy hdd mounted inside:

    Optical drive structure

The structure of the optical drive is quite different from the others, because instead of the base will be mounted on a wall, more precisely on the wall behind the monitor, with the tray opening to the right.
The problem is: how to make a cool way to open the drive tray?

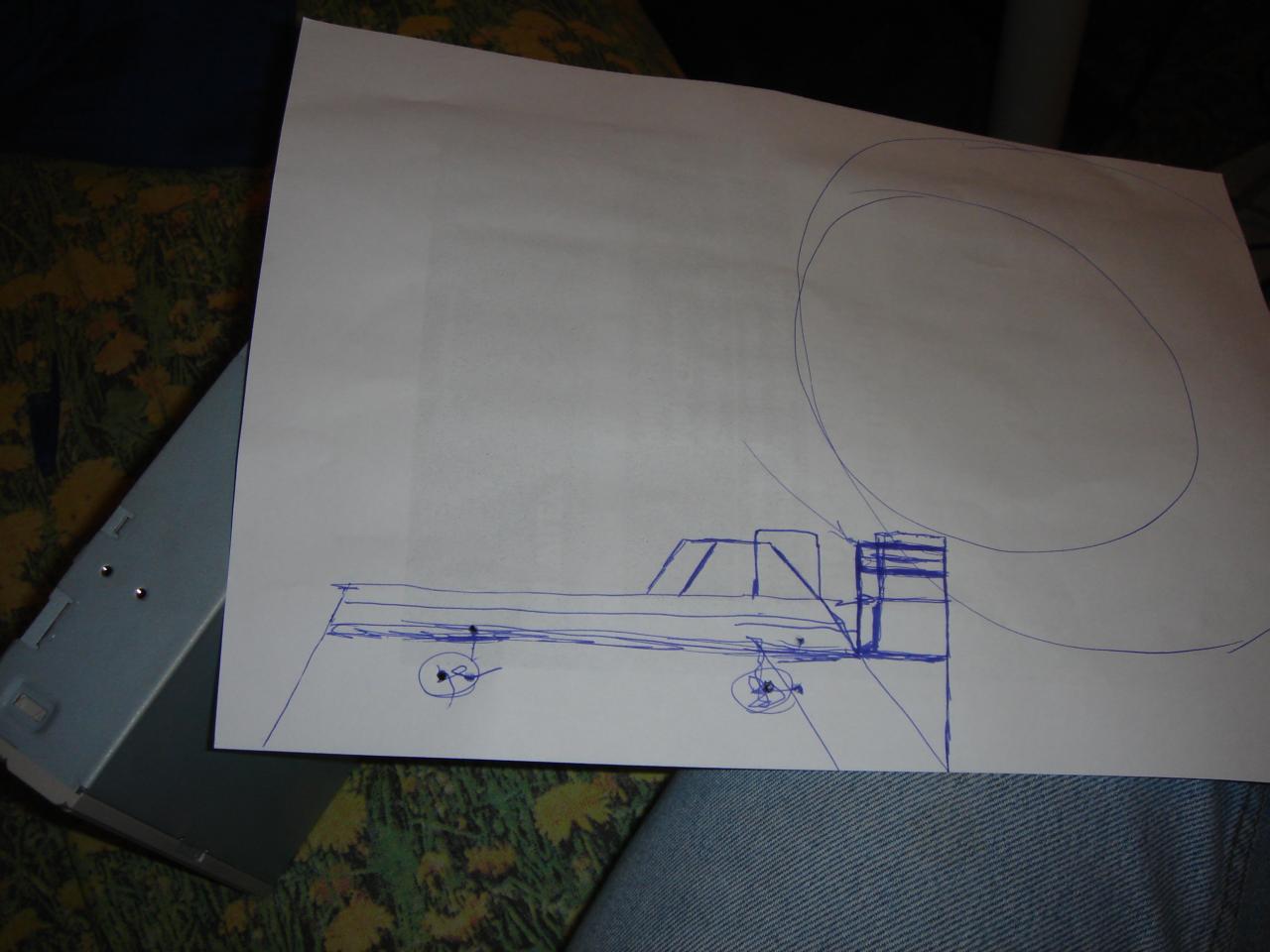

This is my idea to do it 😀 :

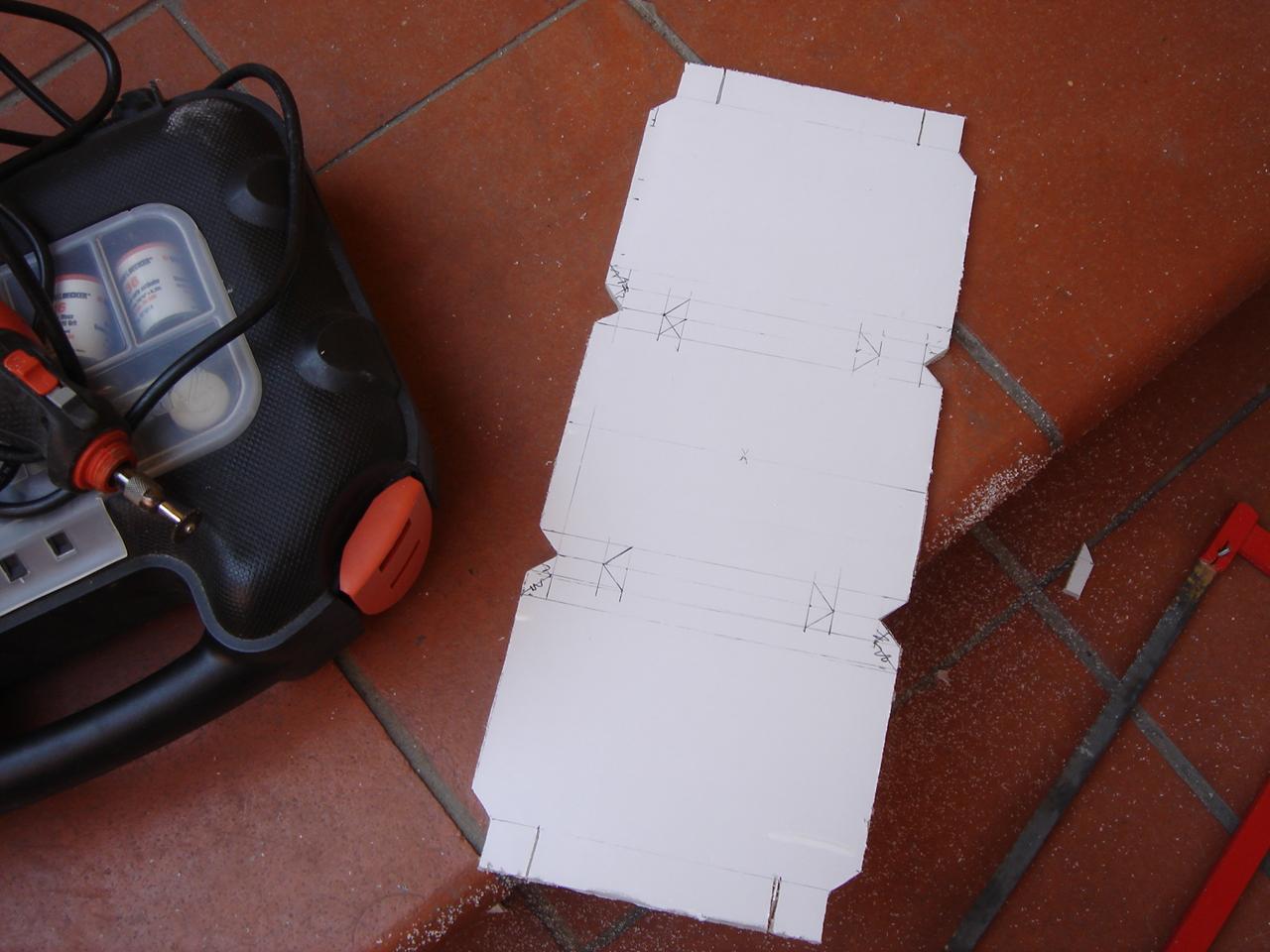

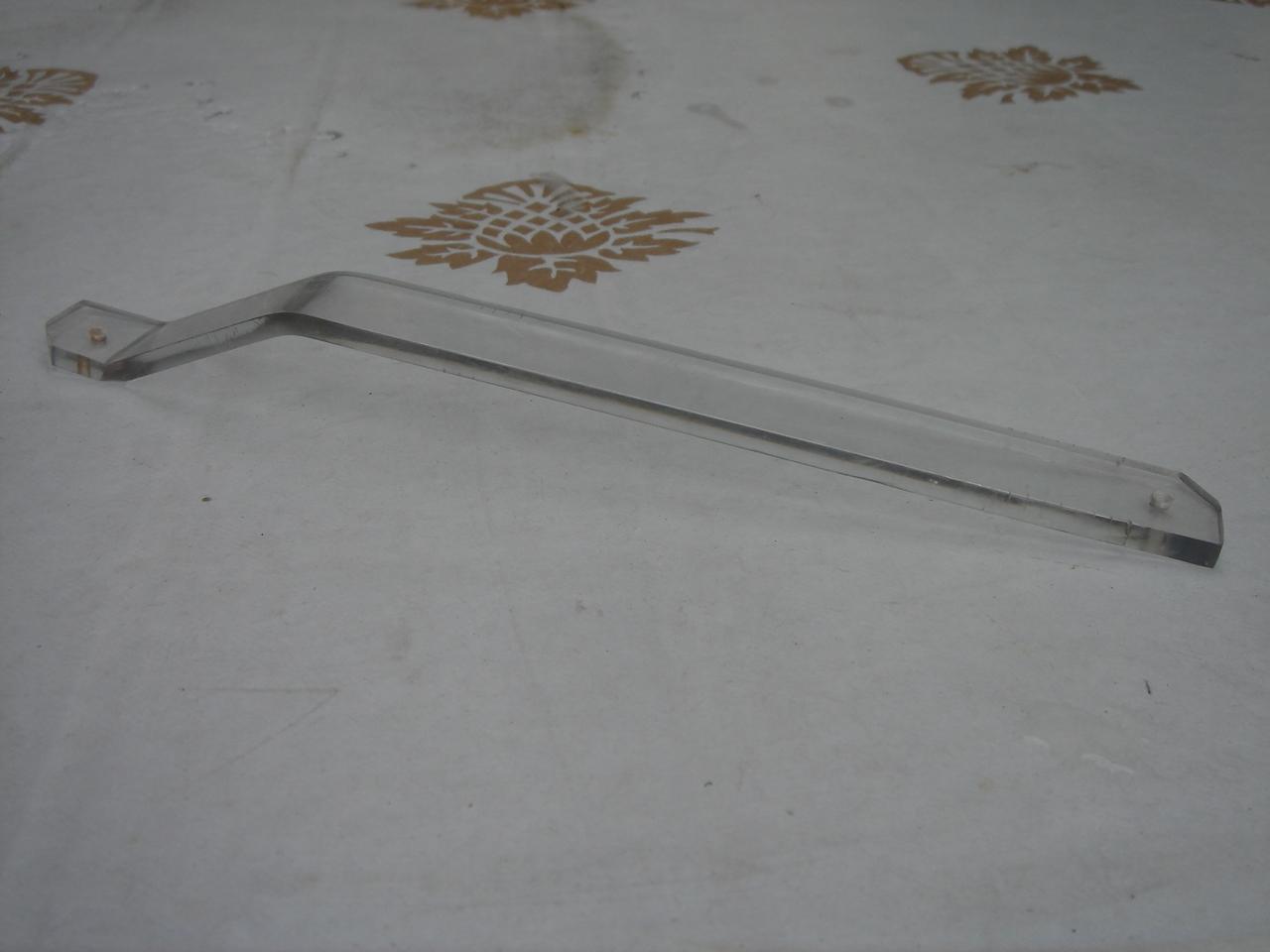

Drawing and cutting some pieces:

Then, as usual, I polished the edges:

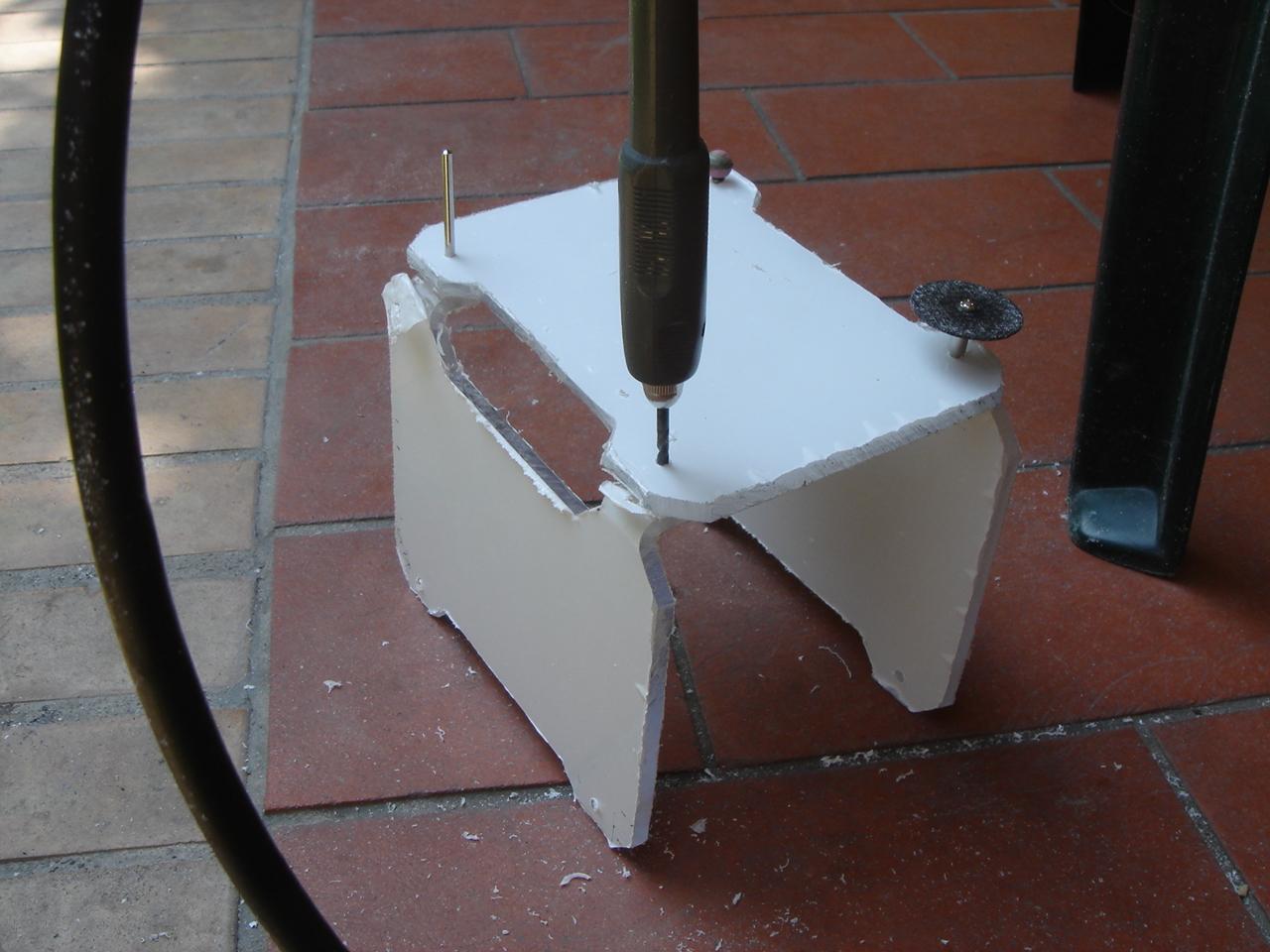

an I drilled the holes:

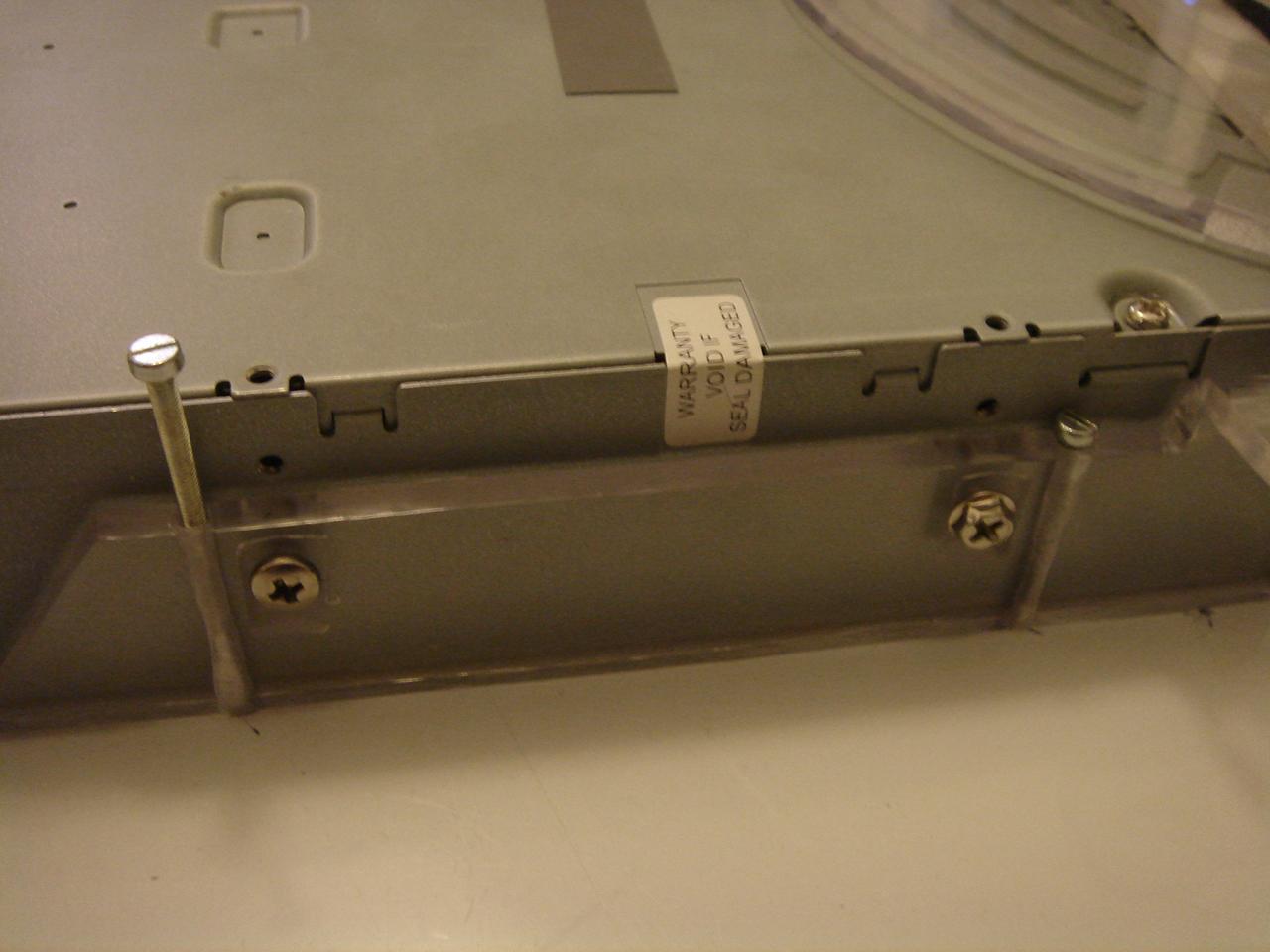

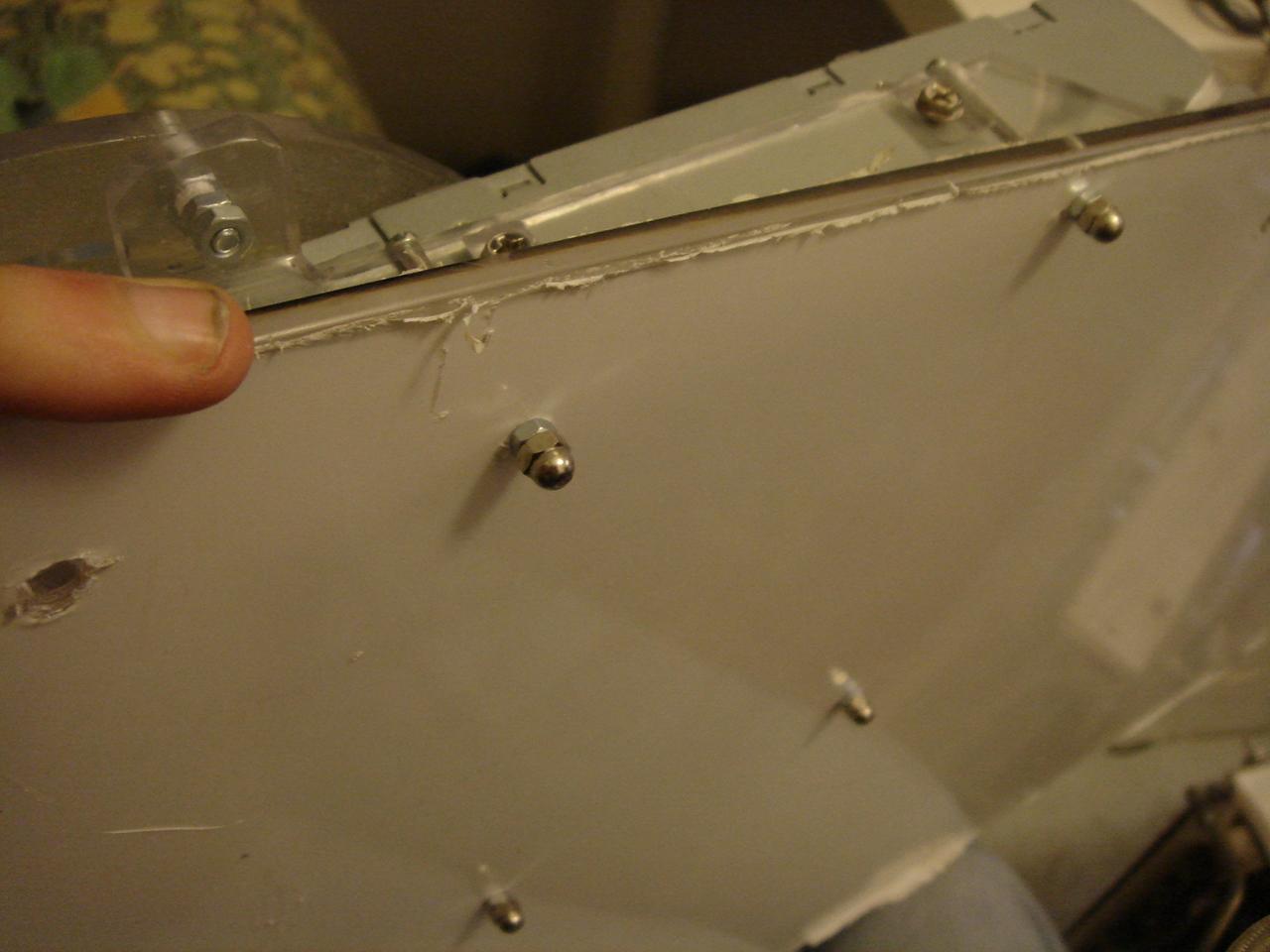

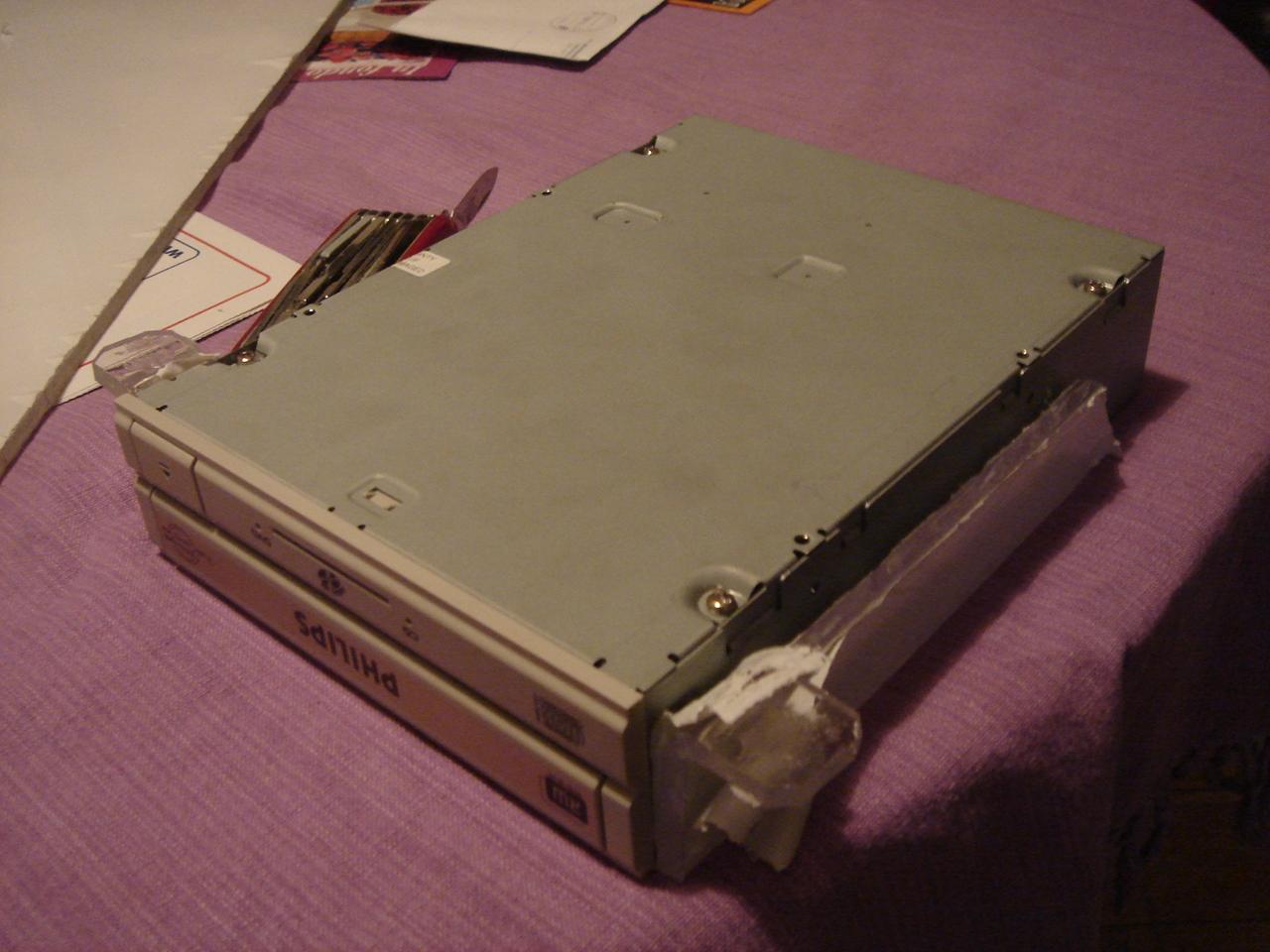

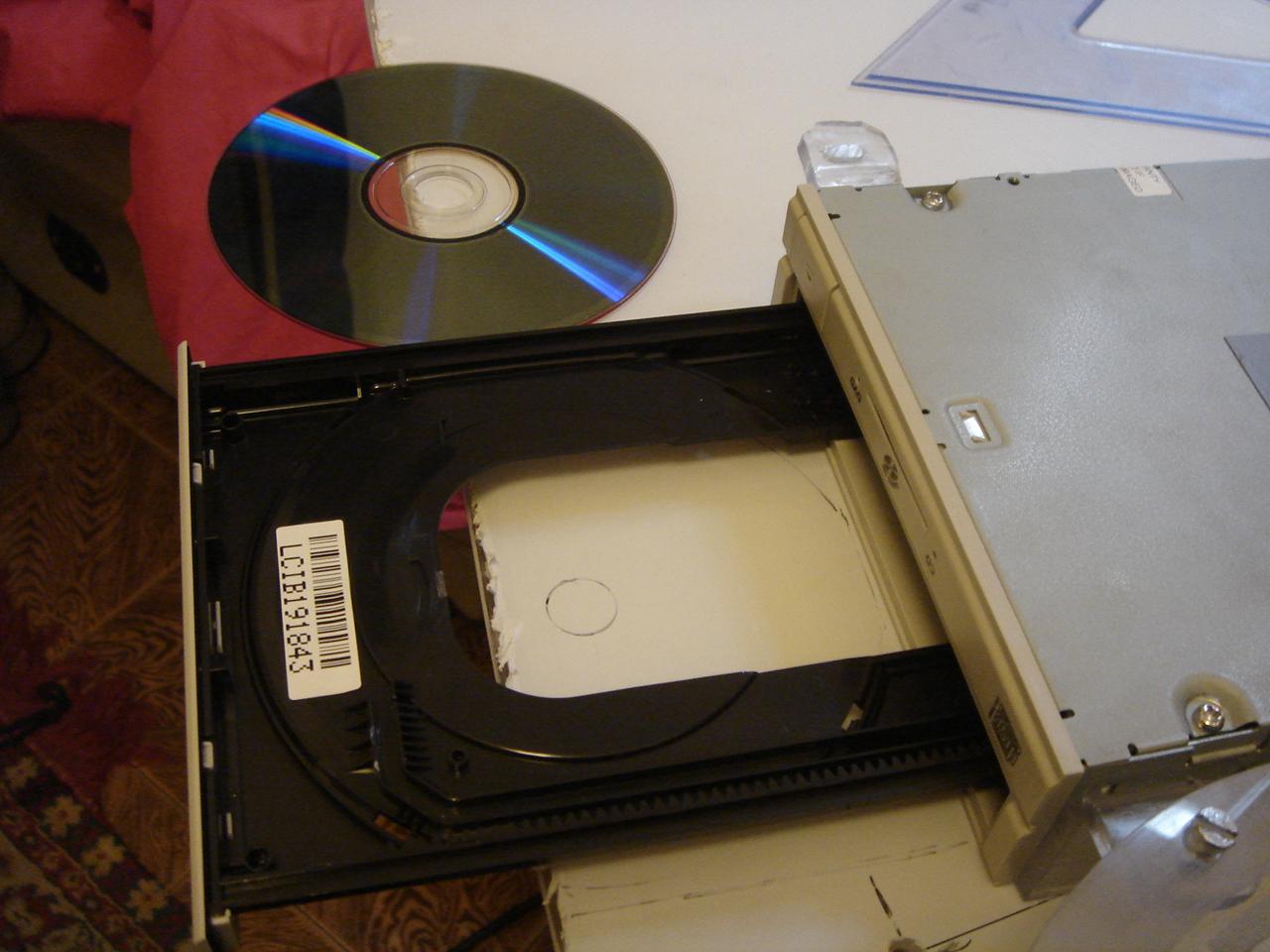

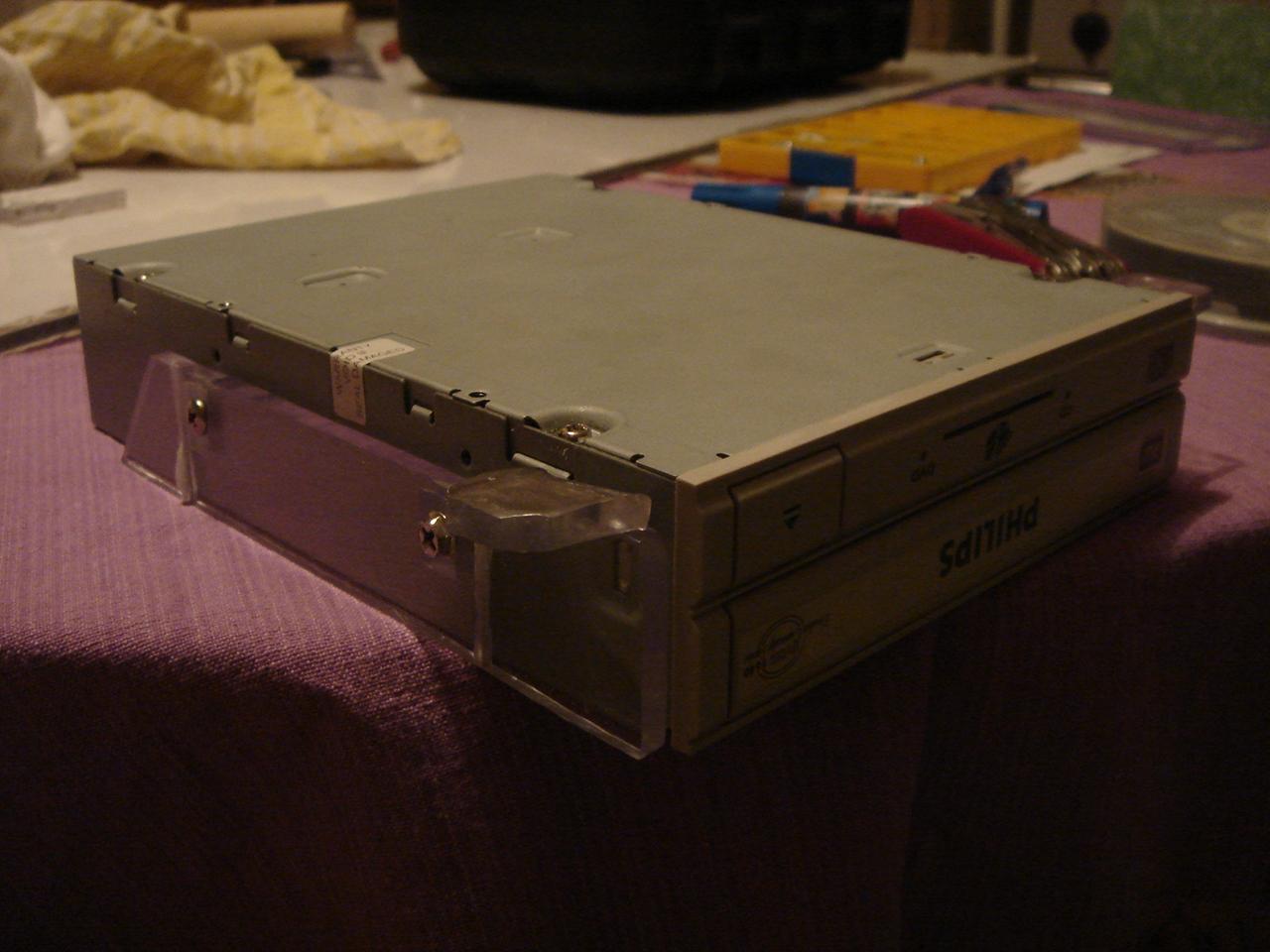

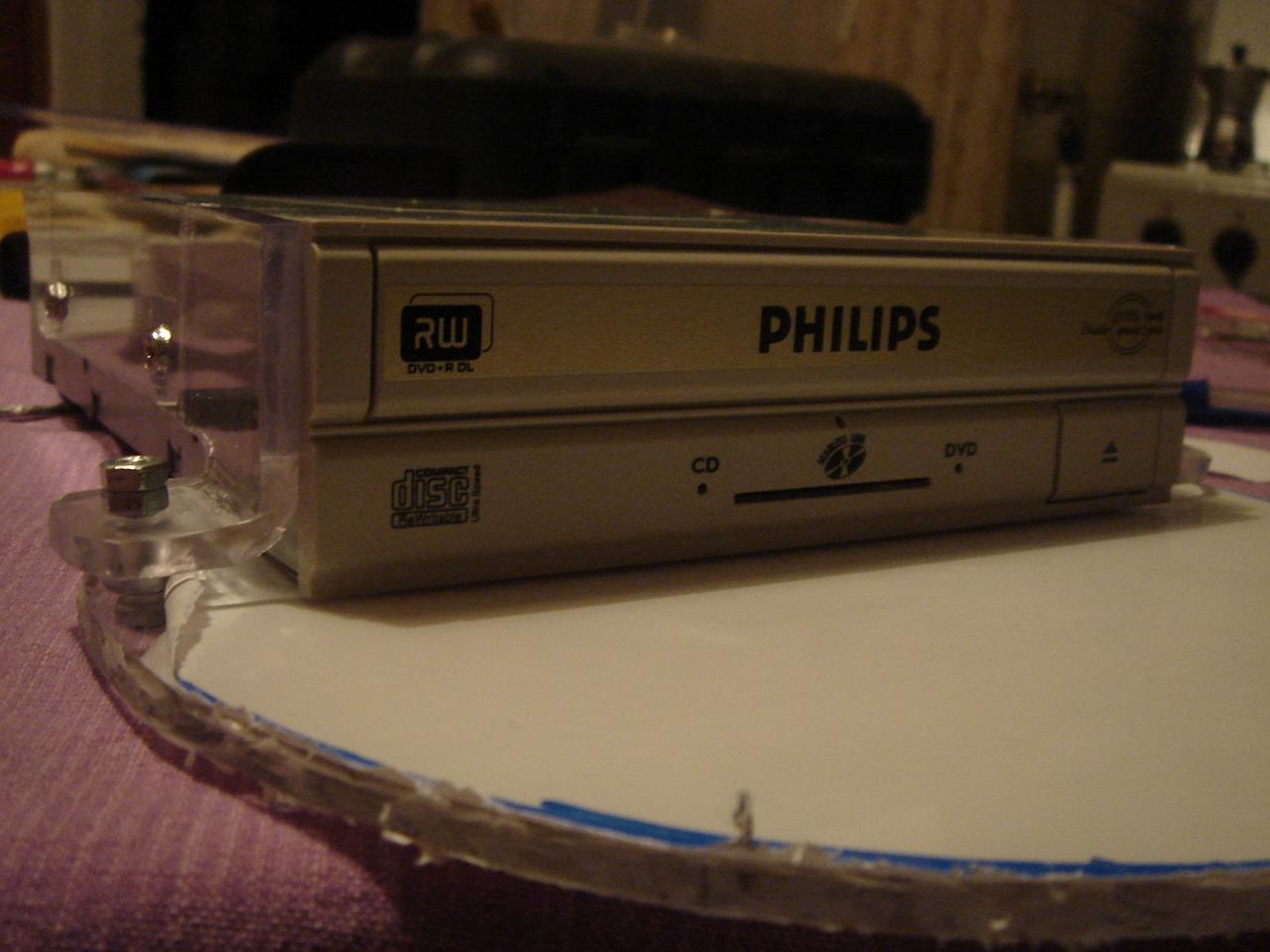

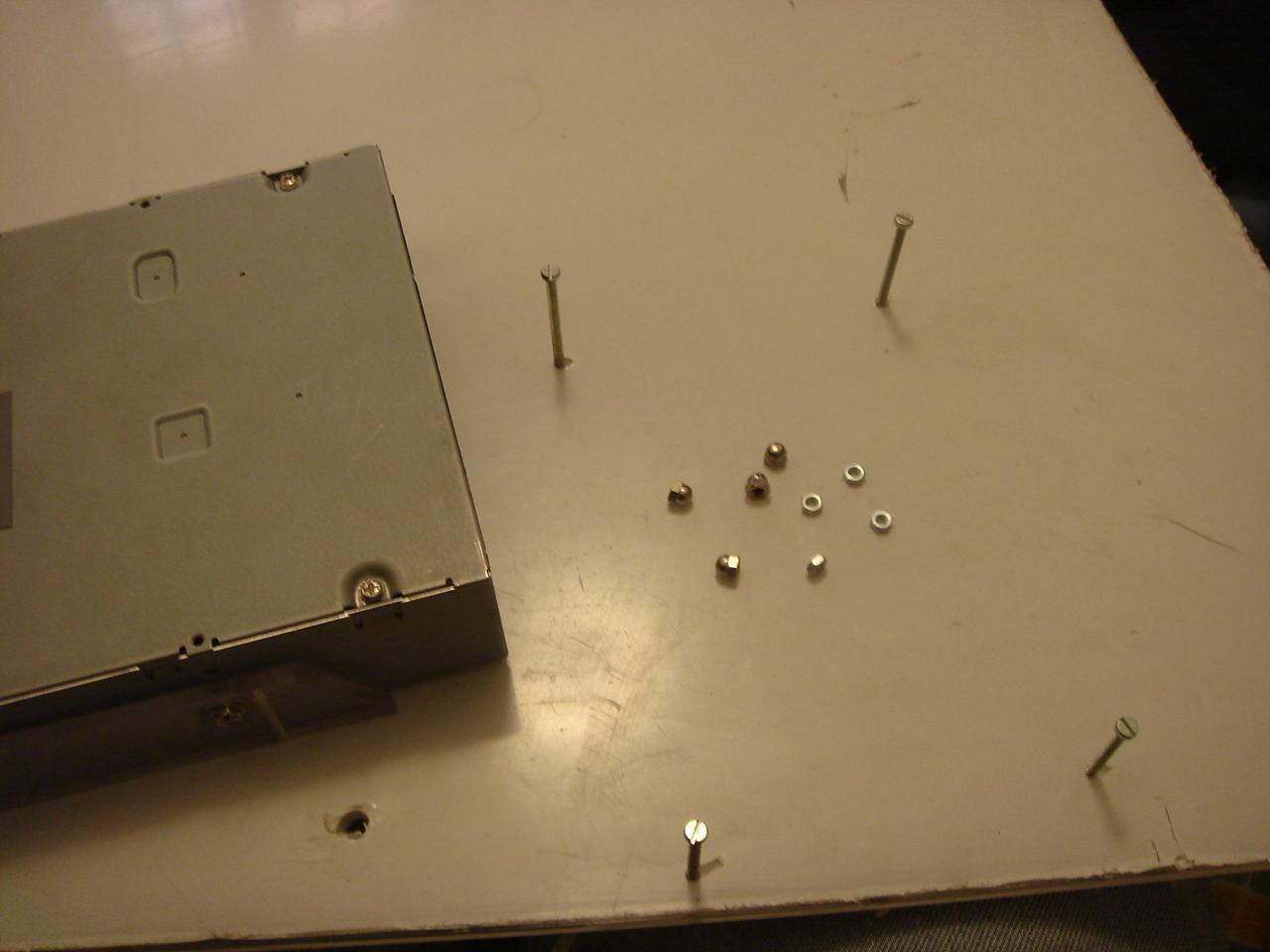

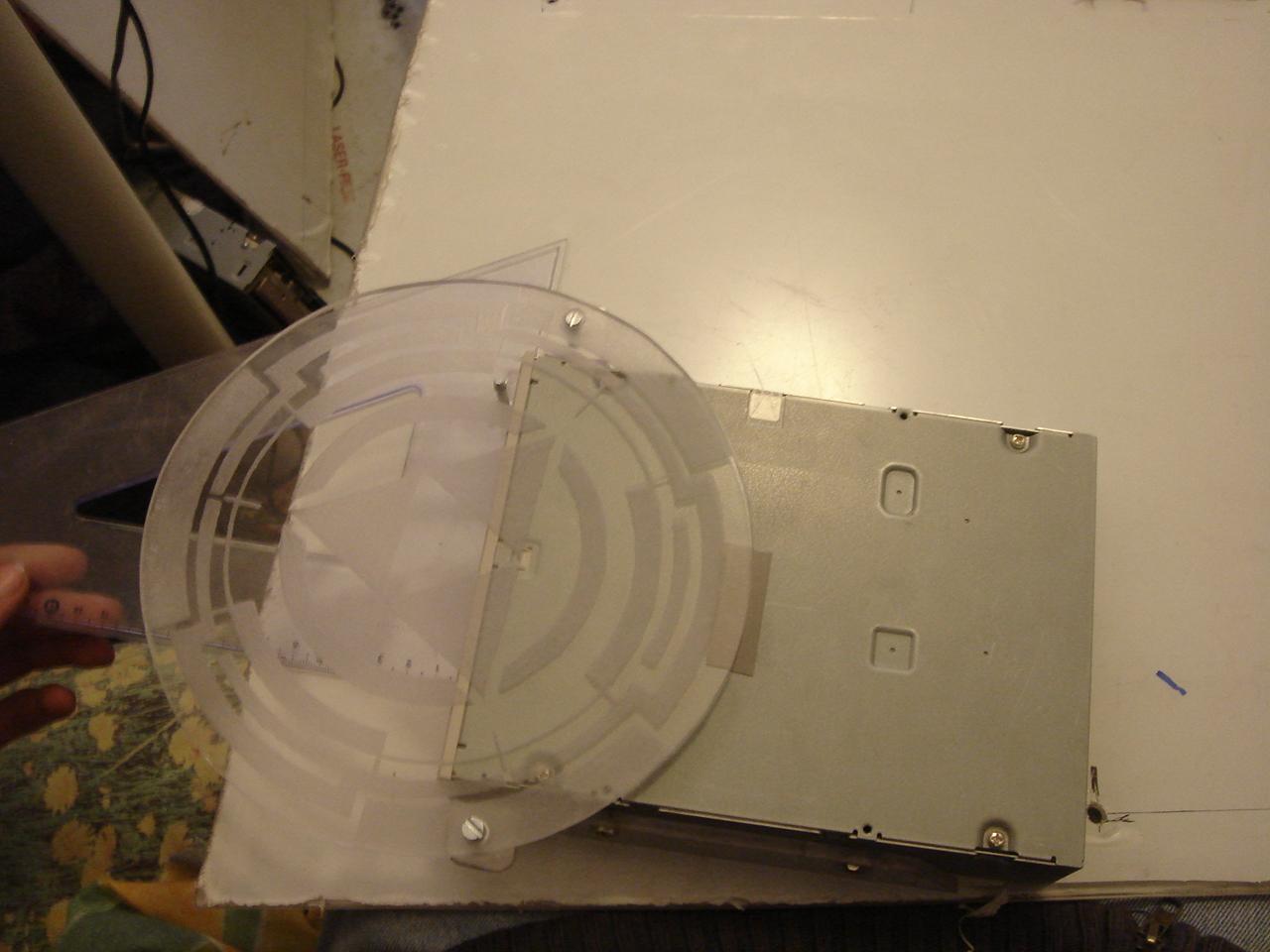

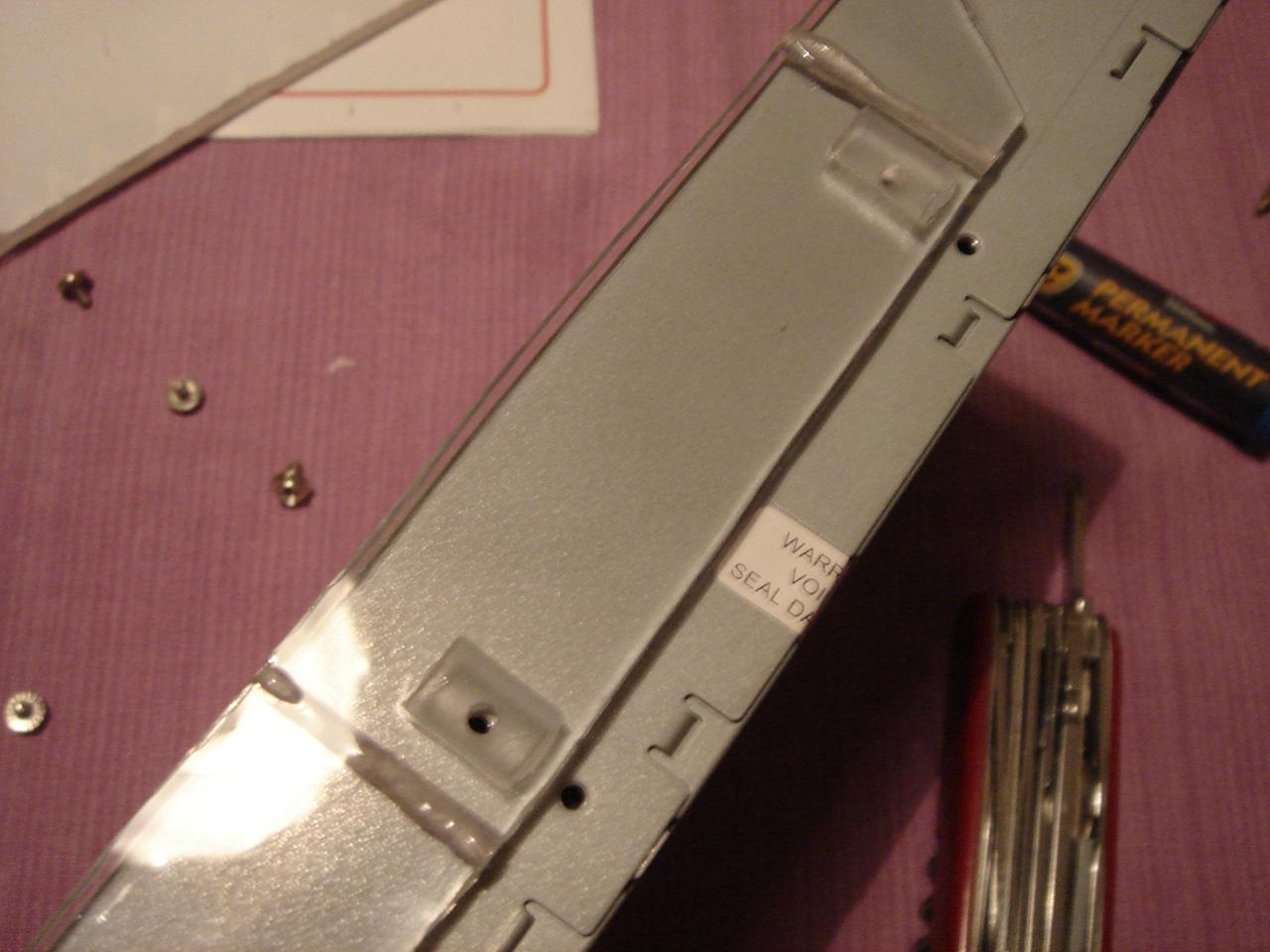

then I temporarily mounted the pieces on the optical drive:

…in the last picture can you begin to guess something about the opening system that I had mentioned before? 😀

I finished the whole structure, I only have to mount it on the wall:

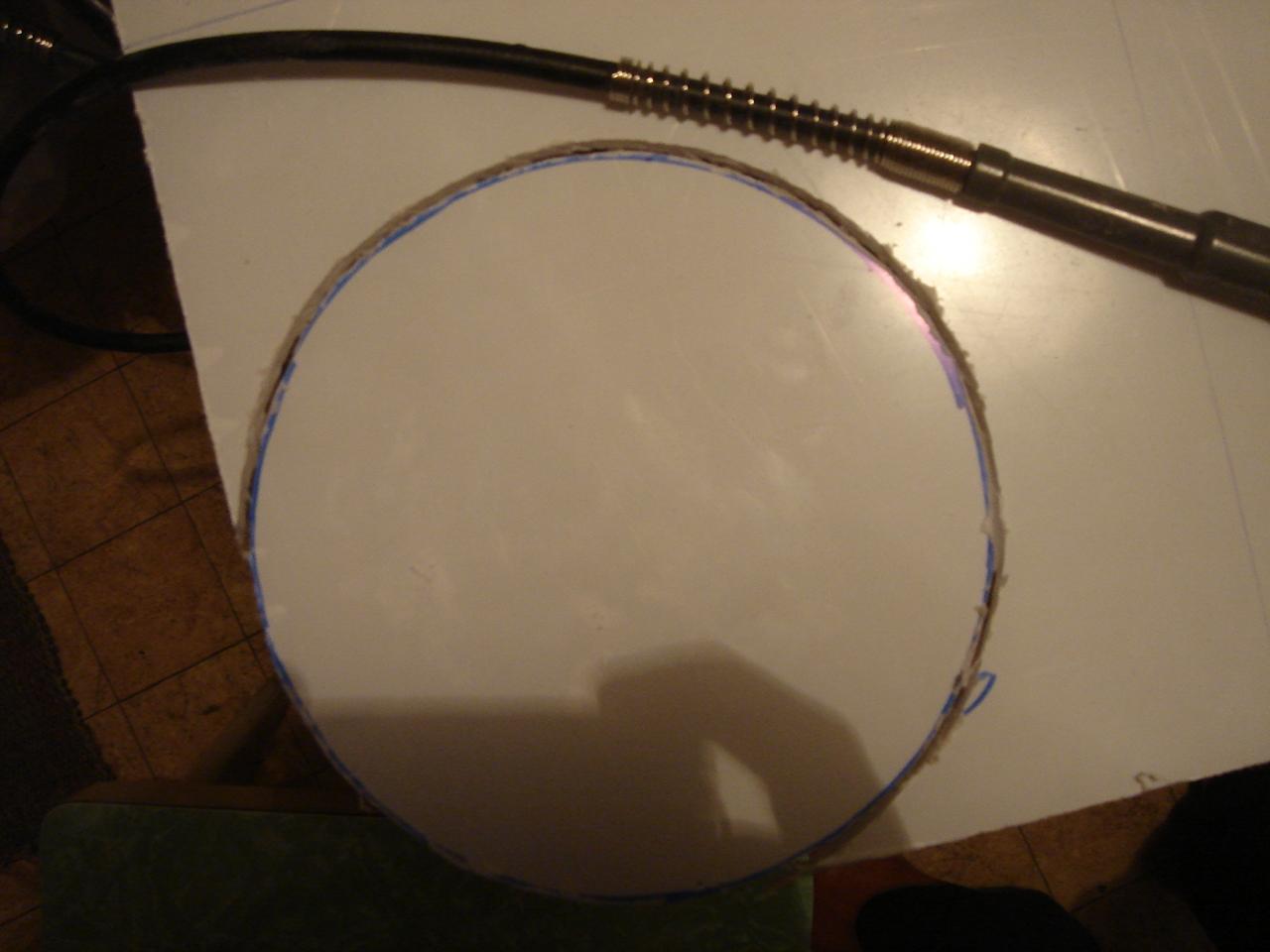

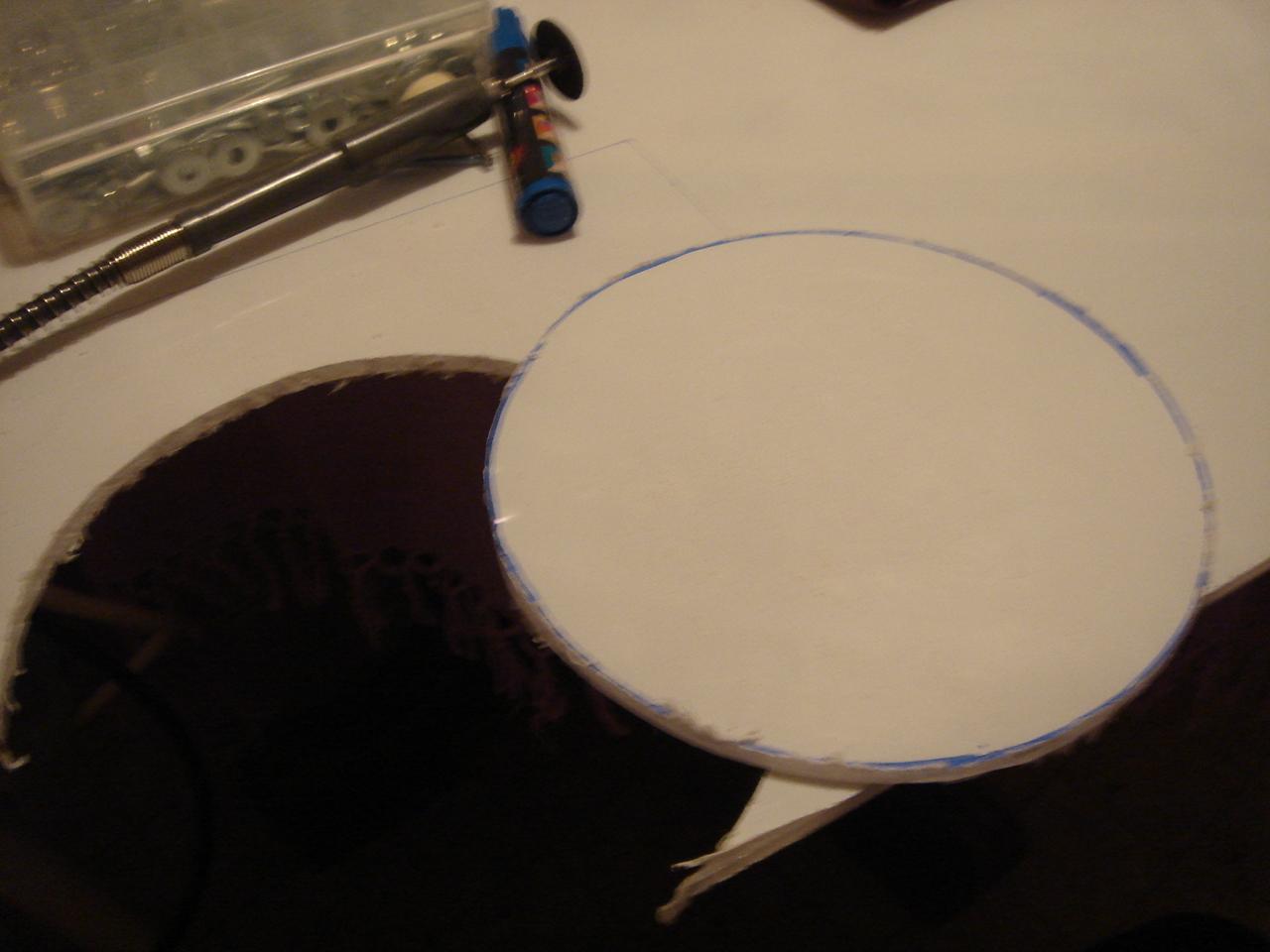

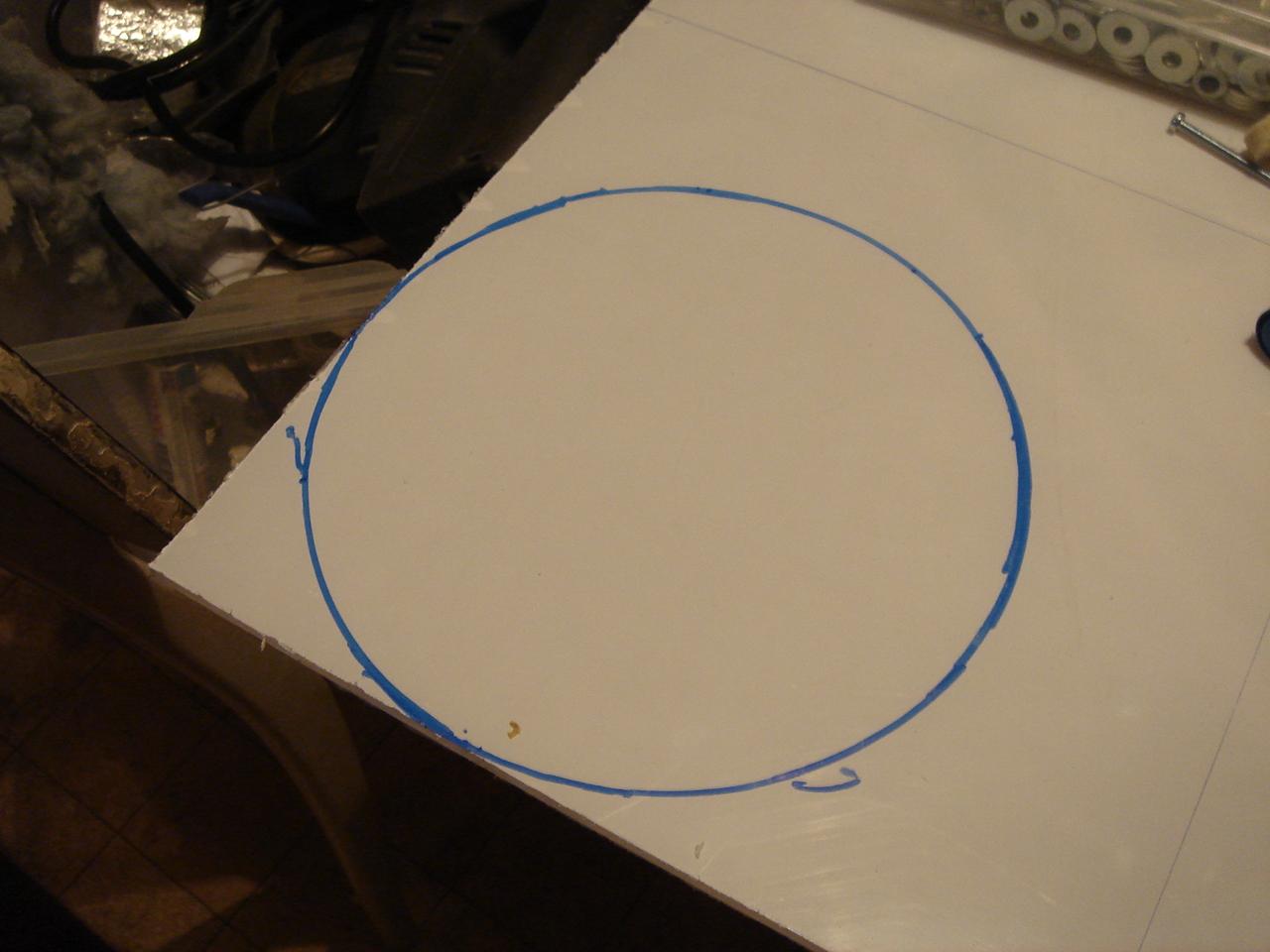

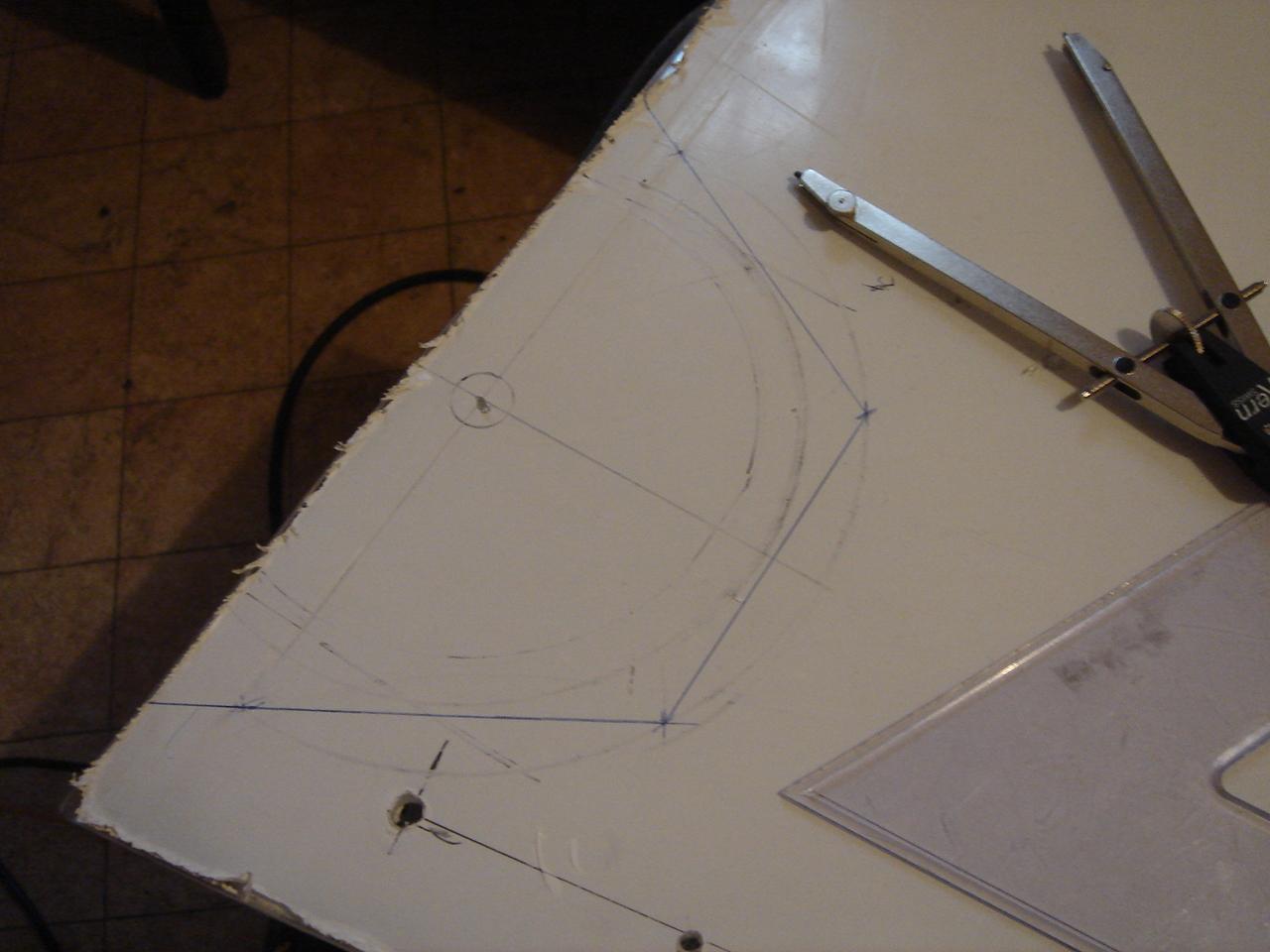

first, I needed a polycarbonate disk:

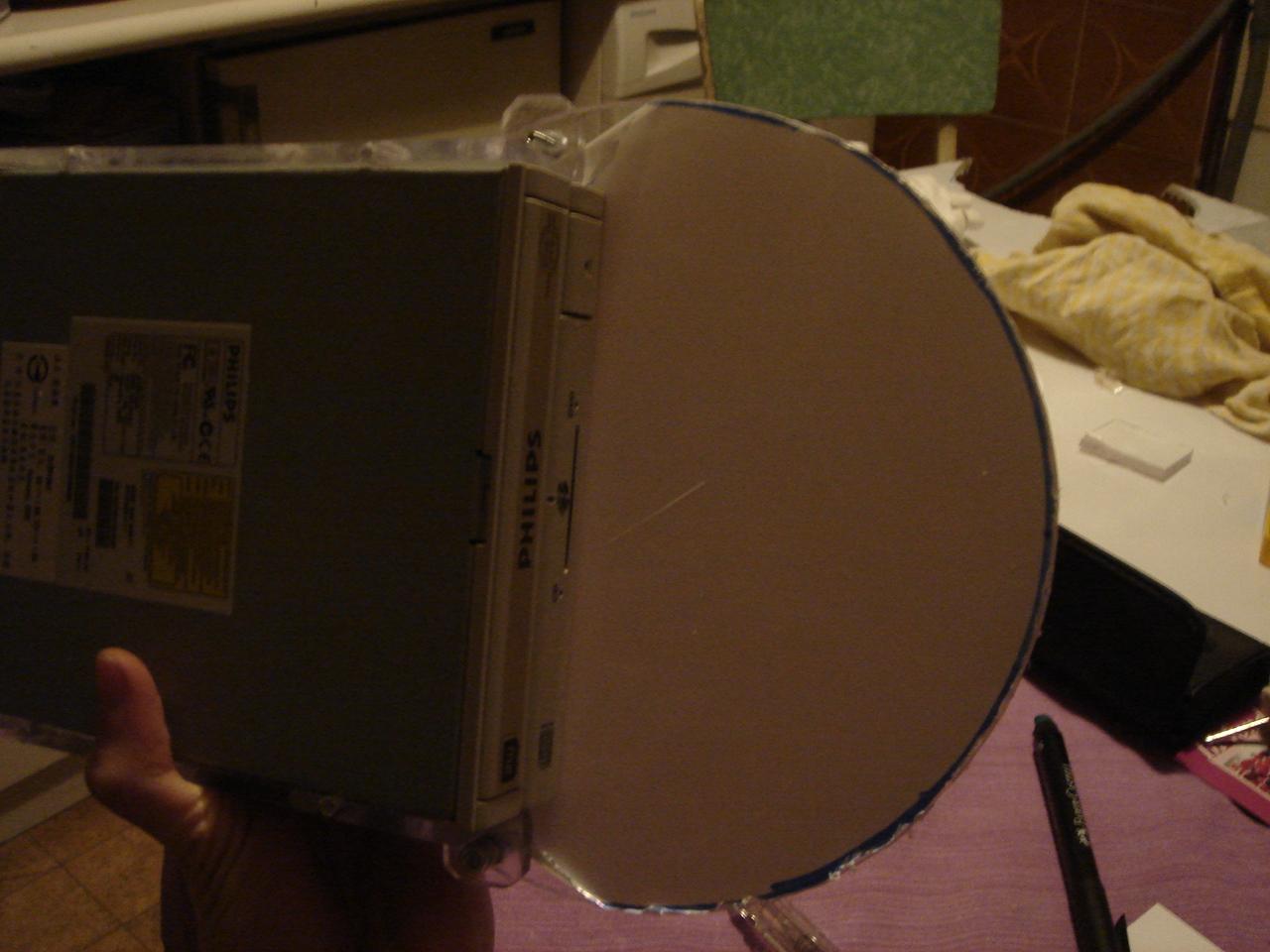

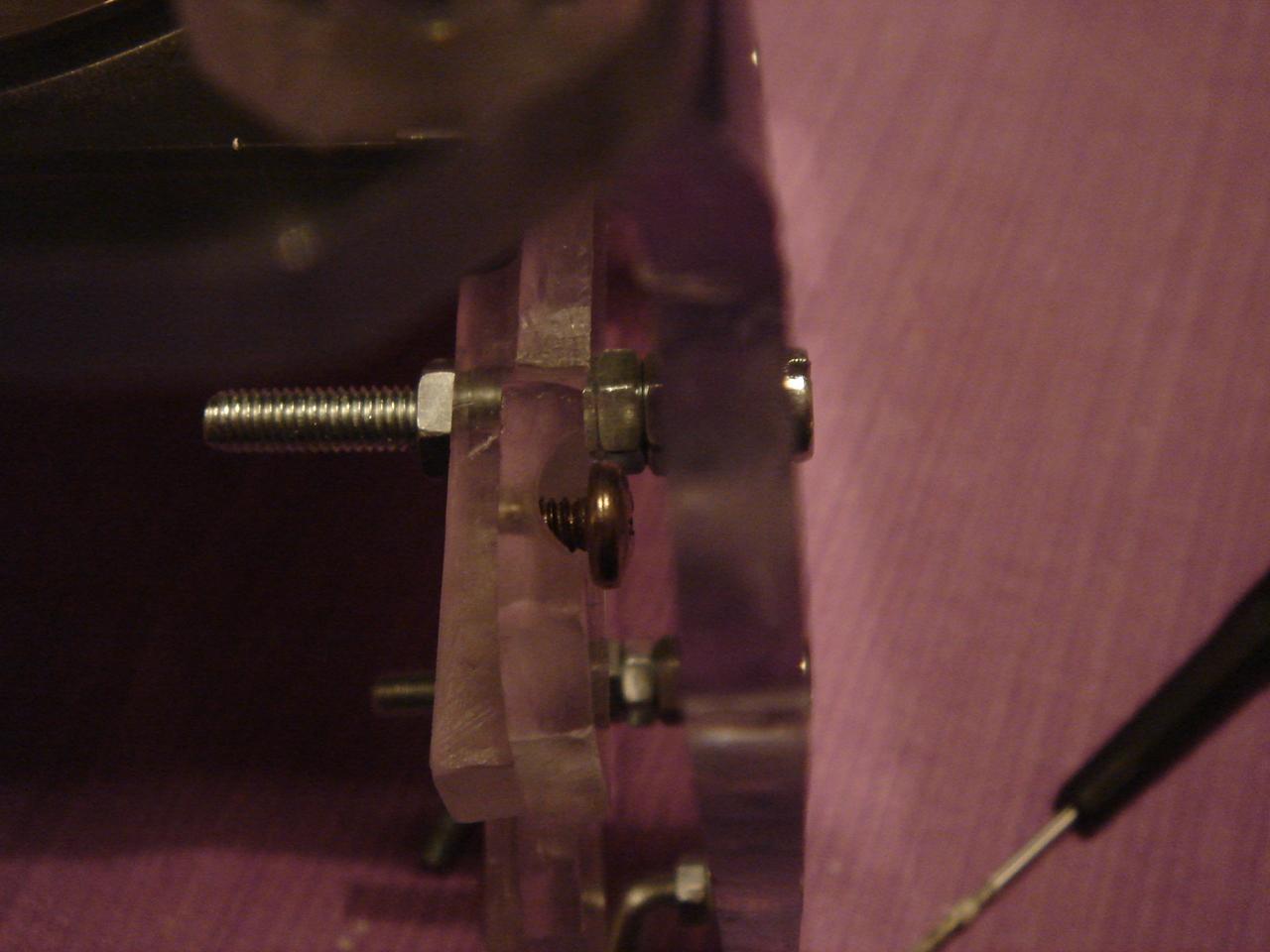

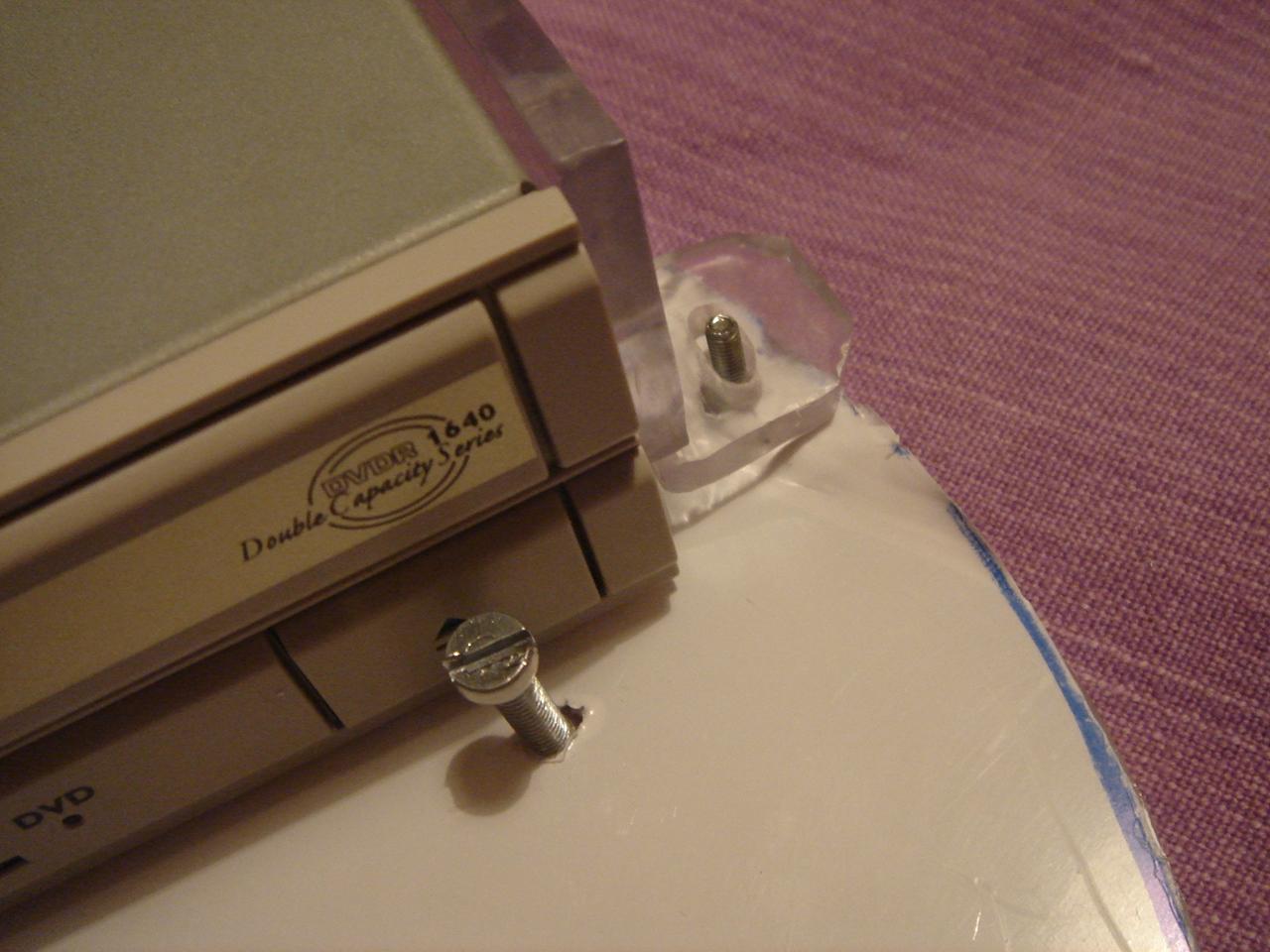

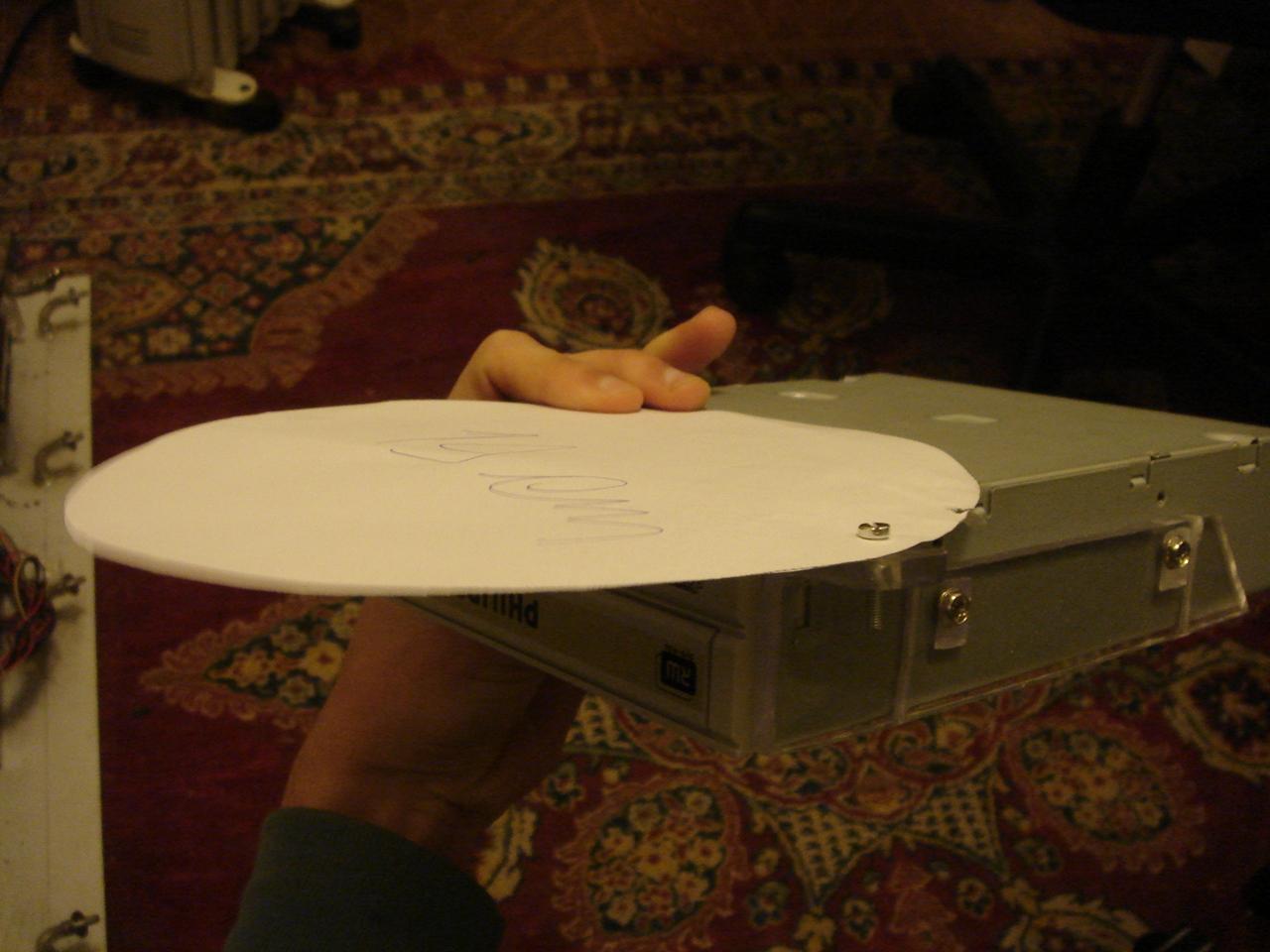

…this disk has to be mounted on the structure in this way:

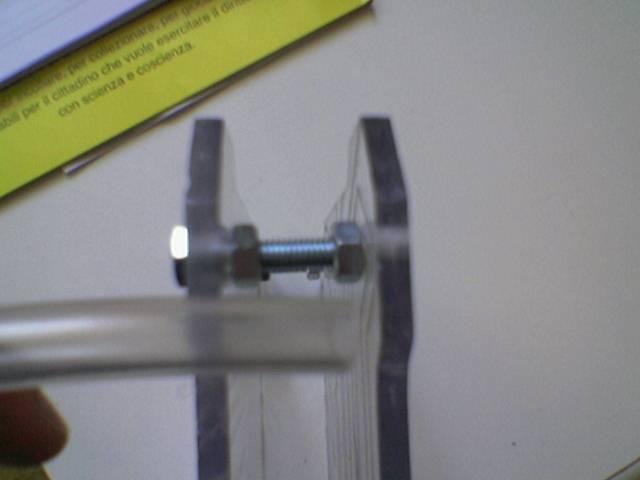

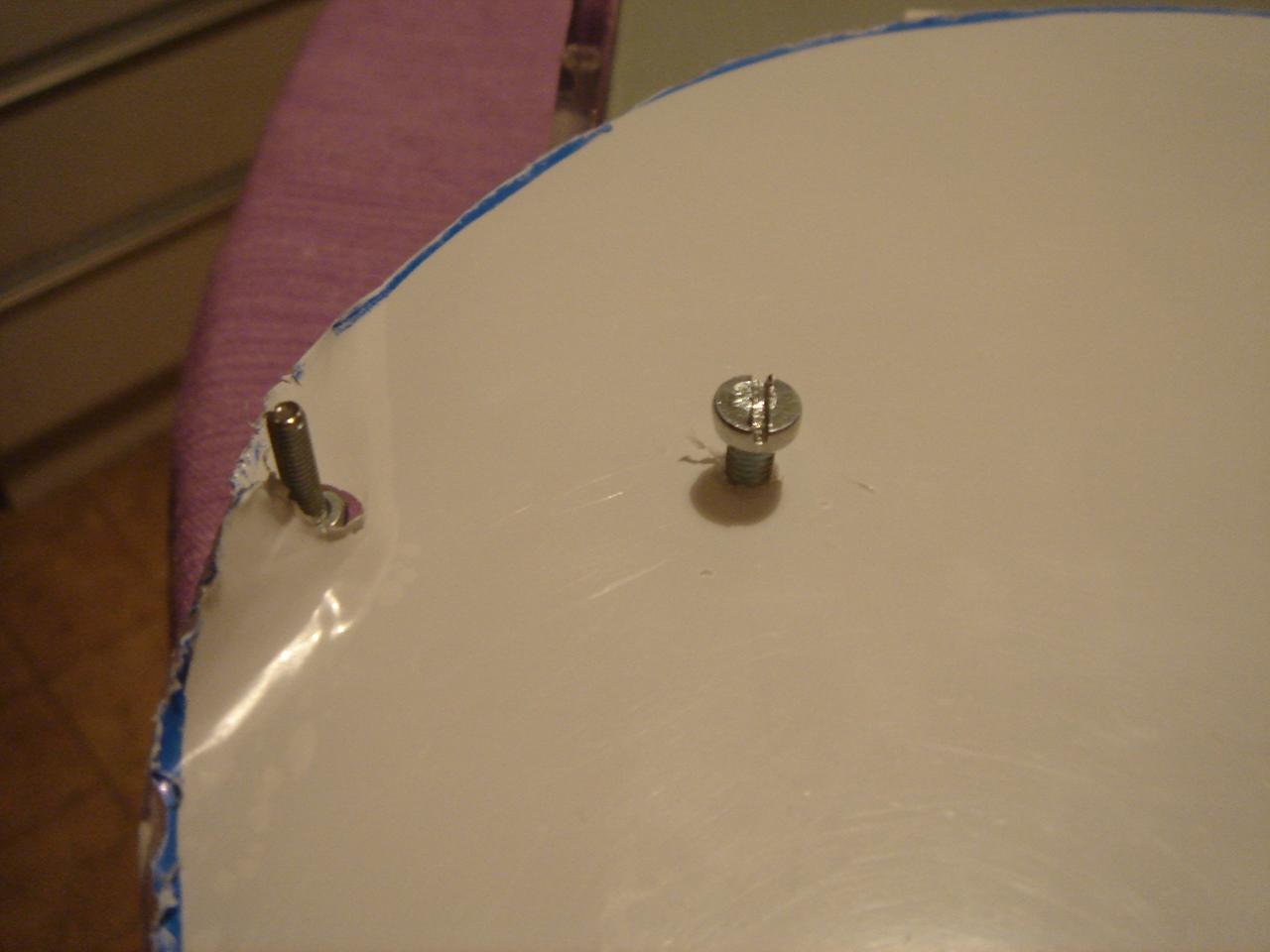

One of the two supports is a pivot, and on the other the disc can move a few millimeters due to the oval hole that allows it to move back and forth.

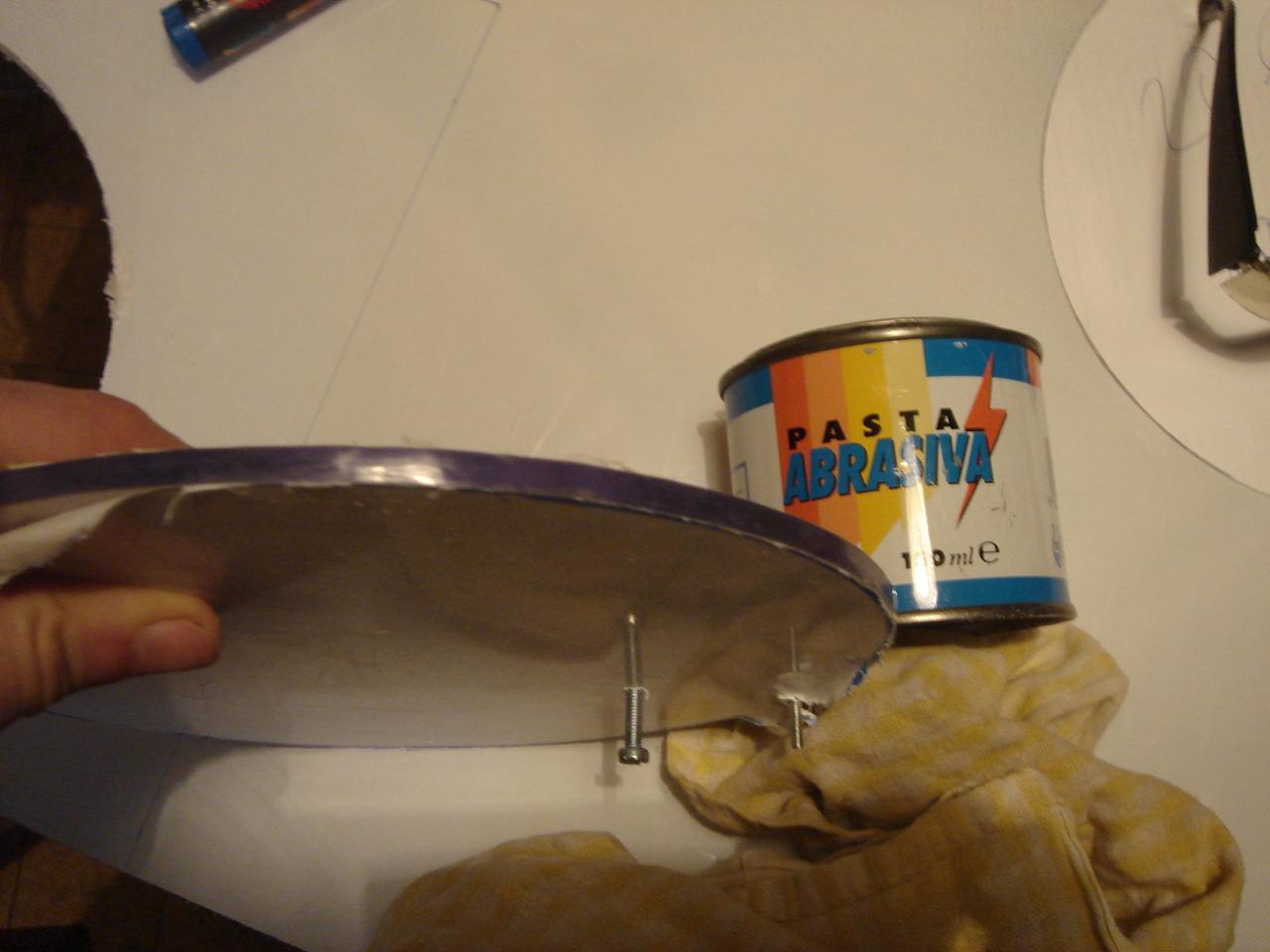

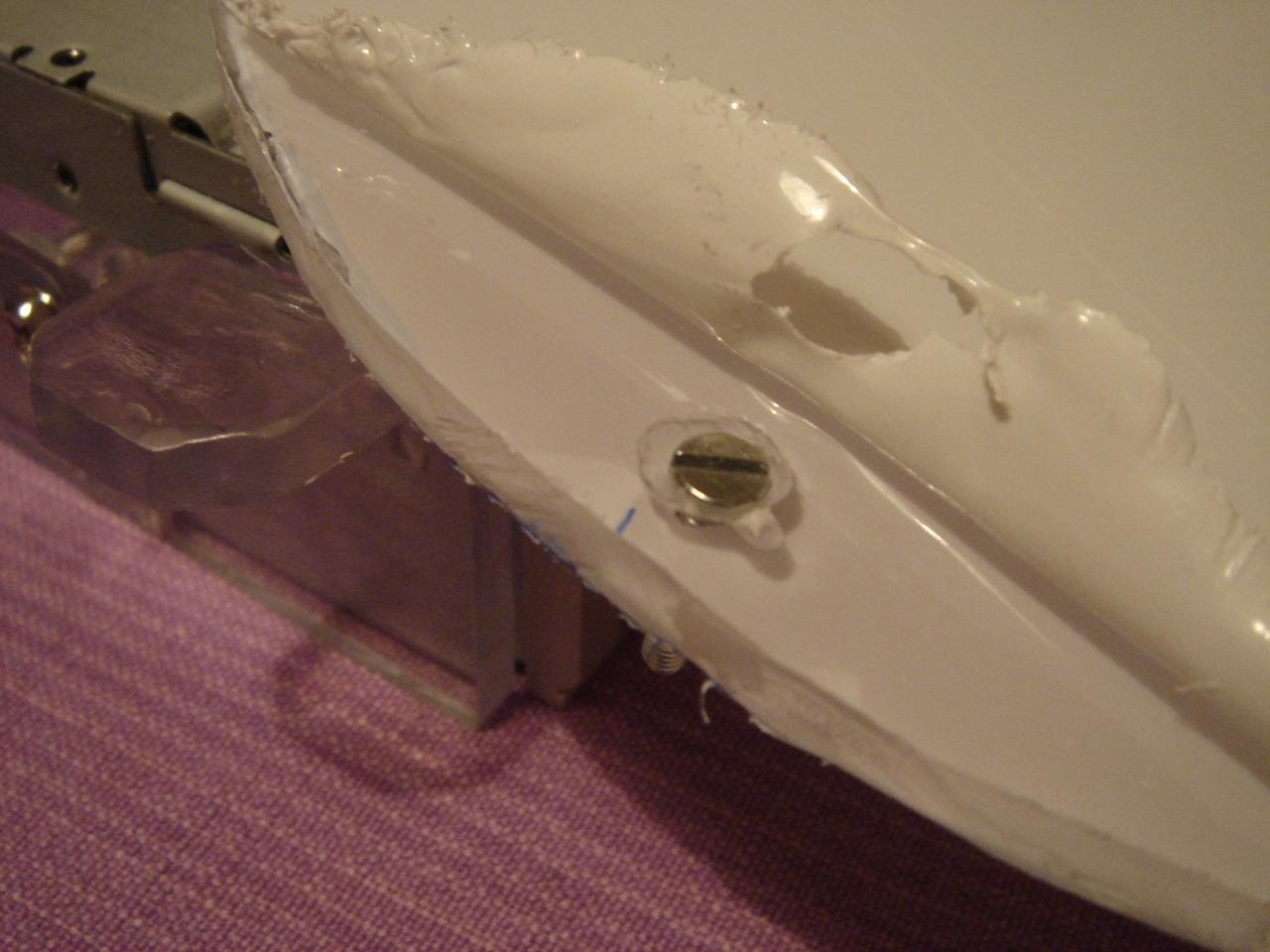

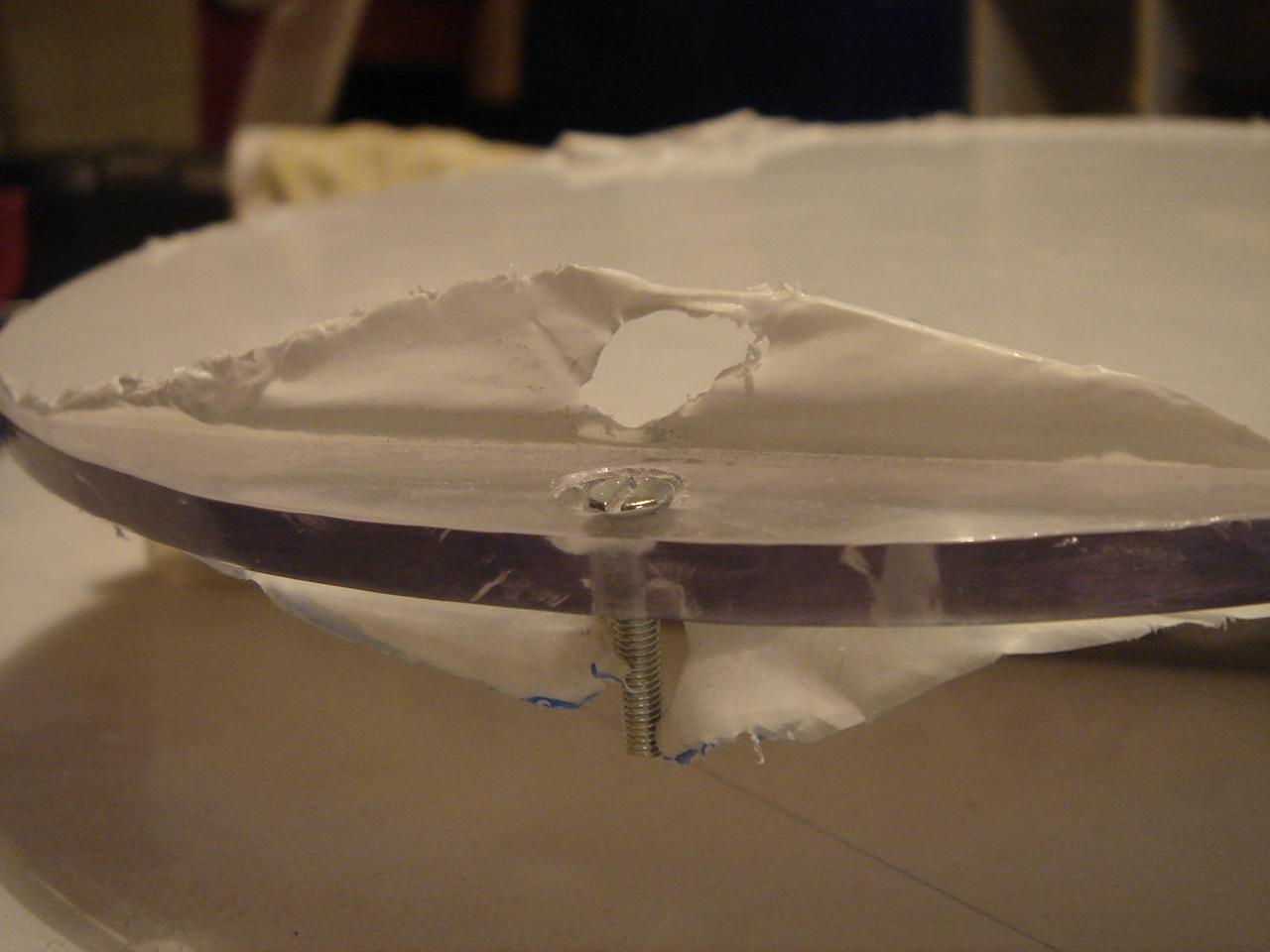

Then, on the disk there is a bolt that presses the drive button when someone presses the disk 😀

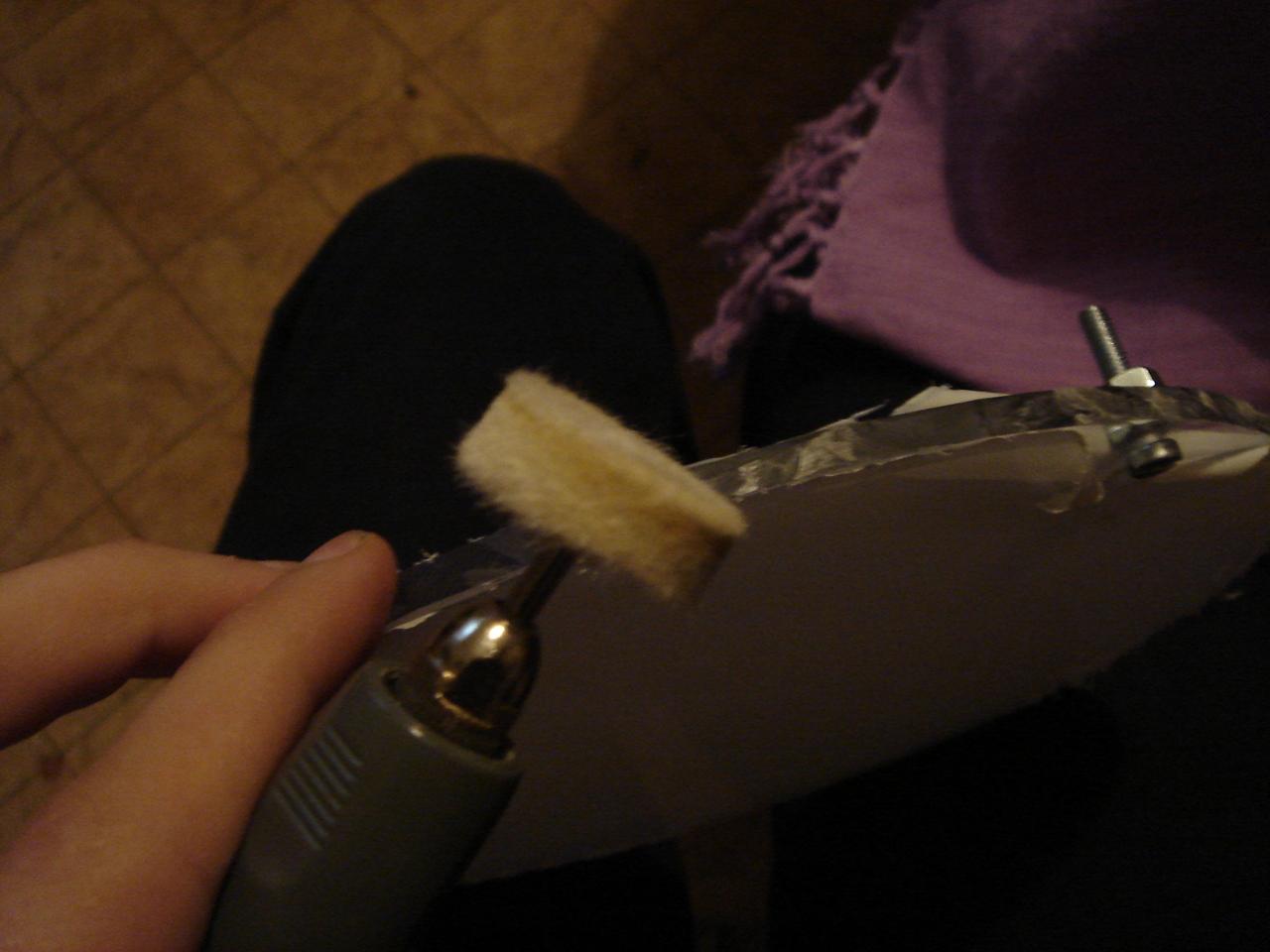

Now it’s time to polish the edge of the disk.

before the polishing:

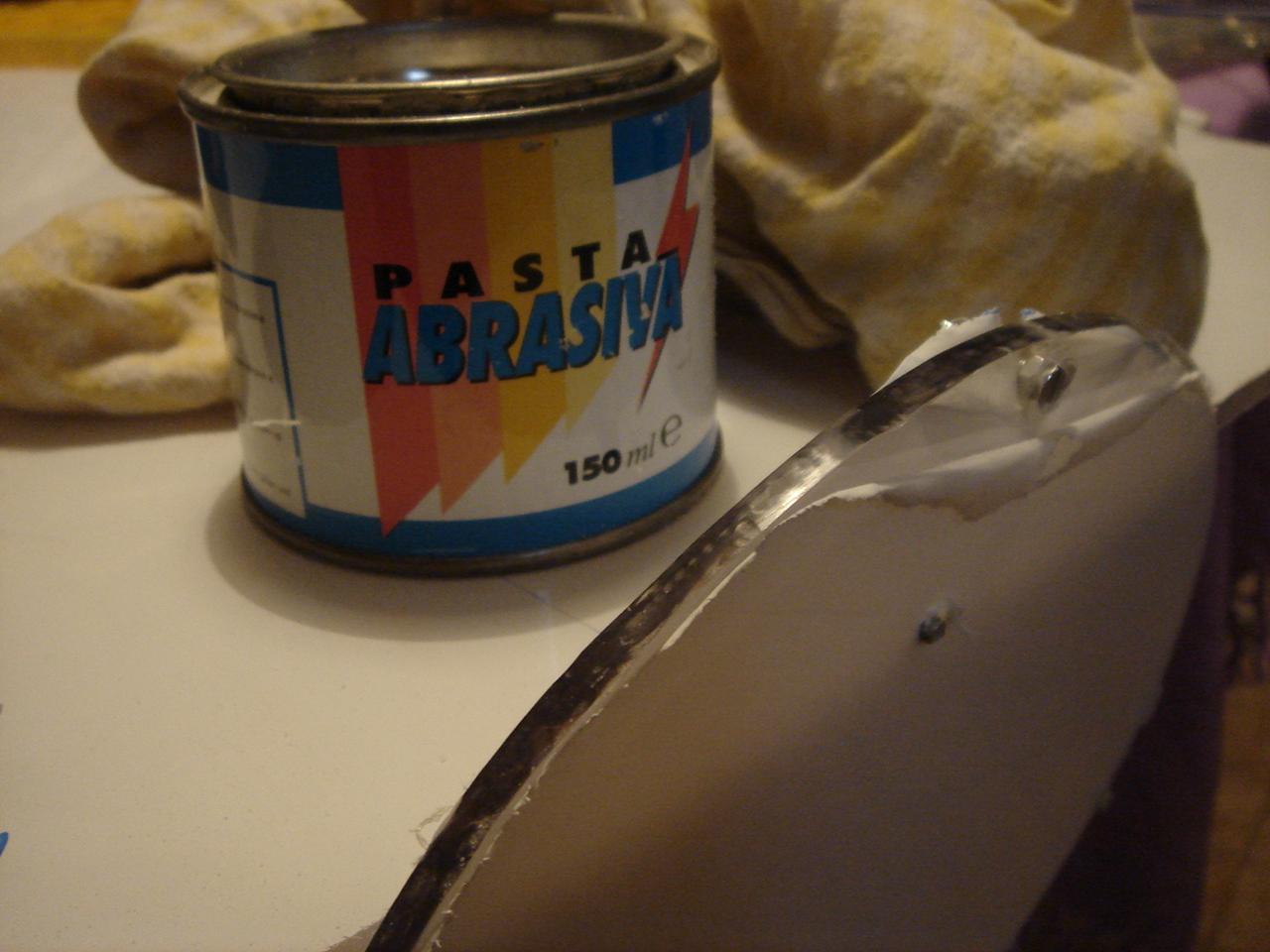

first pass:

final result:

    VIDEO of the optical drive opening mechanism

In this video we can see the mechanism for the opening of the optical drive tray in action:

    Engraving the Tron disc (optical drive structure)

Now it’s the turn of the engraving… what kind of Tron case would be without a Tron disk?? 😀

I have taken out my beloved game dvd, to use it as a reference for the disk:

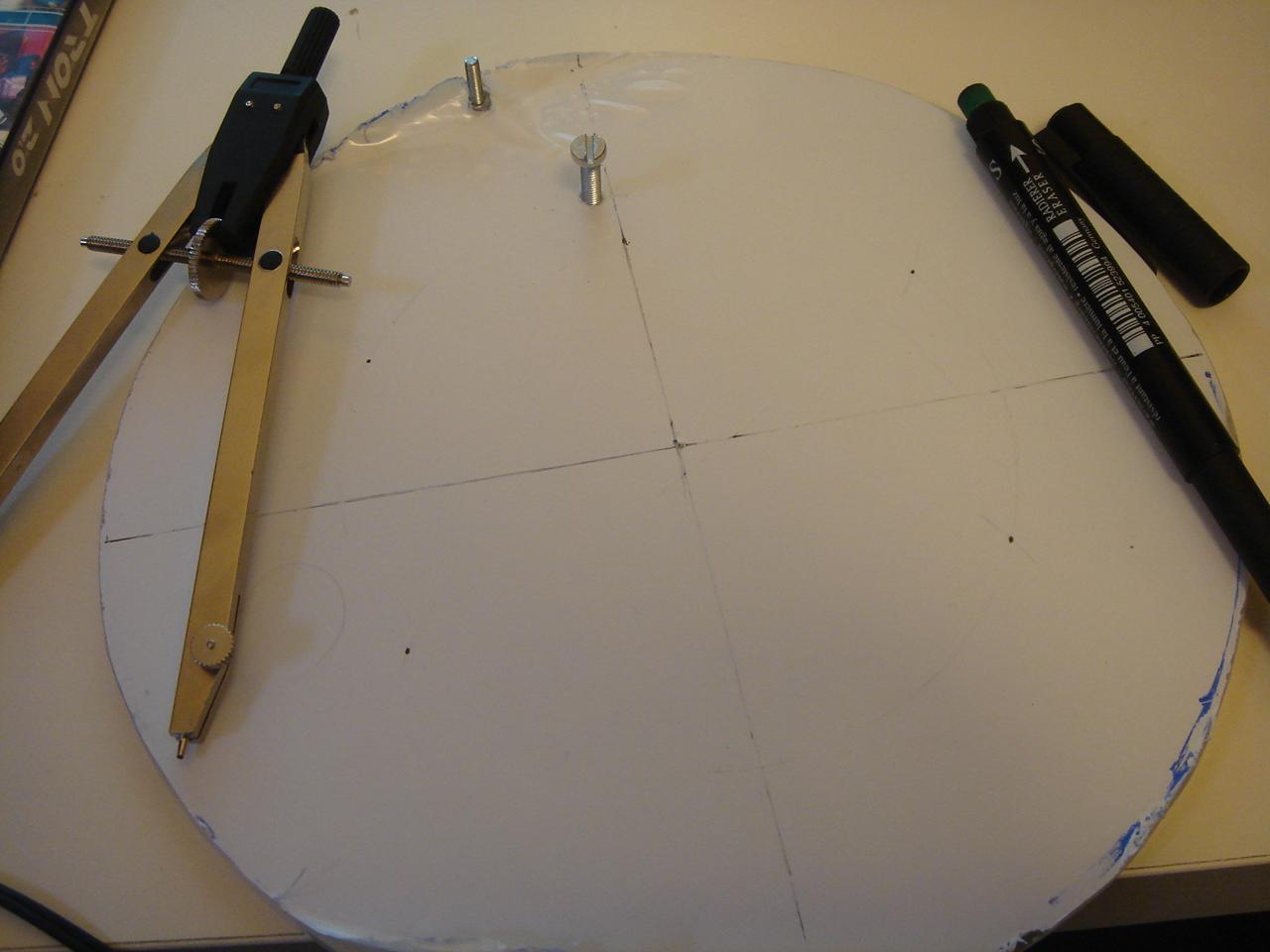

and I started to draw it:

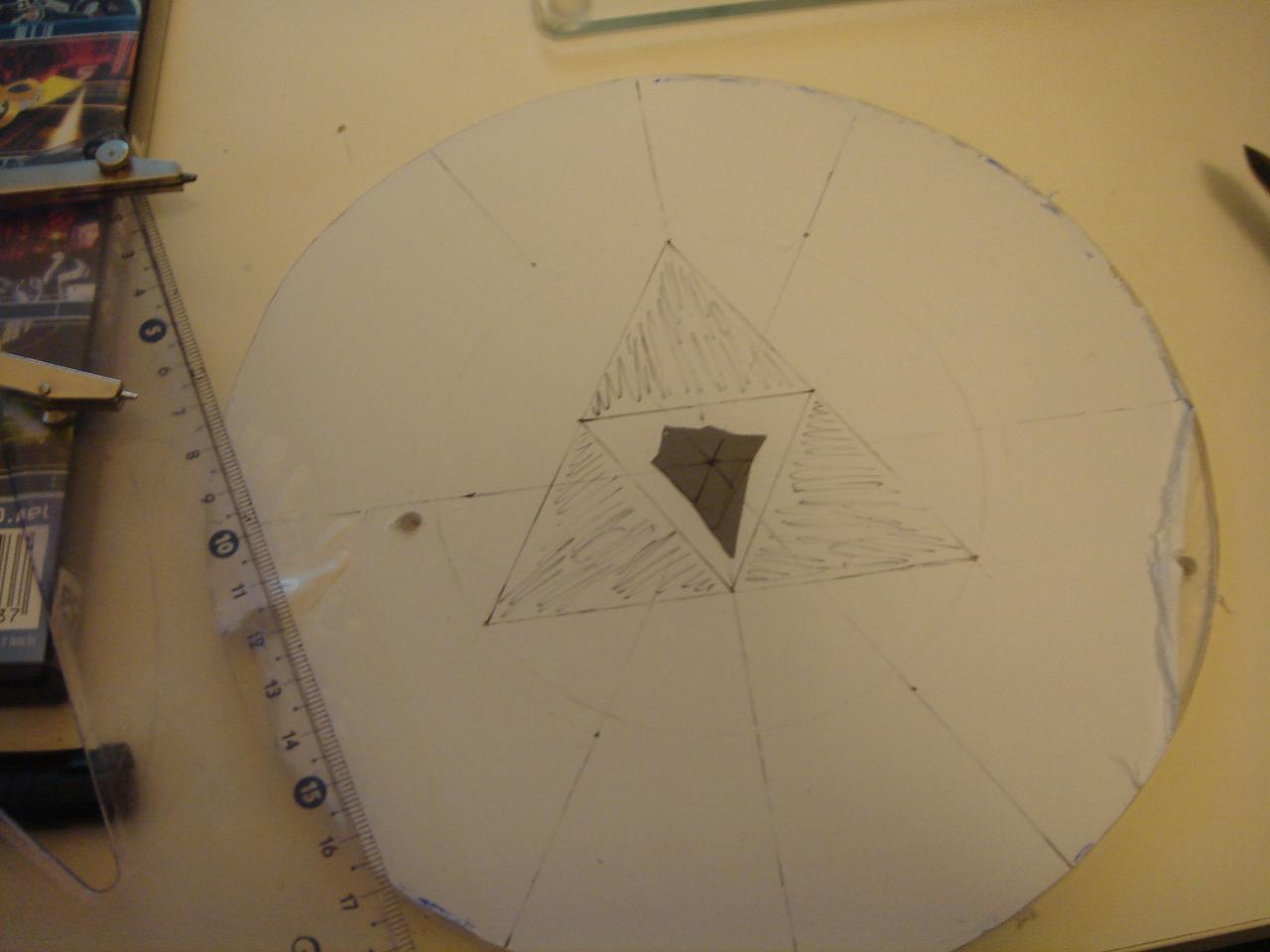

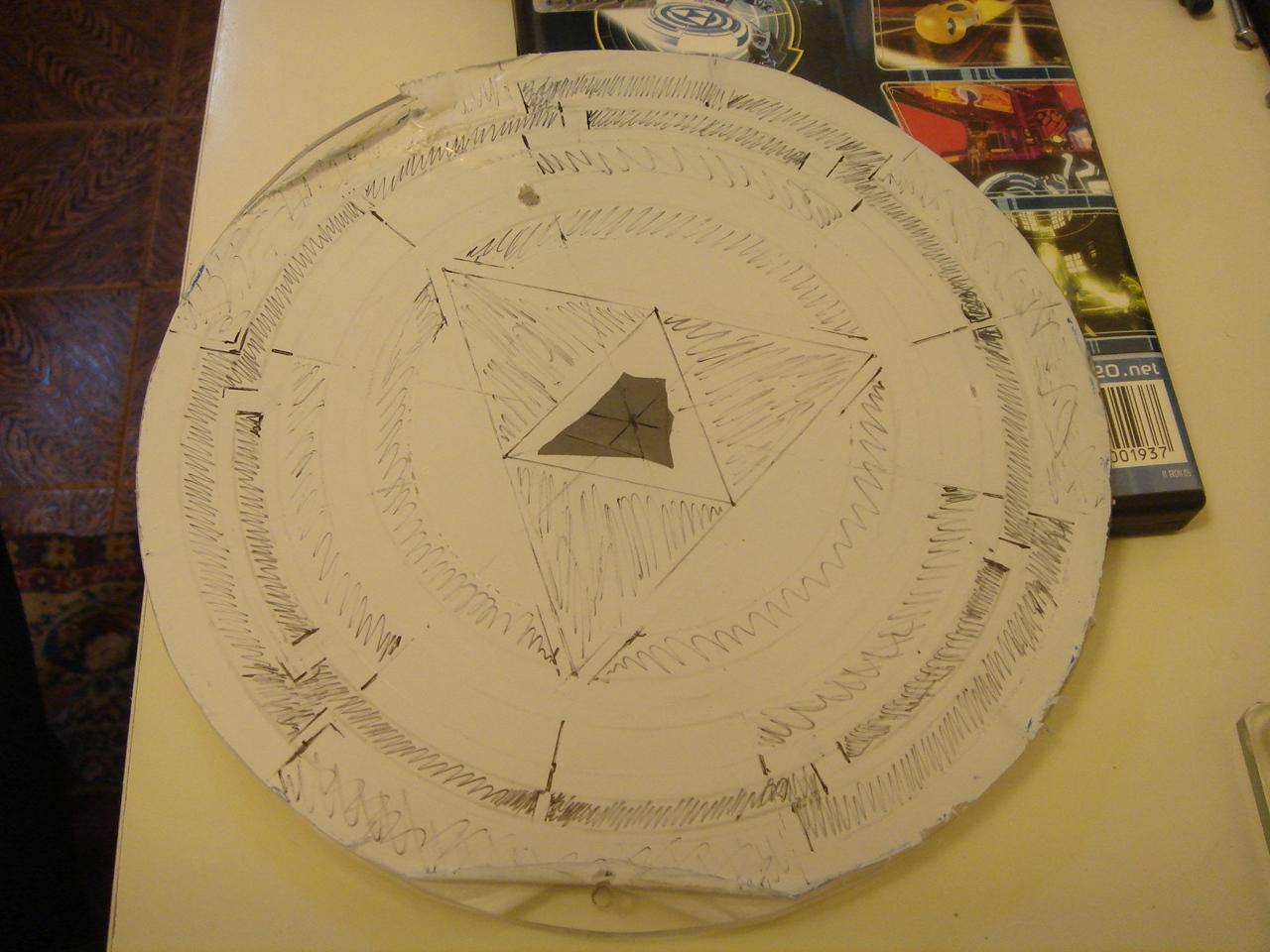

the completed drawing:

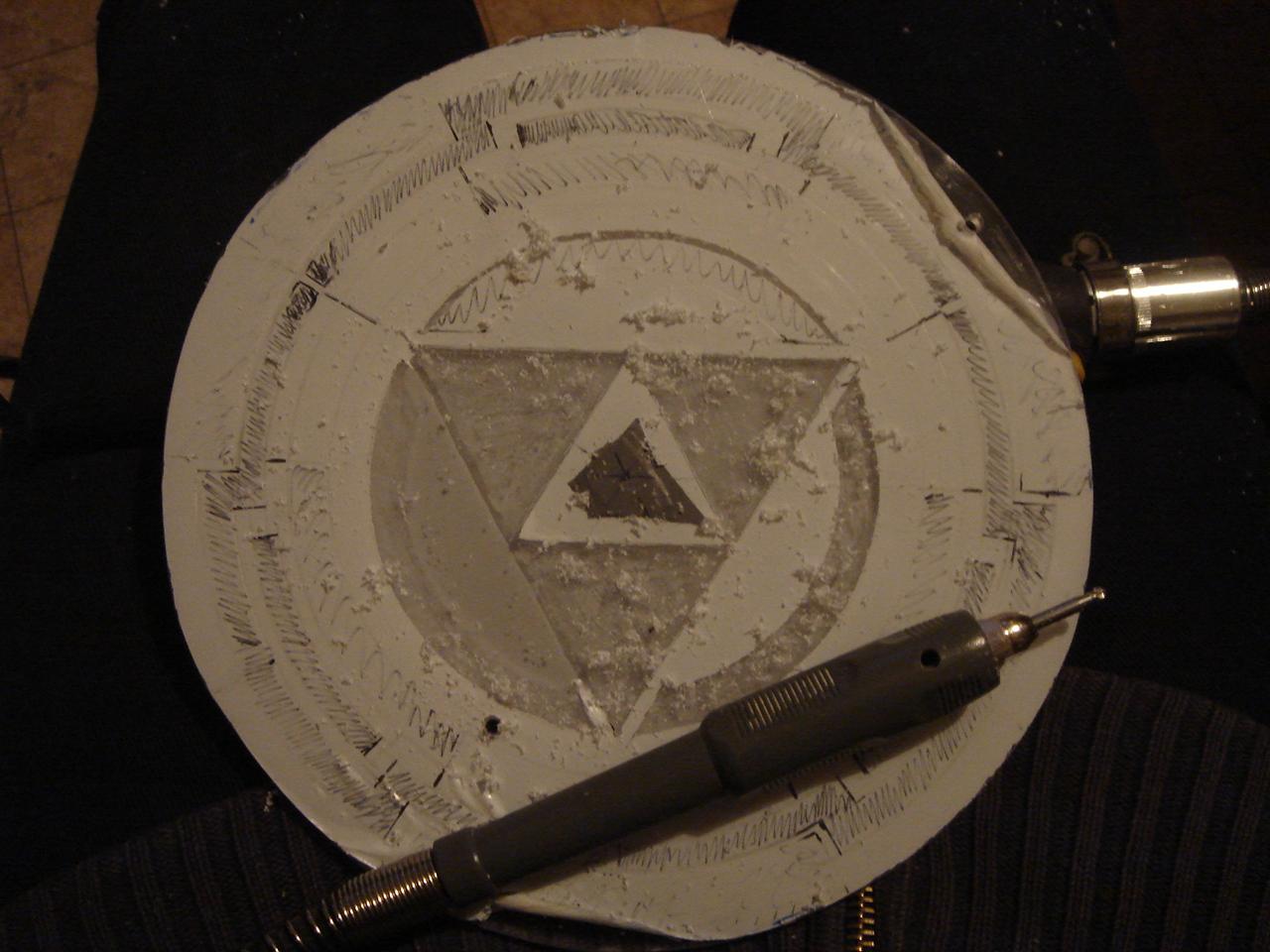

then I started to engrave it:

then I removed the white film, to proceed with the second pass:

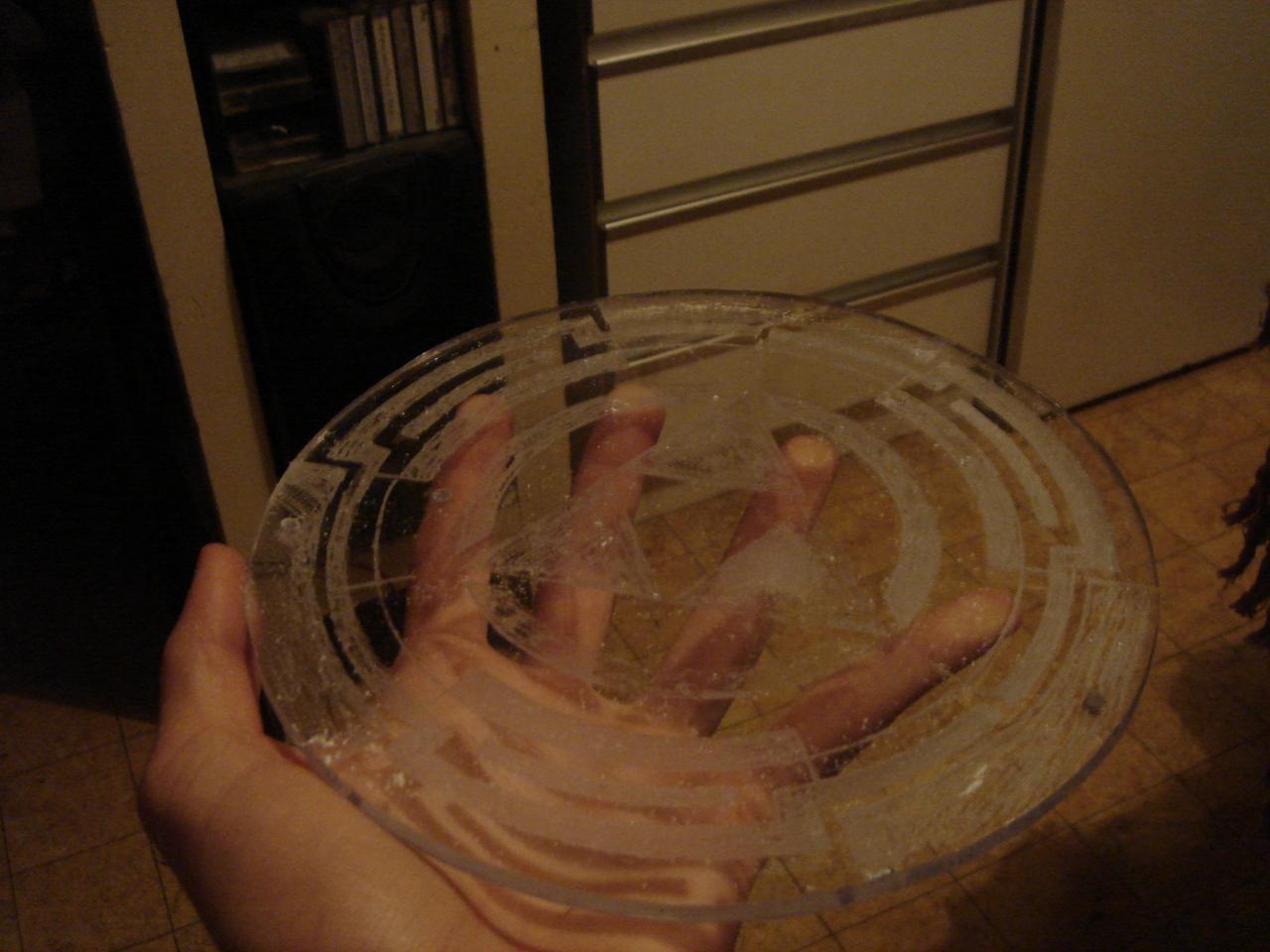

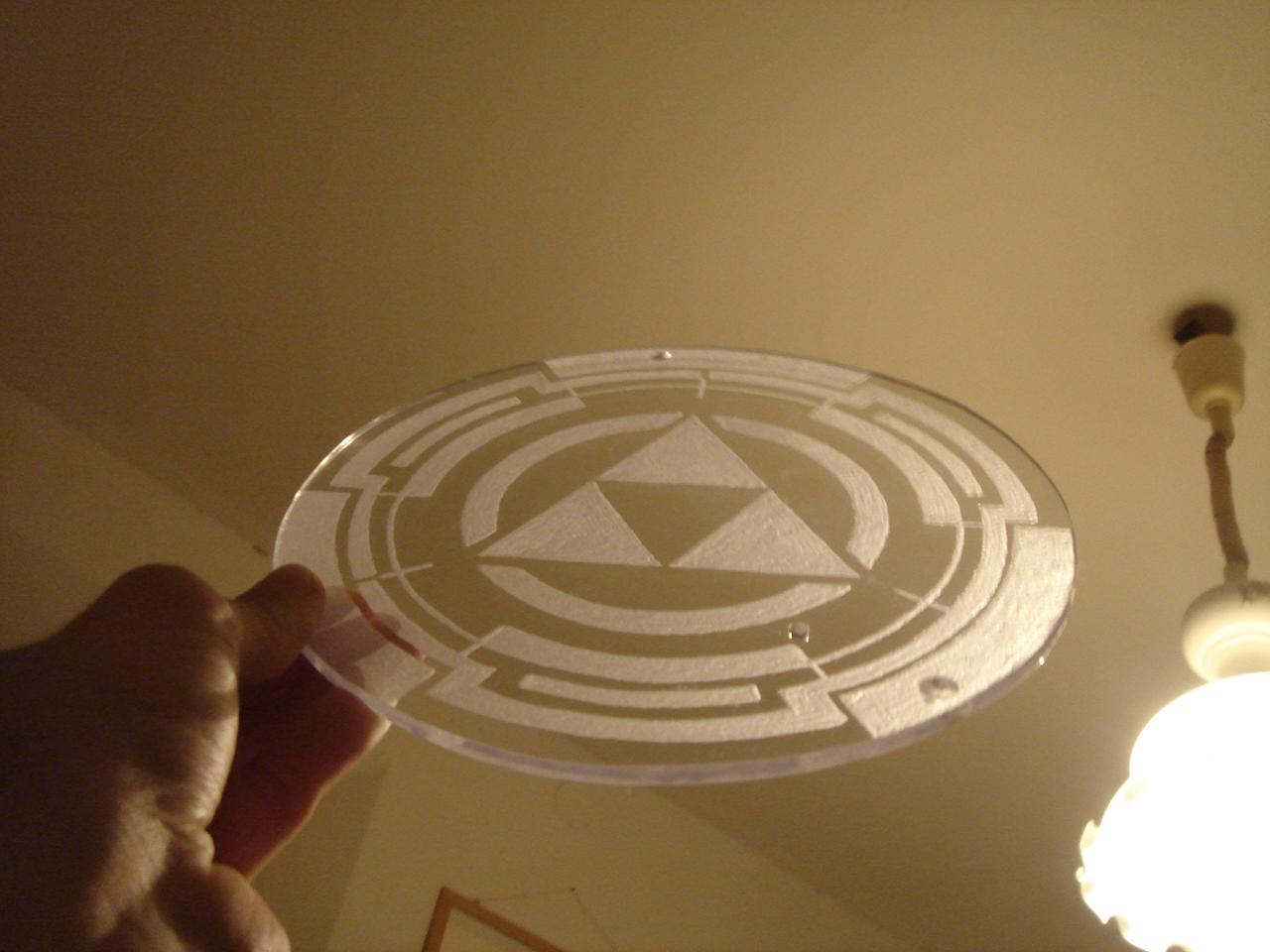

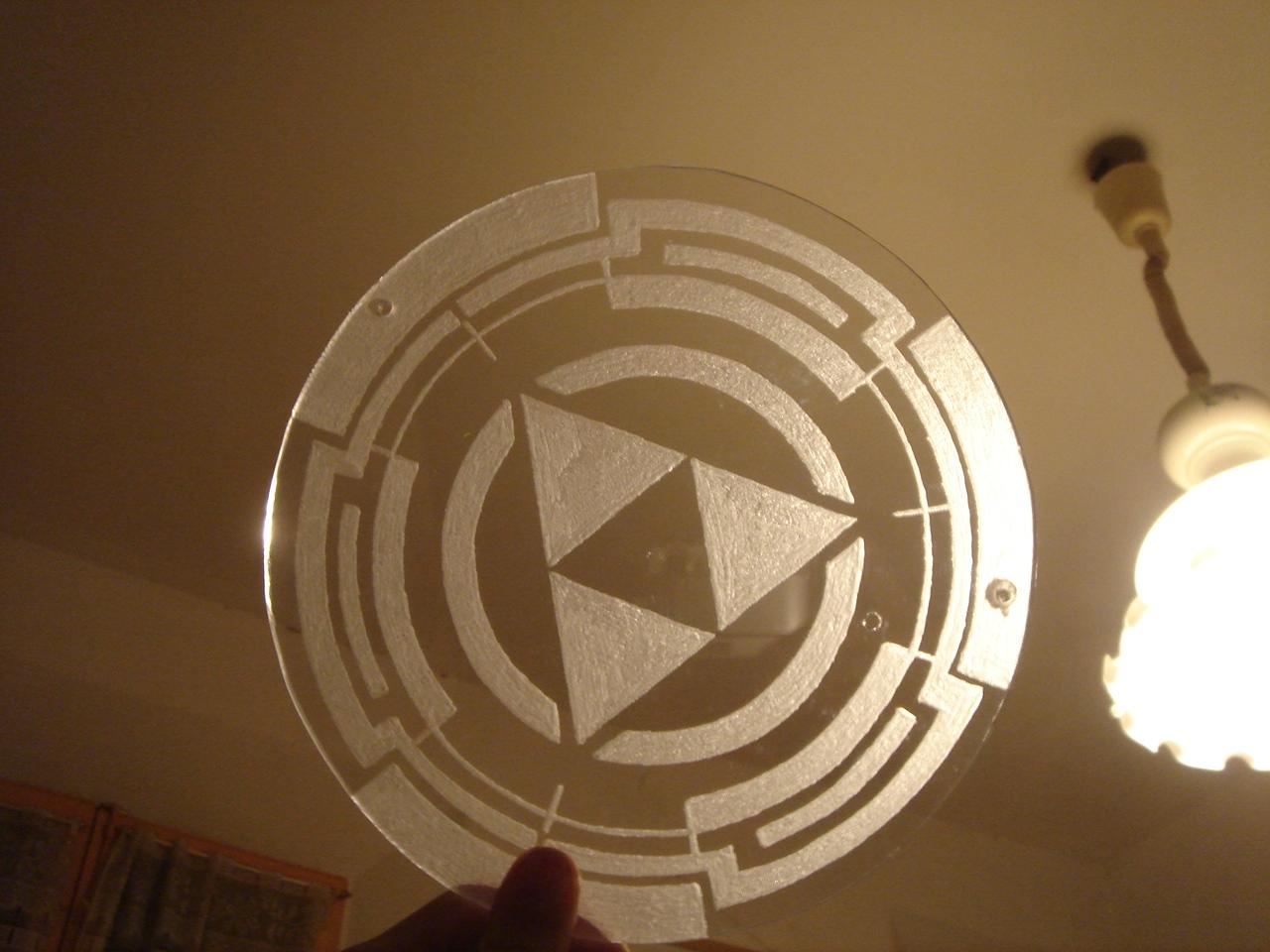

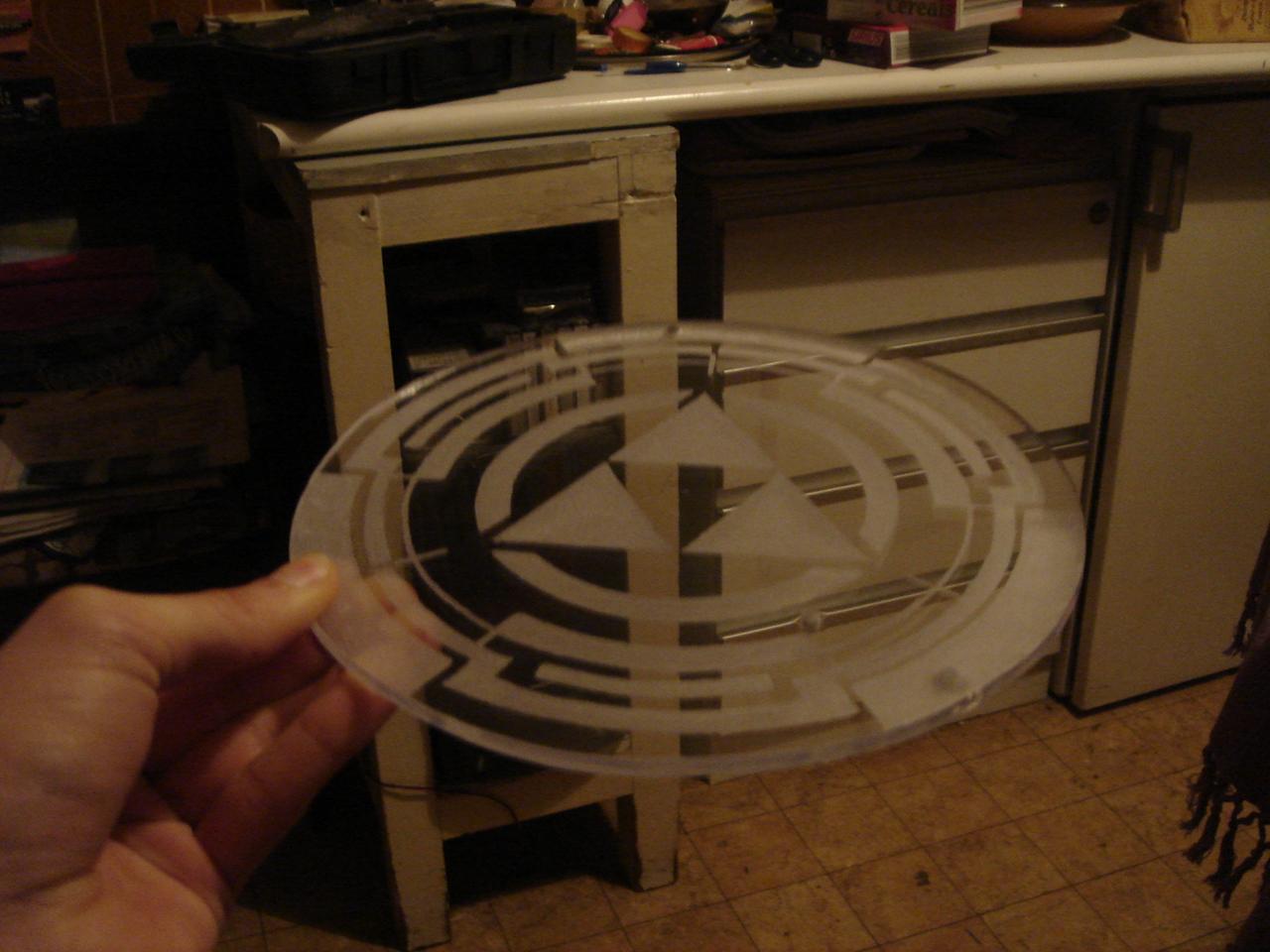

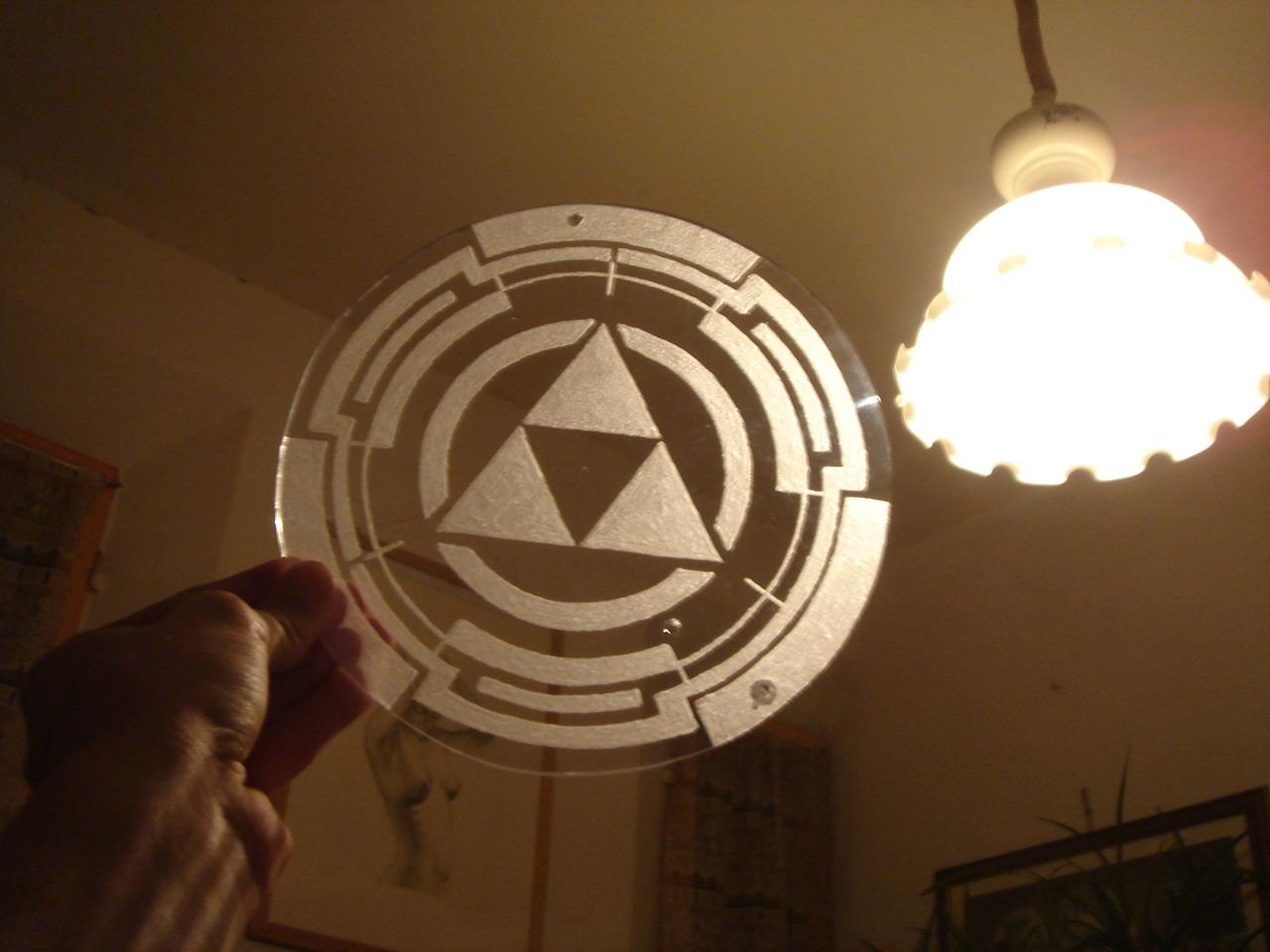

And the finished result, after the second pass of engraving 😀 :

    Mounting the optical drive structure

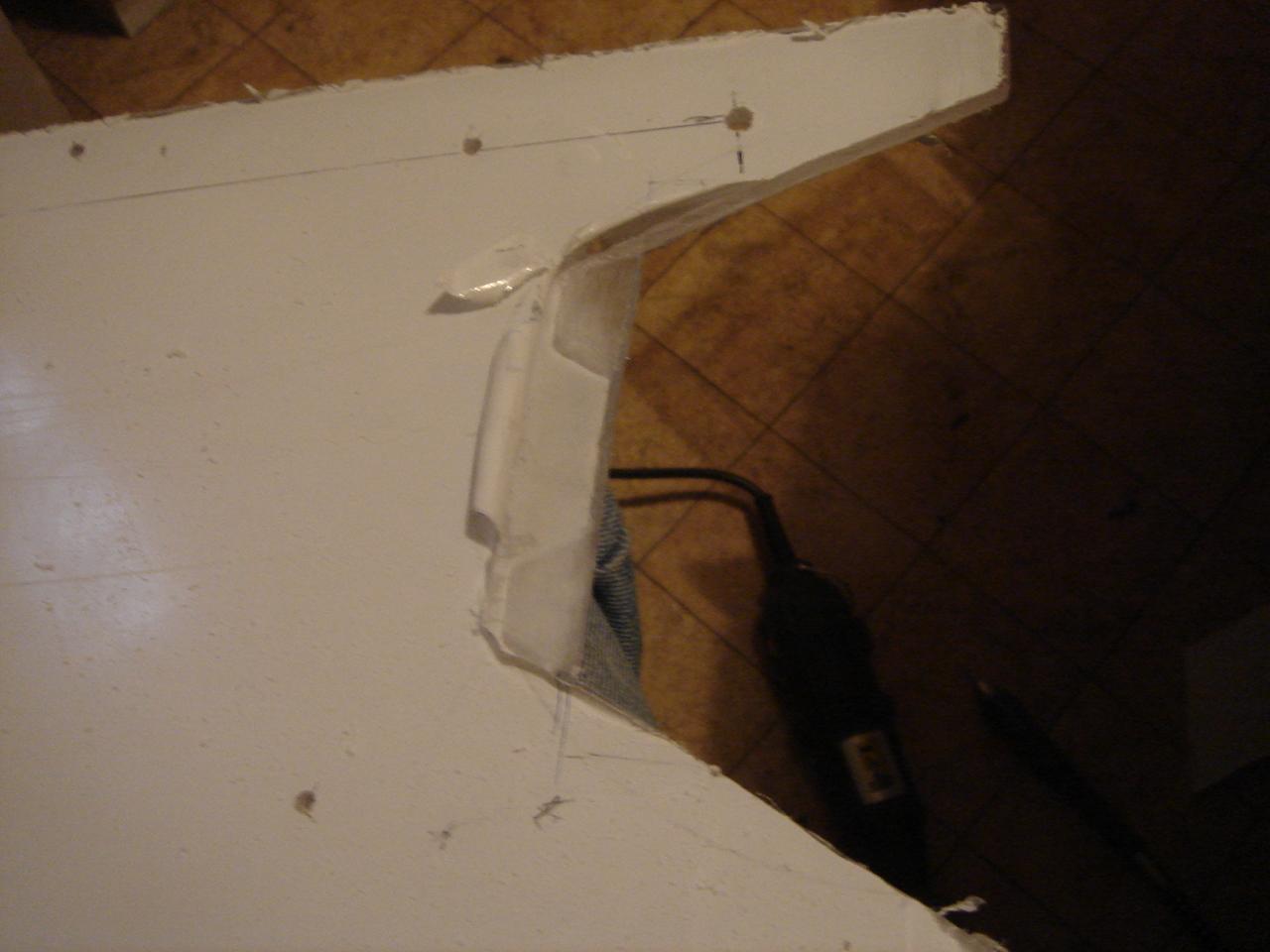

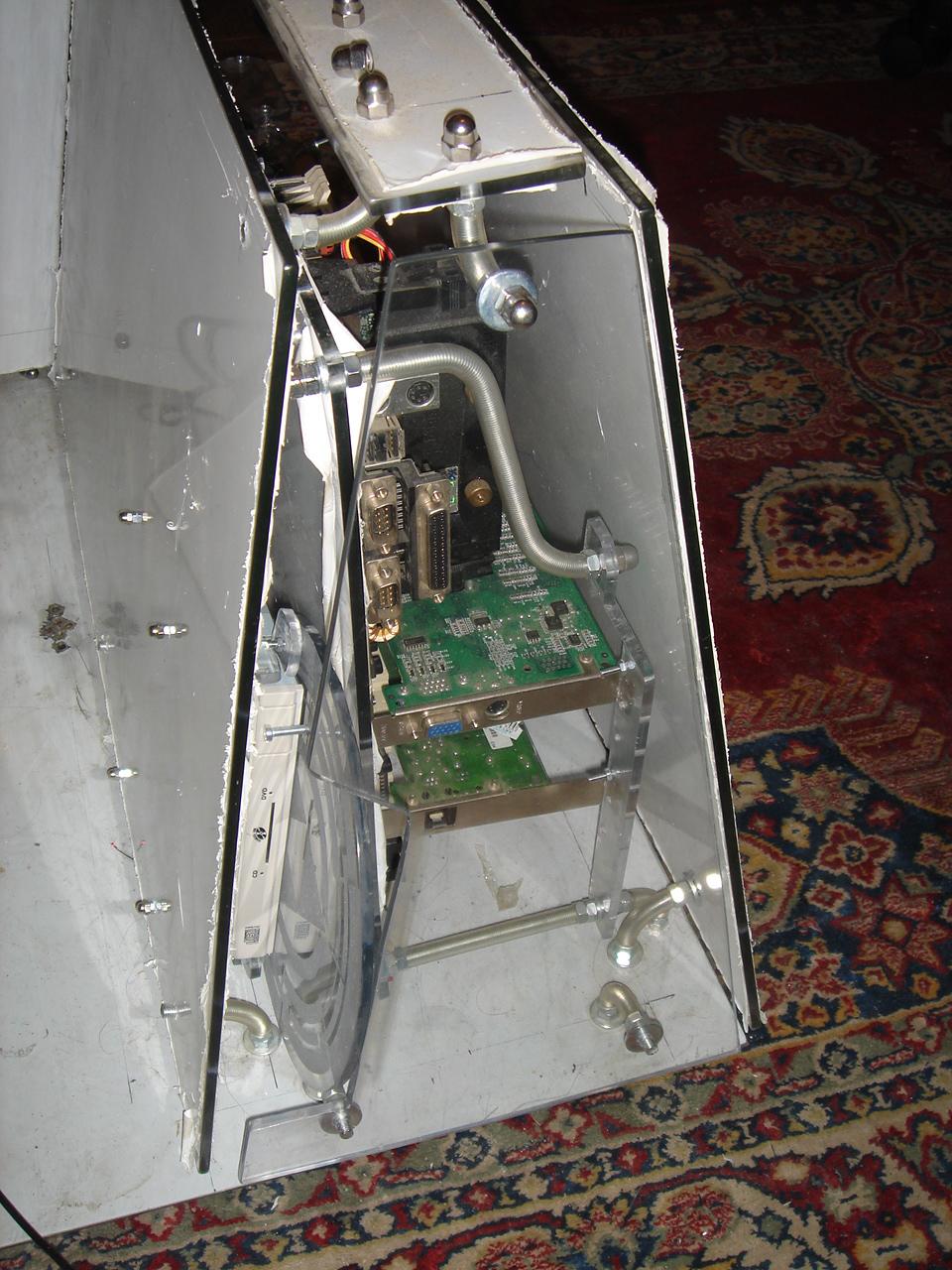

I mounted the optical drive structure inside the case:

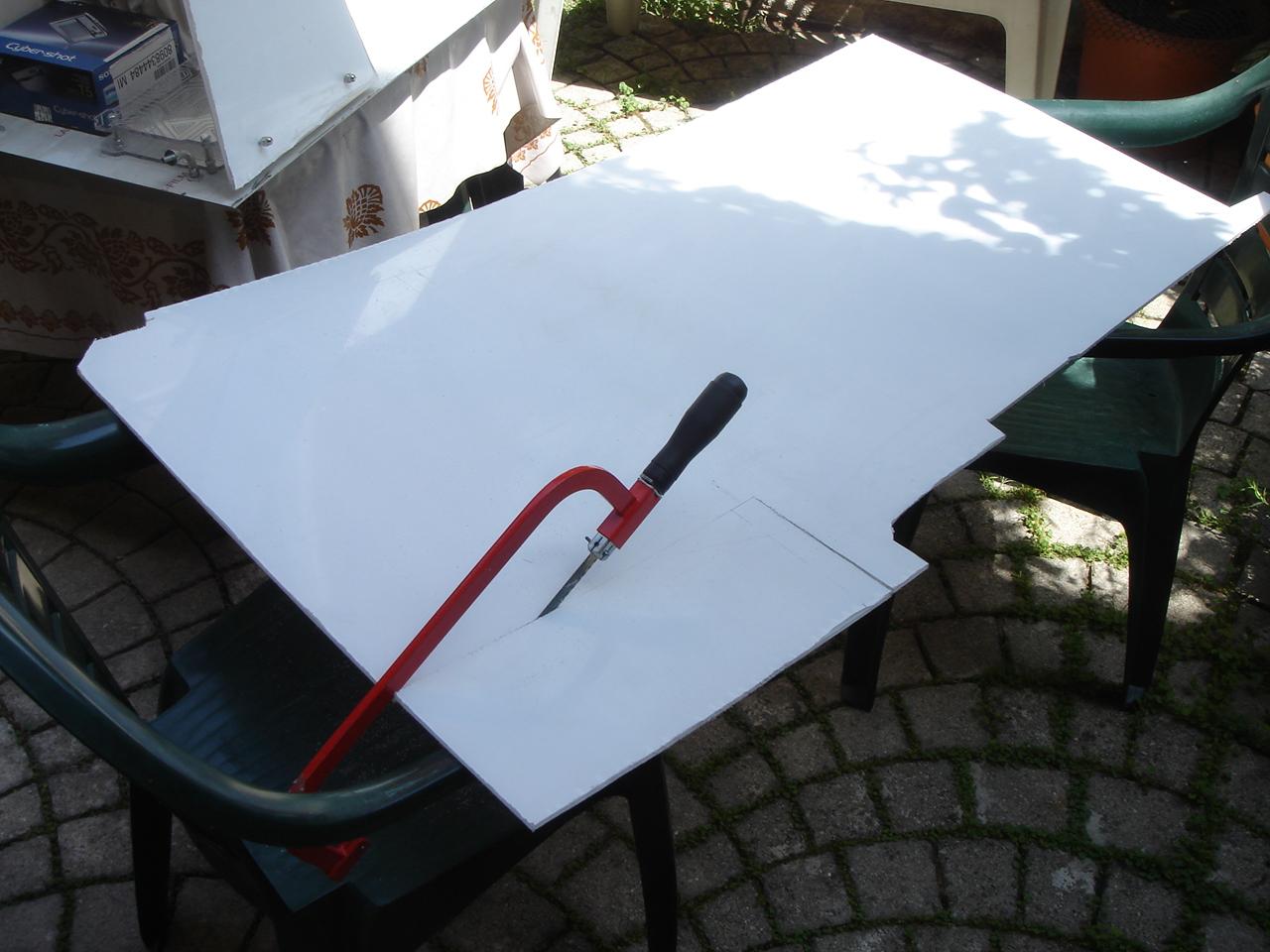

I cut (and polished the edges of the cut) of the small side wall:

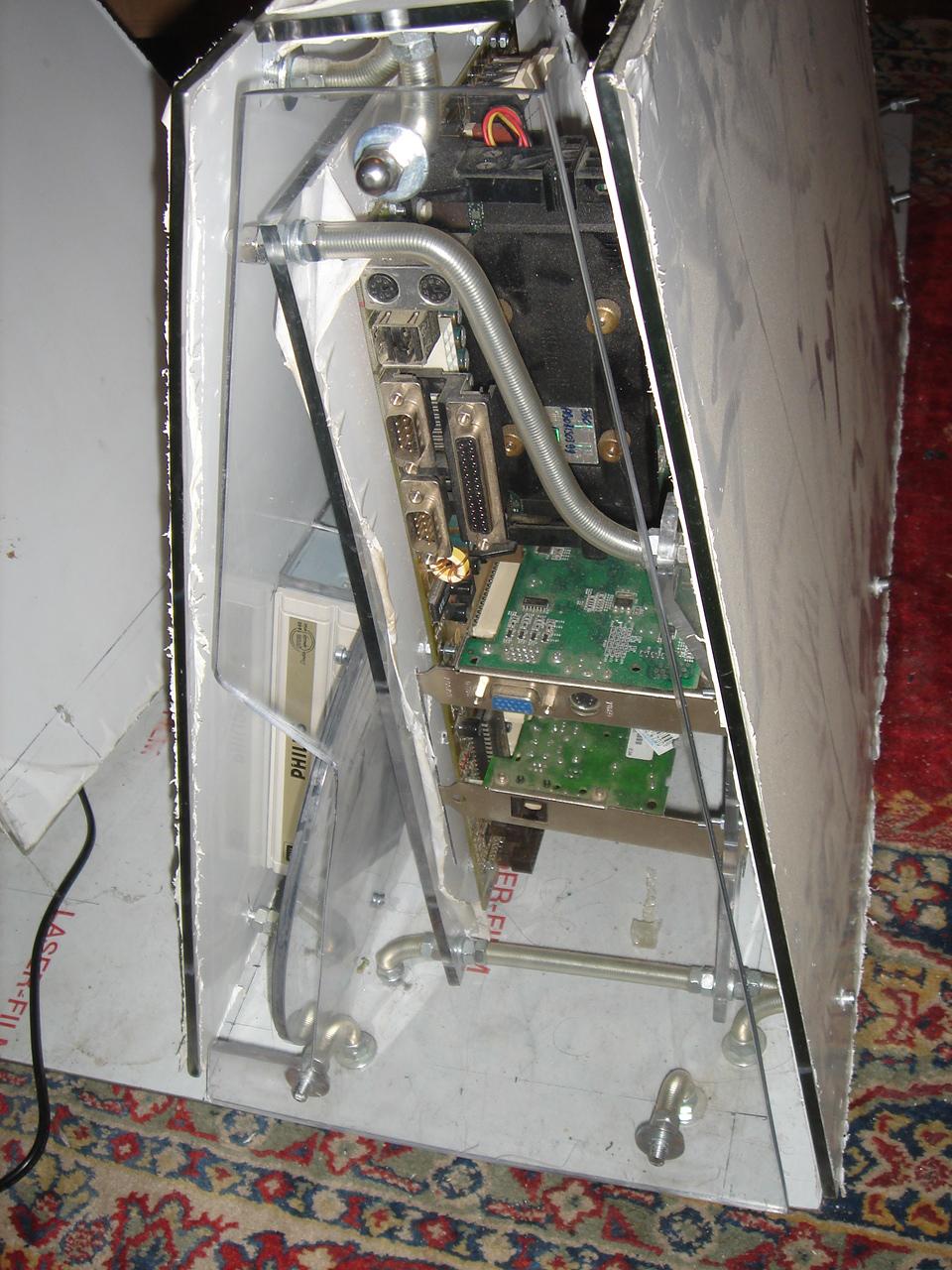

the side of the case with the small side wall mounted:

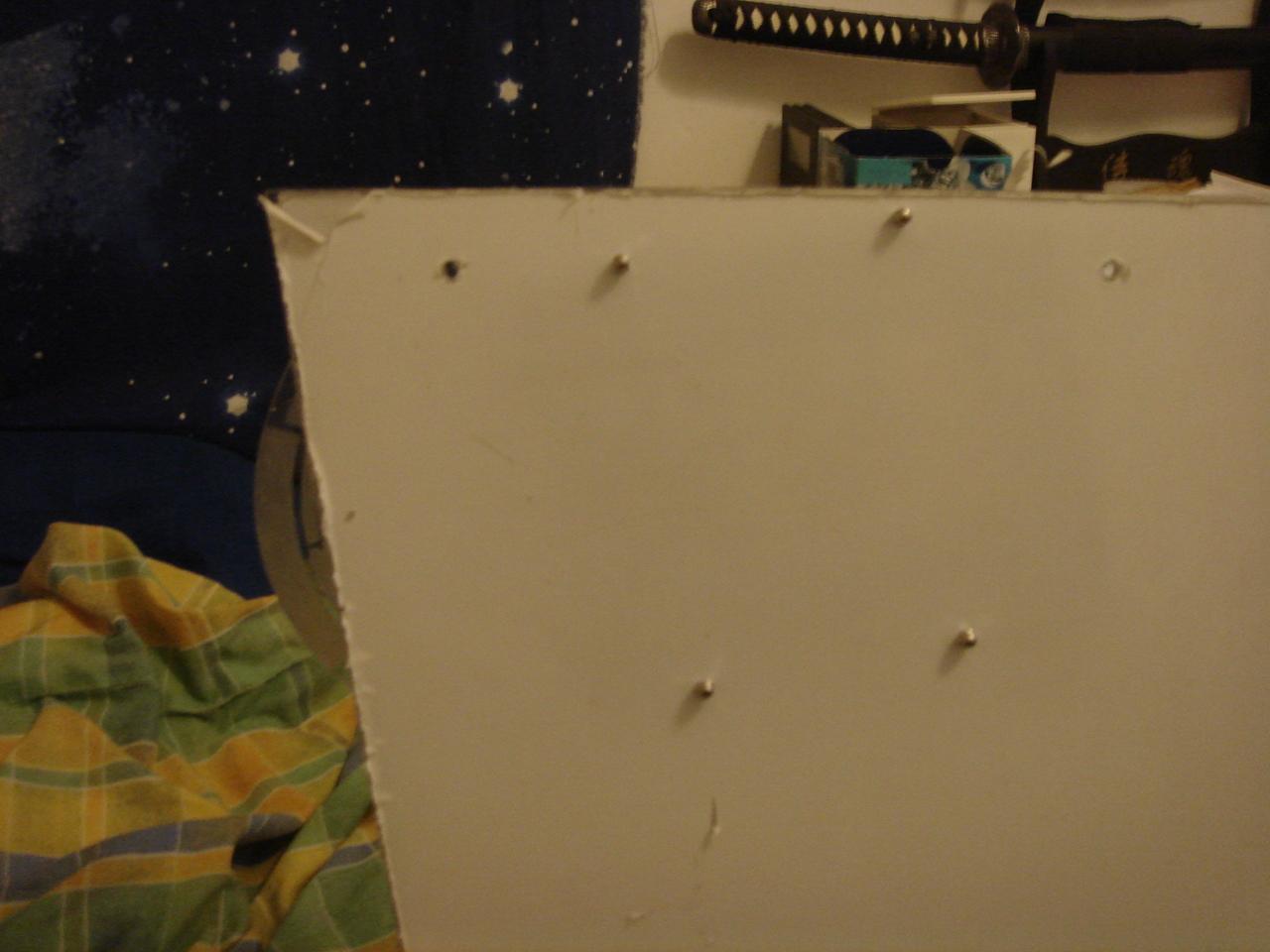

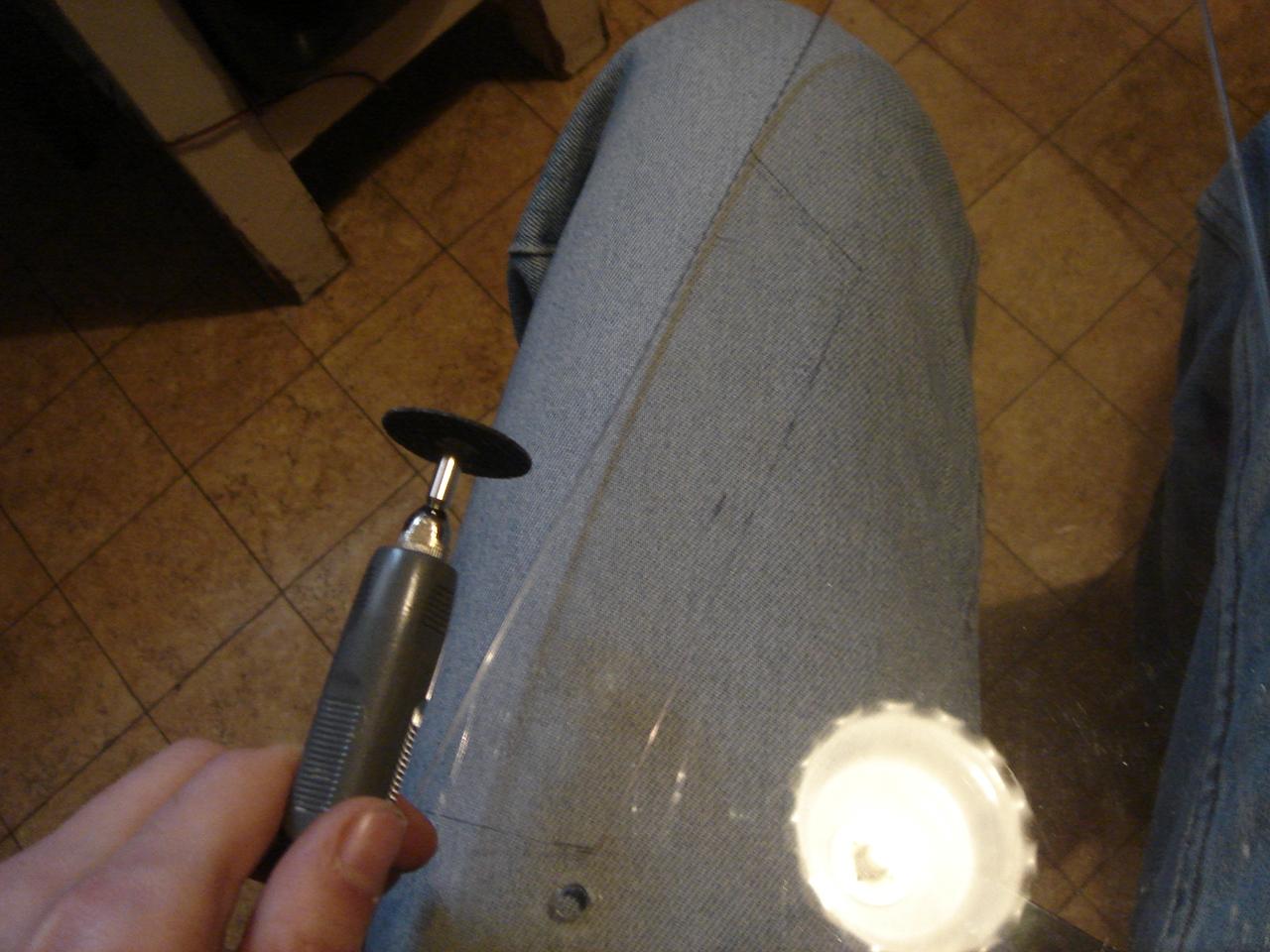

At this point I also had to cut the big wall behind the screen:

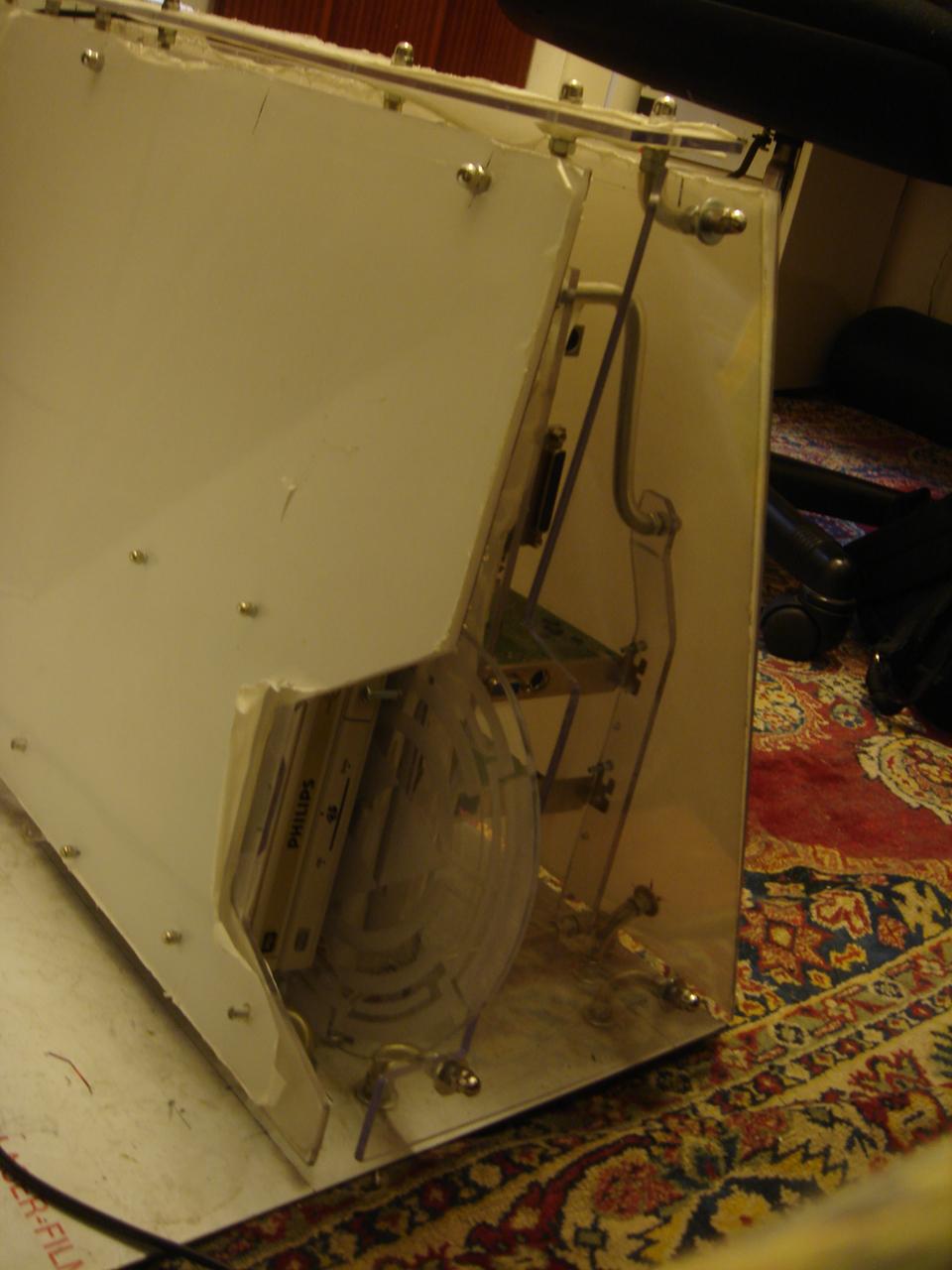

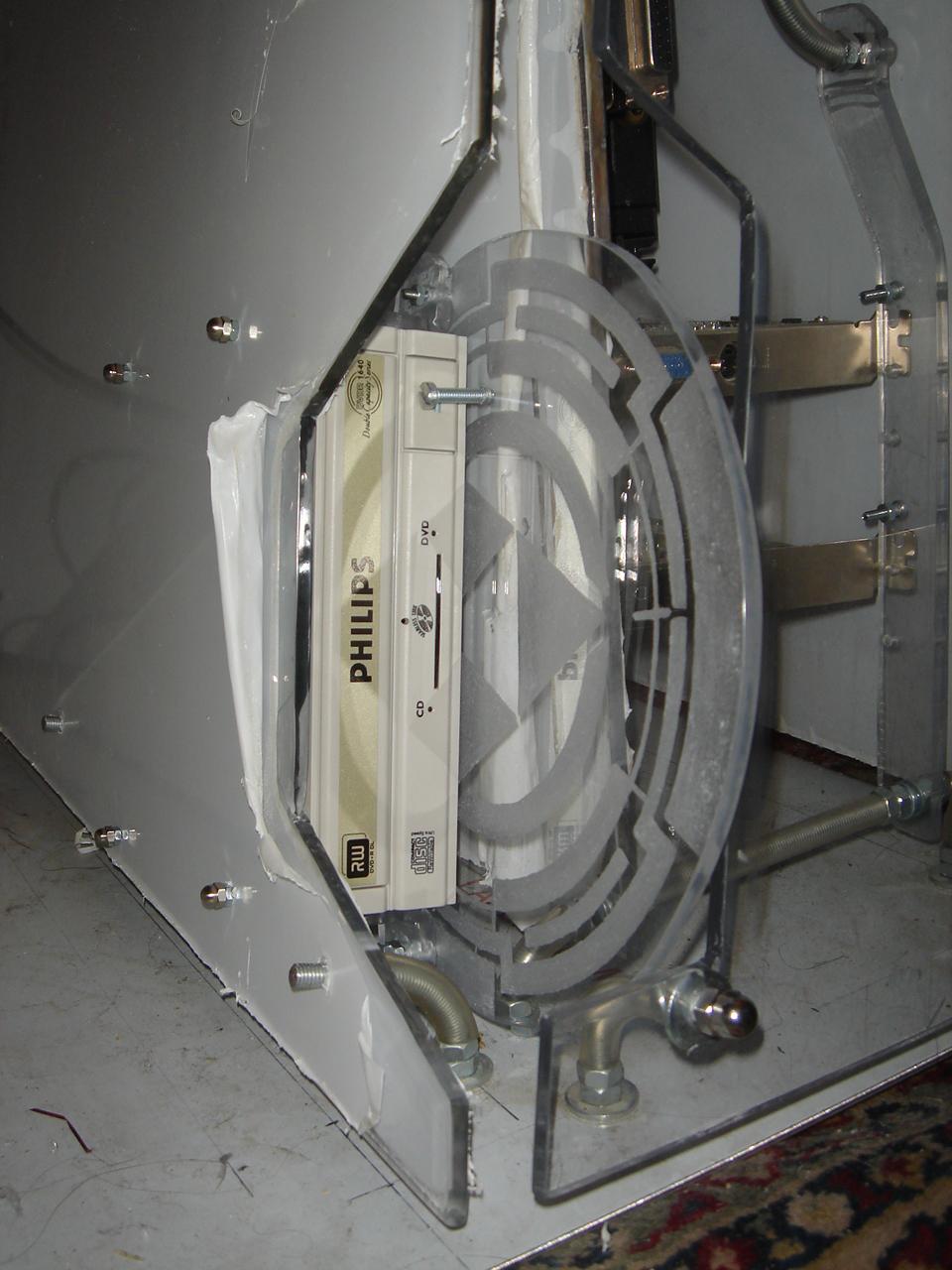

The Tron disk in place seen from the outside:

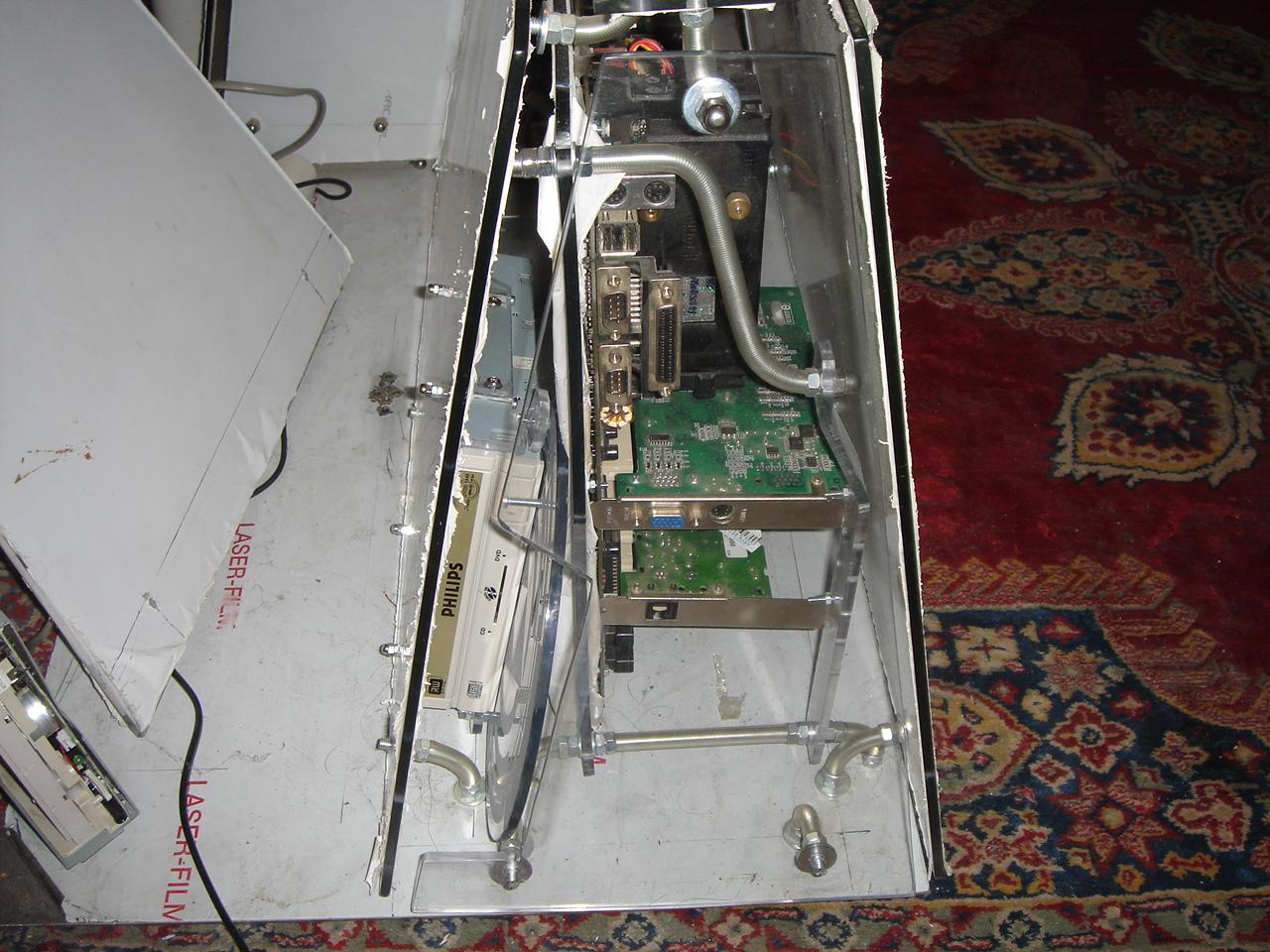

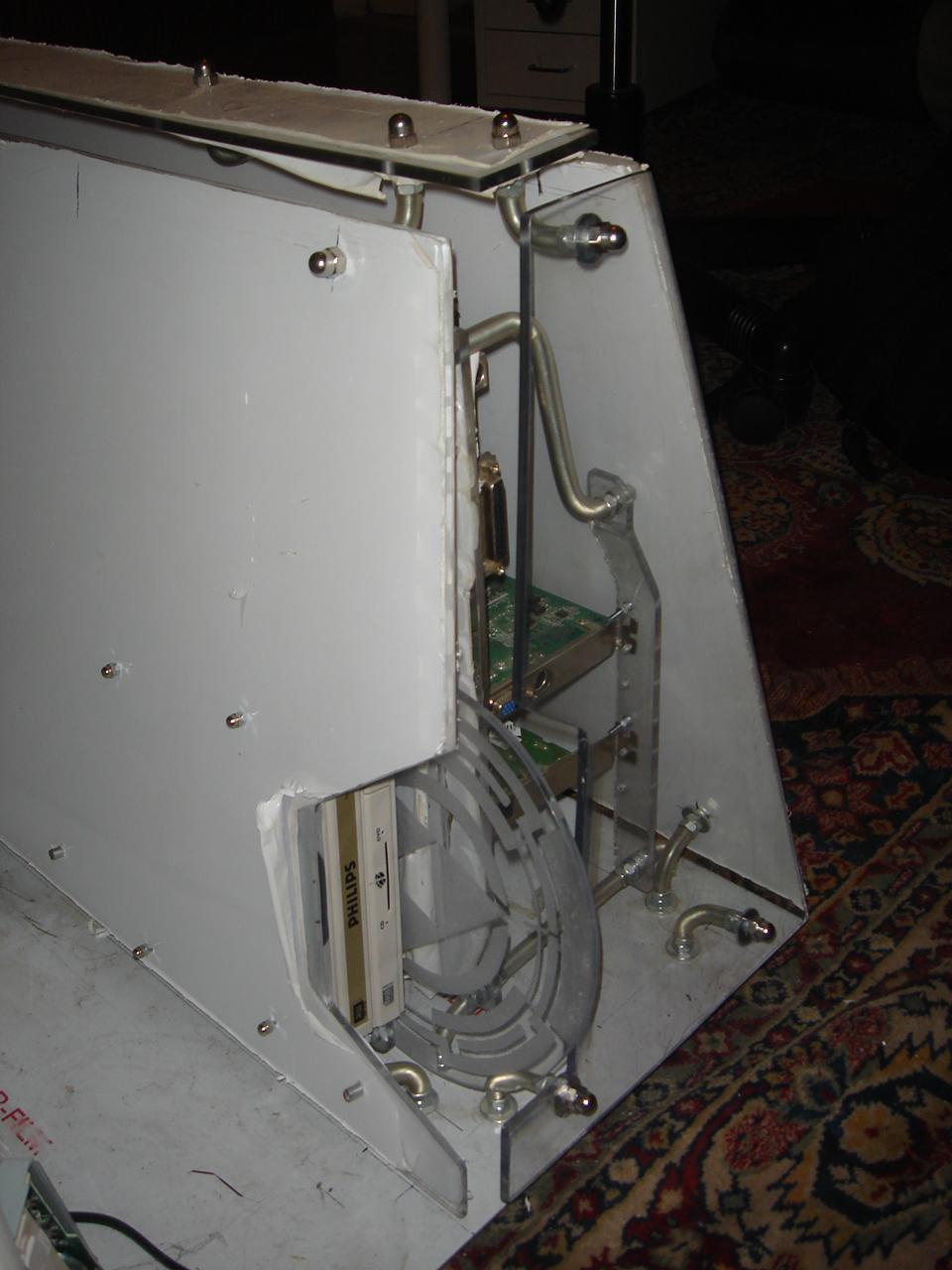

The whole structure completed and assembled:
